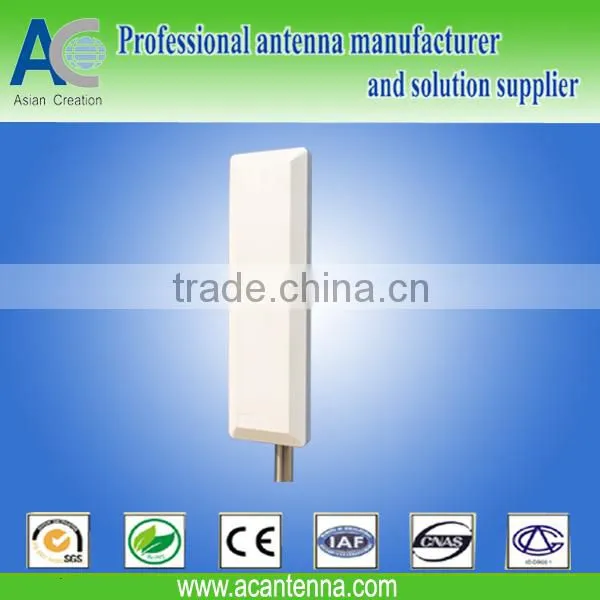

directional panel antenna 18dBi 5.8G
Applications:
5.1/5.5/5.8GHz Communication System
Point to point, point to multipoint
Features:
* High gain, High F/B ratio
* Low profile, Small size, Light weight
* With customer mounting plate
5.8Ghz Antenna
directional antenna
Panel Antenna
Electrical Specifications | |
Model |
AC-D58V18-60A |
Frequency Range |
5725-5850MHz |
Gain |
18dBi |
VSWR |
≤1.5 |
Polarization |
Verticalor Horizontal |
Horizontal Beam Width |
60° |
Vertical Beam Width |
8° |
F/B Ratio |
>25dB |
Impedance |
50ohm |
Maximum Input Power |
100W |
Connector |
N female |
Operating Temperature |
-40°C to+80°C |
Mechanical Specifications | |
Antenna Dimension |
430×138×45mm |
Weight |
1.80kg |
Mounting Mast Diameter |
Ø30~Ø50mm |
Rated Wind Velocity |
241Km/h |
Memo: Above specification subject to change without further notice.Please contact us for more details.
