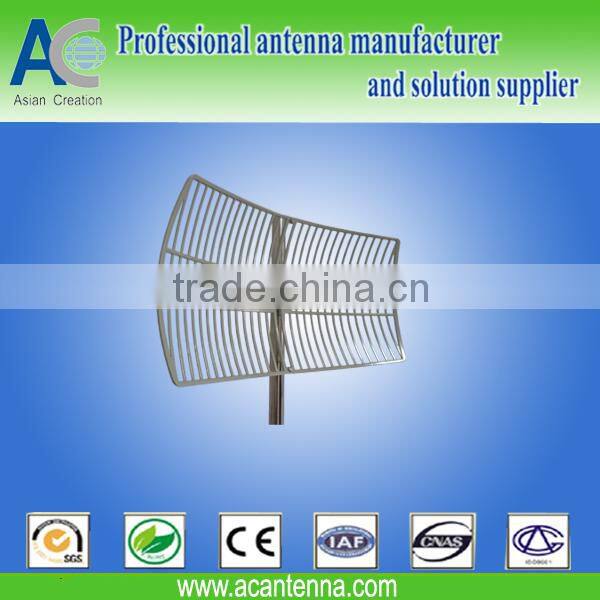

WLAN/WiFi 5GHz Parabolic Grid Antenna
Applications:
* 5.1/5.5/5.8 GHz WLAN System
* Long-Range Directional Applications
* Point to Point/Point to Multi-point Systems
* Wireless Bridges
Features:
* High Gain,Low VSWR
* Easy to install
* Aluminum Die Cast Reflector
* UV Stable Coat Finish
* All weather operation
* Compatible with Vertical or Horizontal Polarization
Electrical Specifications | |
Model |
AC-D58G29-0609 |
Frequency Range |
5725-5850 MHz |
Band width |
125 MHz |
Gain |
29 dBi |
F/B Ratio |
≥30 dB |
Horizontal Beam width |
4° |
Vertical Beam width |
6° |
V.S.W.R |
≤1.5 |
Radiation |
Direction |
Polarization |
Vertical or Horizontal |
Maximum Input Power |
100W |
Impedance |
50Ω |
Operating Temperature |
-40℃ to+70℃ |
Connector |
N female |
Cable Length |
none |
Mount way |
Pole |
Mechanical Specifications | |
Antenna Dimension |
600x900MM |
Weight |
3.5KG |
Rated Wind Velocity |
60m/s |
Memo: Above specification subject to change without further notice.Please contact us for more details.
