Specifications
2.4ghz wlan indoor 9dbi antenna terrestrial1.Freq: 2400-2483MHz
2.Gain:9dBi
3.Size:60x415mm

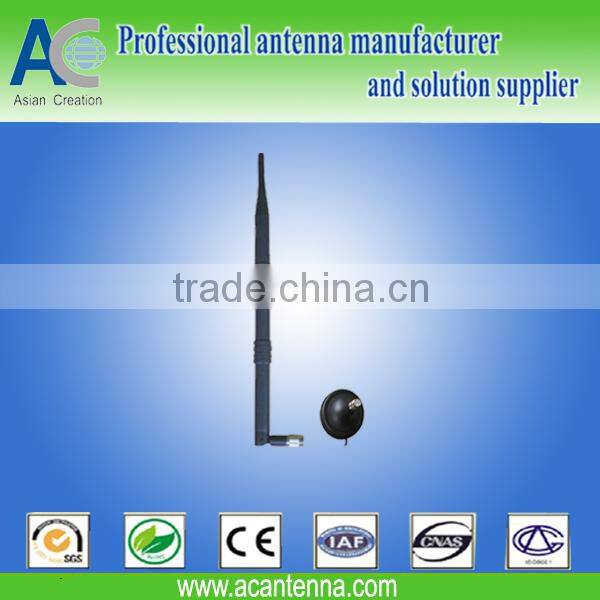

2.4ghz wlan indoor 9dbi antenna terrestrial
Mobile Antenna is designed for the spread spectrum communication system.
This antenna has good VSWR. The light structure and small dimension makes
it easy to install. The performance of it is stable. It also has excellent
shockproof and anti-aging performance.
Electrical Specifications | |
Model | AC-Q24I09 |
Frequency Range | 2400-2483MHz |
Band width | 83MHz |
Gain | 9dBi |
V.S.W.R | ≤2.0 |
Radiation | Omni |
Polarization | Vertical |
Maximum Input Power | 50W |
Impedance | 50Ω |
Operating Temperature | -40℃ to+70℃ |
Connector | SMA Male |
Cable Length | 3m |
Mount way | Magnetic |
Mechanical Specifications | |
Antenna Dimension | Φ60×415mm |
Weight | 135g |
Rated Wind Velocity |
|
Memo: Above specification subject to change without further notice.Please contact us for more details.
