Specifications
LTE+GSM+WIF combination antenna1.Freq:GSM+WIFI+LTE
2.Gain:3dBi/3dBi/3dBi
3.Size:143.6*65mm

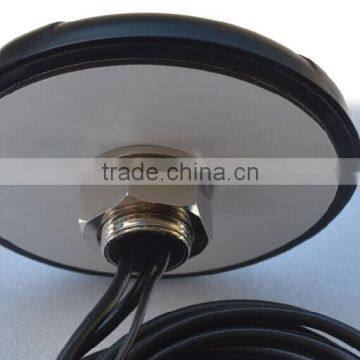

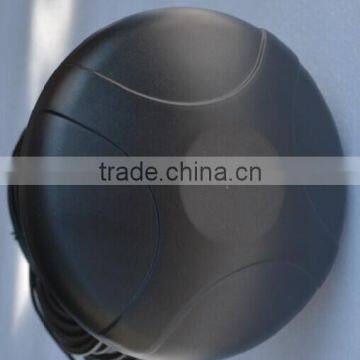

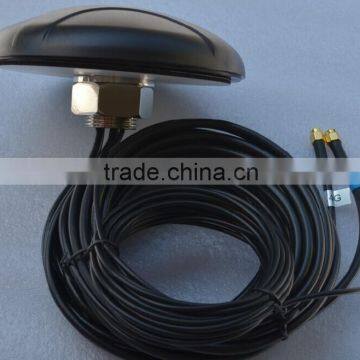

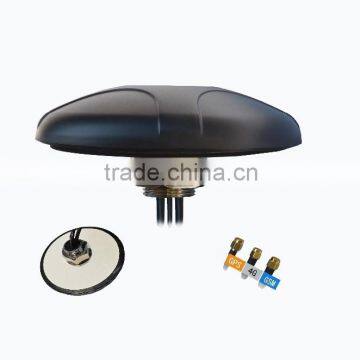

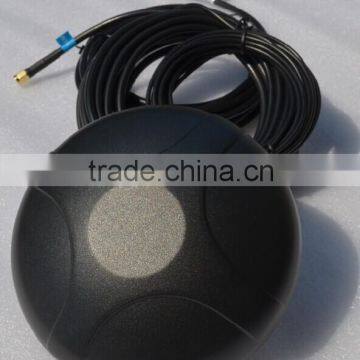

WIFI+GSM+LTE combination antenna
Applications:
Vehicle gps navigation
Features:
Work GSM+WIFI+4G Band High Gain, High Stability,
Light Weight, Compact Size UV-ABS Radome.
ⅠElectrical Specifications | |
GSM Part: | |
Model | AC-GSM/WIFI/LTE-03 |
Frequency range | 890-960/1710-1880MHz |
VSWR | 2.5 |
Gain | 3dBi |
Polarization | Linear |
Impendance | 50ohm |
LTE Part: | |
Frequency range | 700-2700MHZ. |
VSWR | 2.5 |
Gain | 3dBi |
Polarization | Linear |
Impendance | 50ohm |
WIFI Part: | |
Frequency range | 2.4/5GHZ |
VSWR | 2.5 |
Gain | 3dBi |
Polarization | Linear |
Impendance | 50ohm |
Π Mechanical Specifications | |
Mounting Method | Screw |
Housing | Black |
Cable | RG316/RG178/RG174/RG58U(can be customization) |
Length | 3M(can be customization) |
Connector | SMA Male(can be customization) |
Operating Temperature | -40°C~+85°C |
Humidity | 55%-75%RH |
Waterproof | IP67 |
Humidity | 95%~100%RH |
Antenna Dimension | 143.6×65 mm |
Weight | 1.2KG |
Memo: Above specification subject to change without further notice.Please contact us for more details.
