Specifications
Waterproof outdoor antenna 2.4ghz fm china wireless transmitter1.Freq:2400-2483MHz
2.Gain:16dbi
3.Size:195*195*20mm

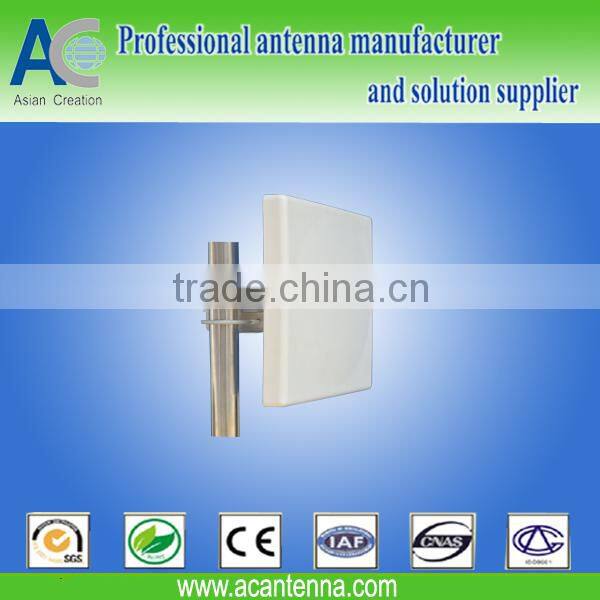

Waterproof outdoor antenna 2.4ghz fm china wireless transmitter
Applications:
2.4G Communication System
Support IEEE802.11a
Point to point, point to multipoint
Features:
High gain, High F/B ratio
Low profile, Small size, Light weight
Dual polarization operation
Integrated enclosure, with pigtail
With customer mounting plate
Electrical Specifications | ||
Model | AC-D24V16-19 | |
Frequency Range | 2400-2500MHz | |
Gain | 16dBi | |
VSWR | ≤1.5 | |
Horizontal Beam Width | 30° | |
Vertical Beam Width | 30° | |
F/B Ratio | ≥25dB | |
Impedance | 50ohm | |
Maximum Input Power | 100W | |
Connector | N female | |
Operating Temperature | -40℃ to+80℃ | |
Mechanical Specifications | ||
Antenna Dimension | 195×195×30mm | |
Weight | 0.6kg | |
Mounting Mast Diameter | Ø30~Ø50mm | |
Rated Wind Velocity | 241Km/h | |
Memo: Above specification subject to change without further notice.Please contact us for more details.
