Specifications
U.FL Connector Compact Internal 2.4GHz Antenna foshan antenna factory 1.Freq:2400-2483MHz2.Gain:2.5dBi
3.Size:35.7*6.8*0.8mm

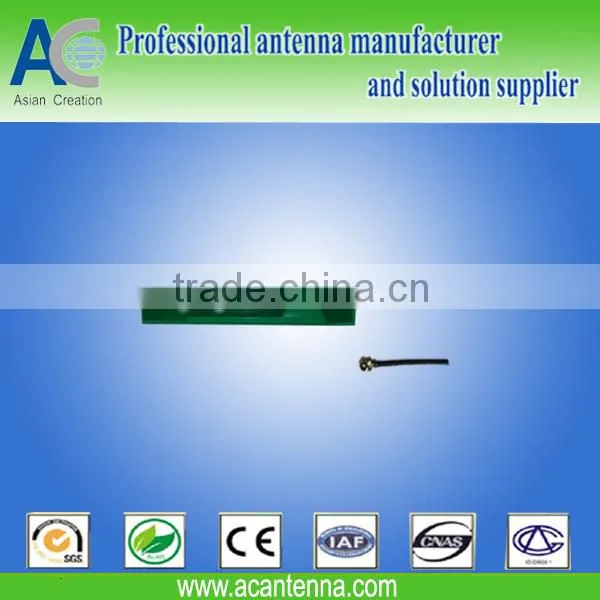

U.FL Connector Compact Internal 2.4GHz Antenna foshan antenna factory
Applications:
for 2. 4ghz spread spectrum of communications
Mobile terminal design of the secondary benefits
of antenna and antenna body. the special pcb board
is in great shape for installing.
Features:
antenna for 2. 4g system of communication
terminals.the antenna design of the production
structure and beauty for installing.
Electrical Specifications | |
Model |
AC-Q24N02 |
Frequency Range |
2400-2500MHz |
Gain |
2.5dBi |
VSWR |
≤1.5 |
Polarization |
Vertical |
Impedance |
50ohm |
Maximum Input Power |
50W |
Connector |
ipex/mcx/mmcx |
Operating Temperature |
-40℃ to+80℃ |
Mechanical Specifications | |
Cable length(mm) |
100/200 etc |
Cable type |
1.13 |
Antenna Dimension |
35.7×6.8×0.8mm |
Weight |
5g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
