Specifications
Japanese Type Gasoline Concrete Vibrator MachineDYNAPAC Type,Australia Type,Russia Type,
Diesel,Electric Concrete Vibrator

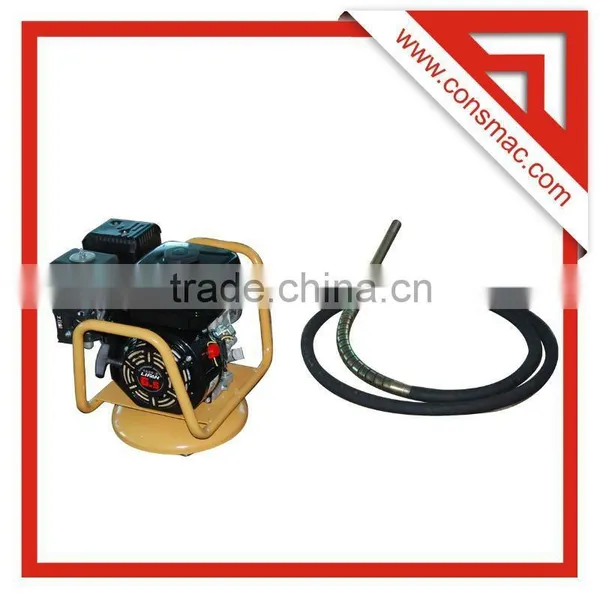

Gasoline Concrete Vibrator Machine
CONSMAC SVD series Gasoline Concrete Vibrator Machine is the drive unit for various concrete vibrator shaft.
Gasoline Concrete Vibrator Machine Coupling Choice:
1. DYNAPAC Coupling
2. Japanese Coupling
3. Ball Type Coupling
4. Pin Type Coupling
5. Other coupling like Australia type, Russia type can be available, based on customers' choice.
Gasoline Concrete Vibrator Machine Specification:
| Model | SVD-H | SVD-R | SVD-L | SVD-K |
| Engine | Air-cooled, 4-cycle,single cyliner | |||
| Engine Type | Petrol, Honda GX160 | Petrol, Robin EY20 | Petrol, Lifan 168F | Diesel, Kama 170F |
| Power | 5.5hp/4.0kw | 5.0hp/3.6kw | 5.5hp/4.0kw | 3.8hp/2.8kw |
| Rotary Speed | 3600rpm | |||
| Coupling Choice | DYNAPAC Type, Pin Type, Ball Type | |||
| Applications | Concrete vibrator, submersible flexible pump | |||
| Weight | 22kg(49lbs) | 25kg(55lbs) | 24(53lbs) | 34(75lbs) |
| Packing | 53*38*54cm(21*15*21in) | |||
Concrete Vibrator Shaft
CONSMAC SVS series high-performance mechanical Concrete Vibrator Shaft. Large choice of couplings and diameters from 25 to 75 mm, drived by CONSMAC Diesel, Gasoline Concrete Vibrator(SVD series) and Electric Concrete Vibrator(SVE series)
Concrete Vibrator Shaft Coupling Option:
1. Japanese type
2. Dynapac type
3. Russian type
4. Turkish type
5. Australian type
6. Chinese square type
7. Other couplings can be available, based on customers' choice.
Concrete Vibrator Shaft Specification
| Model | SVS25 | SVS28 | SVS32 | SVS35 | SVS38 | SVS45 | SVS50 | SVS60 | SVS70 |
| Head Dia. | 25mm | 28mm | 32mm | 35mm | 38mm | 45mm | 50mm | 60mm | 70mm |
| Length of Shaft | Standard length:6m(1m-12m is available) | ||||||||
| Hose outside Dia | 24mm | 25mm | 30mm | 32mm | 36mm | ||||
| Hose inner Dia | 13mm | 14mm | 16mm | 18mm | 20mm | ||||
| Shaft Dia | 8mm | 10mm | 12mm | 13mm | |||||
| Frequency | 230hz | 210hz | 200hz | ||||||
| Amplitude | 1.1mm | 1.11mm | 1.13mm | 1.15mm | 1.18mm | 1.2mm | 1.21mm | 1.28mm | 1.32mm |
| Couple Choice | Japanese type ,Dynapac type,Chinese square type,Australian type,Turkish type | ||||||||
| Drive unit | Electric motor, Petrol engine, Diesel engine | ||||||||
| Packing size | 85*65*6cm(33*25*2.5in) | ||||||||
| Optional | Outer Liner, Spring | ||||||||
All CONSMAC Concrete Vibrator Machines are available for online purchase with fast delivery.
Please feel free to contact us at Phone No: 0086- 574- 88192352, or send us enquiries on line, all your mails will be replied within 24 hours.
