Specifications
Single Phase Concrete Vibrator MotorThree phases concrete vibrators available
Frequency:110V,220V,380V
Power:1.1kw,1.5kw,2kw

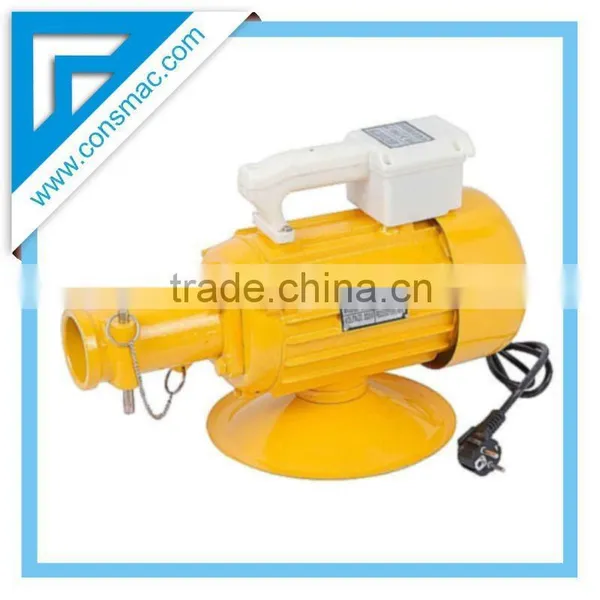

Electric Concrete Vibrator Motor
CONSMAC SVE series high performance Electric Concrete Vibrator is the drive unit for various concrete vibrator shaft with various couplings. Large choice of power from 1.1kw to 2.2kw, and rotary speed from 2840rpm to 12000rpm. Three phase and single phase motors are available.
Electric Concrete Vibrator Motor Coupling Choice:
1. DYNAPAC Coupling
2. Japanese Coupling
3. Ball Type Coupling
4. Pin Type Coupling
5. Other coupling like Australia type, Russia type can be available, based on customers' choice.
Electric Concrete Vibrator Motor Specification:
| Model | SVE-J | SVE-B | SVE-DF | SVE-D |
| Coupling Type | Japanese type | Japanese type | Dynapac type | Dynapac type |
| Power | 1.1kw, 1.5kw, 2.2kw | |||
| Voltage | 110V, 220V,380V | |||
| Rotary Speed | 2840rpm | |||
| Model | SVE-P | SVE-PF | SVE-JF | SVE-S |
| Coupling Type | Pin type | Pin type | Japanese type | screw hexagonal |
| Power | 1.1kw, 1.5kw, 2.2kw | 1.6kw | ||
| Voltage | 220V, 380V | 220V | ||
| Rotary Speed | 2840rmp | 5600rpm | 5600rpm | 12000rpm |
Concrete Vibrator Shaft
CONSMAC SVS series high-performance mechanical Concrete Vibrator Shaft. Large choice of couplings and diameters from 25 to 75 mm, drived by CONSMAC Diesel, Gasoline Concrete Vibrator(SVD series) and Electric Concrete Vibrator(SVE series)
Concrete Vibrator Shaft Coupling Option:
1. Japanese type
2. Dynapac type
3. Russian type
4. Turkish type
5. Australian type
6. Chinese square type
7. Other couplings can be available, based on customers' choice.
Concrete Vibrator Shaft Specification
| Model | SVS25 | SVS28 | SVS32 | SVS35 | SVS38 | SVS45 | SVS50 | SVS60 | SVS70 |
| Head Dia. | 25mm | 28mm | 32mm | 35mm | 38mm | 45mm | 50mm | 60mm | 70mm |
| Length of Shaft | Standard length:6m(1m-12m is available) | ||||||||
| Hose outside Dia | 24mm | 25mm | 30mm | 32mm | 36mm | ||||
| Hose inner Dia | 13mm | 14mm | 16mm | 18mm | 20mm | ||||
| Shaft Dia | 8mm | 10mm | 12mm | 13mm | |||||
| Frequency | 230hz | 210hz | 200hz | ||||||
| Amplitude | 1.1mm | 1.11mm | 1.13mm | 1.15mm | 1.18mm | 1.2mm | 1.21mm | 1.28mm | 1.32mm |
| Couple Choice | Japanese type ,Dynapac type,Chinese square type,Australian type,Turkish type | ||||||||
| Drive unit | Electric motor, Petrol engine, Diesel engine | ||||||||
| Packing size | 85*65*6cm(33*25*2.5in) | ||||||||
| Optional | Outer Liner, Spring | ||||||||
All CONSMAC Concrete Vibrators are available for online purchase with fast delivery.
Please feel free to contact us at Phone No: 0086- 574- 88192352, or send us enquiries on line, all your mails will be replied within 24 hours.
