Japanese Type Gasoline Needle Vibrator
- 10000 Unit / Units per Month
- Ningbo
- T/T
- Handheld concrete vibrator
- Various concrete vibrator
- BISON CHINA Robin EY20 Concrete Vibrator Concrete Vibrate Hose
- BISON CHINA 5.5hp Concrete Vibrator Gasoline Engine Internal Pokers Vibration Poker Needles
- Concrete Vibrator with Gasoline Engine, Engine Concrete Vibrator Price Concrete Vibrate Hose
- Better Group used vibrating table for sale, lab vibrating table
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CONSMAC | Model Number: | SVD Series and SVS Series |
Type: | Internal | Drive Mode: | Engine Vibrator | Frequency: | 3600rpm |
Vibrating Amplitude: | 3600rpm | Length of Flexible Shaft: | 1~12m, 6m is standard |
Product Description
Specifications
Japanese Type Gasoline Needle VibratorDYNAPAC Maylasia Type,Australia Type,Russia Type,
Diesel,Electric Concrete Vibrator

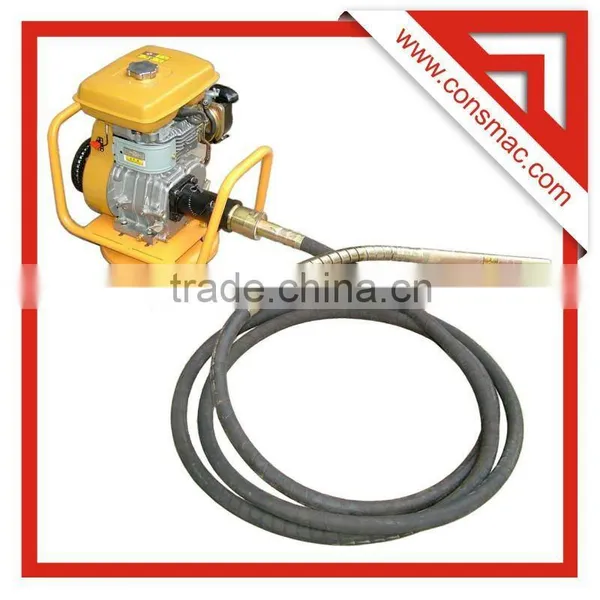

Gasoline Needle Vibrator
CONSMAC SVD series Gasoline Needle Vibrator is the drive unit for various concrete vibrator shaft.
Gasoline Needle Vibrator Coupling Choice:
1. DYNAPAC Coupling
2. Japanese Coupling
3. Ball Type Coupling
4. Pin Type Coupling
5. Other coupling like Australia type, Russia type can be available, based on customers' choice.
Gasoline Needle Vibrator Specification:
Model | SVD-H | SVD-R | SVD-L | SVD-K |
Engine | Air-cooled, 4-cycle,single cyliner | |||
Engine Type | Petrol, Honda GX160 | Petrol, Robin EY20 | Petrol, Lifan 168F | Diesel, Kama 170F |
Power | 5.5hp/4.0kw | 5.0hp/3.6kw | 5.5hp/4.0kw | 3.8hp/2.8kw |
Rotary Speed | 3600rpm | |||
Coupling Choice | DYNAPAC Type, Pin Type, Ball Type | |||
Applications | Concrete vibrator, submersible flexible pump | |||
Weight | 22kg(49lbs) | 25kg(55lbs) | 24(53lbs) | 34(75lbs) |
Packing | 53*38*54cm(21*15*21in) |

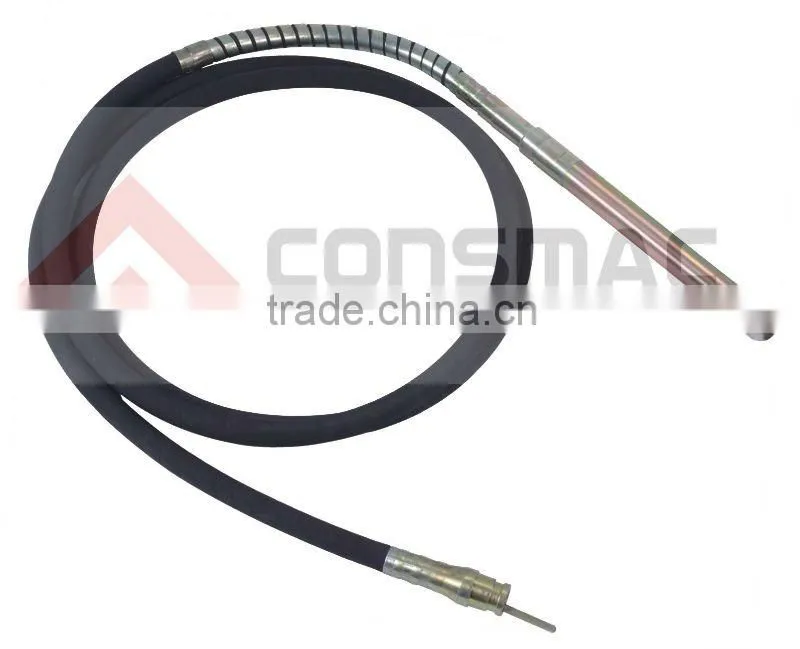

Needle Vibrator Shaft
CONSMAC SVS series high-performance mechanical Needle Vibrator Shaft. Large choice of couplings and diameters from 25 to 75 mm, drived by CONSMAC Diesel, Gasoline Needle Vibrator(SVD series) and Electric Needle Vibrator(SVE series)
Needle Vibrator Shaft Coupling Option:
1. Japanese type
2. Dynapac type
3. Russian type
4. Turkish type
5. Australian type
6. Chinese square type
7. Other couplings can be available, based on customers' choice.
Needle Vibrator Shaft Specification
Model | SVS25 | SVS28 | SVS32 | SVS35 | SVS38 | SVS45 | SVS50 | SVS60 | SVS70 |
Head Dia. | 25mm | 28mm | 32mm | 35mm | 38mm | 45mm | 50mm | 60mm | 70mm |
Length of Shaft | Standard length:6m(1m-12m is available) | ||||||||
Hose outside Dia | 24mm | 25mm | 30mm | 32mm | 36mm | ||||
Hose inner Dia | 13mm | 14mm | 16mm | 18mm | 20mm | ||||
Shaft Dia | 8mm | 10mm | 12mm | 13mm | |||||
Frequency | 230hz | 210hz | 200hz | ||||||
Amplitude | 1.1mm | 1.11mm | 1.13mm | 1.15mm | 1.18mm | 1.2mm | 1.21mm | 1.28mm | 1.32mm |
Couple Choice | Japanese type ,Dynapac type,Chinese square type,Australian type,Turkish type | ||||||||
Drive unit | Electric motor, Petrol engine, Diesel engine | ||||||||
Packing size | 85*65*6cm(33*25*2.5in) | ||||||||
Optional | Outer Liner, Spring |
All CONSMAC Needle Vibrators are available for online purchase with fast delivery.
Please feel free to contact us at Phone No: 0086- 574- 88192352, or send us enquiries on line, all your mails will be replied within 24 hours.
