1) Combining wet-injection,setting and drying, available regulate the time as you want, besides, keep hot circulate inside working chamber so that the temperature inside can be stable with less heat loss, thus, the energy consumption can be reduced obviously
3) It will only take 8-10min to finish setting with about 2.5kg diesel oil consumption per hour, if the unit price is 6.8yuan/kg ,the total cost is just 17yuan,and if the working efficiency of setting is 3500 pairs of socks per hour, the setting cost per pair is just 0.5Yuan.

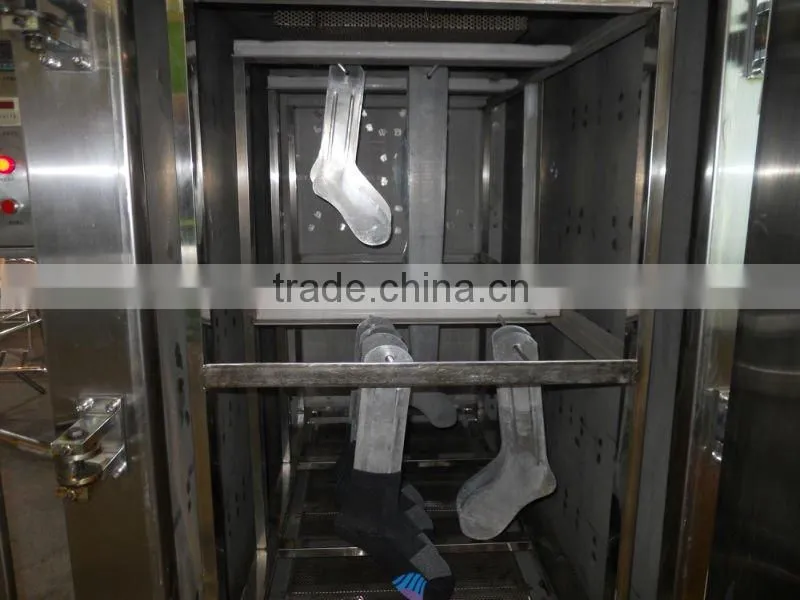

4) In the box installs leads the wind net. The patent design, leads the wind net addition with the exotic material manufacture in the box the work room crown, can cause in the work room the wind sped and the steam cycle in evener.
5) Recuperation. This is additional part, may cause in combustion chambers afterheat back flow to the work room base, cause in the work room warm to be quicker, to be evener.

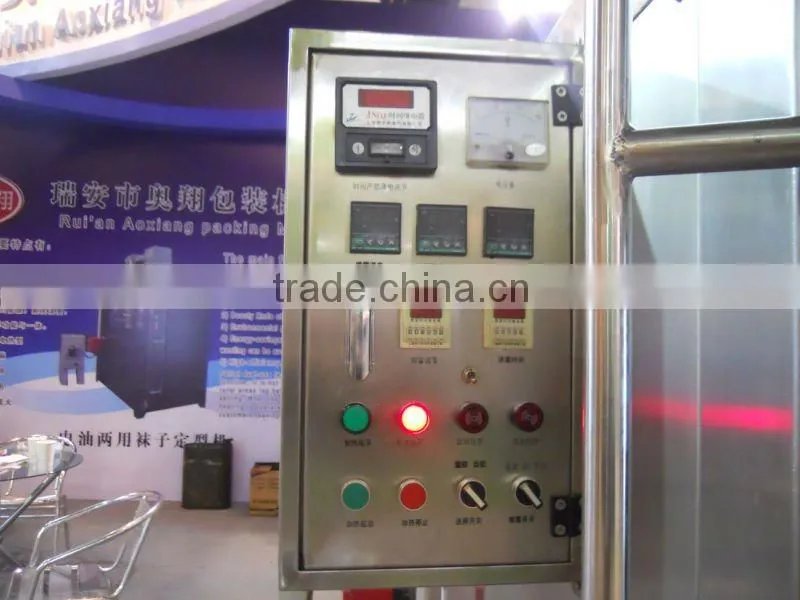

6) Electric appliance control section. The accuracy control fuel oil, may save the diesel oil in the original foundation 30-40 %.
Model |
Dimension |
Unit |
Data |

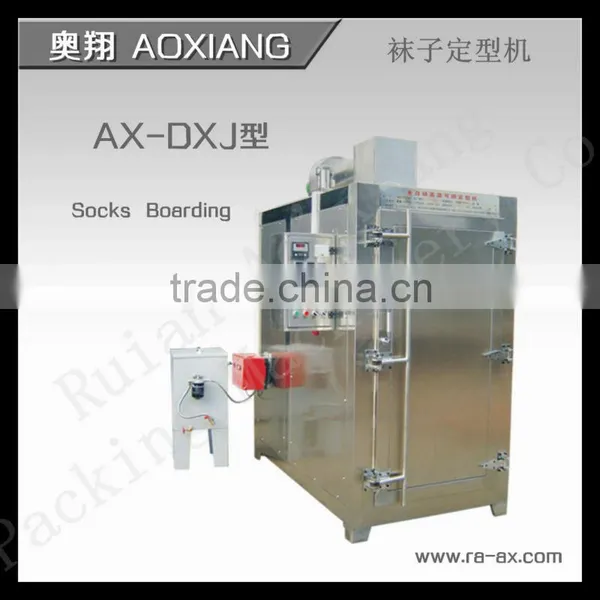

AX-DXJ100 |
Inner dimension overall dimension |
mm |
1000*800*1300 2300*1100*2100 |
AX-DXJ150 |
Inner dimension overall dimension |
mm |
1500*800*1300 2700*1100*2100 |
AX-DXJ-160 |
Inner dimension
overall dimension |
mm |
1100*800*1500 2300*1100*2300 |
AX-DXJ180 |
Inner dimension overall dimension |
mm |
1500*800*1600 2700*1100*2500 |
Main Technical Parameters:
Name |
Unit |
Data |

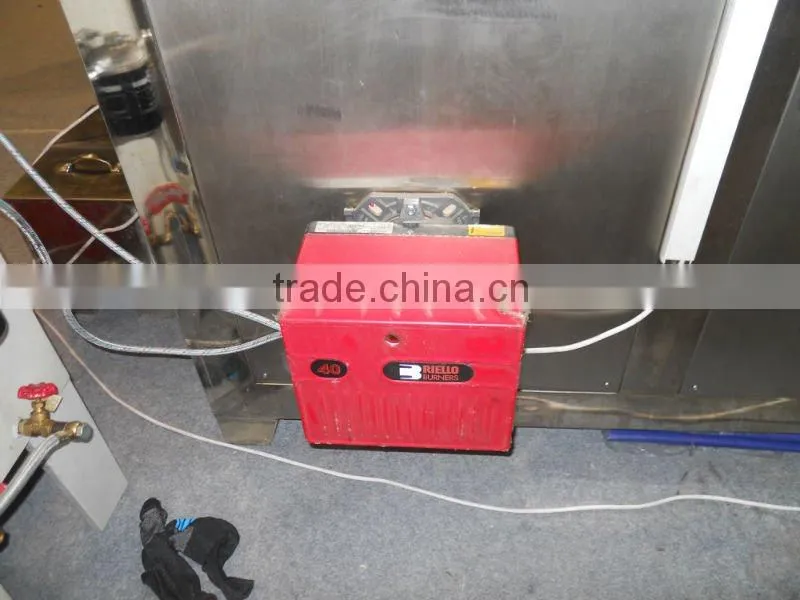

Combustion |
KW |
0.13 |
Water pump |
Mpa / kg |
7-12 |
Diesel oil consumption |
Kg/h |
2-2.5 |
Working temperature |
°C |
60-250 |
Blower |
Kw/min |
1.1 /2800 |
Power |
V / Hz |
380/50, 220 / 50 |
Weight |
Kg |
800 |
use eclectricity:16-24 kw
wirking temperature:60-250 degree
cotton socks:115-130degree,silk fabrics socks :160 degree.
