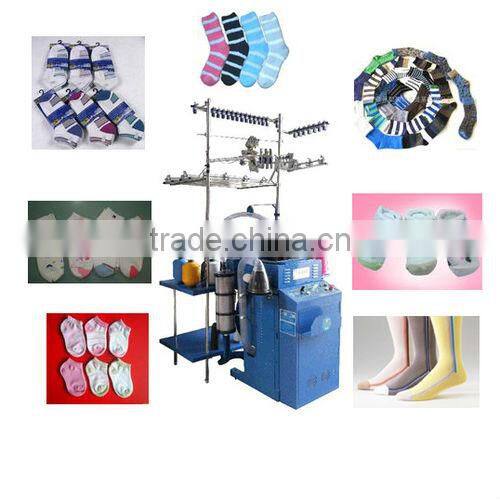

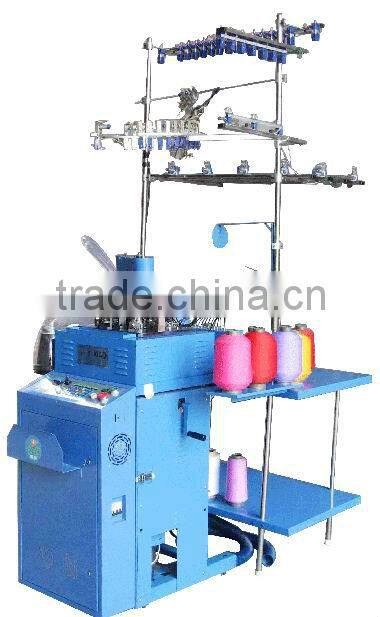

AX-6F full automatic cotton socks knitting machine

Specifications

AX-6F full automatic cotton socks knitting machine
und reliability
2.easy maintenance
3.stability in design.

AX-6F full automatic cotton socks knitting machine

feature
1) The computerized sock knitting machine adopts computer controlling techn-ology,it can knit all kinds of socks,all functions are contuolled by electroni-ctube,step motor and servo electrical machinery.

2) The main color has 8 feeders,5 vice colors,each vice color has 3 feeders,so it can knit 16 colors including the main color in one yarn circuit.

3) Setting up 4 rectangle parts,knit the heels and toes with different color.

4) Servo motor and computer controlling enables it knit all sizes of socks freely.

5) Adopting automatic lubricating oil system,sense in yarn breaking,protecting device for breaking needle,improved productivity effect.

6) LCD display,languages including Chinese,English.

7) Keeping designs when power off or other accidents happen.

8) It can produce double elastic yarn:It can knit terry sock and plan sock,Have clamped needle knitting function etc.

9) When knitting the heel and toe,take the double shovel-needle technology.The angles is adjusted by computer.In this way,canimprove the efficiency,overco-me the short coming of single shovel-needle.



Technology speciifications:

PART/MODED		AX-6F  (plain)	AX-6F(terry)
Cylinder Diameter		3  1/2	3  3/4
Needle range		84~200N	84~156N
Running speed		300~380PM	260~320PM
Power required	Drive motor	0.85KW	0.85KW
	Fan motor	0.75KW	0.75KW
	Control Box	0.80KW	0.80KW
Floor space in cm(W×L×H)××		150×120×240cm	150×120×240cm
Net weight		300kg	300kg
Gross weight		350kg	350kg
Packing dimension in cm(W×L×H)		115×105×180cm	115×105×180cm
