Full Automatic Decorative polystyrene cornice molding extrusion machine
The machine Video : /watch?v=fnAu9irihb8

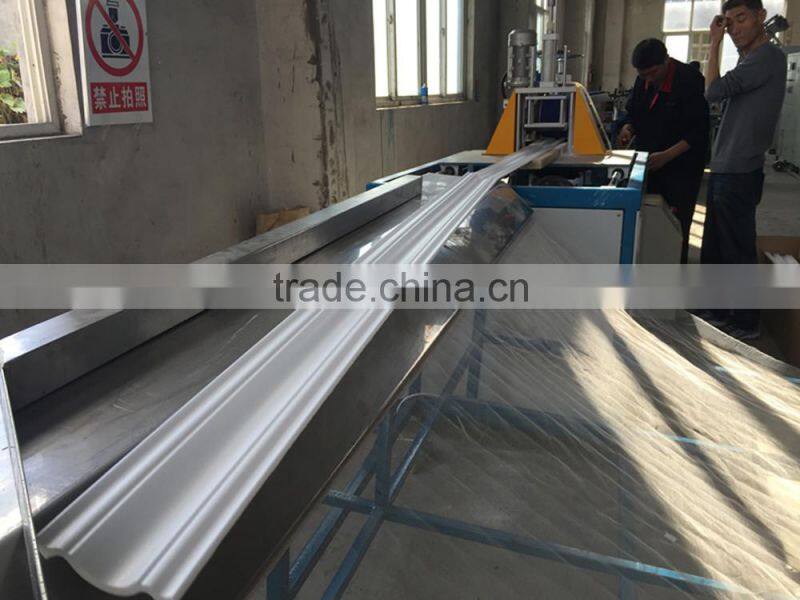

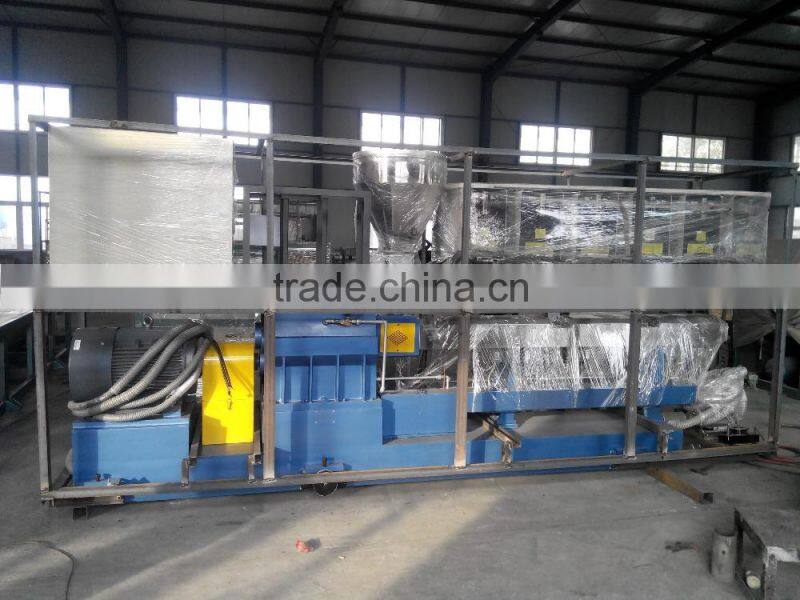

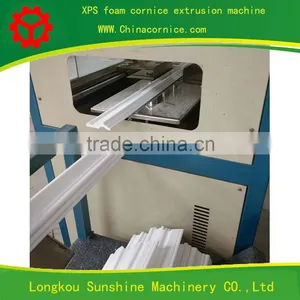

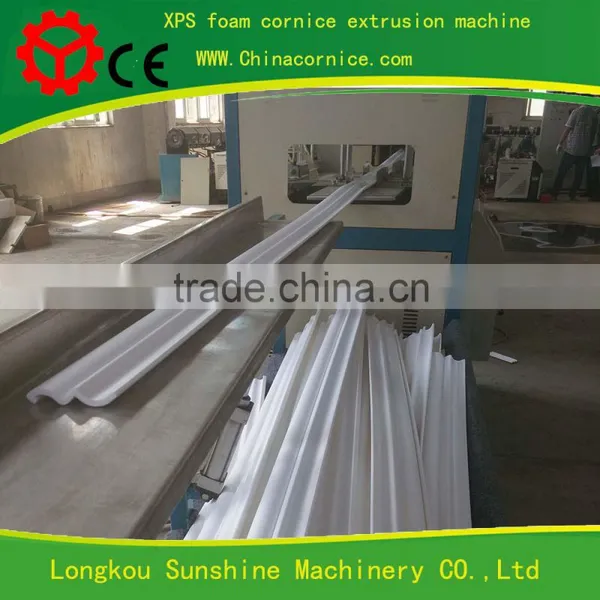

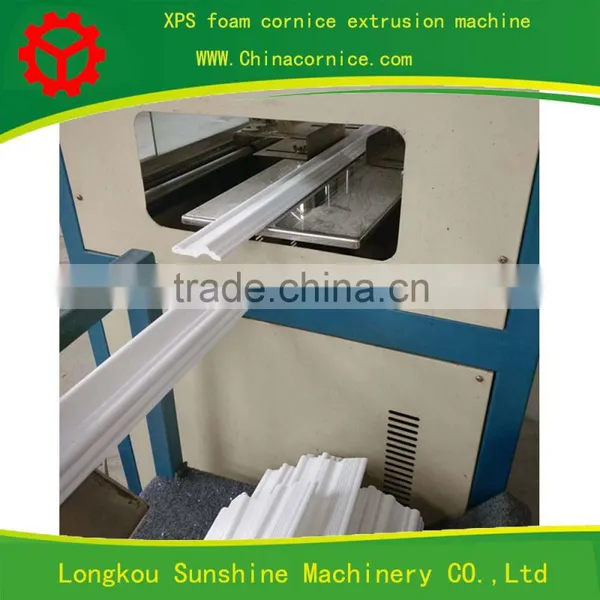

The XPS Polystyrene cornice extrusion machine picture:
Products Introduction :
The extrusion line for XPS cornice is designed to produce ,through a process of hot extrusion special extruded polystyrene foam profiles ,This process is characterized mainly by the continuous mixing of a blowing agent in melted polymer ,The compound of the various components is prepared in a mixer and pneumatically teansported to a dosing device ,which feed the mixtrure into the extruder ,in the extruder the mixture is heated to the melting temperature of polystyrene ,The profile polystyrene ,The profile polystyrene cornice will be extruded from the die head after the mixture and the foam agent mixed enough .
Technical parameters
Model |
YG-PSXT2000 |
Main material |
GPPS |
Foaming agent |
Butane,Freon |
Capacity |
500-2000KG/24hours |
Product thickness |
5-12mm |
Products width |
40-150mm |
Products length |
User defined |
Foaming ratio |
10-20Time |
Cooling |
Water and wind |
Installation power |
115KW |
Consumption power |
35kw |
Power supply |
380V 50HZ 3 phase 4 lines |
Installation size |
28X4.5X3.2M |
Overall size |
25x2.5x2.2M |
Weight |
About 12T |
Plant area (at least) |
200-300M2 |
Technics flow:
Foaming agent
|
Material - Mixing and Feeding System - Extruder - Special mixing system - Head - Die - Finalize the design - Cooling - Hauling off - Cutting - Packing
The machine Video : /watch?v=fnAu9irihb8
How many people operation one production lines?
need 2-3 people ,when the engineer have learn operation machine ,production machine will so easy .
How many meters produce per minute ?
Different densign and size ,the capacity is different ,for 45mm width cornice ,about 15-20meters per minute ,for 58mm width cornice ,about 12-15 meters per minute ,for 130mm width cornice ,about 6-8 meters per minutes.
What‘s the raw material ?
GPPS (General Purpose Polystyrene)and HIPS (High Impact Polystyrene)
What's the capacity of cornice production lines ?
The little machine type capacity is 10-40KG/Hour ,The big machine type capacity is 20-70KG/Hour .
How to package the machine?
Standard shipping or rail transport package.
About the cornice production lines shipping?
Need 1*40GP container of shipping
How to installation the machinery ?
our engineer will coming to your factory and installation ,then tech your engineer learn how to used the machine .

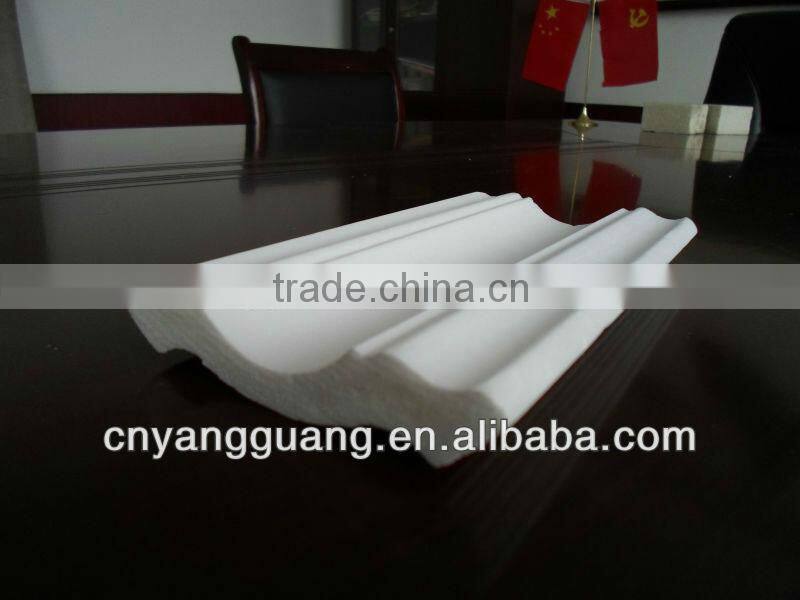

Sample picture
The decorative cornice produced by XPS material have a smooth surface ,and have the characteristic of no deformation ,no moisture absorption ,no crack light weight ,easy installation and so on .It is a new kind of high quality environmental protection decorative material.
Installation Guide:
Tips and Advice
1 The moulds expand and contract with temperature changes
2 Apply adequate adhesive along the edges on the back of cornice as well as on the ends
3 Cornices should be fitted on level and stable surface
4 Before the adhesive dries usd a damp cloth to remove excess
5 Panel pins can be used to secure joints should support be required while the adhesive dries
6 If necessary ,Lightly sand oints for even finished
Our Company provide installation service

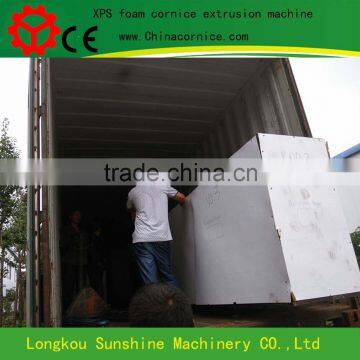

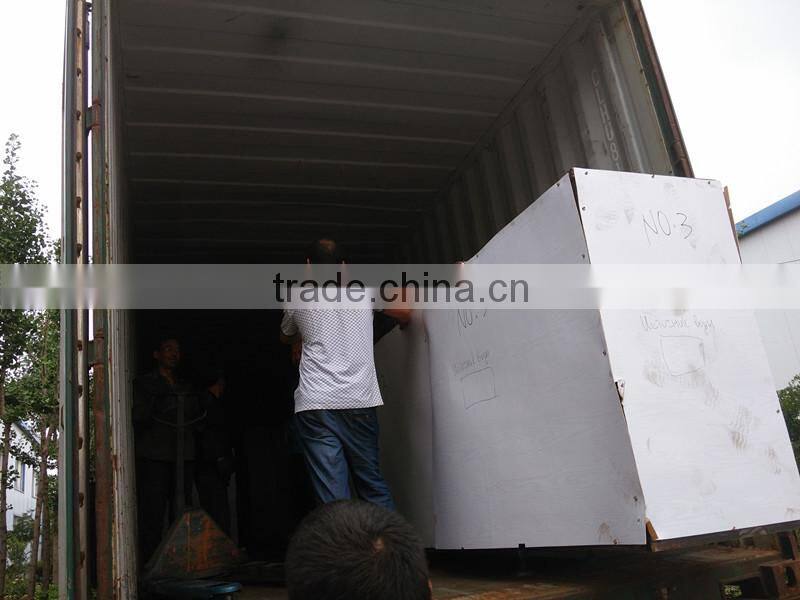

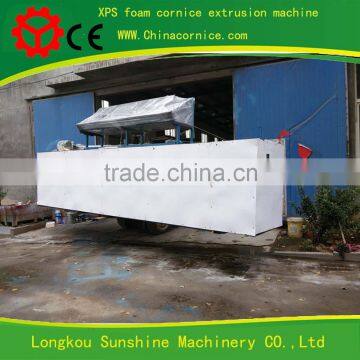

Shipping picture :
We are Longkou Sunshine Machinery Equipment Co.,LTD which is the only professioanl and innovative manufacture of XPS cornice extrusion machine machine in China. We assure you excellent after-sales-service and install machine,train your workers and do the maintenance the whole life to keep your production in good condition.
Contact :Anna Yao
Mobile/Wechat/Whatapp:0086-15275519995
Skype:babyanna917
QQ:1563318507
