Help CenterExtruded Foam Polystyrene Cornice Moulding Machine
Related Products
-
China NO.1 Xps Foam Profile Cornice Extrusion LineUS$ 100,000 - 300,000MOQ: 1 Set -
Top Quality XPS High Foam Molding MachineUS$ 0.5 - 1.2MOQ: 10000 Pieces
-
High Quality Foaming Extruder for Polystyrene CorniceUS$ 110,000 - 150,000MOQ: 1 Set
-
Easy Use PS Foam Cornice Extruder MachineUS$ 110,000 - 150,000MOQ: 1 Set
-
2016 New PS Non-gypsum Cornice Extrusion MachineUS$ 100,000 - 130,000MOQ: 1 Set

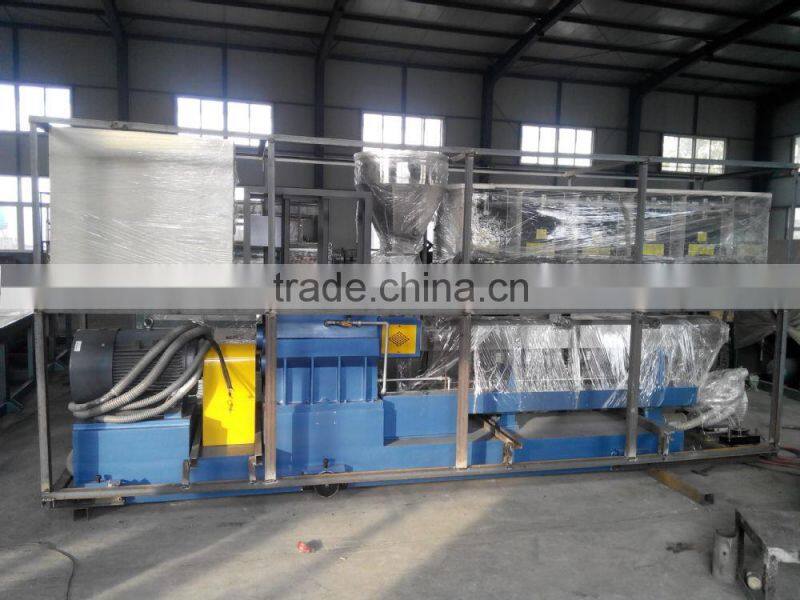

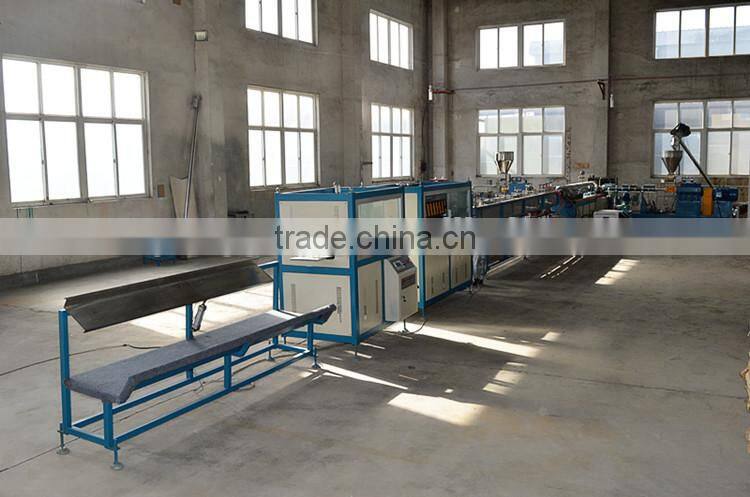

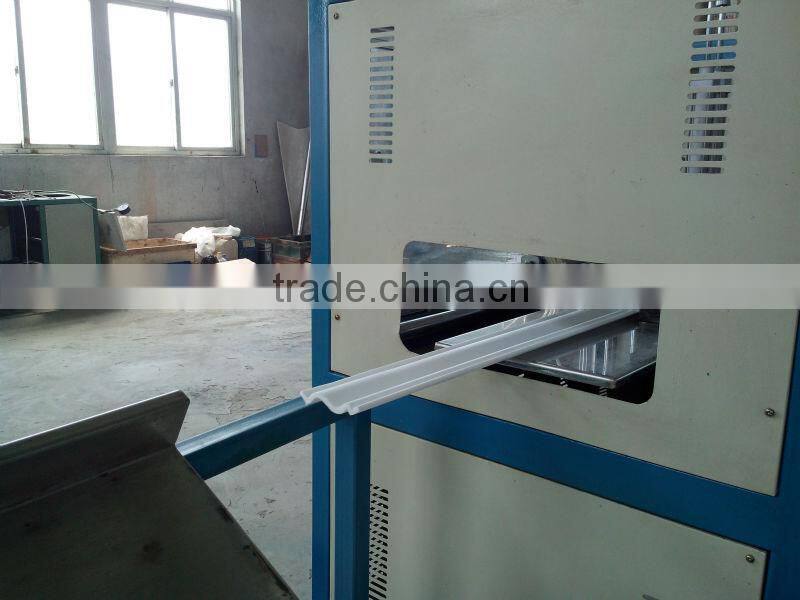

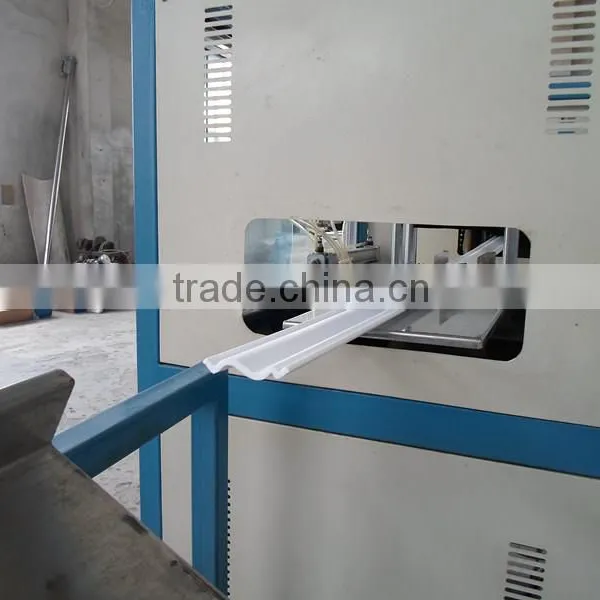

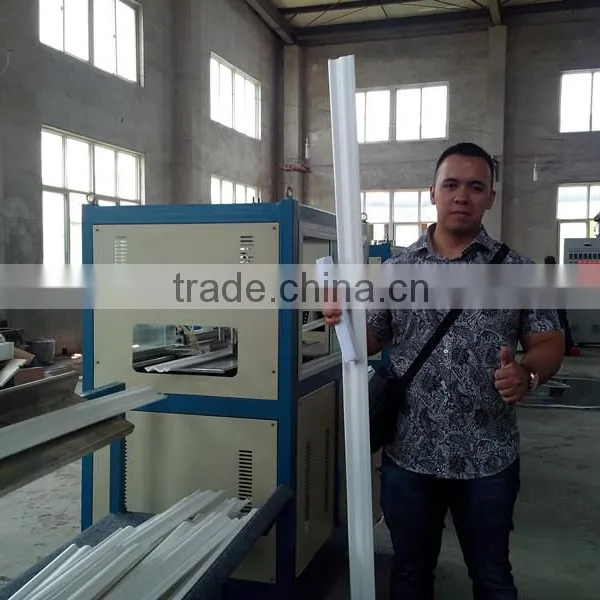

Extruded foam polystyrene cornice moulding machine

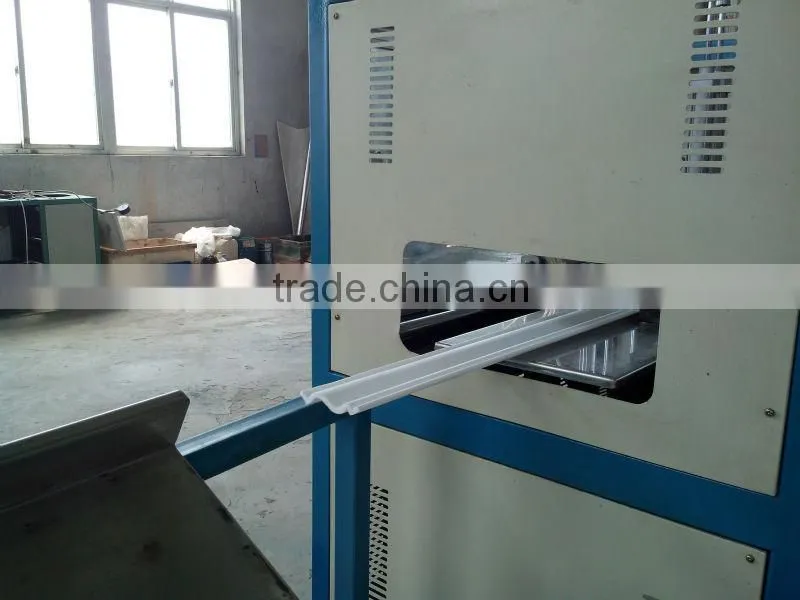

Extruded foam polystyrene cornice moulding machine
Extruded foam polystyrene cornice moulding machine
Question1.How many meters produce per minute of the xps cornice machine?
Answer :Different densign and size ,the capacity is different ,for 45mm width cornice ,about 15-20meters per minute ,for 58mm width cornice ,about 12-15 meters per minute ,for 130mm width cornice ,about 6-8 meters per minutes.
Question2.How many people need for the whole production line ?
Answer :2-3 workers needed for the whole line ,the main production processes are feeding material and packing .

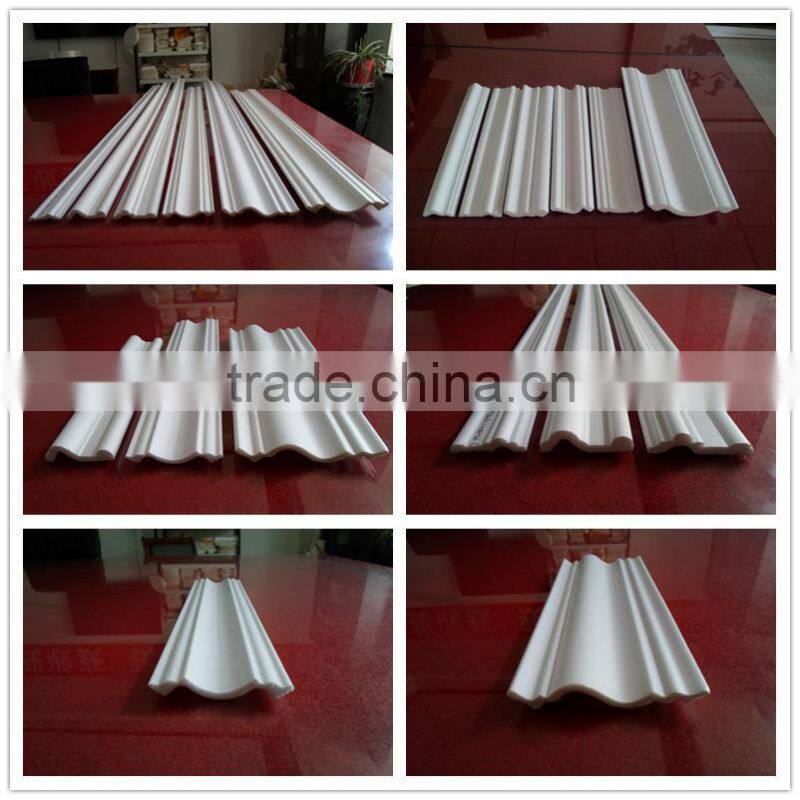

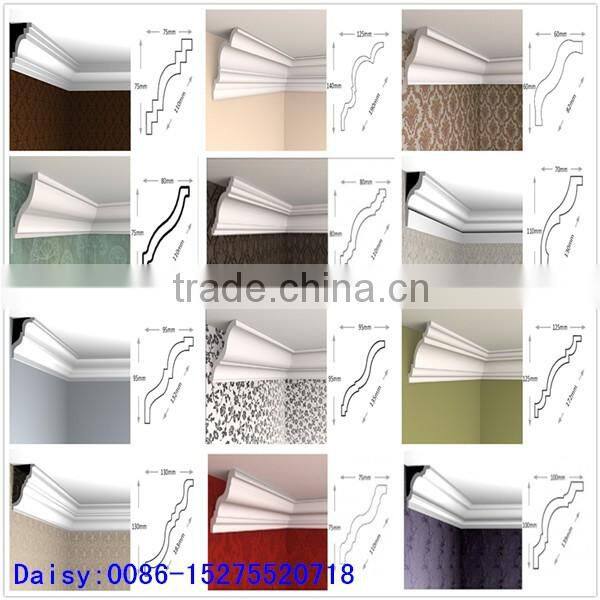

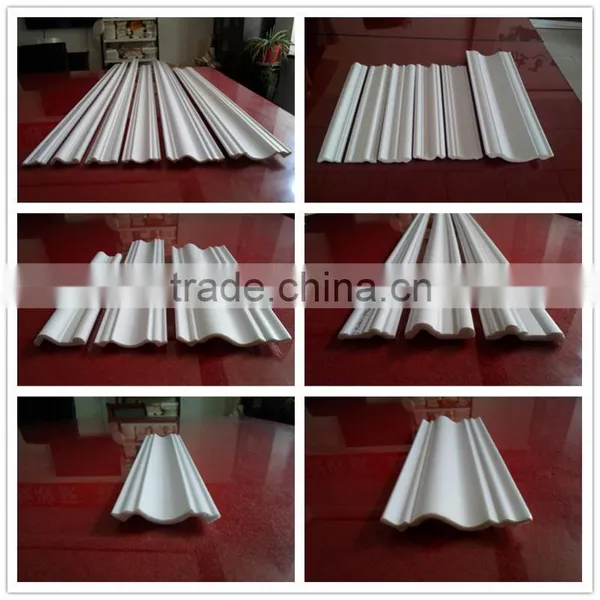

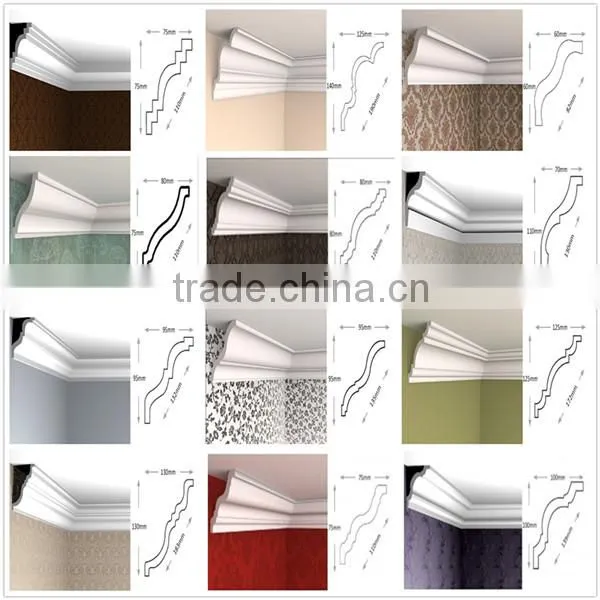

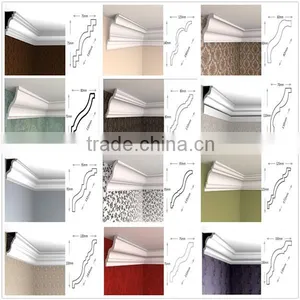

Question3.How many densign could be produce with this machine ?
Answer :You could produce any densign your market required just by changing different mould .
Question4.How long will it take to change the mould ?
Answer :It need about 20-30minutes to change the mould ,it is very easy .
Question5.Which foaming agent (gas)could be used in this line ?CO2?How many gas used ?
Answer :Butane or freon (if nessary liquid gas used in cooking is also ok ).For Co2 technology ,it is also under development,it will be succeed in the near future.It will use d about 3%-4%
Question6.What's the density of the cornice this machine produced ?
Answer :From 40KG-150KG per stere .The normal density is 50-80KG per stere.
Question7.What‘s the raw material ?
Answer :GPPS (General Purpose Polystyrene)and HIPS (High Impact Polystyrene)
Question8.Whether the cornice could be antiflaming or not ? Whether the cornice could be antioxidant or not ?
Yes !It could be antiflaming and antioxidant by mixed special material
Question 9.Do you have and supply the raw material ?If not ,could you find the raw material for us ?
Yes,we could find material supplier for you ,for the whole production line ,it need about 1x40GP container for shipping ,and we could take some material for you ,about 2 to 3Tons .
Question 10.How about the shipping ,packing and payment ?
Answer :It need about 1x40GP container ,standard seaworthy packing .The payment is by TT .
Extruded foam polystyrene cornice moulding machine
Technical Parameters
Model |
YG-PSXT1000 |
YG-PSXT2000 |
Main material |
GPPS |
GPPS |
Foaming agent |
Butane/Freon |
Butane/Freon |
Capacity |
500-1200KG/24Hours |
500-2000KG/24Hours |
Product thickness |
4-12mm |
4-15mm |
Products width |
20-120mm |
50-160mm |
Products density |
50-100KG/M3 |
50-100KG/M3 |
Cooling |
Water/wind |
Water/wind |
Installation power |
60kw |
100kw |
Consumption power |
20kw |
35kw |
Power supply |
3 Phase 4 lines |
3 Phase 4 lines |
Installation size |
25X4.5X3.2M |
28X4.5X3.2M |
Overall size |
23x2.3x2.2M |
25x2.5x2.2M |
Weight |
11T |
13T |
Plant area (at least) |
200-300M2 |
200-300M2 |
Packaging |
Standard Export Package |
Delivery Time |
60 days after deposit |
Contact :Daisy cai
Mobile :15275520178
Whatsapp:15275520718
Skype:daisycai01
QQ:1760148974
