Smart P10 8x8 Dot Matrix Led Display

Smart P10 8x8 Dot Matrix Led Display thumbnail-1
Smart P10 8x8 Dot Matrix Led Display photo-1
US$ 1,000 - 1,500 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haisheng
Model Number:
HSGD-O-F-P16
Contact Supplier Request Quote Chat Now
Shenzhen Haisheng Led Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Haisheng
Model Number HSGD-O-F-P16
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 16mm
Screen Dimension costumer made

Specifications

*Full color LED display
*LED display with high brightness and resolution
*double side led display
*front service

Outdoor led display specification

Item

Specifications

LED  Lamp

 Type

5 mm dismeter  high brightness LED lamps

 Arrangement

1R,1G,1B

 Red Wavelength (dominant)

625nm(+2.5nm)

 Green Wavelength (dominant)

525nm(+2.5nm)

 Blue Wavelength (dominant)

470nm(+2.5nm)

LED Cabinet

 Dot Pitch

16 mm

 Physical Pixel

3096 dots/sq.m

 Resolution

64*48 pixel

 Dimension

864*864 mm

 Brightness

7500 Nit

 Viewing Angle

110(Horizontal),55(Vertical)

 Best Viewing Distance

16~160 meters

 Power Consumption (Max)

700 w/sq.m

 Power Consumption (Typical)

300 w/sq.m

 Weight

50 Kgs/sq.m

 Frame Frequency

no less than 60 frame/sec

 Refresh Rate

no less than 480 HZ/sec

 Voltage

220/110 VAC, 50/60 Hz

 MTBF

5000 hours

 Life Pan

100,000 hours

 Protection Level

IP 65

 Malfunction Dot Rate

less than 0.0001

 Working Temperature

-25°C~65°C

 Humidity

10%~99%

Control System

 Drive Mode

static constant current

 Control Means

Synchronization

 Control System

PCTV Board + DVI Board + Control Board + Network cable Transmission

 Software

LED Studio (LINSN)

 Input Signal

RF,S-VIDIEO,RGB,RGBTV,YUT,YC,COMPOSTITION

 PC System

Win2000,Win XP, etc

Features

- GENELITE /CREE lamp with uniform color and high reliability
- Super brightness, long and wide viewing distance
- Automatic pipelining production
- Use static-constant current for smooth and nature color transitions
- Outstanding consistency in color and brightness, no Mosaic effects

- Special structure design for water-proof and mothproof
- Modular design for easy installation and maintenance
- Operating software compatible with widely available software
- Can be designed hanging system to satisfy special conditions

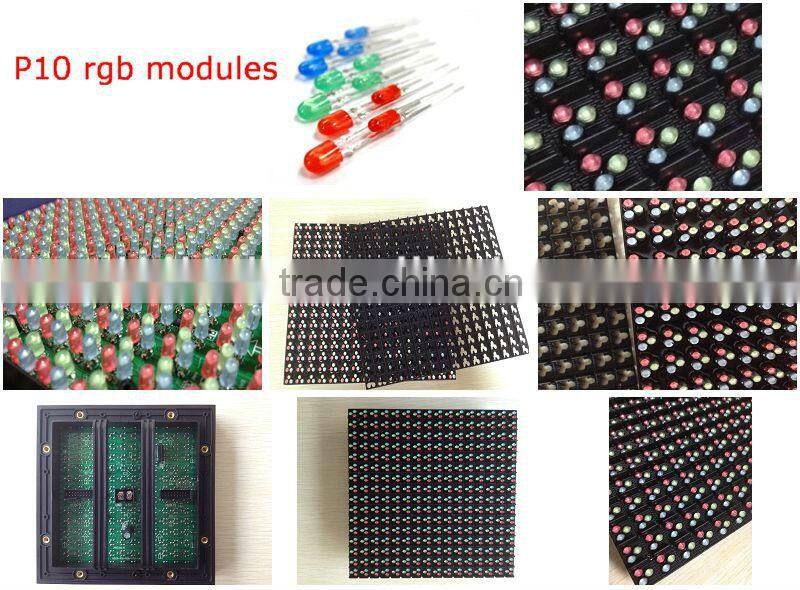

Module

smart P10 8x8 dot matrix led display

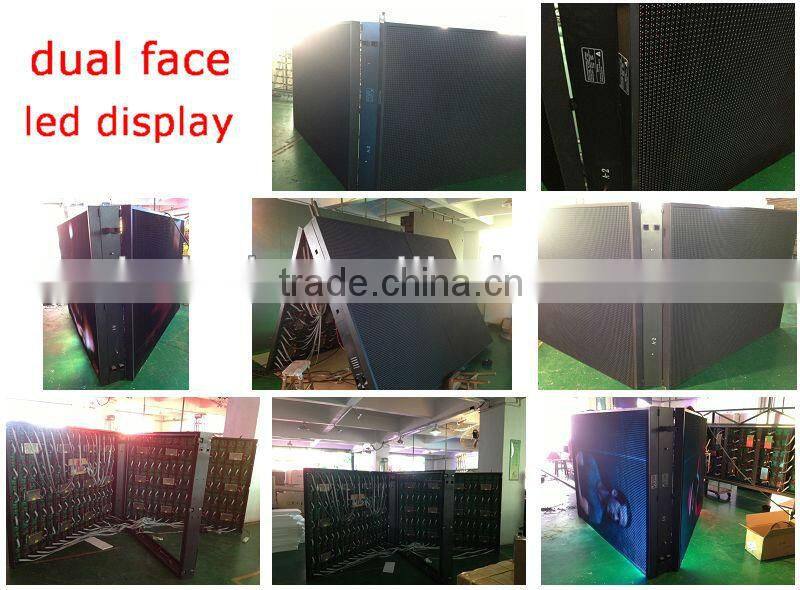

double face led sign cabinet  with new design

smart P10 8x8 dot matrix led display



smart P10 8x8 dot matrix led display


smart P10 8x8 dot matrix led display
