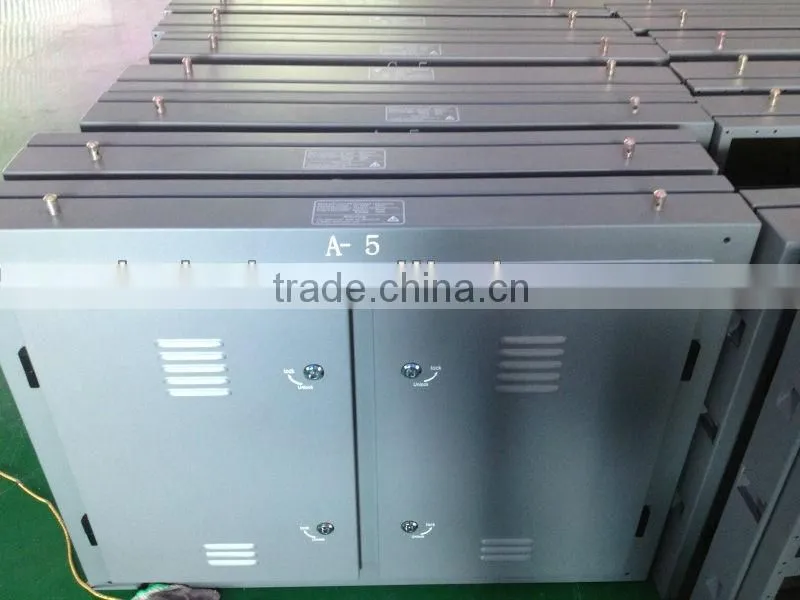

Video Xxx P10 Led Display for Buildings
US$ 1 - 9,999
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haisheng
Model Number:
HSGD-O
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diy Led Wifi Advertising Billboard Wall Big tvUS$ 688 - 4,990MOQ: 1 Square Meter -
Super Bright Waterproof Shenzhen Led Display Led Display CalculatorNegotiableMOQ: 1 Square Meter
-
P16 Outdoor Real Colour Graphic Animation Led Display BillboardsUS$ 500 - 1,500MOQ: 1 Square Meter
-
Outdoor Media Player With Led P12.5NegotiableMOQ: 1 Square Meter
-
31.25mm Large Viewing Angle All-weather High Brightness Led SignagesUS$ 500 - 1,500MOQ: 1 Square Meter
Place of Origin
Guangdong, China
Brand Name
Haisheng
Model Number
HSGD-O
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
Other, 6.25/8/10/12/12.5/16/18/20/25/31.25mm
Screen Dimension
custom made
Specifications
1.100,000hrs lifespan2.2 years warranty
3.factroy price
4.ultra thin cabinet
Hangrand Corrosion-resistent,Strict Waterproof Test Outdoor LED Display
1, high quality tubes
2, stable performance
3, FP grade 94 ¨CV0
4, UV proof
5, resistance of high and low temperature
Product Features
lor spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
2, adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
3, strict water proof testing by Ip65
4, according to environmental changes the brightness can be adjusted automatically for energy saving
5, special PVC kits are adopted to protect from corrosion according to coastal weather
6, according to environmental changes the brightness can be adjusted automatically for energy saving
7, auto power on/off, work unattended
LED Parameters
Module Specifications
| 1 | Pixel Pitch | 10mm |
| 2 | Display Resolution | 16 * 16dots |
| 3 | Pixel Configuration | 1R1G1B |
| 4 | Driving method | Static constant current |
Cabinet Specifications
| 1 | Cabinet Resolution(dot) | 96pixels L x 96pixels H |
| 2 | Size | 960mm x 960mm |
| 3 | Weight/ Cabinet Depth | 50kg/ 125mm |
| 4 | Material | Galvanized Steel |
Screen Parameters
| 1 | Real pixel pitch | 10mm |
| 2 | Real pixel density | 10,000/m2 |
| 3 | Virtual pixel density | 1600*4/m2 |
| 4 | Drive IC | MBI5020 |
| 5 | Display colors | 16384*16384*16384 totally |
| 6 | Brightness | ≥8000cd/m2 |
| 7 | Grey level | Red, Green, Blue 16384 grade/Each |
| 8 | Viewing angle | Horizontal:≥140°,Vertical:≥60° |
| 9 | Best viewing distance | 25m-300m |
| 10 | Valid viewing distance | <350m |
| 11 | Frame frequency | ≥480HZ |
| 12 | Refresh frequency | ≥180HZ |
| 13 | Driving method | Static constant current |
| 14 | Brightness adjustment | Automatically or manually |
| 15 | Control method | Synchronized with PC |
| 16 | Display mode | 640*480-1024*768 |
| 17 | Visual input | VGA mapped /NTSC/PAL |
| 18 | Information transmission method | Synchronized and balanceable transmission |
| 19 | Communication cable | UTP Category 5/multi-mould optical fiber/monomode fiber |
| 20 | Scotoma rate | ≤1/10000 |
| 21 | Continuous operation time | ≤48 hours |
| 22 | LED Lifespan | ≥100,000 hours |
| 23 | Assembly precision between PCB | ≤1mm |
| 24 | Max./Average power consumption | ≤300 w/m2/ ≤150 w/m2 |
| 25 | Input voltage | AC 220V/110V /50 HZ+/-10% |
| 26 | Operation envionment | Temperature: -20°C~+50°C |
| 27 | Input signal | S-video, VGA, RGB, Composite video, SDI etc. |
| 28 | Ingress grade | IP65/IP54 |
| 29 | Video display function | Varies of text, graphics, pictures, flashes, and any signals from TV, VCB, DVD, camera and scanner can be synchronized with PC, Support PAL/NTSC |
Aging
Haisheng factroy
Machinery equipment
workshop
certification
