PH16 Outdoor DIP LED Display Panel Price/LED Panel Display/Outdoor LED Display Screen Quality Choice
- 2000 Piece / Pieces per Month
- Shenzhen
- PH8 Outdoor SMD LED TV Screen/LED Screen/Outdoor LED Display Screen
- PH10 Outdoor DIP LED Panel Display/LED Panel Display/Outdoor LED Display Screen
- PH6 Outdoor SMD LED Stadium TV Screen/LED Screen/Outdoor LED Display Screen
- PH5 Outdoor SMD Large Stadium LED Display Screen/LED Screen/Outdoor LED Display Screen
- IP65 RGB p10 led module indoor and outdoor
- shenzhen big oudoor screen panel
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HSLED | Model Number: | SD16 |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | 16mm | Screen Dimension: | 1024*1024mm |
Packaging Details
wooden case package or flightcase package
Product Description
The Reason you Choose HSLED LED Display Panel Price
- Excellent Gray Scale Makes a Real Picture
- High Refresh Rate and Contrast Ratio Excellent Performance
- High Efficiency in Heat Dissipation

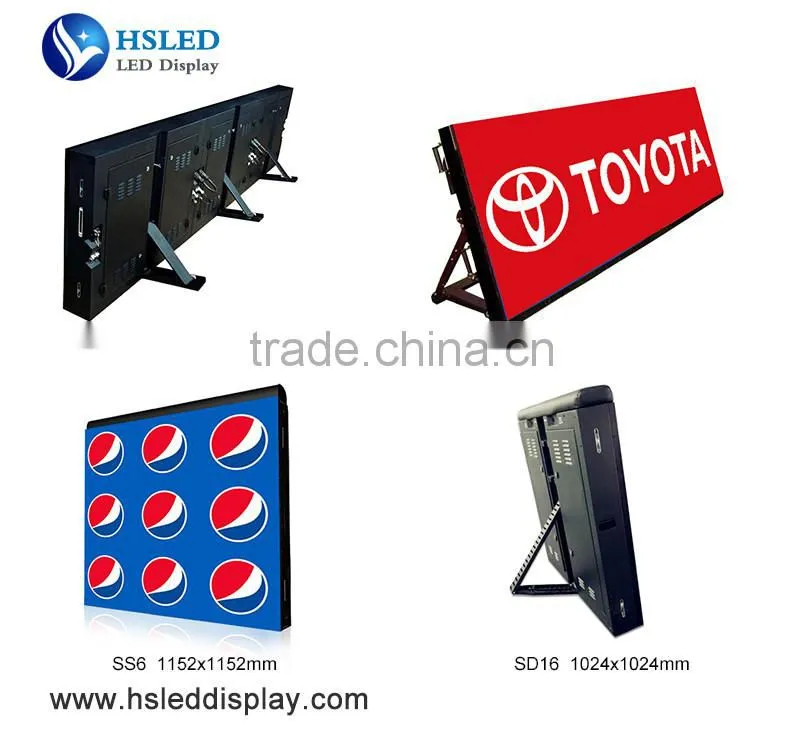

PH16 led display panel

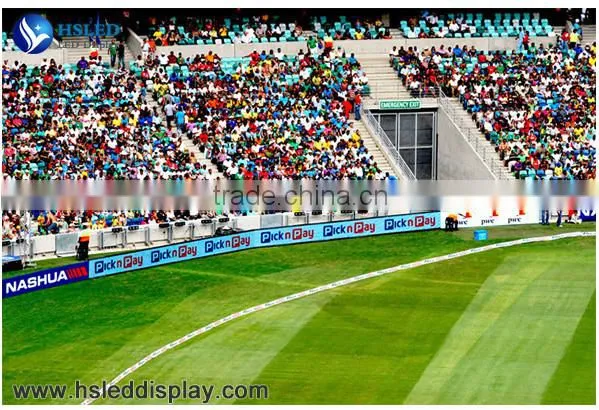

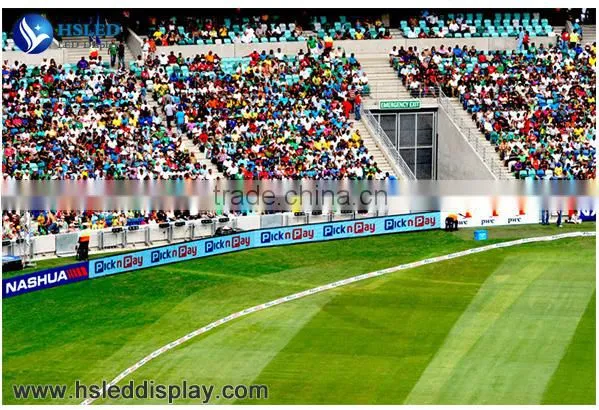

led display panel project is mainly used for commercial rentals to display image or text ads. There won't be any damage even impact by high speed football.
Hot sale outdoor display in 2015
Seamless splice technology makes several sceen combine in one without any gap. Present a large and clear image for advertising to catch people's attention.The quality module
We adopt big brand chip and IC as accessories of our ph16 LED display to make perfect performance. LED chip is provided by Epistar,Cree, Nichia and Opto. Quality IC supplied by MBI, TMS, PWM and Mingyang.

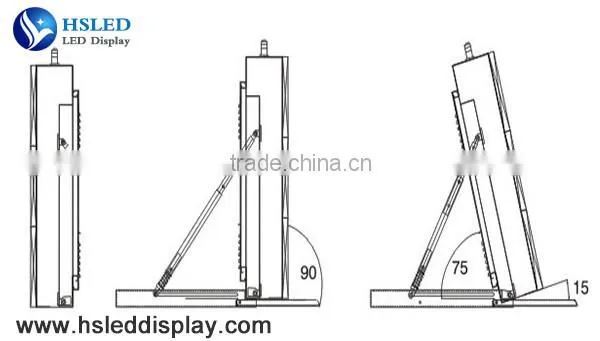

Adjustable inclination angle

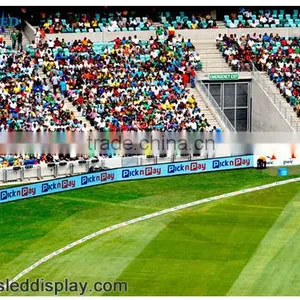

Generally, the LED perimeter banner display is placed vertically and the inclination angle is adjustable for the best possible viewing and camera shooting angles.

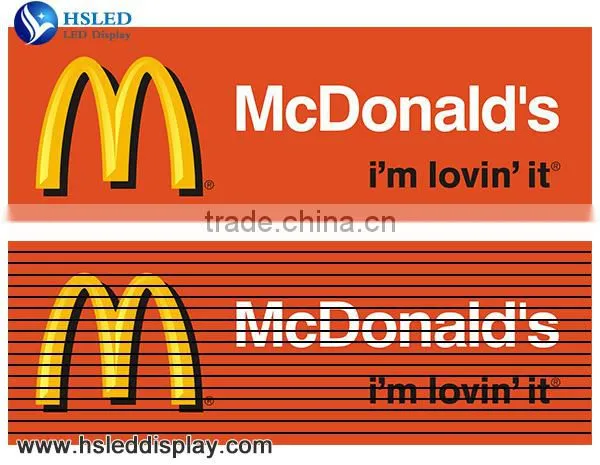

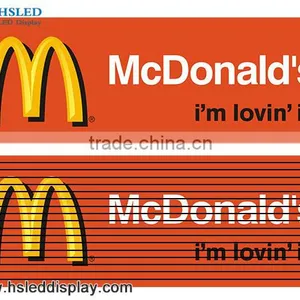

High refresh rate enables the screen to get rid of scan lines.
Over 1000Hz refresh rate enables flicker free performance, delicate pictures can be delivered accurately without scan lines. The features are good for improving the quality of outdoor advertising.
LED Lamp | |||
Type | DIP346 | Chip parameters | Red λd:(625-628nm) IV:(1000-1200mcd) |
Arrangement | 1R1G1B | Chip parameters | Green λd:(523-525nm) IV:(2000-2500mcd) |
Brand | Epistar | Chip parameters | Blue λd:(470-472nm) IV:(500-650mcd) |

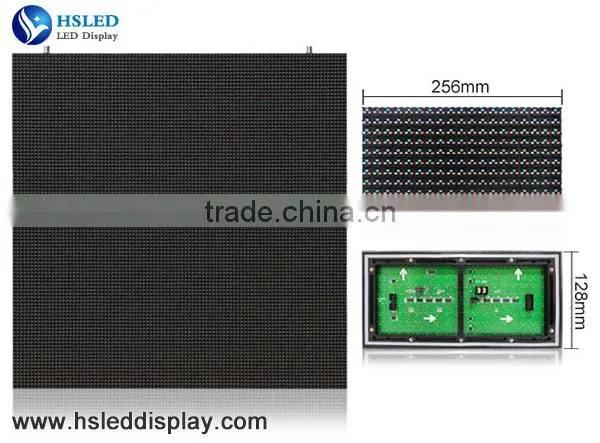

LED Module | |||

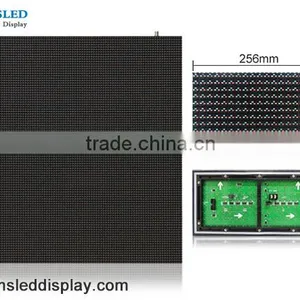

Pixel Pitch | 16mm | Module Size | 256×128mm |
Module Resolution | 16×8=128(Dots) | Module Weight | 0.75kg |

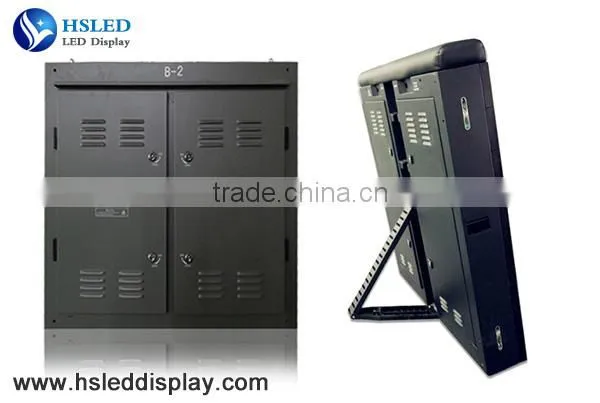

LED Cabinet | |||
Pixel Density | 3906 Dots/sqm | Frame Frequency | no less than 60 frame/sec |
Cabinet Resolution | 64×64=4096(Dots) | Input Voltage | AC110-220V±10%,50/60Hz |
Cabinet Dimension(W*H*D) | 1024×1024×140mm | Output Voltage | DC-5V,40A/60A/80A |
Module Quanty /Cabinet | 4×8=32(Pcs) | Grey Scale Levels | 16bit |
Cabinets Material | Steel | Color Processing | R(1024)×G(1024)×B(1024) |
Cabinet Weight | 59kg | Brightness Adjustment | 256 color levels,can be adjusted manually and automatically optional |
Brightness | ≥7500cd/sqm | MTBF( mean time between failures) | 5000 hours |
Viewing Angle | 110(Horizontal),55(Vertical) | Life-span | 100,000 hours |
Nearest Viewing Distance | 19m | Protection Level(front/back) | IP66/IP54 |
Power Consumption (Max) | 800 w/sqm | Malfunction Dot Rate | less than 0.0001 |
Power Consumption (Average) | 250 w/sqm | Working Temperature | -30℃~50℃ |
Display Function | Text,Graphics,Video | Humidity | 15%~85% |
Refresh Rate | ≥1000Hz | Drive Mode/Driver Position | Static Combined driver board |
Control System | |||
Control Mode | Synchronization/Asynchronization | Input Signal | AVI/MPG/MPEG/TXT.etc |
Control System | Sending Card, Receiving Card,Receiving HUB | PC Operating System | Microsoft Windows 7, XP and Vista |
Software | LED Studio ( HSTV-linsn ) | Communication Type | Net cable,3G,WIFI(Sold separately) |
Language | Chinese,Traditional Chinese,English,French,Japanese,Russian,Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,Romanian,Arabic | Certificate | CE,ROHS,FCC,ISO9001,TUV |
Control Card Input | DVI,USB,RJ45,HDMI(Sold separately) |
More led display panel
1. We have woodencase package and flightcase package for your option, woodencase package is the normal package for goods and flightcase package is for easy and frequent transfering of the goods.
2. Shipping by sea is the service until to the destination port. It’s cheap but very slow. Our trading terms are ETX, FOB and CIF. Shipping by sea is a very nice choice if your goods weight is more than 500 KG.
3. Shipping by air is the service until to the destination airport. It’s cheap and very fast but clients have to clear goods from customs by themselves. You can choose shipping by air if your goods are more than 100 KG, however, if your goods are very heavy and are urgently needed, you can also choose shipping by air.
4. Express is door to door service, it’s very convenient. If your products are less than 100 KG, shipping by express is a very nice choice.
Optokingdom foreign trade LED shopping mall is a B2C business platform which is mainly built by HaiSheng Led CO.,LTD and a dozen of electronic component suppliers in Shenzhen. The total foundation is more than 10 million USD. It's a direct purchasing platform for small and medium project contractors and terminal users to find inexpensive high-quality products, rapid after-sales service, safe and fast logistics service. Clients are welcome to register on .
Our management principle: Clients will get what they pay without troubles bake at home.
Out target: to promote the development of optoelectronic industry, to reduce the earth resource consumption, to protect the human living environment.
Our duty: No cheating to clients but only honest trading.
our certificates and reputation
The important components of our product are supplied by big brand. Such as CREE, OPTO, NICHIA, MBI, PWM and Mingyang etc. And we have pass quality certificated of authority, such as RoHS, SGS, CE, FCC, ISO9001 and Alibaba, etc. and gained a lot of awards
Company Profile
ShenZhen HaiSheng Optoelectronic CO.,LTD is a professional LED Display and LED Lights Manufacturer. It's a hi-tech enterprise which is specialized in researching, desiging, manufacturing and exporting all kind of LED Products. With qualified talents, high technology and aboundant funds, we have many offices and branches in most cities of China, so we can offer rapid and perfect service to our clients.
Our Company has a high-quality professional technicians and advanced modern production equipment : SMT machine,injection molding machine, COB machine, high temperature aging furnace, TABLE machine (point-by-point brightness debug) reflow soldering machine and serveral wave soldering machines, PCBA lines, automatic packaging production lines and 1000sqm aging vertical testing stand. Fully implement strict ISO9001-2000 quality management, and strive to make every piece of LED displays, LED unit boards, modules, lighting to be the best, our products have passed the European CE, American UL certification and other related certifications. All the products researched and developed by HaiSheng have reached the advanced level in the international market.
Relying on the advantages of the strategic union consisting of the company, the domestic and foreign company have developed into a genuine cross-century modern enterprise with resource sharing, division & coorperation, advantages complementary and high-performance operation.
At present, HaiSheng Optoelectronic CO.,LTD have formed a"Genelite" brand of LED Displays with features of low attenuation, high brightness, anti-static, good stability, high gray level, and had got good reputation from our customers. Our products mainly applied in City Square LED Display, Highway Advertising LED Display, Shopping mall LED Display, Stadium LED Display,etc. It had been widely used in advertising, bars, airport, bus station, ports, stadiums, banks, schools, factories, post and telecommunications, shopping malls, hospitals, industry and commerce, taxation, customs,monitoring centers,etc. The products have been exported to United States, Russia, Britain, France, Australia, Greece, Italy, Japan, Korea, Taiwan, and Kazakhstan,etc.
With strong financial, professional technique strength, stable quality, fast and perfect service allows users to have the most stable and cost-effective products. Our company is dedicated to serving clients of the whole world with clear high-quality orientation, continuously innovating techniques and internationally synchronous management concepts.
