Help CenterPH6 Outdoor SMD LED Stadium TV Screen/LED Screen/Outdoor LED Display Screen
Related Products
-
PH5 Outdoor SMD Large Stadium LED Display Screen/LED Screen/Outdoor LED Display ScreenUS$ 500 - 3,000MOQ: 20 Pieces -
IP65 RGB P10 Led Module Indoor and OutdoorNegotiableMOQ: 1 Piece
-
Shenzhen Big Oudoor Screen PanelUS$ 500 - 1,500MOQ: 1 Square Meter
-
Semi Outdoor Outdoor Price Led Full Color Outdoor RailwayUS$ 1,000 - 1,500MOQ: 1 Square Meter
-
Factory Price Digital Outdoor Advertisement ProductNegotiableMOQ: 1 Square Meter
The Reason you Choose HSLED LED Stadium TV Screen
- Excellent Gray Scale Makes a Real Picture
- High Refresh Rate and Contrast Ratio Excellent Performance
- High Efficiency in Heat Dissipation
Hot sale outdoor in 2015

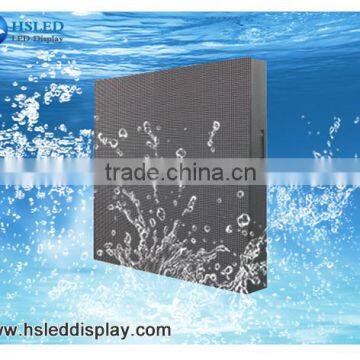

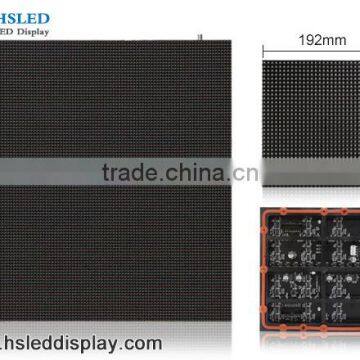

Seamless splice technology makes several in one without any gap. Present a large and clear image for advertising and catching people's attention.The quality module
we adopt big brand chip and IC to make perfect performance. LED chip is provided by Epistar,Cree, Nichia and Opto. Quality IC supplied by MBI, TMS, PWM and Mingyang.

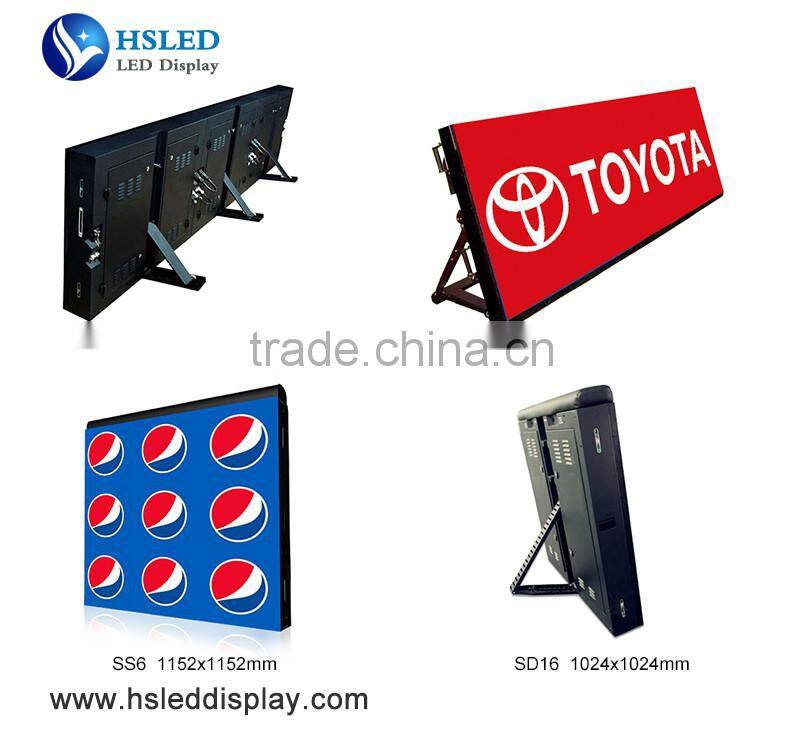

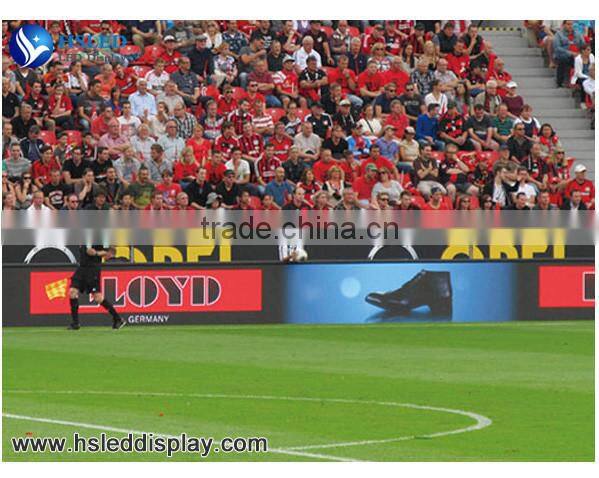

PH6 led stadium tv screen
Stadium screen project mainly used for commercial image text ads rentals.There are without any damage even impact by high speed football.

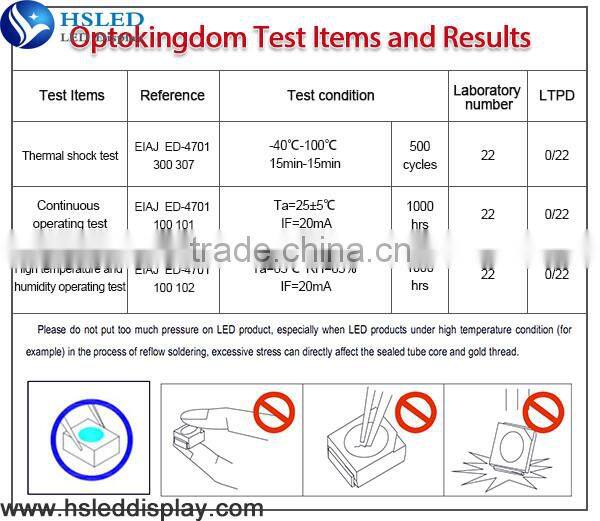

The lamp wicks selling on our shopping mall have passed strict test to ensure reliable performance and long lasting lifespan.

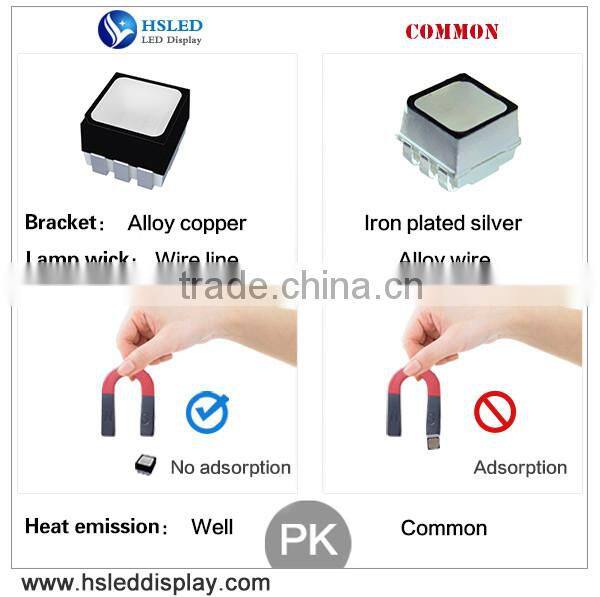

Material
We use high quality alloy copper lamp wicks for outdoor SMD products to ensure strong heat emission.

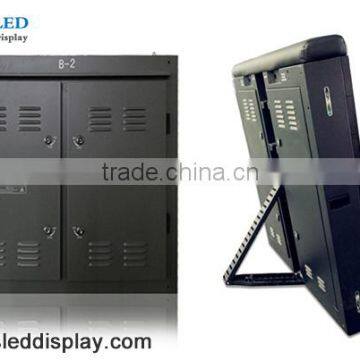

Fast maintain within minute
Replace module within minute, one screwdriver figures it out even little-to-no training.

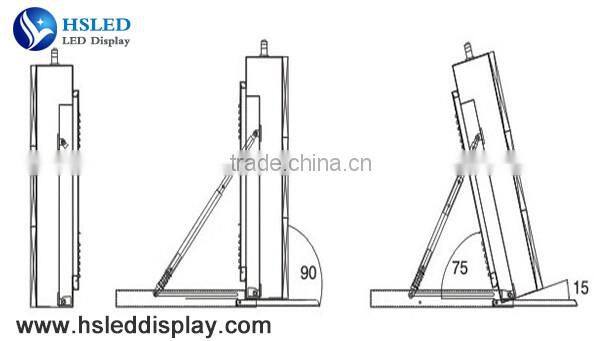

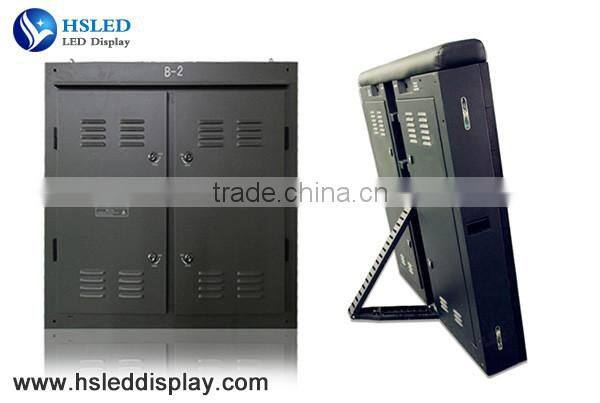

Adjustable inclination angle
Generally, the LED perimeter banner display is placed vertically and the inclination angle is adjustable for the best possible viewing and camera shooting angles.
High refresh rate enables the screen to get rid of scan lines.
Over 1000Hz refresh rate enables flicker free performance, delicate pictures can be delivered accurately without scan lines. These features are good for making outdoor advertising.
| LED Lamp | |||
| Type | SMD3535 | Chip parameters | Red λd:(620-625nm) IV:(800-960mcd) |
| Arrangement | 1R1G1B | Chip parameters | Green λd:(520-525nm) IV:(1350-1650mcd) |
| Brand | Epistar | Chip parameters | Blue λd:(470-475nm) IV:(330-400mcd) |
| LED Module | |||
| Pixel Pitch | 6mm | Module Size | 192×192mm |
| Module Resolution | 32×32=1024(Dots) | Module Weight | 0.4kg |
| LED Cabinet | |||
| Pixel Density | 27777 Dots/sqm | Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 192×192=36864(Dots) | Input Voltage | AC110-220V±10%,50/60Hz |
| Cabinet Dimension(W*H*D) | 1152×1152×130mm | Output Voltage | DC-5V,40A/60A/80A |
| Module Quanty /Cabinet | 6×6=36(Pcs) | Grey Scale Levels | 16bit |
| Cabinets Material | Steel | Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 57kg | Brightness Adjustment | 256 color levels,can be adjusted manually and automatically optional |
| Brightness | ≥7500cd/sqm | MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 120(Horizontal),120(Vertical) | Life-span | 100,000 hours |
| Nearest Viewing Distance | 9m | Protection Level(front/back) | IP66/IP54 |
| Power Consumption (Max) | 1200 w/sqm | Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 300 w/sqm | Working Temperature | -30℃~50℃ |
| Display Function | Text,Graphics,Video | Humidity | 15%~85% |
| Refresh Rate | ≥1000Hz | Drive Mode/Driver Position | Constant driving 1/8 Scan,Combined diver board |
| Control System | |||
| Control Mode | Synchronization/Asynchronization | Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card,Receiving HUB | PC Operating System | Microsoft Windows 7, XP and Vista |
| Software | LED Studio ( HSTV-linsn ) | Communication Type | Net cable,3G,WIFI(Sold separately) |
| Language | Chinese,Traditional Chinese,English,French,Japanese,Russian,Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,Romanian,Arabic | Certificate | CE,ROHS,FCC,ISO9001,TUV |
| Control Card Input | DVI,USB,RJ45,HDMI(Sold separately) | ||
More LED Stadium TV Screen
1. We have woodencase package and flightcase package for your option, woodencase package is the normal package for goods and flightcase package is for easy and frequent transfering of the goods.
2. Shipping by sea is the service until to the destination port. It’s cheap but very slow. Our trading terms are ETX, FOB and CIF. Shipping by sea is a very nice choice if your goods weight is more than 500 KG.
3. Shipping by air is the service until to the destination airport. It’s cheap and very fast but clients have to clear goods from customs by themselves. You can choose shipping by air if your goods are more than 100 KG, however, if your goods are very heavy and are urgently needed, you can also choose shipping by air.
4. Express is door to door service, it’s very convenient. If your products are less than 100 KG, shipping by express is a very nice choice.
Optokingdom foreign trade LED shopping mall is a B2C business platform which is mainly built by HaiSheng Led CO.,LTD and a dozen of electronic component suppliers in Shenzhen. The total foundation is more than 10 million USD. It's a direct purchasing platform for small and medium project contractors and terminal users to find inexpensive high-quality products, rapid after-sales service, safe and fast logistics service. Clients are welcome to register on .
Our management principle: Clients will get what they pay without troubles bake at home.
Out target: to promote the development of optoelectronic industry, to reduce the earth resource consumption, to protect the human living environment.
Our duty: No cheating to clients but only honest trading.
our certificates and reputation
The important components of our product are supplied by big brand. Such as CREE, OPTO, NICHIA, MBI, PWM and Mingyang etc. And we have pass quality certificated of authority, such as RoHS, SGS, CE, FCC, ISO9001 and Alibaba, etc. and gained a lot of awards
