PH6.67 Outdoor DIP LED Screen led display
| LED Lamp | |||
| Type | DIP(3 in 1)570 | ||
| Brand | Epistar | ||
| Arrangement | 1R1G1B | ||
| Chip parameters | Red (620-625nm) IV:(2100-2200mcd) | ||
| Chip parameters | Green (520-525nm) IV:(4200-4300mcd) | ||
| Chip parameters | Blue (470-475nm) IV:(700-750mcd) | ||

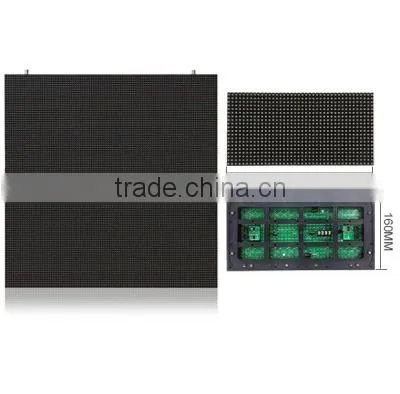

| LED Module | |||
| Pixel Pitch | 6.67mm | ||
| Module Size | 320×160mm | ||
| Module Resolution | 48×24=1152(Dots) | ||
| Module Weight | 0.6kg | ||
| LED Cabinet | |||
| Pixel Density | 22477 Dots/sqm | ||
| Frame Frequency | no less than 60 frame/sec | ||
| Cabinet Resolution | 144×144=20736(Dots) | ||
| Input Voltage | AC110-220V±10%, 50/60Hz | ||
| Cabinet Dimension(W*H*D) | 960×960×185mm | ||
| Output Voltage | DC-5V, 40A/60A/80A | ||
| Module Quanty /Cabinet | 3×6=18(Pcs) | ||
| Color Grayscale | 16bit | ||
| Gray Scale per Color | 65536 level | ||
| Cabinets Material | Steel | ||
| Color Processing | R(1024)×G(1024)×B(1024) | ||
| Cabinet Weight | 38kg | ||
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional | ||
| Brightness | >7500cd/sqm | ||
| MTBF( mean time between failures) | 5000 hours | ||
| Viewing Angle | 110(Horizontal), 55(Vertical) | ||
| Life-span | 100, 000 hours | ||
| Nearest Viewing Distance | 10m | ||
| Protection Level(front/back) | IP66/IP54 | ||
| Power Consumption (Max) | 1000 w/sqm | ||
| Malfunction Dot Rate | less than 0.0001 | ||
| Power Consumption (Average) | 300 w/sqm | ||
| Working Temperature | -30oC~50oC | ||
| Display Function | Text, Graphics, Video | ||
| Humidity | 15%~85% | ||
| Refresh Rate | >1000Hz | ||
| Drive Mode/Driver Position | Constant driving 1/6 Scan, Combined diver board | ||
| Control System | |||
| Control Mode | Synchronization/Asynchronization | ||
| Input Signal | AVI/MPG/MPEG/TXT.etc | ||
| Control System | Sending Card, Receiving Card, Receiving HUB | ||
| PC Operating System | Microsoft Windows 7, XP and Vista | ||
| Software | LED Studio(HSTV-linsn) | ||
| Communication Type | Net cable; 3G, WIFI(Sold separately) | ||
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German | ||
| Certificate | CE, ROHS, FCC, ISO9001, TUV | ||
| Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) | ||

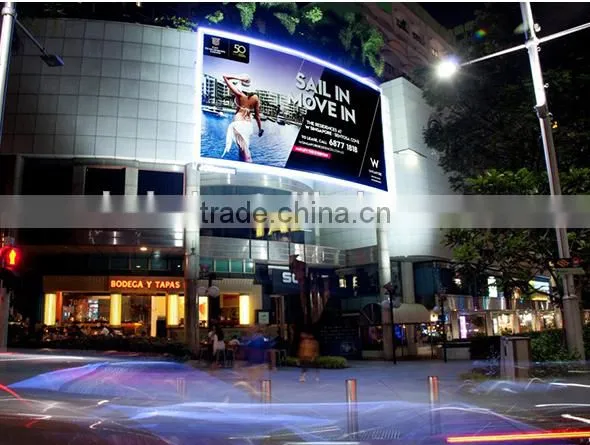

PH6.67 DIP Outdoor Advertising LED Display
The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.

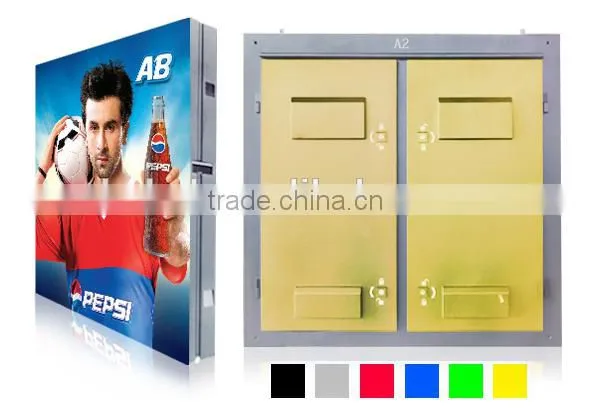

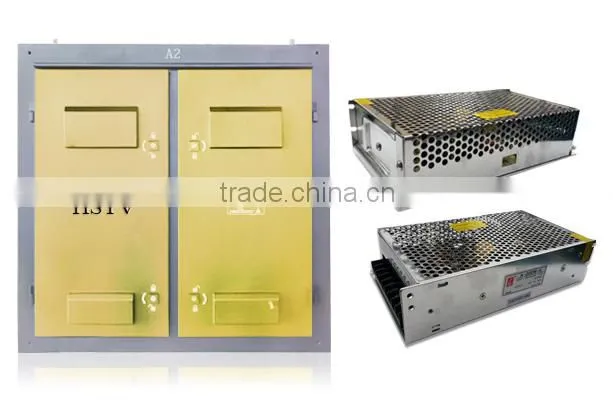

Unique Cabinet Design - Easy to Install & Transport
The cabinet of P6.67 LED Display for Outdoor Advertising features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.
Highly Cost-effective

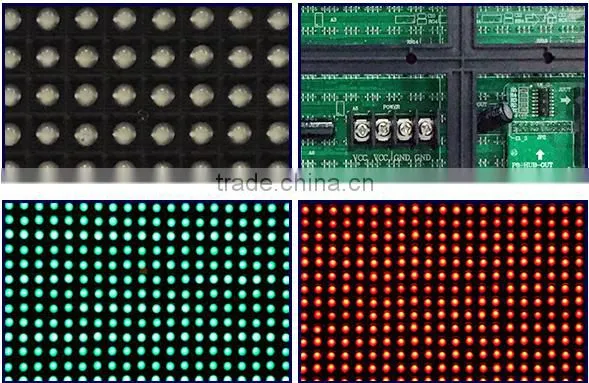

The precise and thin design of SMD LED screen makes it easy to move, install and maintain. It saves good amount of money on your labor and transportation cost. Special technology is used to minimize power use. PCB boards use Large Scale Integrated Circuit design, improving the stability of LED screen.

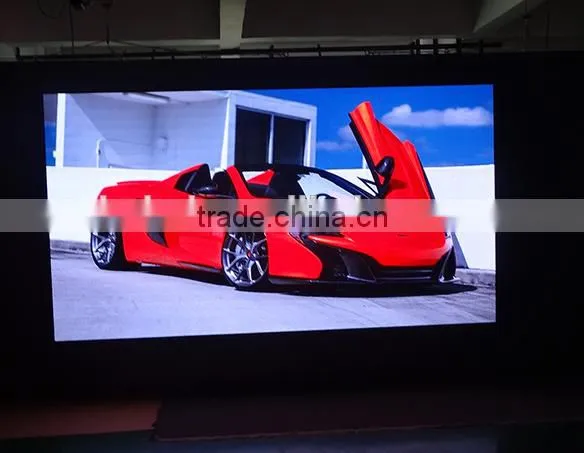

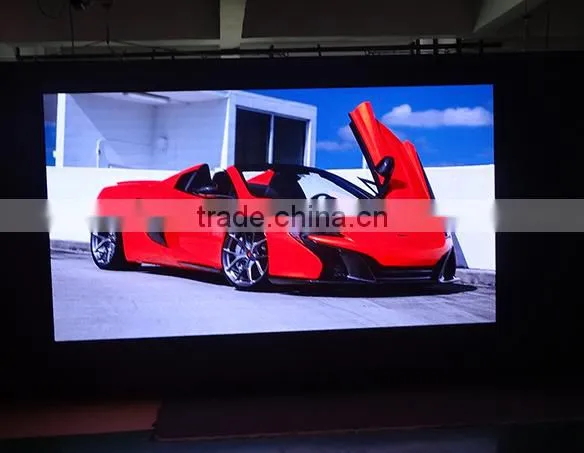

High Brightness, Better Quality
Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the P6.67 LED Display for Outdoor Advertising ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.

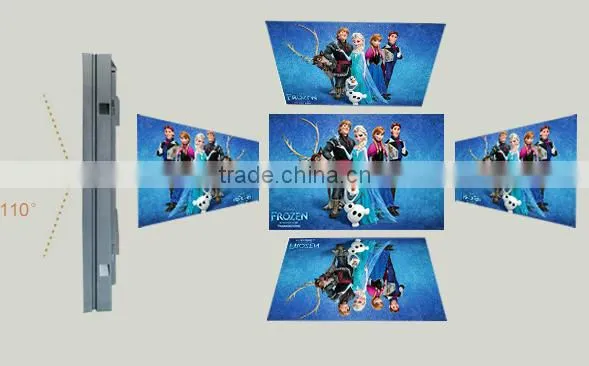

Wide Viewing Angle for Broader Reach
The display features a wide viewing angle of 110° horizontal and 55° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.

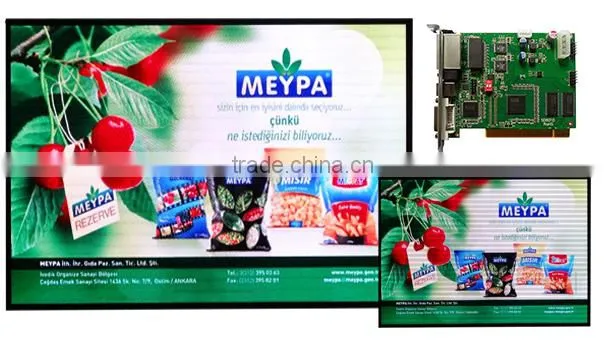

LINSN Control System
The display features LINSN control system which ensures great quality output, high resolution display, fast loading time and high refresh rate. The display is known for its stability and reliability, making it ideal for different advertising purposes.
Brand Names you can Trust
We purchase the chips, ICs and material from the most renowned vendors like Cree (USA), Nichia (Japan), Epistar, opto (Taiwan), MBI, TMS, PWM and MingYang. Best quality material is used to manufacture the products. Extra care is taken while assembling the products. So you can always trust the quality of this product.

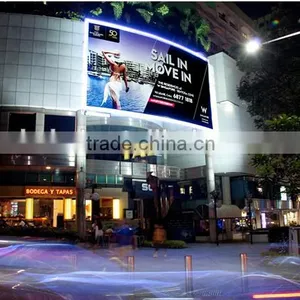

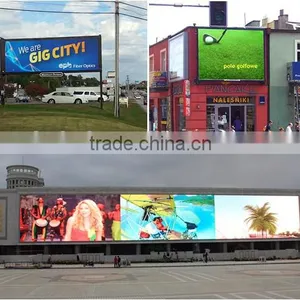

Application

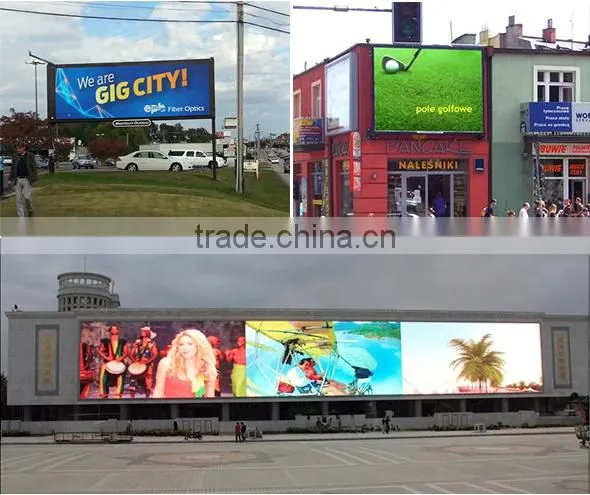

The P6.67 LED Display for Outdoor Advertising can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places.
Our Company Building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service
If your P6.67 LED Display for Outdoor Advertising is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
