P4.81 Outdoor SMD LED Display
| LED Lamp | |
| Type | SMD2727 |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (620-625nm) IV:(800-960mcd) |
| Chip parameters | Green (520-525nm) IV:(1350-1650mcd) |
| Chip parameters | Blue ( 470-475nm) IV:(330-400mcd) |
| LED Module | |
| Pixel Pitch | 4.81mm |

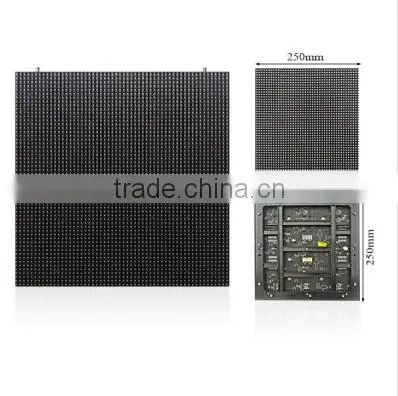

| Module Size(W*H) | 250×250mm |
| Module Resolution | 52×52=2704(Dots) |
| Module Weight | 0.8kg |
| LED Cabinet | |
| Pixel Density | 43222 Dots/sqm |
| Cabinet Dimension(W*H*D) | 1000×1000×175mm |
| Cabinet Resolution | 208×208=43264(Dots) |
| Module Quanty /Cabinet | 4×4=16(Pcs) |
| Cabinets Material | Aluminum-magnesium alloy Cabinet |
| Cabinet Weight | 37kg |
| Brightness | >6000cd/sqm |
| Viewing Angle | 120(Horizontal), 120(Vertical) |
| Nearest Viewing Distance | 8m |
| Power Consumption (Max) | 1200 w/sqm |
| Power Consumption (Average) | 300 w/sqm |
| Refresh Rate | >1000Hz |
| Drive Mode/Driver Position | Constant driving 1/13 Scan, Combined diver board |
| Display Function | Text, Graphics, Video |
| Frame Frequency | no less than 60 frame/sec |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Output Voltage | DC-5V, 40A/60A/80A |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| MTBF( mean time between failures) | 5000 hours |
| Life-span | 100, 000 hours |
| Protection Level(front/back) | IP66/IP54 |
| Malfunction Dot Rate | less than 0.0001 |
| Working Temperature | -30oC~50oC |
| Humidity | 15%~85% |
| Control System | |
| Control Method | Synchronization/Asynchronization |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| Software | LED Studio ( HSTV-linsn ) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
| Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Communication Type | Net cable, 3G, WIFI(Sold separately) |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |

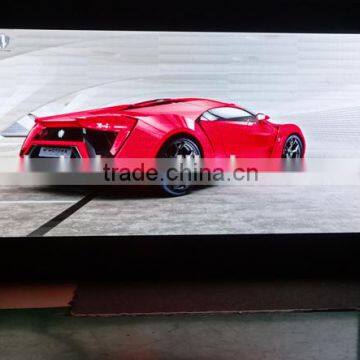

PH4.81 SMD LED Screen
The PH4.81 Outdoor SMD LED Display is easy to move, install and maintain, so it saves the labor and time costs. Highly applicable for bank, promotion, exhibition, highway, station, KTV, stadium, airport and other outdoor places.

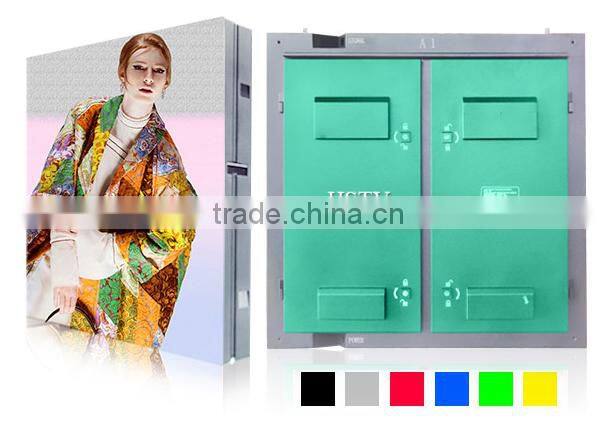

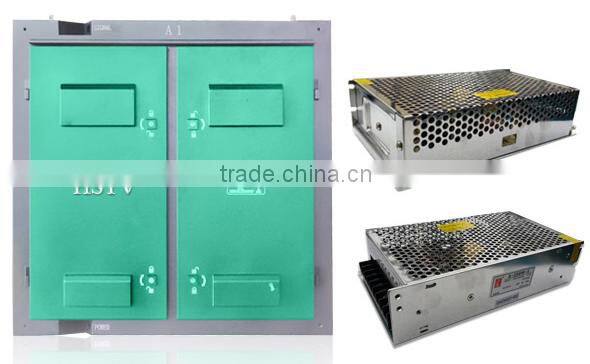

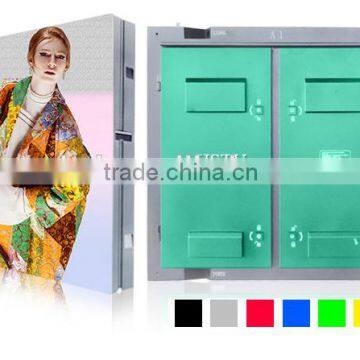

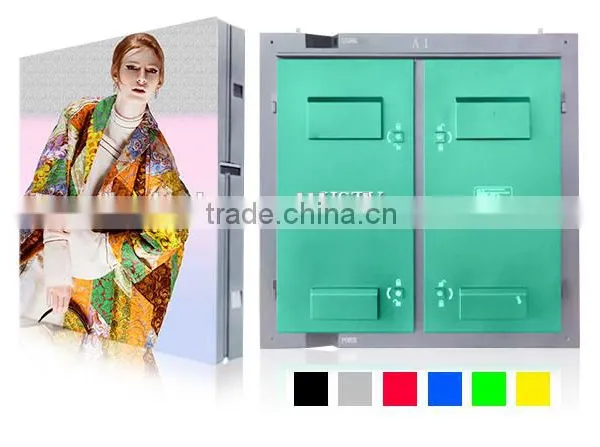

Unique Cabinet Design - Easy to Install & Transport
The cabinet of SMD LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.
Highly Cost-effective
The precise and thin design of SMD LED screen makes it easy to move, install and maintain. It saves good amount of money on your labor and transportation cost. Special technology is used to minimize power use. PCB boards use Large Scale Integrated Circuit design, improving the stability of LED screen.

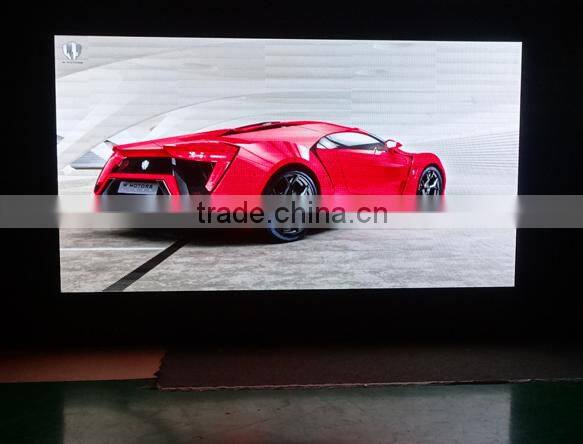

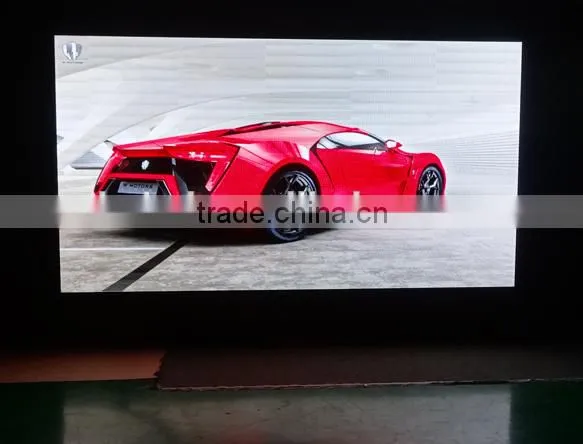

High Brightness for Quality Output
The SMD LED Screen features Over 6000cd/m2 brightness and advanced features like manual brightness adjustment. This means, you will get crystal clear picture output in any weather and every day. Adjust the brightness according to the area of installation.

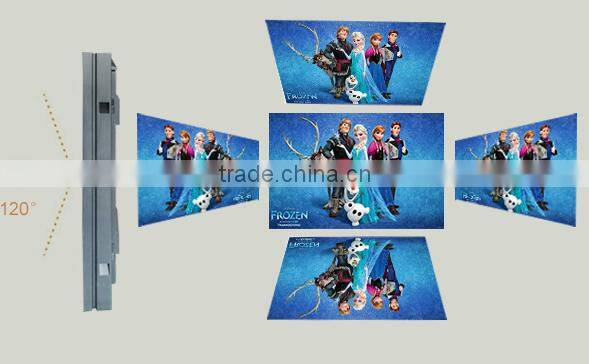

Wide Viewing Angle for Broader Reach
The display features a wide viewing angle of 120° horizontal and 120° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.

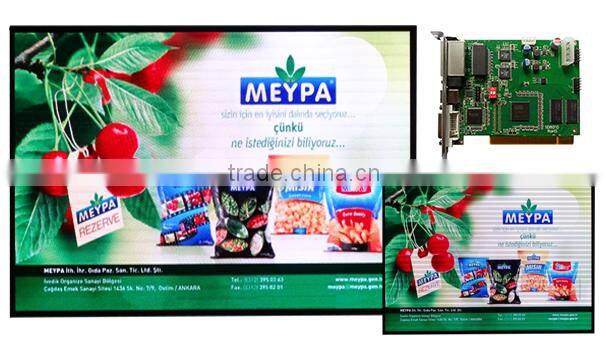

LINSN Control System
The Outdoor SMD LED Display features LINSN control system which ensures great quality output, high resolution display, fast loading time and high refresh rate. The display is known for its stability and reliability, making it ideal for different advertising purposes.

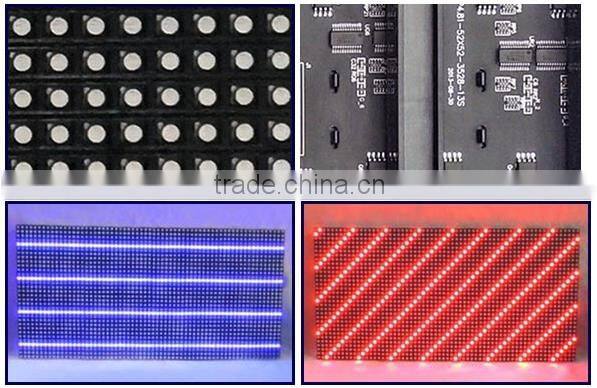

Brand Names you can Trust
We purchase the chips, ICs and material from the most renowned vendors like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan), MBI, TMS, PWM and MingYang. Best quality material is used to manufacture the products. Extra care is taken while assembling the products. So you can always trust the quality of this product.

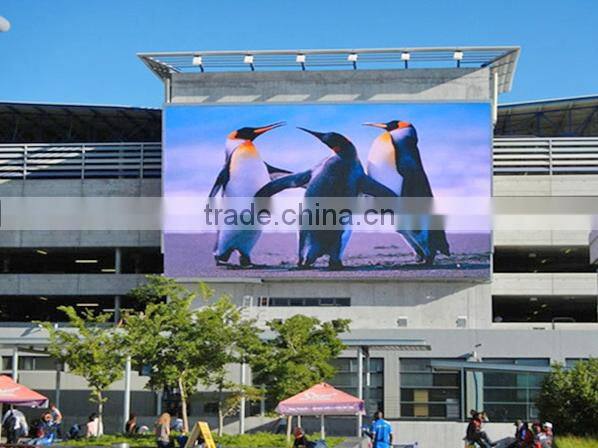

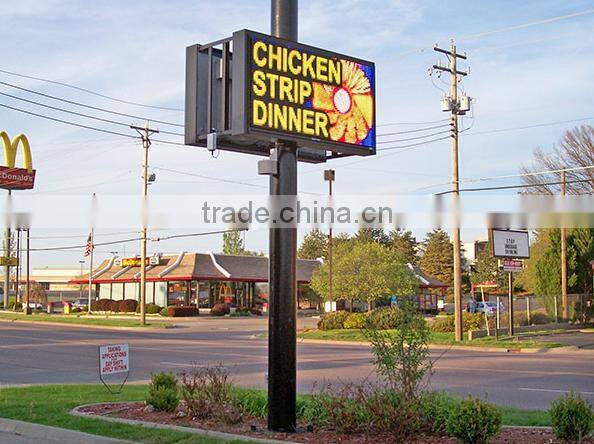

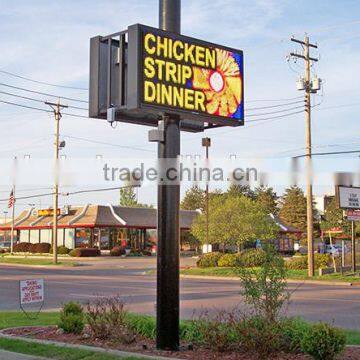

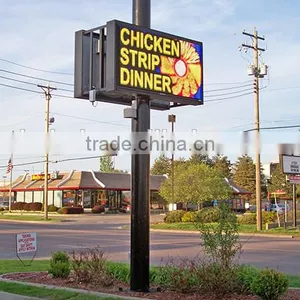

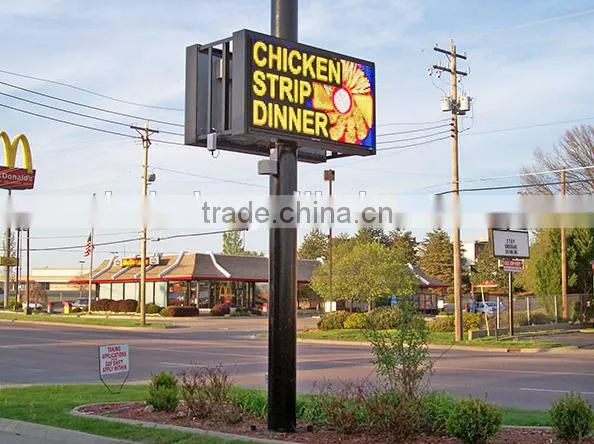

Application
The SMD LED Screen can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places.
Our Company Building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service
If your Outdoor SMD LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
