PH12 Outdoor DIP LED Screen LED Display
| LED Lamp | |
| Type | DIP346 |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (620-625nm) IV:(1000-1200mcd) |
| Chip parameters | Green (520-525nm) IV:(2000-2500mcd) |
| Chip parameters | Blue (470-475nm) IV:(500-650mcd) |

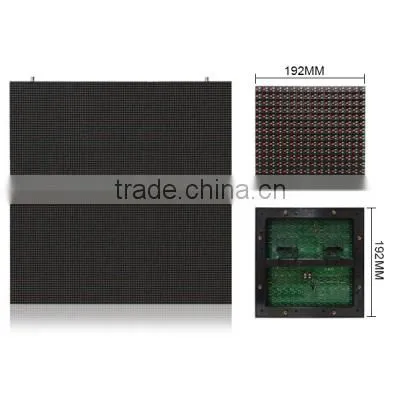

| LED Module | |
| Pixel Pitch | 12mm |
| Module Size | 192×192mm |
| Module Resolution | 16×16=256(Dots) |
| Module Weight | 0.6kg |
| LED Cabinet | |
| Pixel Density | 6944 Dots/sqm |
| Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 80×80=6400(Dots) |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Cabinet Dimension(W*H*D) | 960×960×185mm |
| Output Voltage | DC-5V, 40A/60A/80A |
| Module Quanty /Cabinet | 5×5=25(Pcs) |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Cabinets Material | Steel |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 42kg |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| Brightness | >6000cd/sqm |
| MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 110(Horizontal), 55(Vertical) |
| Life-span | 100, 000 hours |
| Nearest Viewing Distance | 15m |
| Protection Level(front/back) | IP66/IP54 |
| Power Consumption (Max) | 600 w/sqm |
| Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 200 w/sqm |
| Working Temperature | -30oC~50oC |
| Display Function | Text, Graphics, Video |
| Humidity | 15%~85% |
| Refresh Rate | >1000Hz |
| Drive Mode/Driver Position | Constant driving 1/4 Scan, Combined diver board |
| Control System | |
| Control Mode | Synchronization/Asynchronization |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Software | LED Studio(HSTV-linsn) |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
| Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) |
PH12 DIP Outdoor Advertising LED Display
The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.
LED advertising display
pixel pitch: 12mm
brightness: 6000cd/m2
refresh rate: 1000Hz
protection level: IP66/54
gray scale level: 16bits

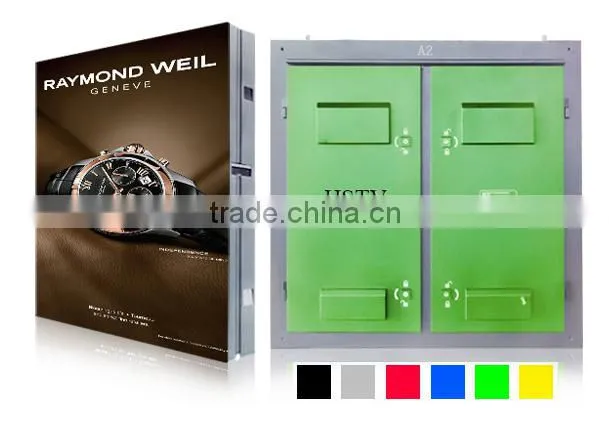

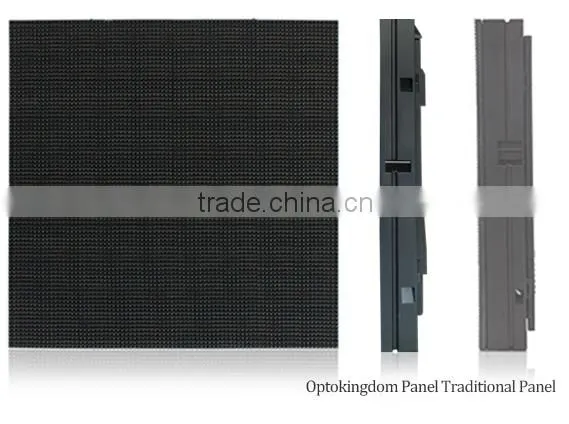

Unique Design - Easy to Install & Transport
The cabinet of High Way Billboard LED Display features unique rugged design which makes it easy to carry and install. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.
Outstanding Outdoor Performance
The displays are created for supreme quality outdoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in outdoor areas - in any environment conditions.
High Gray Scale - Better Picture
The High Way Billboard LED Display is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.

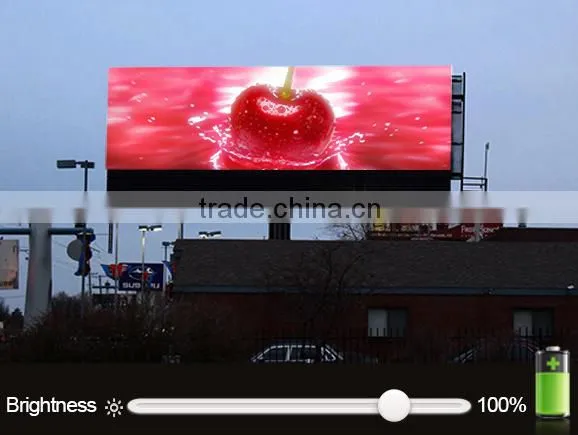

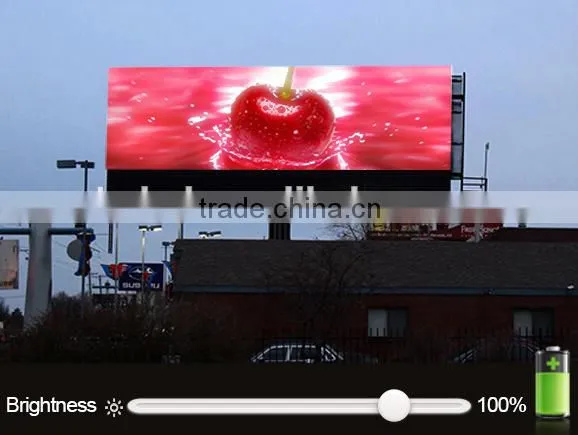

High Brightness, Better Quality
Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the High Way Billboard LED Display ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.

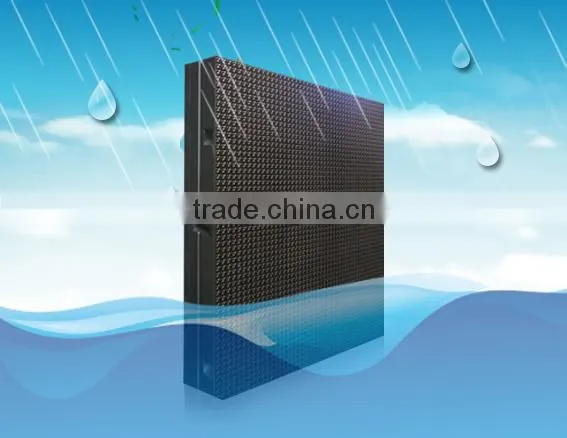

High IP Rating IP66 - Safe and Reliable
The special waterproof design of High Way Billboard LED Display protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.
High Refresh Rate
The High Way Billboard LED Display is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.

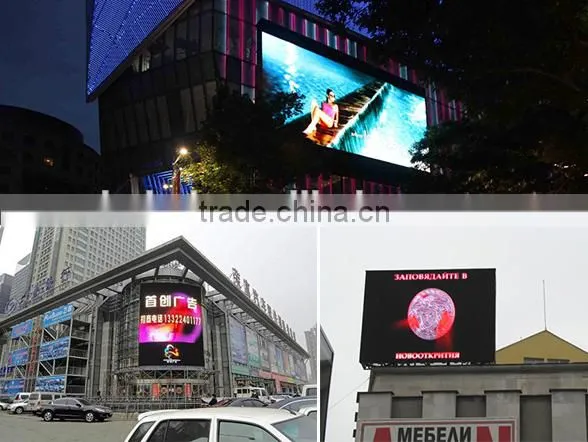

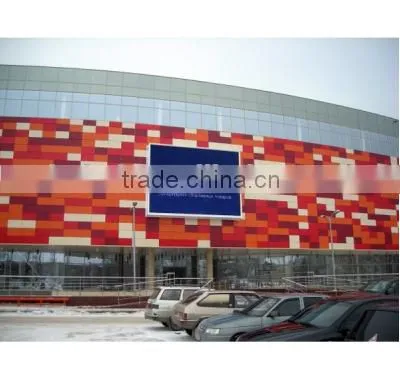

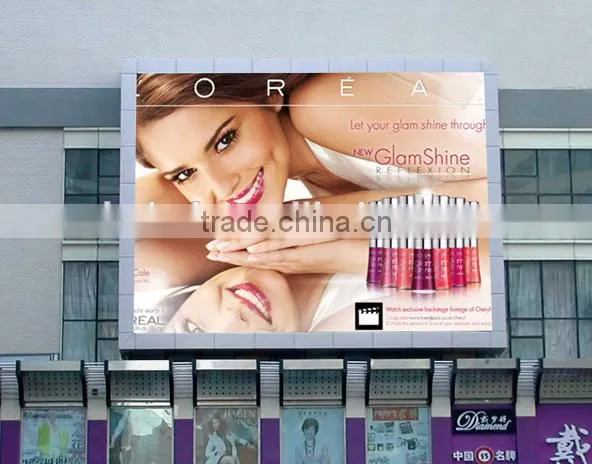

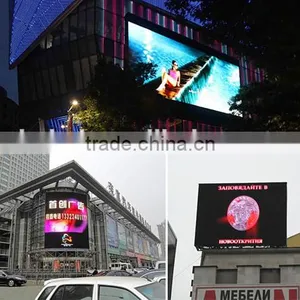

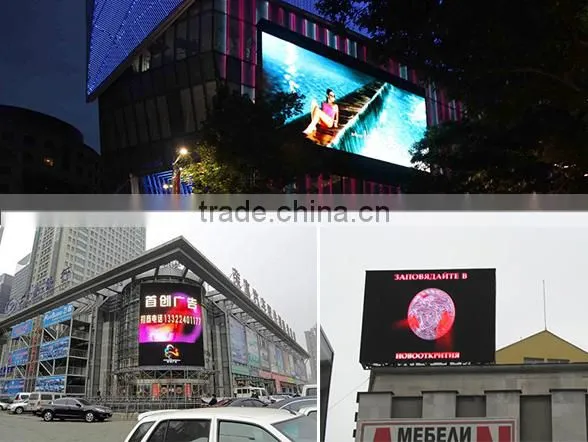

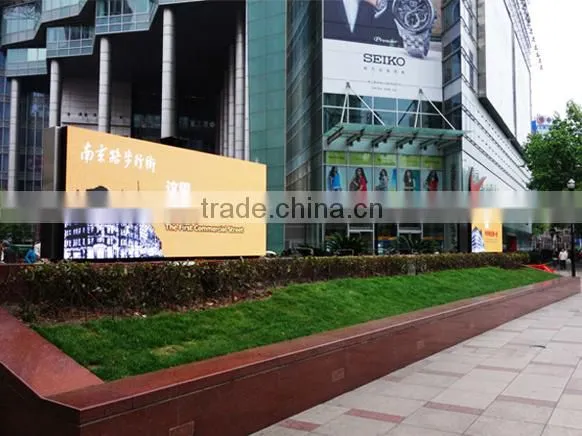

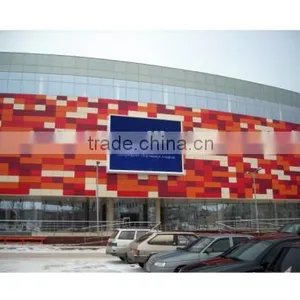

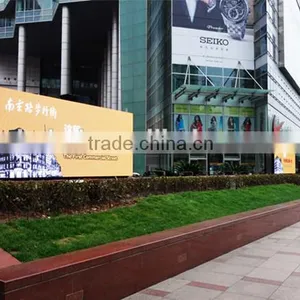

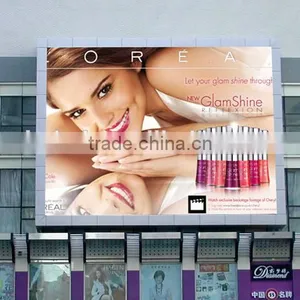

Application
The High Way Billboard LED Display can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium, KTV, airport and at many more outdoor places.
Our Company Building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service
If your High Way Billboard LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
