Outdoor Wood Cabinets Led Wall Screen Competitive Price P13.3 Dip Full Color 1r1g1b Outdoor Monitor Led Display

Name: Outdoor Wood Cabinets Led Wall Screen Competitive Price P13.3 Dip Full Color 1r1g1b Outdoor Monitor Led Display
Brand: HaiSheng
SKU: 121143287
Availability: InStock

Shenzhen Haisheng Led Co., Ltd.

5Yrs

Outdoor Wood Cabinets Led Wall Screen Competitive Price P13.3 Dip Full Color 1r1g1b Outdoor Monitor Led Display thumbnail-1

Outdoor Wood Cabinets Led Wall Screen Competitive Price P13.3 Dip Full Color 1r1g1b Outdoor Monitor Led Display photo-1

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

HaiSheng

Model Number:

HSGD-O-F-P13.3

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name HaiSheng

Model Number HSGD-O-F-P13.3

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 13.3MM

Screen Dimension customized size

Specifications

1.new Cost effective item
nical support
3.Brighter, IP65
4.CE,ROHS, FCC
5.Lower power consumption

outdoor wood cabinets led wall screen competitive price P13.3 dip full color 1r1g1b outdoor monitor led display

Low power consumption220 w/sq.m, IP 65 and bright above 6500nit,

longer view distance 13.3m - 100m, life span 100000 hours, with an amazing cost effective factory price.

Item		Specifications
LED Lamp	Type	13.3 mm dismeter high brightness LED lamps
	Arrangement	1R,1G,1B
	Red Wavelength (dominant)	625nm(+2.5nm)
	Green Wavelength (dominant)	523nm(+2.5nm)
	Blue Wavelength (dominant)	470nm(+2.5nm)
LED Cabinet	Dot Pitch	13.3 mm
	Physical Pixel	5640dots/sq.m
	Resolution	72*72pixel
	Dimension	960*960mm
	Brightness	above6500nit
	Viewing Angle	110(Horizontal),55(Vertical)
	Best Viewing Distance	13.3~150 meters
	Power Consumption (Max)	600 w/sq.m
	Power Consumption (Typical)	220 w/sq.m
	Weight	50 Kgs/sq.m
	Frame Frequency	no less than 60 frame/sec
	Refresh Rate	no less than 800 HZ/sec
	Voltage	220/110 VAC, 50/60 Hz
	MTBF	5000 hours
	Life Pan	100,000 hours
	Protection Level	IP 65
	Malfunction Dot Rate	less than 0.0001
	Working Temperature	-25°C~65°C
	Humidity	10%~99%
Control System	Drive Mode	static constant current
	Control Mode	synchronous /asynchronous
	Control System	PCTV Board + DVI Board + Control Board + Network cable Transmission
	Software	LED Studio (LINSN)
	Input Signal	RF,S-VIDIEO,RGB,RGBTV,YUT,YC,COMPOSTITION
	PC System	Win2000,Win XP, etc
Features	- GENELITE /CREE lamp with uniform color and high reliability - Super brightness, long and wide viewing distance - Automatic pipelining production - Use static-constant current for smooth and nature color transitions - Outstanding consistency in color and brightness, no Mosaic effects - Special structure design for water-proof and mothproof - Modular design for easy installation and maintenance - Operating software compatible with widely available software - Can be designed hanging system to satisfy special conditions

About Haisheng:

Haisheng has been in LED display career for more than 7 years, it has its own independent R&D

team, engineers, strong sales team, professional QC and experienced workers, automatic

production operation and scientific management.

We provide both software and hardware technical support, and keep 2 year as guarantee time.

Based on independent operation and design of factory, we devote to developing new advanced

products such as P6 outdoor and P8 outdoor, P13.3 outdoor included too.

Factory Gallery:

Quality control steps:

Materials management - SMT - LED plug in - wave soldering - welding, LED angle and flatness inspection - PCD assemble - Electric properties testing Modules assemble - High-low temperature aging test -

module potted - High - low temperature aging test after potting - LED screen assemble - Waterproof test- LED screen 72hs reliability test - Out- going inspection - Packing

Certificate of products and company:

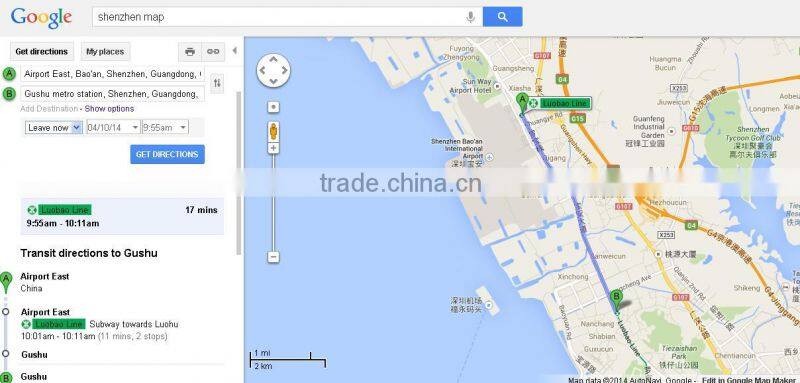

Where is Haisheng:

Welcome you come to Haisheng to have a inspection, we are very near to Shenzhen airport :)

Factory address: Floor3,Bldg A1,Donghua Industrial Zone,SanWei,XiXiang Town,Baoan District,Shenzhen,China

Part of Office address: Bao Feng building, Gushu metro station Exit A

Currently, products have mainly been exported to USA, UK,RU, AU, NL, Germany, Spain, Peru, Brazil, France, Italy, Greece, Japan, Korea, Kazakhstan etc.
