Floor Based Installation P10 Big Screen Outdoor LED TV
Negotiable
MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haisheng
Model Number:
HAGD-P10
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
P4 Indoor/outdoor LED Module Full ColorUS$ 1 - 1,500MOQ: 1 Square Meter -
Led Advertising Trucks,mobile Display Advertising Vehicle,Stage VanUS$ 1300.00 - 1300.00MOQ: 10 Square Meters
-
Projector Advertising Outdoor P3,P4,P5,P6,P7.62 Rental SMD Full Color Led Display Rucks for SaleUS$ 967.00 - 967.00MOQ: 10 Square Meters
-
Full Color Tube Chip Color and Animation Display Function Led Truck BodyUS$ 700.00 - 700.00MOQ: 10 Square Meters
-
High Definition LED Big Screen Truck Car Window Display Advertising, Heavy Video , Online Games, Live Competition Broadcast.US$ 967.00 - 967.00MOQ: 10 Square Meters
Place of Origin
Guangdong, China
Brand Name
Haisheng
Model Number
HAGD-P10
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
10mm
Specifications
1.high resolution2.super slim
3.fast installation
4.high density
5.3 years warranty with the best price
Haisheng Optoelectronic deliver High quality outdoor big led screen and an excellent viewing experience with huge sharp images and incomparable giant video even in direct sunlight. They have viewable angles of 120 degrees for perfect viewing by your entire audience.
Module
cabinet
specification
| HSGD-P10-OUTDOOR | |||
1 |
Pixel Information |
Pixel Pitch |
10 mm |
Pixel Density |
10000 Pixels/sq.m |
||
Pixel Composition |
1Red + 1Blue+ 1Green |
||
LEDs Brand |
Red: Optotech(China Taiwan) Green: Silan(China mainland) Blue: Silan(China mainland) |
||
LEDs Wavelength |
Red: 615 nm - 635 nm Green: 520 nm - 535 nm Blue: 465 nm - 475 nm |
||
2 |
Viewing |
White Balance |
X= 0.33 Y= 0.33 5600°K(Adjustable up to 9000°K) |
Brightness |
>6000 cd/sq.m. |
||
Brightness Uniformity |
Luminance Discrepancy < 5% |
||
Colors |
16777216 |
||
Grey Level |
256 levels |
||
Slot Between Neighboring Modules |
< 1 mm |
||
Recommended Viewing Angle |
Horizontal < 110 degree Vertical < 55 degree |
||
Recommended Viewing Distance |
> 5 m |
||
Malfunction Pixel Rate |
<0.02% |
||
3 |
Dimension |
Module Dimension |
160 mm (Width) × 160 mm(Height) = 0.0256 sq.m |
Module Resolution |
16 pixels(Width) × 16 pixels(Height) = 256 pixels |
||
Cabinet Dimension |
640 mm(Width) × 640 mm(Height) = 0.4096 sq.m |
||
Cabinet Resolution |
64 Pixels(Width) × 64 Pixels(Height) = 4096 Pixels |
||
Module Quantity of Each Cabinet |
4 Modules(Width) × 4 Modules(Height) = 16 Modules |
||
4 |
Power |
Input Voltage |
100-240V AC, 50/60Hz |
Max Power Consumption |
650Watt/sq.m |
||
Avg. Power Consumption |
250 Watt/sq.m |
||
5 |
Ambint Conditions |
Operating Temperature |
-20+60 |
Operating Humidity |
10%90%RH |
||
Ingression Protection Grade |
Front Side: IP67Resist spraying of water gun directly, Back Side: IP54Resist Rain |
||
6 |
Processing |
Scanning Mode |
Static Scan, Constant Current |
Refresh Frequency |
180HZ-600HZ, Adjustable |
||
Signal Input |
DVI, Composite Video for Live Video |
||
Supported Networking |
Through LAN/WAN, RS 232/RS485 |
||
Controller |
PC based |
||
Software |
LED studio |
||
7 |
Other |
Life Span |
50,000 - 100,000 Hours |
Weight |
About 55 KG/sq.m |
||

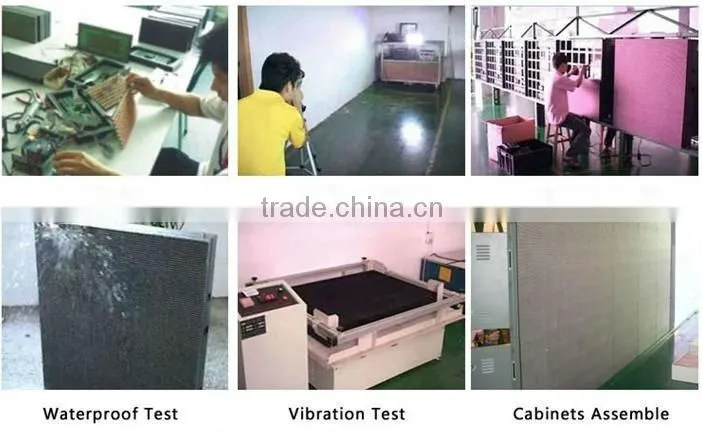

display testing
