High definition LED big screen truck car window display advertising, heavy video , online games, live competition broadcast.
| LED Lamp | |
| Type | SMD3535 |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (620-625nm) IV:(800-960mcd) |
| Chip parameters | Green (520-525nm) IV:(1350-1650mcd) |
| Chip parameters | Blue (470-475nm) IV:(330-400mcd) |

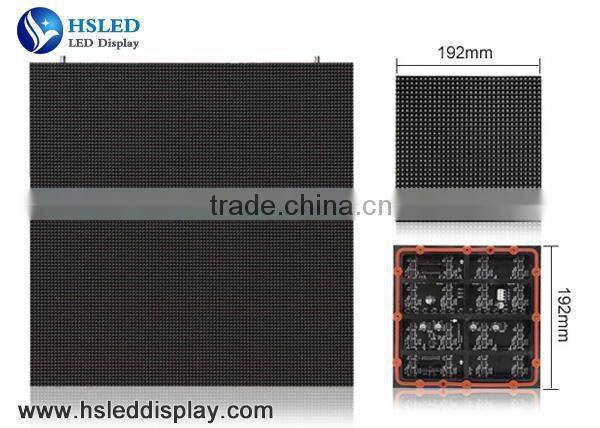

| LED Module | |
| Pixel Pitch | 6mm |
| Module Size | 192×192mm |
| Module Resolution | 32×32=1024(Dots) |
| Module Weight | 0.4kg |
| LED Cabinet | |
| Pixel Density | 27777 Dots/sqm |
| Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 160×160=25600(Dots) |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Cabinet Dimension(W*H*D) | 960×960×175mm |
| Output Voltage | DC-5V, 40A/60A/80A |
| Module Quanty /Cabinet | 5×5=25(Pcs) |
| Grey Scale Levels | 16bit |
| Cabinets Material | Steel |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 37kg |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| Brightness | >7500cd/sqm |
| MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 120(Horizontal), 120(Vertical) |
| Life-span | 100, 000 hours |
| Nearest Viewing Distance | 9m |
| Protection Level(front/back) | IP66/IP54 |
| Power Consumption (Max) | 1200 w/sqm |
| Power Consumption (Average) | 300 w/sqm |
| Malfunction Dot Rate | less than 0.0001 |
| Working Temperature | -30oC~55oC |
| Display Function | Text, Graphics, Video |
| Humidity | 15%~85% |
| Refresh Rate | >1000Hz |
| Drive Mode/Driver Position | Constant driving 1/8 Scan, Combined diver board |
| Control System | |
| Control Mode | Synchronization/Asynchronization |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Software | LED Studio ( HSTV- linsn ) |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
| Control Card Input | DVI, USB; RJ45, HDMI(Sold separately) |
- See more at: /Mobile-led-displays.html#sthash.SMLRCYWq.dpuf

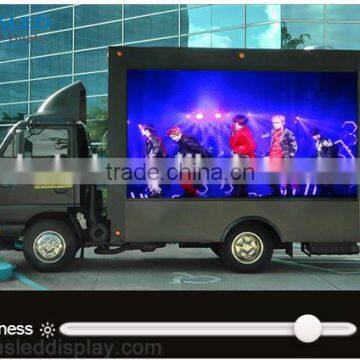

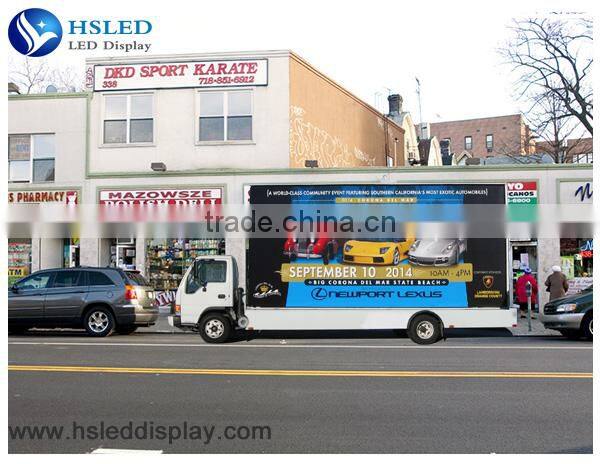

PH6 Truck LED Screen
The moving LED display is finest option for truck and vehicle advertisement. The stable display keeps the images and videos blur-free, even when the vehicle is moving. Easy to install and control. One man can handle everything.
The quality module
All modules and chips are purchased from leading suppliers from across the world. We take great care of quality and performance, and thus we remain very careful while selecting the modules and chips. LED chip is provided by Epistar, Cree, Nichia and Opto. Quality IC supplied by MBI, TMS, PWM and Mingyang.

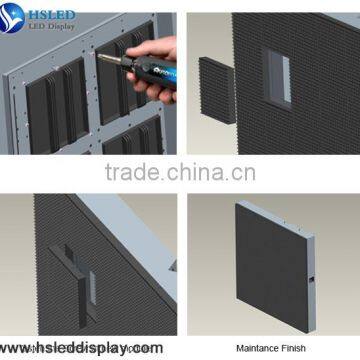

Integrated Design, Fast Installation
The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.
High Brightness, Better Quality
High Refresh Rate
The Truck LED Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and text
High IP Rating IP66 - Safe and Reliable
The special waterproof design of Truck LED Screen protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.
One Price for All
In single price, you get the complete kit which includes the LED display, cabinet, control system and package. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your product in warranty period.
Our Company Building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service
If your Truck LED Screen is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
