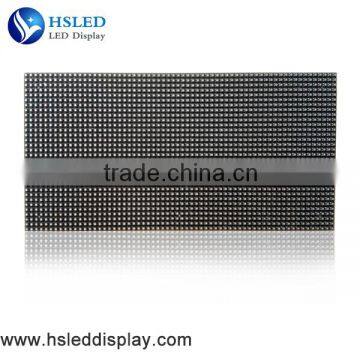

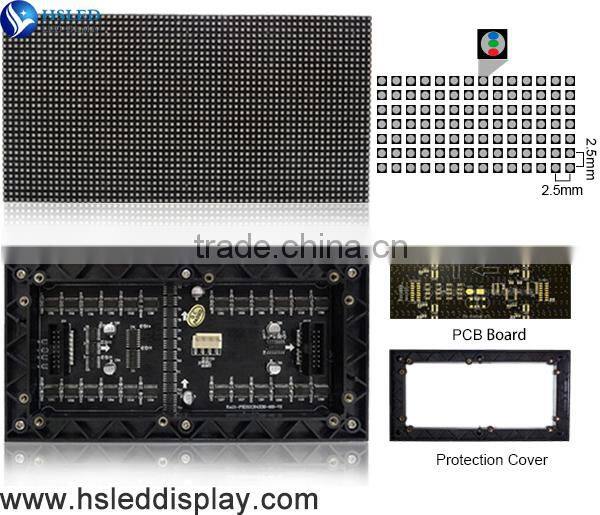

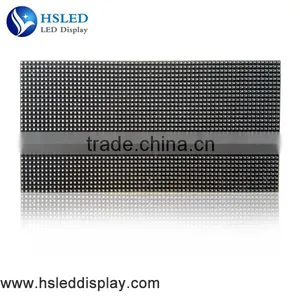

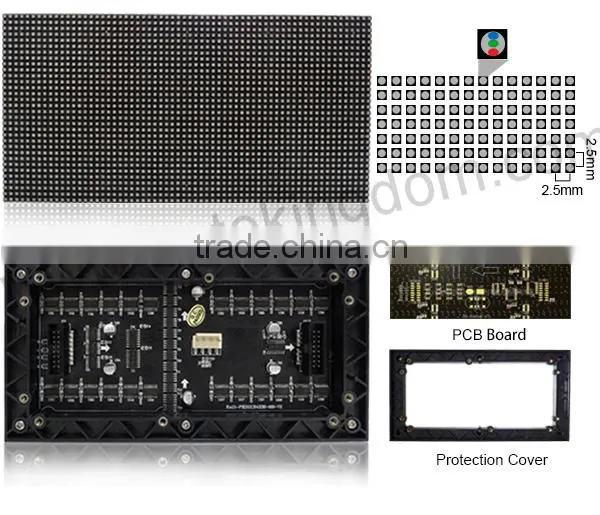

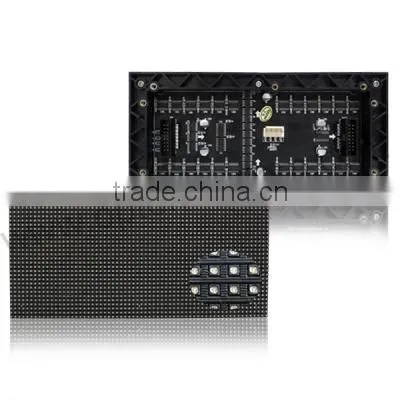

PH2.5 Indoor Full Color SMD LED Module

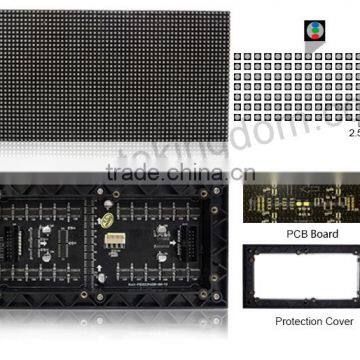

These modules with 2.5mm pixel pitch,are easily assembled into lightweight yet firm structures.

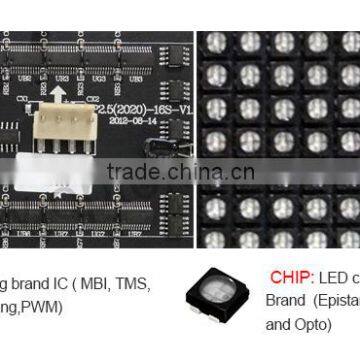

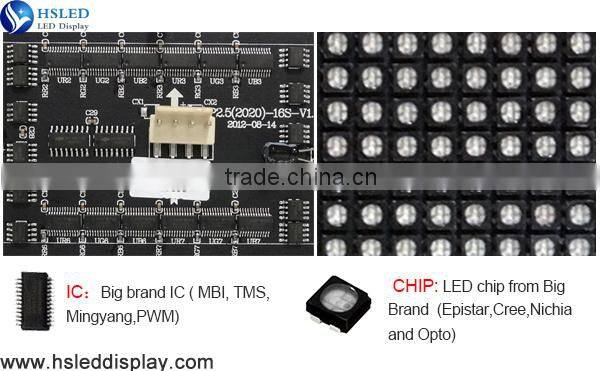

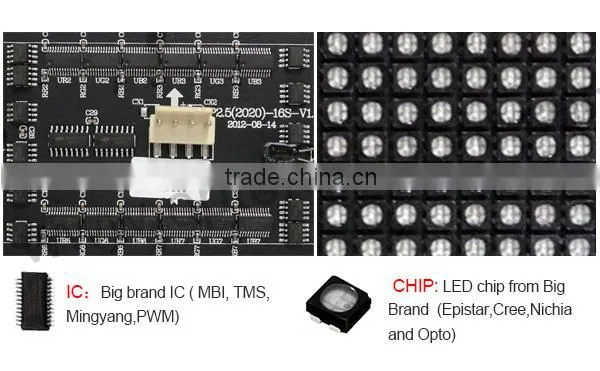

Adopt famous brand IC and chip, quality assured
We primarily use famous band chips, such as Epistar,Cree (USA), Nichia (Japan), Opto(Taiwan) to guarantee maximum service life of LED modules.

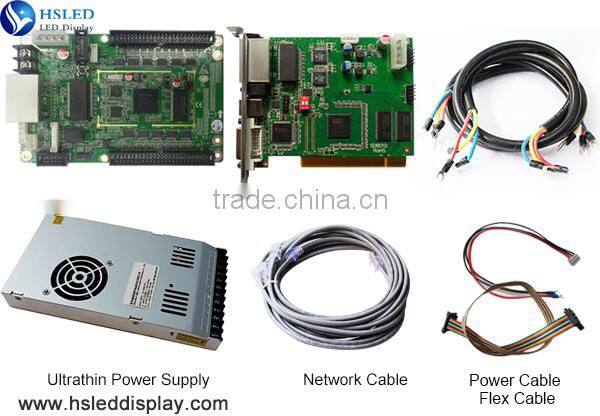

Control system and power supply
Control system includes sending card, receiving card, receiving HUB. Power supply voltage selection switch can be used as a supply voltage 110V and 220V.
Greater price transparency in the LED display market
We provide most cost effective LED display module on the ex-factory price.
High refresh rate enables the screen to get rid of scan lines
Over 1000Hz refresh rate enables flicker free performance, delicate pictures can be delivered accurately without scan lines.

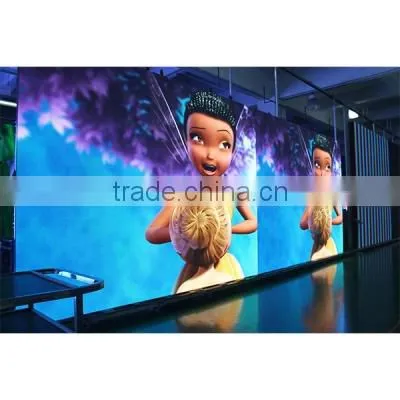

More natural, deeper, richer picture

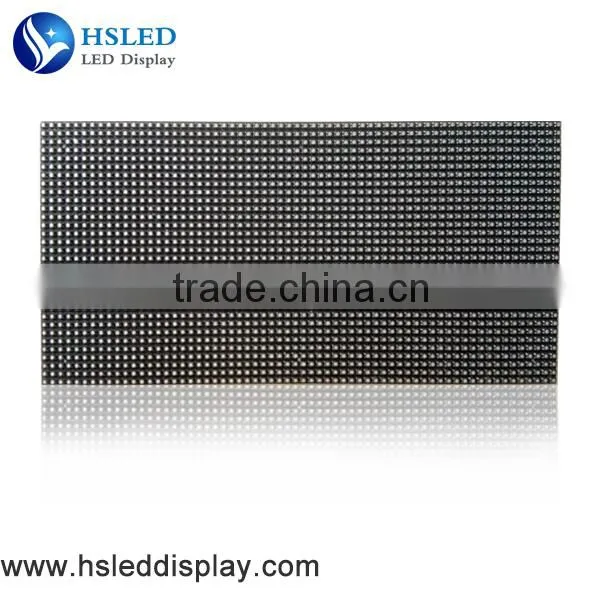

High contrast, 2.5mm resolution, and brilliant color uniformity give this modular display quality image reproduction.

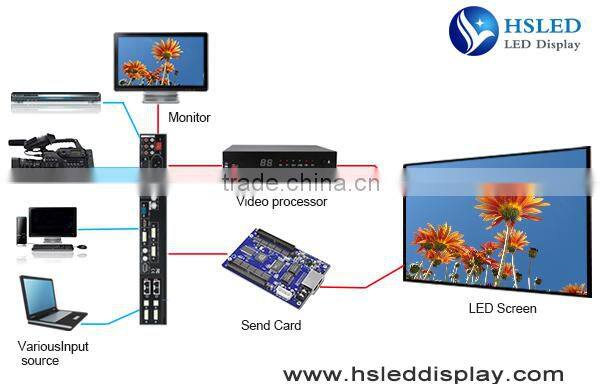

Support for various input devices and multiple signal input
This indoor led modular display is able to connect PC, DV, DVD player, etc. and support multiple input signal, such as AVI, MPG, MPEG, TXT and so on.
Optimal choice for HD LED screen
High resolution screen brings nearly perfect display performance and exciting visual feast.
| LED Lamps | |||
| Type | SMD1515 black body | Chip parameters | Red λd:(625-630nm) IV:(65-115mcd ) |
| Arrangement | 1R1G1B | Chip parameters | Green λd:(523-526nm) IV:(215-265mcd) |
| Brand | Epistar | Chip parameters | Blue λd:(470-473nm) IV:(33-83mcd) |
| LED Module | |||
| Pixel Pitch | 2.5mm | Module Size | 160×80mm |
| Module Resolution | 64×32=2048(Dots) | Module Weight | 0.24kg |
| Module Input Interface | HUB-75 | ||
| LED Cabinet | |||
| Pixel Density | 160000 Dots/m² | Frame Frequency | no less than 60 frame/sec |
| Brightness | ≥1800cd/m² | Input Voltage | AC110-220V±10%,50/60Hz |
| Viewing Angle | 140(Horizontal),140(Vertical) | Output Voltage | DC-5V,40A/60A/80A |
| Nearest Viewing Distance | 5m | Grey Scale Levels | 1024bit |
| Power Consumption (Max) | 1200 w/m² | Color Processing | R(1024)×G(1024)×B(1024) |
| Power Consumption (Average) | 400 w/m² | Brightness Adjustment | 256 color levels,can be adjusted manually and automatically optional |
| Display Function | Text,Graphics,Video | MTBF( mean time between failures) | 5000 hours |
| Refresh Rate | ≥1000Hz | Life-span | 100,000 hours |
| Working Temperature | -15℃~50℃ | Protection Level(front/back) | IP31/IP54 |
| Humidity | 15%~85% | Malfunction Dot Rate | less than 0.0001 |
| Drive Mode/Driver Position | Constant driving 1/32 Scan,Combined diver board | ||
| Control System | |||
| Control Mode | Synchronization/Asynchronization | Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card,Receiving HUB | PC Operating System | Microsoft Windows 7, XP and Vista |
| Software | LED Studio ( linsn ) | Communication Type | Net cable,3G,WIFI(Sold separately) |
| Language | Chinese,Traditional Chinese,English,French,Japanese,Russian,Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,Romanian,Arabic | Certificate | CE,ROHS,FCC,ISO9001,TUV |
| Control card inputs | DVI,USB,RJ45,HDMI(Sold separately) | ||

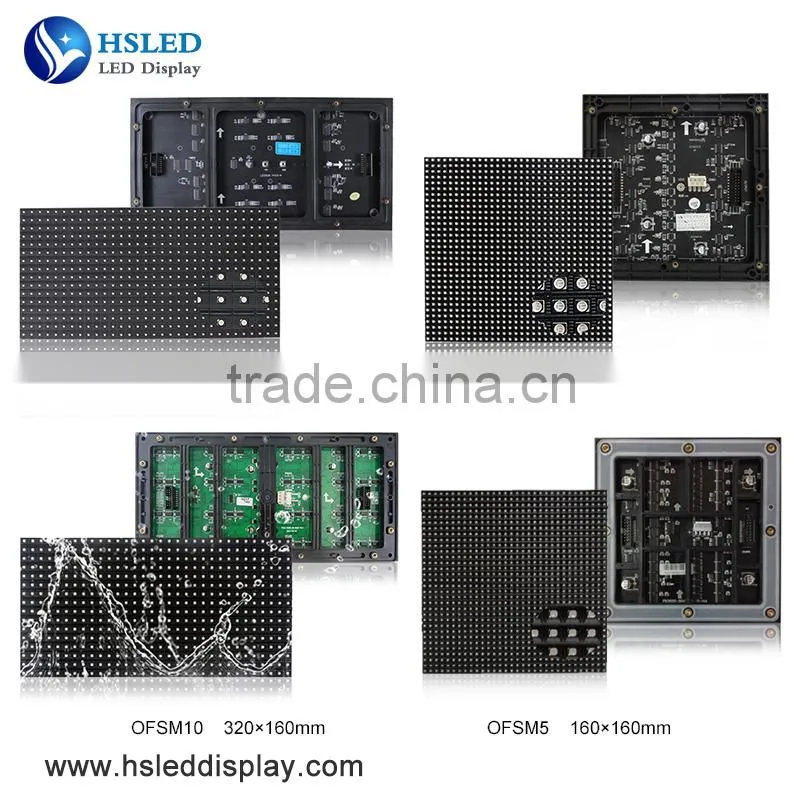

More Indoor Full Color SMD LED Module
1. We have woodencase package and flightcase package for your option, woodencase package is the normal package for goods and flightcase package is for easy and frequent transfering of the goods.
2. Shipping by sea is the service until to the destination port. It’s cheap but very slow. Our trading terms are ETX, FOB and CIF. Shipping by sea is a very nice choice if your goods weight is more than 500 KG.
3. Shipping by air is the service until to the destination airport. It’s cheap and very fast but clients have to clear goods from customs by themselves. You can choose shipping by air if your goods are more than 100 KG, however, if your goods are very heavy and are urgently needed, you can also choose shipping by air.
4. Express is door to door service, it’s very convenient. If your products are less than 100 KG, shipping by express is a very nice choice.
Optokingdom foreign trade LED shopping mall is a B2C business platform which is mainly built by HaiSheng Led CO.,LTD and a dozen of electronic component suppliers in Shenzhen. The total foundation is more than 10 million USD. It's a direct purchasing platform for small and medium project contractors and terminal users to find inexpensive high-quality products, rapid after-sales service, safe and fast logistics service. Clients are welcome to register on .
Our management principle: Clients will get what they pay without troubles bake at home.
Out target: to promote the development of optoelectronic industry, to reduce the earth resource consumption, to protect the human living environment.
Our duty: No cheating to clients but only honest trading.
our certificates and reputation
The important components of our product are supplied by big brand. Such as CREE, OPTO, NICHIA, MBI, PWM and Mingyang etc. And we have pass quality certificated of authority, such as RoHS, SGS, CE, FCC, ISO9001 and Alibaba, etc. and gained a lot of awards
