Solar IP65 Auto P10 Outdoor Full Color Led Display
- FOB SHENZHEN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haisheng | |
| Model Number | HSGD-P10-O | Usage | Outdoor | |
| Tube Chip Color | Other, Full Color, Full Color | Display Function | Other, Video, Video | |
| Pixels | 10mm |
Standard wooden case or flight case according to customers' requirements
Product Description
Specifications
1.Manufacturer with 4 years2.CE/ROHS/FCC
3.Warranty:2years
4.Installation service provided
Culture
Shenzhen Haisheng, with 4 years’ experience in the Outdoor Led Screen industry, is professionally engaged in the R & D, manufacture and sale of LED displays & lighting. With a factory of 5,000 square meters, we have powerful techniques, advanced production equipment and experienced personal to guarantee the competitive price, pand ad time.
Characteristic
1. High brightness, and can be adjustable, meets the need of changing requirement of customer in environment.
2. Ultra-thin cabinet design, high mechanical strength.
3. It is convenient to be installed and disassembled.
4. Great moisture and corrosion proofing, enable themselves to work in all weather condition outdoor.
5. Safer and more reasonable design for power supply, lower the power consumption.
Technical Parameters
1. Module
| Pixel Pitch | 10mm | ||
| Pixel Configuration | 1R1G1B | ||
| Density | 10000 dots/ m2 | ||
| Module Resolution | 16dots(H) X 16dots(V) | ||
| Module Pixel | 256 dots | ||
| Driver Mode | Constant Current 1/4 Scan Drive | ||
| Module Weight | 500g | ||
| Module Size | 160mm*160mm | ||
| Mask | Puer Black Mask-high Constrast Screen |
2. Cabinet
| Cabinet Size(W*H*D) | 960mm*640mm*100mm | |||
| Cabinet Resolution | 96dotsx64dots | |||
| Module Quanity | 24pcs | |||
| Cabinet Pixel | 6144dots | |||
| Average Power Consumption | 750W/ m2 | |||
| Max. Power Consumption | 1300W/ m2 | |||
| Material | Aluminum | |||
| Cabinet Weight | 32KG | |||
3. Screen
| Brightness | ≥7000cd/ m2 | ||||
| View Angle | Horizontal 120° Vertical 60° | ||||
| Best View Distance | 10~150m | ||||
| Brightness adjustment | Manual & automatically | ||||
| Gray Scale Rectification | 8bits input,correction with 14bits | ||||
| colors | 256*256*256=16777216 | ||||
| Operation Power | AC100-240V 50-60Hz | ||||
| Correction Scale Level | 16bits | ||||
| Screen Refresh Frequency | ≥420Hz | ||||
| Frame Update Frequency | ≥60Hz | ||||
| Non-malfunction timev (Avg.) | >10,000hours | ||||
| Support Input | Composit Video,S-video,DVI,HDMI.,SDI,HD_SDI | ||||
| Control distance | Ethernet Cable 100m,Optical Fiber 5Km | ||||
| Color temperature | 5000-9300 adjust | ||||
| Brightness Correction | dot by dot, module by module, cabinet by cabinet | ||||
| Operation Temp. | —40°C~60°C | ||||
| Operation Humidity | 10%—90%RH | ||||
| Screen life | 10,0000 hours | ||||
| MTBF | 5000hours | ||||
| Continuous working time | 72hours | ||||
| IP Rating | IP65 | ||||
| Out of Control Pixel Rate | ≤0.01% | ||||

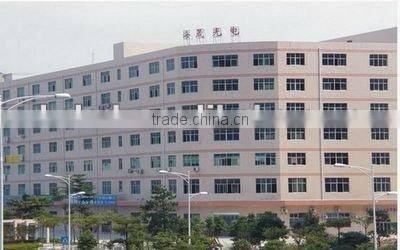

Haisheng plant

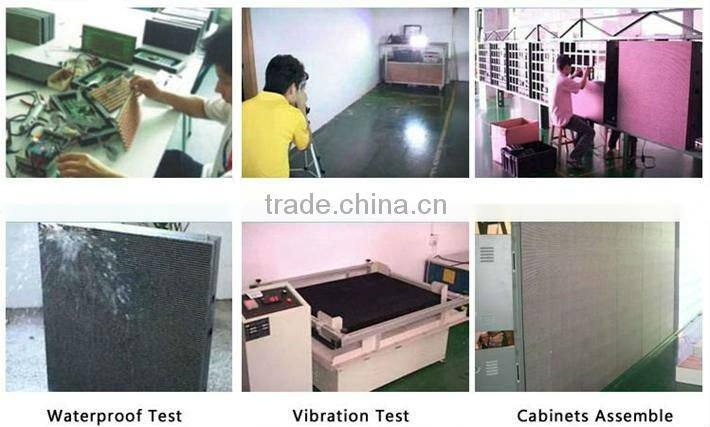

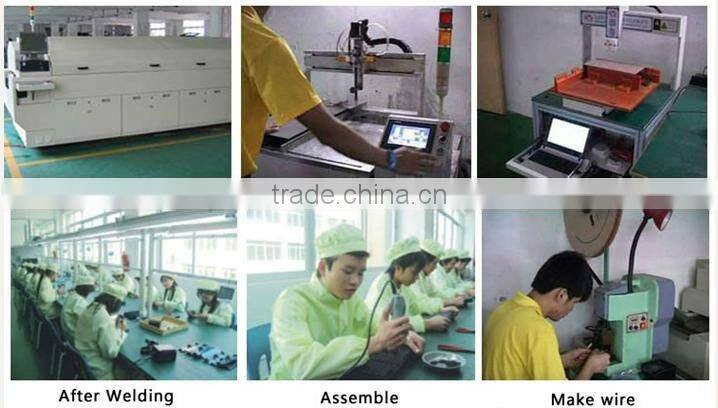

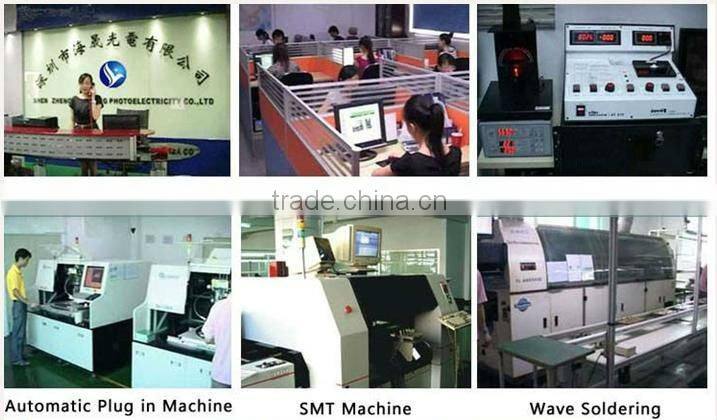

Equipments
Certifications CE/ROHS/FCC/UL
Company Profile
ShenZhen HaiSheng Optoelectronic CO.,LTD is a professional LED Display and LED Lights Manufacturer. It's a hi-tech enterprise which is specialized in researching, desiging, manufacturing and exporting all kind of LED Products. With qualified talents, high technology and aboundant funds, we have many offices and branches in most cities of China, so we can offer rapid and perfect service to our clients. Our Company has a high-quality professional technicians and advanced modern production equipment : SMT machine,injection molding machine, COB machine, high temperature aging furnace, TABLE machine (point-by-point brightness debug) reflow soldering machine and serveral wave soldering machines, PCBA lines, automatic packaging production lines and 1000sqm aging vertical testing stand. Fully implement strict ISO9001-2000 quality management, and strive to make every piece of LED displays, LED unit boards, modules, lighting to be the best, our products have passed the European CE, American UL certification and other related certifications. All the products researched and developed by HaiSheng have reached the advanced level in the international market. Relying on the advantages of the strategic union consisting of the company, the domestic and foreign company have developed into a genuine cross-century modern enterprise with resource sharing, division & coorperation, advantages complementary and high-performance operation. At present, HaiSheng Optoelectronic CO.,LTD have formed a"Genelite" brand of LED Displays with features of low attenuation, high brightness, anti-static, good stability, high gray level, and had got good reputation from our customers. Our products mainly applied in City Square LED Display, Highway Advertising LED Display, Shopping mall LED Display, Stadium LED Display,etc. It had been widely used in advertising, bars, airport, bus station, ports, stadiums, banks, schools, factories, post and telecommunications, shopping malls, hospitals, industry and commerce, taxation, customs,monitoring centers,etc. The products have been exported to United States, Russia, Britain, France, Australia, Greece, Italy, Japan, Korea, Taiwan, and Kazakhstan,etc. With strong financial, professional technique strength, stable quality, fast and perfect service allows users to have the most stable and cost-effective products. Our company is dedicated to serving clients of the whole world with clear high-quality orientation, continuously innovating techniques and internationally synchronous management concepts.
