p10 led display/p10 led display module/led screen module p10
- 3000 Square Meter / Square Meters per Month
- Shenzhen
Product Details
| Place of Origin: | Guangdong, China | Model Number: | IFSE10-C | Usage: | Indoor |
| Tube Chip Color: | Full Color | Display Function: | Video | Pixels: | 10mm |
| Screen Dimension: | Customized Size |
Packaging Details
Special flight case or wooden case for LED display, the weight and size depend on customer's requirments.
Product Description

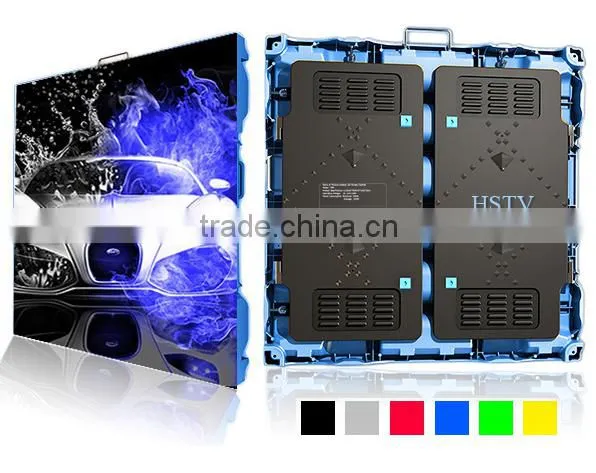

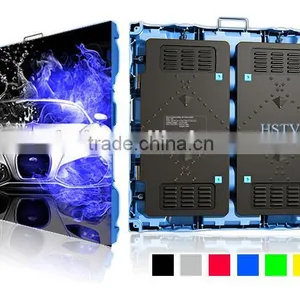

p10 led display/p10 led display module/led screen module p10
| LED Lamp | |
| Type | SMD3528 |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (620-625nm) IV:(250-300mcd ) |
| Chip parameters | Green (520-525nm) IV:(450-550mcd) |
| Chip parameters | Blue (470-475nm) IV:(100-120mcd) |
| LED Module | |
| Pixel Pitch | 10mm |
| Module Size | 320×160mm |
| Module Resolution | 32×16=512(Dots) |
| Module Weight | 0.4kg |
| LED Cabinet | |
| Pixel Density | 10000 Dots/sqm |
| Frame Frequency | no less than 60 frame/sec |
| Cabinet Resolution | 96×96=9216(Dots) |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Cabinet Dimension(W*H*D) | 960×960×95mm |
| Output Voltage | DC-5V, 40A/60A/80A |
| Module Quantify /Cabinet | 3×6=18(Pcs) |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Cabinets Material | Aluminum-magnesium alloy Cabinet |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Cabinet Weight | 18kg |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| Brightness | >1100cd/sqm |
| MTBF( mean time between failures) | 5000 hours |
| Viewing Angle | 140(Horizontal), 140(Vertical) |
| Life-span | 100, 000 hours |
| Nearest Viewing Distance | 13m |
| Protection Level(front/back) | IP43/IP54 |
| Power Consumption (Max) | 600 w/sqm |
| Malfunction Dot Rate | less than 0.0001 |
| Power Consumption (Average) | 200 w/sqm |
| Working Temperature | -15oC-50oC |
| Display Function | Text, Graphics, Video |
| Humidity | 15%-85% |
| Refresh Rate | >1000Hz |
| Drive Mode/Driver Position | Constant driving 1/4 Scan, Combined diver board |
| Control System | |
| Control Mode | Synchronization/Asynchronization |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| PC Operating System | Microsoft Windows 7, XP and Vista |
| Software | LED Studio ( HSTV-linsn ) |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |
| Control Card Input | DVI, USB; RJ45, HDMI(Sold separately) |
PH10 Indoor Rental LED Screen

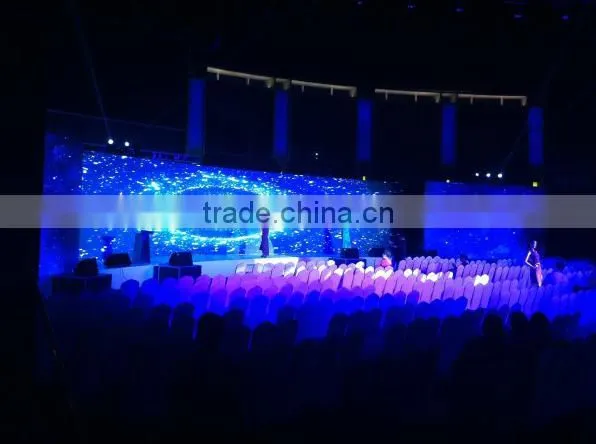

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The display can be used at banks, indoor stages, concert halls, station, summit rooms, exhibition and theatres etc.
Hot Product
The Lightweight LED Screen for Show has remained the hottest product now loved by thousands of people. With its advanced features, multiple usage and affordable prices, it is being purchased by various business owners. It is listed amongst the most sold products of this year.

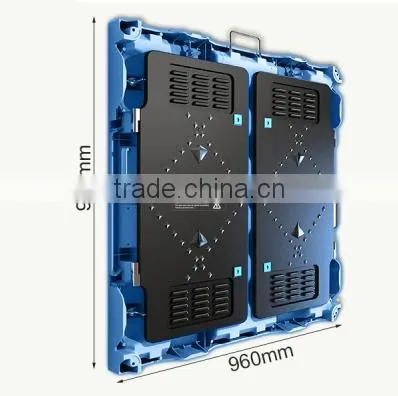

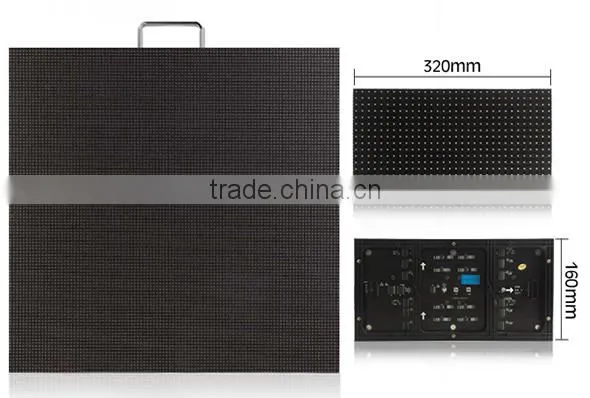

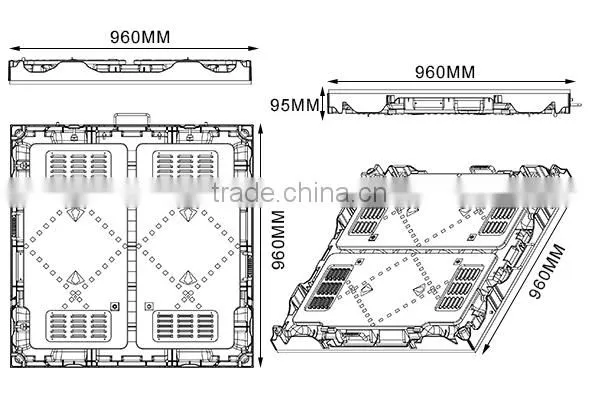

Standard Cabinet Dimensions
The ultra-lightweight cabinet made is aluminum-magnesium alloy which gives it extra strength. The cabinet of Lightweight LED Screen for Show is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.

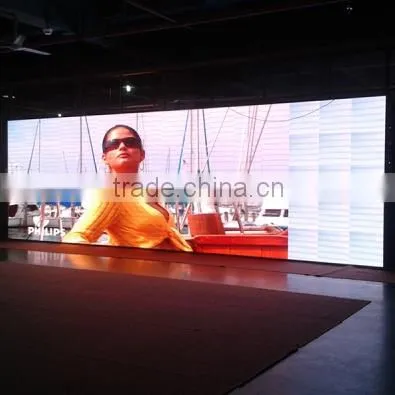

Stunning Display for Delicate Pictures
High resolution pixel pitch offers excellent quality pictures and display performance. The high contrast ration screen shows your advertisements with great clarity. Suitable brightness makes it ideal for indoor advertising.

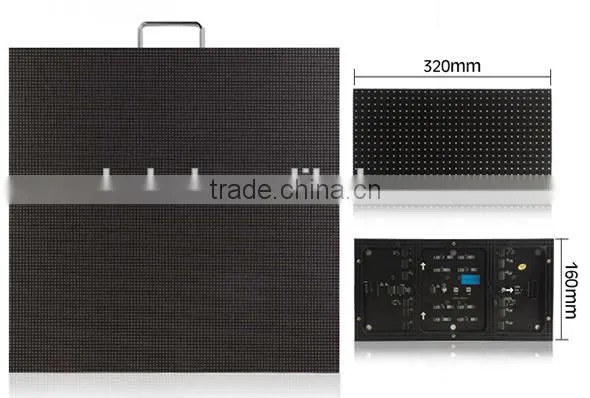

Integrated Design, Fast Installation
The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.

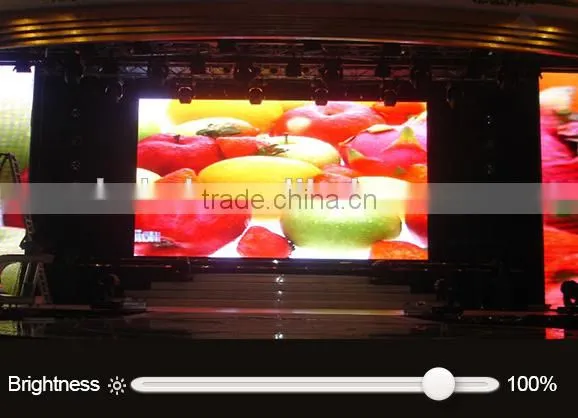

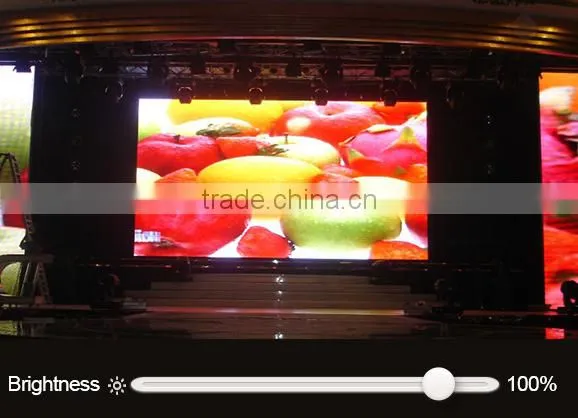

High Brightness, Better Quality
Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Lightweight LED Screen for Show ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
High Refresh Rate
The Lightweight LED Screen for Show is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.

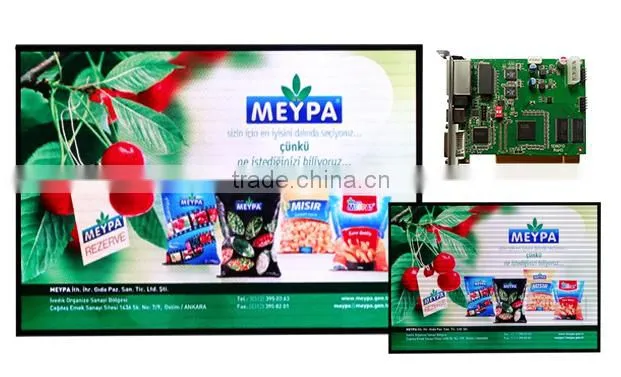

LINSN Control System
The display features LINSN control system which ensures great quality output, high resolution display, fast loading time and high refresh rate. The display is known for its stability and reliability, making it ideal for different advertising purposes.

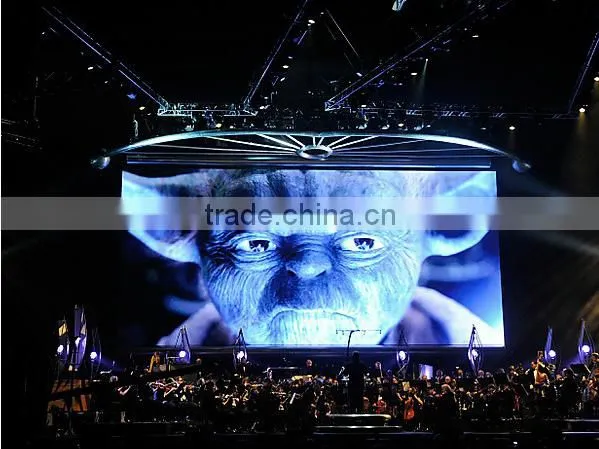

Application
The Lightweight LED Screen for Show is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, banks etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.

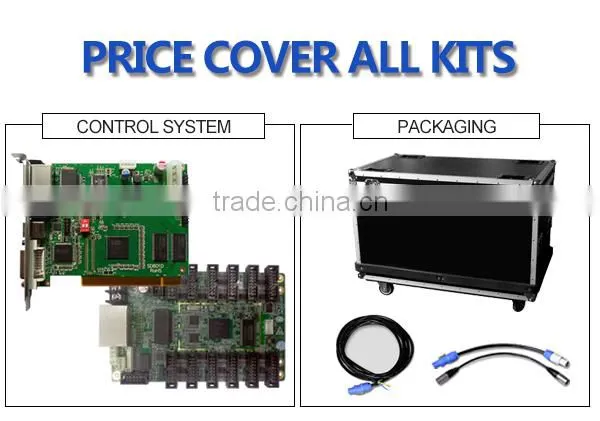

One Price for All
In single price, you get the complete kit which includes the LED display, cabinet, control system and other packages. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your product is in warranty period.

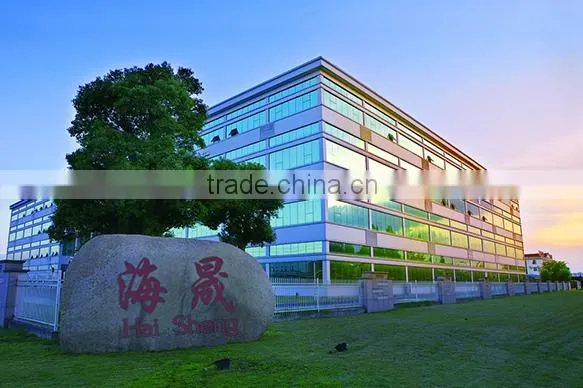

Our company building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After sale service
If your Lightweight LED Screen for Show is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
Company Profile
ShenZhen HaiSheng Optoelectronic CO.,LTD is a professional LED Display and LED Lights Manufacturer. It's a hi-tech enterprise which is specialized in researching, desiging, manufacturing and exporting all kind of LED Products. With qualified talents, high technology and aboundant funds, we have many offices and branches in most cities of China, so we can offer rapid and perfect service to our clients.
Our Company has a high-quality professional technicians and advanced modern production equipment : SMT machine,injection molding machine, COB machine, high temperature aging furnace, TABLE machine (point-by-point brightness debug) reflow soldering machine and serveral wave soldering machines, PCBA lines, automatic packaging production lines and 1000sqm aging vertical testing stand. Fully implement strict ISO9001-2000 quality management, and strive to make every piece of LED displays, LED unit boards, modules, lighting to be the best, our products have passed the European CE, American UL certification and other related certifications. All the products researched and developed by HaiSheng have reached the advanced level in the international market.
Relying on the advantages of the strategic union consisting of the company, the domestic and foreign company have developed into a genuine cross-century modern enterprise with resource sharing, division & coorperation, advantages complementary and high-performance operation.
At present, HaiSheng Optoelectronic CO.,LTD have formed a"Genelite" brand of LED Displays with features of low attenuation, high brightness, anti-static, good stability, high gray level, and had got good reputation from our customers. Our products mainly applied in City Square LED Display, Highway Advertising LED Display, Shopping mall LED Display, Stadium LED Display,etc. It had been widely used in advertising, bars, airport, bus station, ports, stadiums, banks, schools, factories, post and telecommunications, shopping malls, hospitals, industry and commerce, taxation, customs,monitoring centers,etc. The products have been exported to United States, Russia, Britain, France, Australia, Greece, Italy, Japan, Korea, Taiwan, and Kazakhstan,etc.
With strong financial, professional technique strength, stable quality, fast and perfect service allows users to have the most stable and cost-effective products. Our company is dedicated to serving clients of the whole world with clear high-quality orientation, continuously innovating techniques and internationally synchronous management concepts.
