12mm Pixels and text,animation,graphics Display Function scrolling led dot matrix display

FOB Price

USD $867.00 - $867.00 / Square Meter

10 Square Meters(Min.Order)

Supply Ability 3000 Square Meter / Square Meters per Month
Port Shenzhen

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Model Number:	OFDC12	Usage:	Outdoor
Tube Chip Color:	Full Color	Display Function:	Video	Pixels:	Other, 12mm
Screen Dimension:	Customized Size

Packaging Details

wooden packing, fly packing or customized packing

Product Description

12mm Pixels and text,animation,graphics Display Function scrolling led dot matrix display

LED Lamp
Type	DIP346
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(1000-1200mcd)
Chip parameters	Green (520-525nm) IV:(2000-2500mcd)
Chip parameters	Blue (470-475nm) IV:(500-650mcd)
LED Module
Pixel Pitch	12mm
Module Size	192×192mm
Module Resolution	16×16=256(Dots)
Module Weight	0.6kg
LED Cabinet
Pixel Density	6944 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	80×80=6400(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	960×960×185mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	5×5=25(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	42kg
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>6000cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	110(Horizontal), 55(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	15m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	600 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	200 w/sqm
Working Temperature	-30^oC~50^oC
Display Function	Text, Graphics, Video
Humidity	15%~85%
Refresh Rate	>1000Hz
Drive Mode/Driver Position	Constant driving 1/4 Scan, Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 7, XP and Vista
Software	LED Studio(HSTV-linsn)
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB, RJ45, HDMI(Sold separately)

PH12 DIP Outdoor Advertising LED Display

The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.

LED advertising display

pixel pitch: 12mm

brightness: 6000cd/m2

refresh rate: 1000Hz

protection level: IP66/54

gray scale level: 16bits

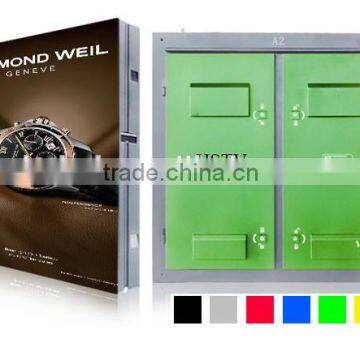

Unique Design - Easy to Install & Transport

The cabinet of High Way Billboard LED Display features unique rugged design which makes it easy to carry and install. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.

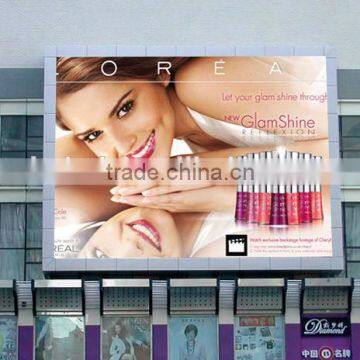

Outstanding Outdoor Performance

The displays are created for supreme quality outdoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in outdoor areas - in any environment conditions.

High Gray Scale - Better Picture

The High Way Billboard LED Display is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.

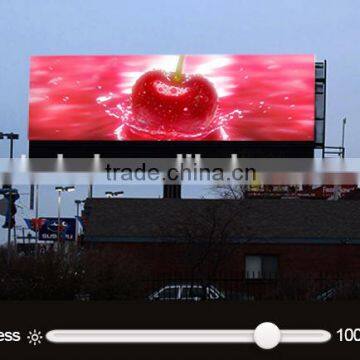

High Brightness, Better Quality

Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the High Way Billboard LED Display ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.

High IP Rating IP66 - Safe and Reliable

The special waterproof design of High Way Billboard LED Display protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.

High Refresh Rate

The High Way Billboard LED Display is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.

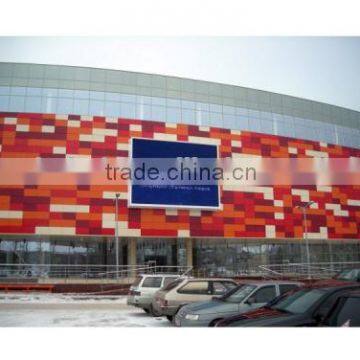

Application

The High Way Billboard LED Display can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium, KTV, airport and at many more outdoor places.

Our Company Building

Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.

Best Quality Guaranteed

Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.

Best After-sale Service

If your High Way Billboard LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Company Profile

Shenzhen Haisheng Led Co., Ltd.

ShenZhen HaiSheng Optoelectronic CO.,LTD is a professional LED Display and LED Lights Manufacturer. It's a hi-tech enterprise which is specialized in researching, desiging, manufacturing and exporting all kind of LED Products. With qualified talents, high technology and aboundant funds, we have many offices and branches in most cities of China, so we can offer rapid and perfect service to our clients.

Our Company has a high-quality professional technicians and advanced modern production equipment : SMT machine,injection molding machine, COB machine, high temperature aging furnace, TABLE machine (point-by-point brightness debug) reflow soldering machine and serveral wave soldering machines, PCBA lines, automatic packaging production lines and 1000sqm aging vertical testing stand. Fully implement strict ISO9001-2000 quality management, and strive to make every piece of LED displays, LED unit boards, modules, lighting to be the best, our products have passed the European CE, American UL certification and other related certifications. All the products researched and developed by HaiSheng have reached the advanced level in the international market.

Relying on the advantages of the strategic union consisting of the company, the domestic and foreign company have developed into a genuine cross-century modern enterprise with resource sharing, division & coorperation, advantages complementary and high-performance operation.

At present, HaiSheng Optoelectronic CO.,LTD have formed a"Genelite" brand of LED Displays with features of low attenuation, high brightness, anti-static, good stability, high gray level, and had got good reputation from our customers. Our products mainly applied in City Square LED Display, Highway Advertising LED Display, Shopping mall LED Display, Stadium LED Display,etc. It had been widely used in advertising, bars, airport, bus station, ports, stadiums, banks, schools, factories, post and telecommunications, shopping malls, hospitals, industry and commerce, taxation, customs,monitoring centers,etc. The products have been exported to United States, Russia, Britain, France, Australia, Greece, Italy, Japan, Korea, Taiwan, and Kazakhstan,etc.

With strong financial, professional technique strength, stable quality, fast and perfect service allows users to have the most stable and cost-effective products. Our company is dedicated to serving clients of the whole world with clear high-quality orientation, continuously innovating techniques and internationally synchronous management concepts.
