Help CenterHot Selling 600 600mm Led Panel Display With Low Price
Related Products
-
Brand New Led Outdoor Sign With High QualityUS$ 1,280.37 - 1,871.38MOQ: 1 Square Meter -
New Design Led Wall Display Outdoor With Great PriceUS$ 1,280.37 - 1,871.38MOQ: 1 Square Meter
-
Shenzhen Supplier Led Display With Factory Price/good QualityUS$ 938.94 - 1,200MOQ: 1 Square Meter
-
Hot Selling Xxx Video Led Display With Low PriceUS$ 686 - 700MOQ: 5 Square Meters
-
P12.5 Outdoor Full Color Led Display Board For SaleUS$ 500 - 1,500MOQ: 1 Square Meter
Same price with high quality, Same quality with best price.
Our big team will always be here waiting for you.
Specification
Item |
Specifications |
|
LED Lamp |
Type |
5 mm dismeter high brightness LED lamps |
Arrangement |
1R,1G,1B |
|
Red Wavelength (dominant) |
625nm(+2.5nm) |
|
Green Wavelength (dominant) |
523nm(+2.5nm) |
|
Blue Wavelength (dominant) |
470nm(+2.5nm) |
|
LED Cabinet |
Dot Pitch |
16 mm |
Physical Pixel |
3906 dots/sq.m |
|
Resolution |
96*96 pixel |
|
Dimension |
960*960mm |
|
Brightness |
7500 Nit-8500nit |
|
Viewing Angle |
110(Horizontal),110(Vertical) |
|
Best Viewing Distance |
10~100 meters |
|
Power Consumption (Max) |
600 w/sq.m |
|
Power Consumption (Typical) |
200 w/sq.m |
|
Weight |
50 Kgs/sq.m |
|
Frame Frequency |
no less than 60 frame/sec |
|
Refresh Rate |
no less than 800 HZ/sec |
|
Voltage |
220/110 VAC, 50/60 Hz |
|
MTBF |
5000 hours |
|
Life Pan |
100,000 hours |
|
Protection Level |
IP 65 |
|
Malfunction Dot Rate |
less than 0.0001 |
|
Working Temperature |
-25°C~65°C |
|
Humidity |
10%~99% |
|
Control System |
Drive Mode |
static constant current |
Control Means |
Synchronization |
|
Control System |
PCTV Board + DVI Board + Control Board + Network cable Transmission |
|
Software |
LED Studio (LINSN) |
|
Input Signal |
RF,S-VIDIEO,RGB,RGBTV,YUT,YC,COMPOSTITION |
|
PC System |
Win2000,Win XP, etc |
|
Features |
- GENELITE /CREE lamp with uniform color and high reliability - Special structure design for water-proof and mothproof |
|
Advantage of our factory
1. High quality with best price, to make you get professional service
2. Our sealed iron led cabinets are a little weight, but it has best stability, hard distortation
3. We have IC- build in products, to protect IC well from rain and snows
4. We are a young team, but we full of hope for our future. Choose us, we will give you professional service.
Function and Technology characters
1.Show all kinds of word,text,graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other formats with your PC does synchronously.
2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI,MOV,MPG, HD-SDI, etc.
3.Self-adjustment function automatically adjusts outdoor LED display brightness to suitable level through outdoor environment condition
4.It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers,hospitals, bars etc

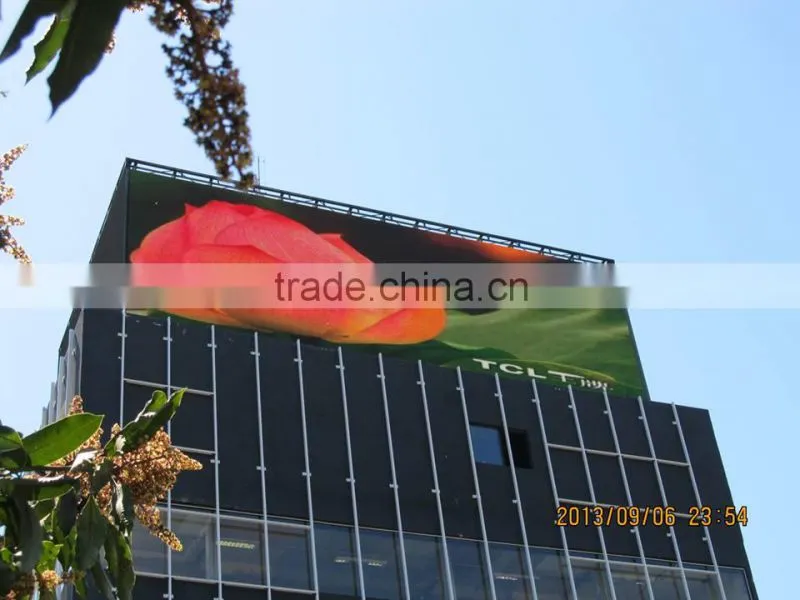

162sqm P16 Full Color LED Display————Successful Case in Paraguay
Our Company & Factory
About Testing
Our Factory'S Certificates
