Creative full color crystal-clear outdoor led video billboard
- 3000 Square Meter / Square Meters per Month
- Shenzhen
- Credit Card
You May Like
-
Lifetime maintanence Crystal-clear full color led video wall for advertising, for malls, chain stores
-
cheap price!!!!hot sale LED Display Sign/Video wall/moving/board/Screen/ advertising/outdoor/indoor/signage/message/scrolling hi
-
Full Color Tube Chip Color and Advertising Display Function LED Video Display
-
Touch screen digital wall calendar
-
Ph1.6 Indoor advertising led display screen prices
-
high definition LED wall sign display xxx video
Product Details
Place of Origin | Guangdong, China | Model Number | OFSE6 | |
Usage | Outdoor | Tube Chip Color | Full Color | |
Display Function | Video | Pixels | Other, 6mm | |
Screen Dimension | Customized Size |
Special flight case or wooden case for LED display, the weight and size depend on customer's requirments.
Product Description
Creative full color crystal-clear outdoor led video billboard
LED Lamp | |
Type | SMD3535 |
Brand | Epistar |
Arrangement | 1R1G1B |
Chip parameters | Red (620-625nm) IV:(800-960mcd) |
Chip parameters | Green (520-525nm) IV:(1350-1650mcd) |
Chip parameters | Blue (470-475nm) IV:(330-400mcd) |

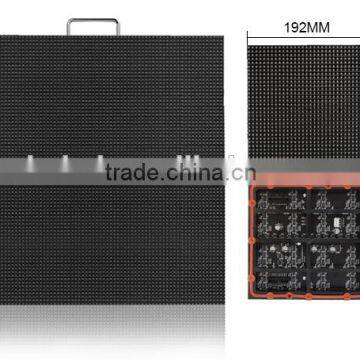

LED Module | |
Pixel Pitch | 6mm |

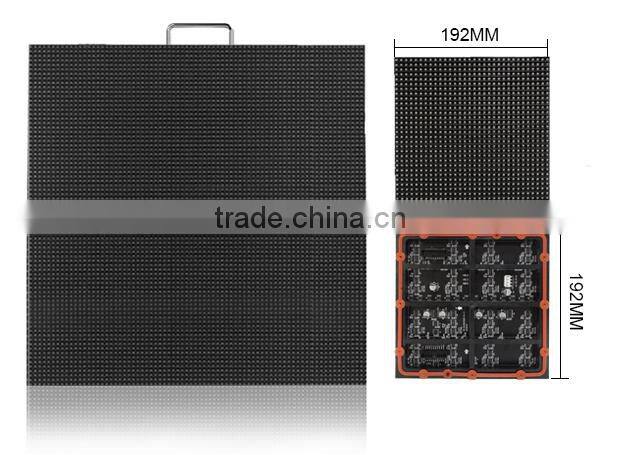

Module Size | 192×192mm |
Module Resolution | 32×32=1024(Dots) |
Module Weight | 0.4kg |
LED Cabinet | |
Pixel Density | 27777 Dots/sqm |
Frame Frequency | no less than 60 frame/sec |
Cabinet Resolution | 96×96=9216(Dots) |
Input Voltage | AC110-220V±10%, 50/60Hz |

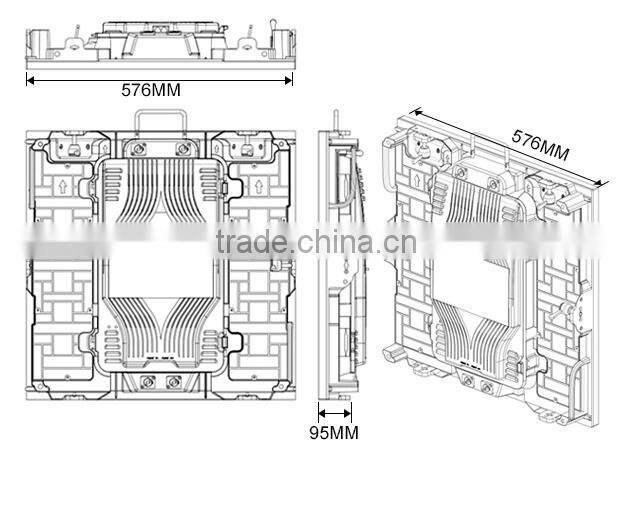

Cabinet Dimension(W*H*D) | 576×576×95mm |
Output Voltage | DC-5V, 40A/60A/80A |
Module Quanty /Cabinet | 3×3=9(Pcs) |
Color Grayscale | 16bit |
Gray Scale per Color | 65536 level |
Cabinets Material | Aluminum-magnesium alloy Cabinet |
Color Processing | R(1024)×G(1024)×B(1024) |
Cabinet Weight | 8kg |
Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
Brightness | >7000cd/sqm |
MTBF( mean time between failures) | 5000 hours |
Viewing Angle | 120(Horizontal), 120(Vertical) |
Life-span | 100, 000 hours |
Nearest Viewing Distance | 9m |
Protection Level(front/back) | IP66/IP54 |
Power Consumption (Max) | 1200 w/sqm |
Malfunction Dot Rate | less than 0.0001 |
Power Consumption (Average) | 300 w/sqm |
Working Temperature | -30oC-50oC |
Display Function | Text, Graphics, Video |
Humidity | 15%-85% |
Refresh Rate | >1000Hz |
Drive Mode/Driver Position | Constant driving 1/8 Scan, Combined diver board |
Control System | |
Control Mode | Synchronization/Asynchronization |
Input Signal | AVI/MPG/MPEG/TXT.etc |
Control System | Sending Card, Receiving Card, Receiving HUB |
PC Operating System | Microsoft Windows 7, XP and Vista |
Software | LED Studio ( HSTV-linsn ) |
Communication Type | Net cable; 3G, WIFI(Sold separately) |
Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
Certificate | CE, ROHS, FCC, ISO9001, TUV |
Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) |
Multipurpose Outdoor Advertising Display
The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, stations, stadiums and other outdoor areas.
Space Saving, Ultra-lightweight
The LED Display Rental is only very thin which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.
Unique Cabinet Design - Easy to Install & Transport
The cabinet of Outdoor Rental LED Display features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime.
Integrated Design, Fast Installation
The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.
IFP Conditions
One: 1/10 Duty Cycle.
: 0.1 msec Pulse Width.
Electrical / Optical characteristics
One: Tolerance of measurement of Vf is ±0.05 V.
Two: Luminous Intensity Measurement allowance is ± 10%.
Three: Color Coordinates Measurement allowance is ± 1nm.
High Brightness for Quality Output
The display features high brightness and advanced features like manual brightness adjustment. This means, you will get crystal clear picture output in any weather and every day. Adjust the brightness according to the area of installation.
High IP Rating IP66 - Safe and Reliable
The special waterproof design of Outdoor Rental LED Display protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.
High Brightness, Better Quality
LED Display Rental features over 7500cd/m2 brightness, producing high brightness outputs. The high brightness and high definition features of the Outdoor Rental LED Display ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
Silence Operation - Low Power Consumption
The Outdoor Rental LED Display is known for its silence operation and low power consumption. It is also known for fast heat dissipation which will save more energy. Cut on the electricity expenses and help environment with this highly advanced advertising display.
Application
The LED Display Rental can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places.
One Price for All
In single price, you get the complete kit which includes the LED display, cabinet, control system and other packages. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your Outdoor Rental LED Display is in warranty period.
Our Company Building
Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed
Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service
If your LED Display Rental is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
Company Profile

ShenZhen HaiSheng Optoelectronic CO.,LTD is a professional LED Display and LED Lights Manufacturer. It's a hi-tech enterprise which is specialized in researching, desiging, manufacturing and exporting all kind of LED Products. With qualified talents, high technology and aboundant funds, we have many offices and branches in most cities of China, so we can offer rapid and perfect service to our clients. Our Company has a high-quality professional technicians and advanced modern production equipment : SMT machine,injection molding machine, COB machine, high temperature aging furnace, TABLE machine (point-by-point brightness debug) reflow soldering machine and serveral wave soldering machines, PCBA lines, automatic packaging production lines and 1000sqm aging vertical testing stand. Fully implement strict ISO9001-2000 quality management, and strive to make every piece of LED displays, LED unit boards, modules, lighting to be the best, our products have passed the European CE, American UL certification and other related certifications. All the products researched and developed by HaiSheng have reached the advanced level in the international market. Relying on the advantages of the strategic union consisting of the company, the domestic and foreign company have developed into a genuine cross-century modern enterprise with resource sharing, division & coorperation, advantages complementary and high-performance operation. At present, HaiSheng Optoelectronic CO.,LTD have formed a"Genelite" brand of LED Displays with features of low attenuation, high brightness, anti-static, good stability, high gray level, and had got good reputation from our customers. Our products mainly applied in City Square LED Display, Highway Advertising LED Display, Shopping mall LED Display, Stadium LED Display,etc. It had been widely used in advertising, bars, airport, bus station, ports, stadiums, banks, schools, factories, post and telecommunications, shopping malls, hospitals, industry and commerce, taxation, customs,monitoring centers,etc. The products have been exported to United States, Russia, Britain, France, Australia, Greece, Italy, Japan, Korea, Taiwan, and Kazakhstan,etc. With strong financial, professional technique strength, stable quality, fast and perfect service allows users to have the most stable and cost-effective products. Our company is dedicated to serving clients of the whole world with clear high-quality orientation, continuously innovating techniques and internationally synchronous management concepts.
