China supplier VMC540 precision 12000/24000rpm spindles Small Vertical CNC Machining Center
Product Characteristics:
Withing the high-speed&high-precision spindle(12000/24000RPM),stable internal mechanical structure and excellent processing function, VMC540 CNC Machine Center is fit for highlights aluminium alloy parts on mobile and watches.
Drilling and tapping is ultra high-speed/high performance/high-precision. Its tapping speed can reach 6000RPM and X/Y/Z axis’s movement speed can reach 60M/MIN.
VMC540 Vertical High precision 3-axis CNC machining center parameter
| Parts | items | unit | drilling and tapping center-VMC540 |
| Workbench | Size(L*W) | mm | 650*400 |
| Workbench load | kg | 250kg(even load) | |
| Spindle end to workbench face | mm | 150-430 | |
| Spindle | Spindle rotate speed | r/min | 12000/24000 |
| Spindle motor | kW | 3.7/5.5kW | |
| Hole conical degree | ISO | #30(BT30) | |
| Traverse | Travel X/Y/Z | mm | 500/400/280 |
| Rapid traverse speed X/Y/Z | m/min | 60/60/60 | |
| Cutting feed speed X/Y/Z | m/min | 20/20/20 | |
| Precision | Positioning accuracy | mm | 0.005/300 |
| Repeated positioning accuracy | mm | ±0.003 | |
| ATC | Magazine tool capacity | ea | 16 |
| Max.tool Length | mm | 170 | |
| Max.tool dia | mm | 80 | |
| Max.tool weight | kg | 3 | |
| Tool to tool(T-T) | sec | 1.8 | |
| Power source | Power supply | kVA | 13 |
| Air source pressure | kgf/cm²(MPa) | 6(0.6) | |
| Motor | Dimension(L*W) | mm | L1600*W2100 |
| Dimension(H) | mm | 2300 | |
| Machine tool weight | kg | 3000 | |
| Cooling | Tank volume | L | 150 |
| Cooling pump flow | L/min | 40 | |
| Congtrol panel | Spec | MITSUBISHI/M70VA | |
| Screen | 8.4"Color TFT LCD | ||
| Storage of programme | KB | 500 |
VMC540 Vertical High precision 3-axis CNC machining center pics

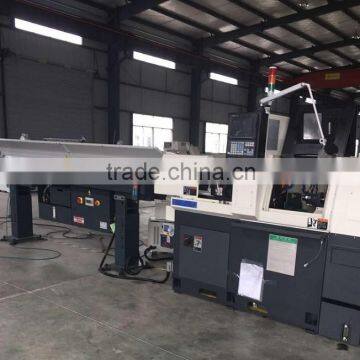

Our CNC lathe bar feeder (as below) link:(pls click)
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
