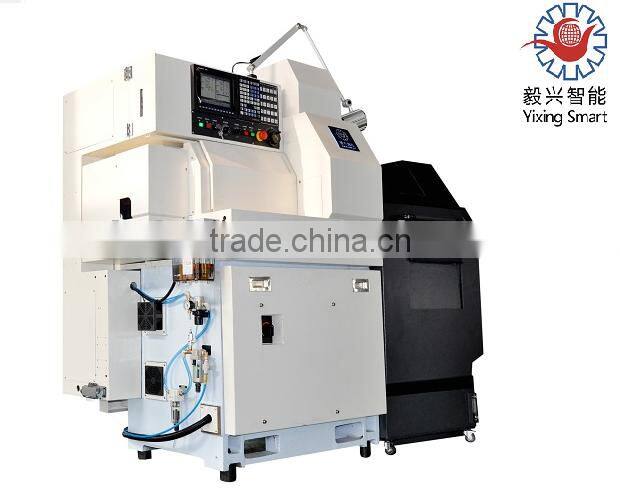

Swiss precision lathe BSH205 5-Axis Gang Tool Type CNC Lathe for swatches and mobile parts
1,This Cnc lathe suitable for hard to cut parts processing .
2, This Cnc lathe body use hard track ,can be strengthen the cutting stiffness .
3, Many axis multiaxial compound processing improve ability .
4,This Cnc lathe can be long time operate .
5, This Cnc lathe high speed ,high precision and easy operate .
Chinese manufacturer BSH205 5-Axis Gang Tool Type CNC Lathe parameter
| Specifications about CNC lathe BSH205 | |||
| Description | unit | BSH205 | |
| NC system | Control system | MITSUBISHI M70A/FANUC | |
| Machining Range | Clamping diameter | mm | 3~20 |
| Max processing length | mm | 200 | |
| Max drilling diameter | mm | 10 | |
| Max thread aperture | M10 | ||
| Max clamping diameter | mm | 20 | |
| Max back shaft drilling diameter | mm | 8 | |
| Max tapping diameter on back | M6*1.0 | ||
| Max drilling diameter on back | mm | 6(OP.) | |
| Max tapping diameter on back | 5M (OP.) | ||
| Machining parametor | Spindle speed | rpm/min | 10000 |
| Back shaft speed | rpm/min | 8000 | |
| Lathe tool quantity | pcs | 21 | |
| Tools size | mm | 12*12*85 | |
| Fast movement speed | m/min | 35 | |
| Controllable axis | axis | 5 | |
| Electric motor | Spindle | kw | 2.2/3.7 |
| Back shaft | kw | 0.75 | |
| Z1 axis | kw | 1 | |
| Y1/Z1/X2/Z2 axis | kw | 0.75 | |
| Fast movement speed | kw | 0.75 | |
| Cooling oil pump power | kw | 0.93 | |
| Lubricating oil pump power | kw | 0.1 | |
| Positioning accuracy | mm | 0.003 | |
| Cooling oil pump power | mm | 0.003 | |
| Lubricating oil pump | mm | 0.002 | |
| Spindle jumping at diameter | mm | 0.002 | |
| Power | Net weight | kg | 2300 |
| Rated capacity | KVA | 11 | |
| Air pressure | mpa | 0.6-0.7 | |
| Volume | NL/min | 30 | |
| Cutting oil Tank volume | L | 160 | |
| Machine dimension(L*W*H) | mm | 1890*1133*1750 |
|

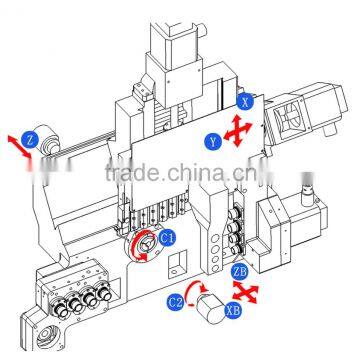

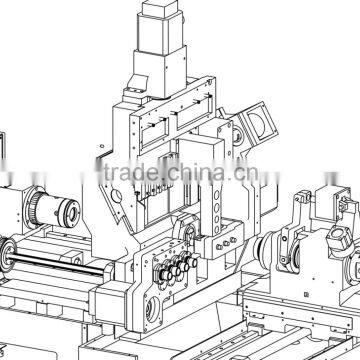

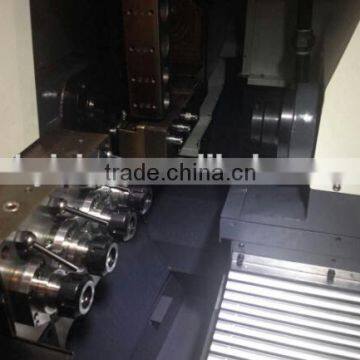

Chinese manufacturer BSH205 5-Axis Gang Tool Type CNC Lathe pics
Our cnc lathe maching bar feeder link:
Precision CNC lathe package : one set in one woodencase .our packge size can be custom.
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province –Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.Yixing's main products are CAMS AUTO LATHE,CNC LATHE,CNC MACHINING CENTER,CNC LATHE BAR FEEDER.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
