China supplier BX32C M70 High Precision 4 aixs cnc lathe machine
1, Mitsubishi M70B control system, higher precision, good stability.
2,Flexible side milling power head, facehead, processing complex parts.
3, Replacable three jaw chuck, increase single parts processing range.
4, Unattended oil film feeder machine is for option.
Our BX32C M70 High Precision 4 aixs cnc lathe machine parameter
| Description | BX32C | ||||
| Machining Capabiltiy | Clamping Diameter |
3~32mm/3~42mm(Collet) | |||
| 100(Chuck) | |||||
| Max. machining length | 100mm | ||||
| Max. swing diameter | 270mm | ||||
| Positioning accuracy | 0.003mm | ||||
| Repeated positioning accuracy | 0.003mm | ||||
| Spindle end face runout | 0.002mm | ||||
| Spindle radial runout | 0.002mm | ||||
| Spindle indexing angle | Stepless indexing | ||||
| Machining parameter | Spindle speed | 6000rpm | |||
| power-driven tool speed | 4000rpm | ||||
| X-axis travel | 400mm | ||||
| Z-axis travel | 180mm | ||||
| Length of compound rest | 435mm | ||||
| Tools size | 16mm*16mm/12mm*12mm | ||||
| Rapid traverse rate" | 32m/min | ||||
| Number of controllable axes | 4 axes | ||||
| Electric motor | Spindle | 5.5/7.5kw | |||
| Power-driven tool | 0.75KW | ||||
| X,Z axis | 1.5kw | ||||
| Cooling oil pump | 0.25kw | ||||
| Lubricating oil pump | 0.1kw | ||||
| Power and others | Machine weight | 1850kg | |||
| Total power capacity | 13KVA | ||||
| Air pressure | 0.6-0.7Mpa | ||||
| Air flow | 14NL/min | ||||
| Cutting oil Tank volume | 200L | ||||
| Machine dimension(L*W*H) | 2000*1500*1700mm | ||||
| NC System | NC UNIT | MITSUBISHI M70B | |||
| Controlled axes | 4 axes | ||||
| AXIS | X/Z/Y/C | ||||
| Minimun setting unit | 0.001mm | ||||
| Minimum movement unit | 0.001mm | ||||
| Maximum command value | ± 8 digits | ||||
| interpolation | linear and circular ,conical,spiral | ||||
| Rapid traverse rate | 32m/min | ||||
| Cutting feed rate | 1-10,000mm/min | ||||
| Spindle override | 0-120%,10% /Part | ||||
| Dwell time | G04 0-99999.99 | ||||
| Rapid traverse override | F20,F25,F50,F100% | ||||
| ABS/INC command | X,Y,Z:Absolute;U,V,W:Incremental | ||||
| Tool offset | ± 6 Digits | ||||
| Tool offset sets | 64 sets | ||||
| LCD/MDI | 8.4" color TFT | ||||
| Language | English/Japanese/Chinese | ||||
| Storage capacity | 500 KB | ||||
| I/O interface | RS 232C | ||||
| Miscellaneous function | M5 Digits | ||||
| Spindle function | S5 Digits | ||||
| Tool function | T13 Digits | ||||

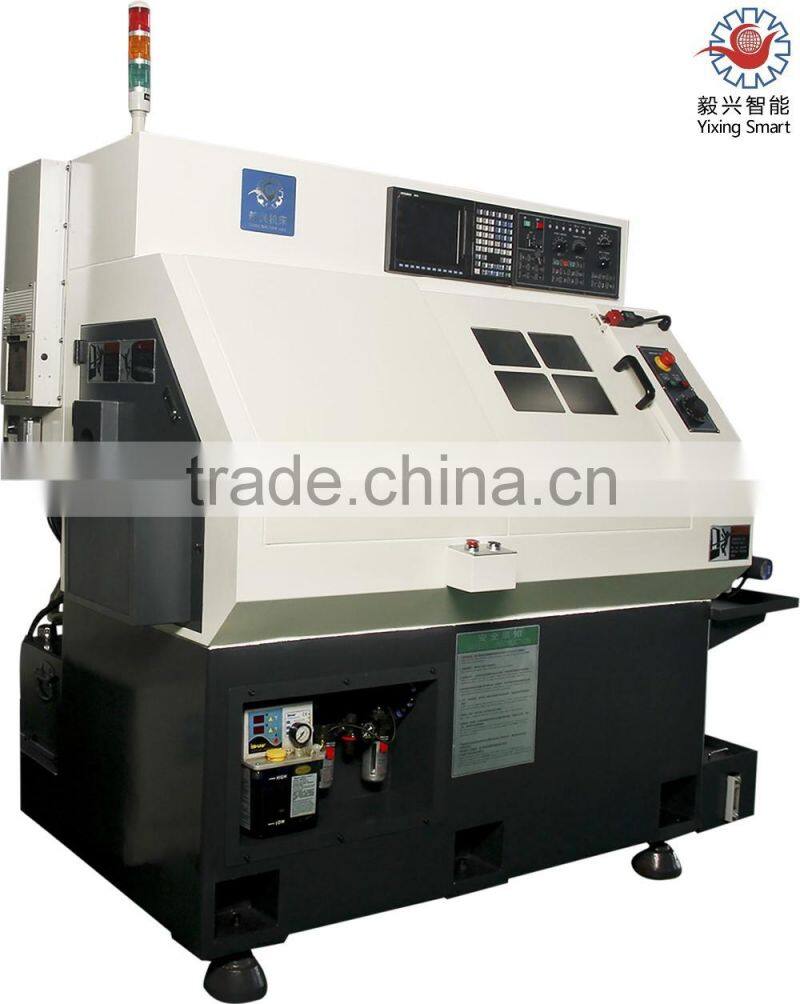

Our BX32C M70 High Precision 4 aixs cnc lathe machine pics
Our Precision CNC Machine Lathe Packing:one set in one woodencase.
GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
Our inspection tools
Our Exhibition
Our Certifications
