Most popular high precision small cnc milling machine lathe machine for small parts
1, The CNC milling machine was usage MITSUBISHI M70B CNC system ,high precision,high stability and easy operate .
2,The CNC milling machine row of knife design.
3, The CNC milling machine spindle usage pneumatic clamping .
4, The CNC milling machine can be choice the oil film feeder ,achieved nobody unattended
5. The CNC milling machine can be add the Y-axis control 4 power head make side for easy drilling, tapping and milling flat. While also increasing the three power head end surface of the flat end face milling, tapping, drilling can be easily implemented in complex parts can be solved .
Application:
The CNC milling machine can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
| model BY20A CNC milling machine specifications | ||||
| Description | Unit | BY20A | BY20C | |
| NC System | NC UNIT | MITSUBISHI E60 | MITSUBISHI M70B | |
| Machining Range | clamping diameter | mm | 3~20(With flexible collet) | |
| Max processing length | mm | 100(with air pneumatic) | ||
| Max turning diameter | mm | 270 | ||
| Repeatability | mm | 0.003 | ||
| positioning accuracy | mm | 0.003 | ||
| Spindle end face runout | mm | 0.002 | ||
| Spindle radial runout" | mm | 0.002 | ||
| Spindle Indexing angle | 5°±1 | |||
| Machining parametor | Spindle speed | m/min | 6000 | |
| X axis travel | mm | 300 | ||
| Y axis travel | mm | 180 | ||
| Power head speed | mm/min | 4000 | ||
| Cutting base length | mm | 410 | 305 | |
| Cutting tools size | mm | 16*16 /12*12 | ||
| Fast movement speed | m/min | 32(X1:24m/min) | ||
| Controllable axis | axis | 2(X/Z) | 4 (X/Y/Z/C) | |
| Electric motor | Spindle | kw | 3.7 | |
| Power head | kw | 700W/0.75KW | ||
| X Y axis | kw | 1 | ||
| Cooling oil pump power | kw | 0.44 | ||
| Lubricating oil pump | kw | 0.1 | ||
| Power and others | Machine weight | kg | 1400 | 1450 |
| Total electrical capacity | KVA | 6.5 | 9 | |
| Air pressure | mpa | 0.6-0.7 | ||
| Volume | NL/min | 30 | ||
| Cutting oilTank volume | L | 150 | ||
| Machine dimension(L*W*H) | mm | 1635*1250*1635 | ||

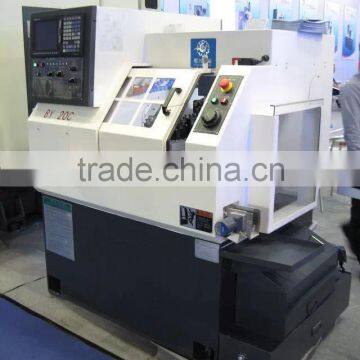

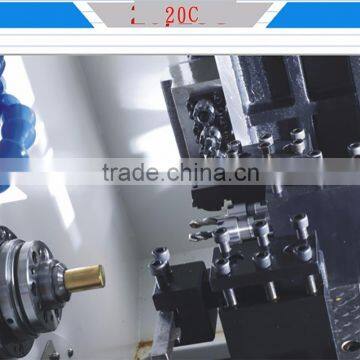

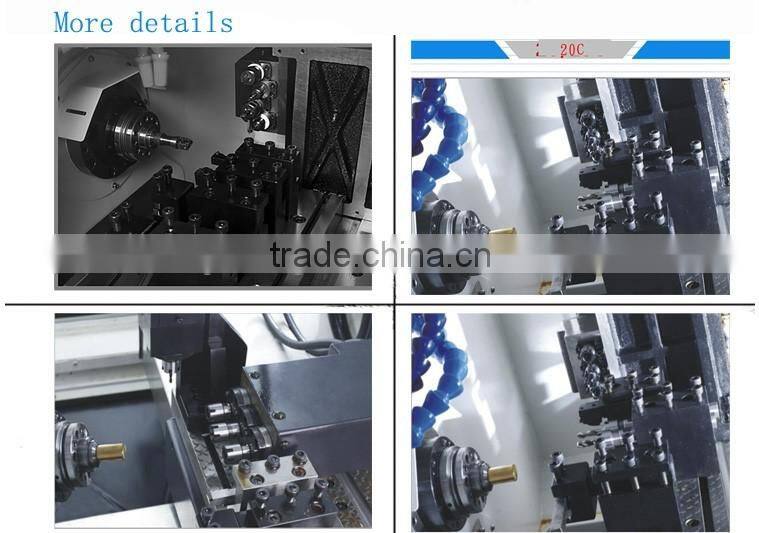

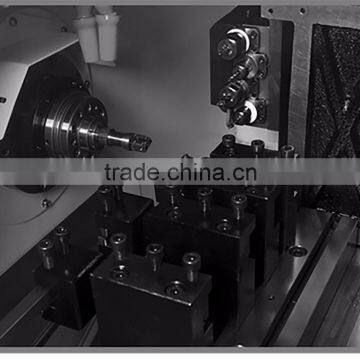

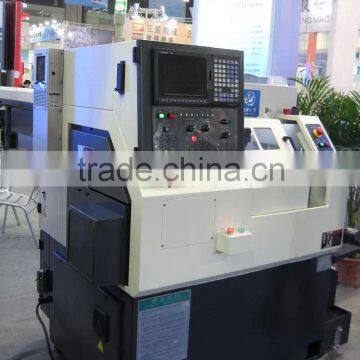

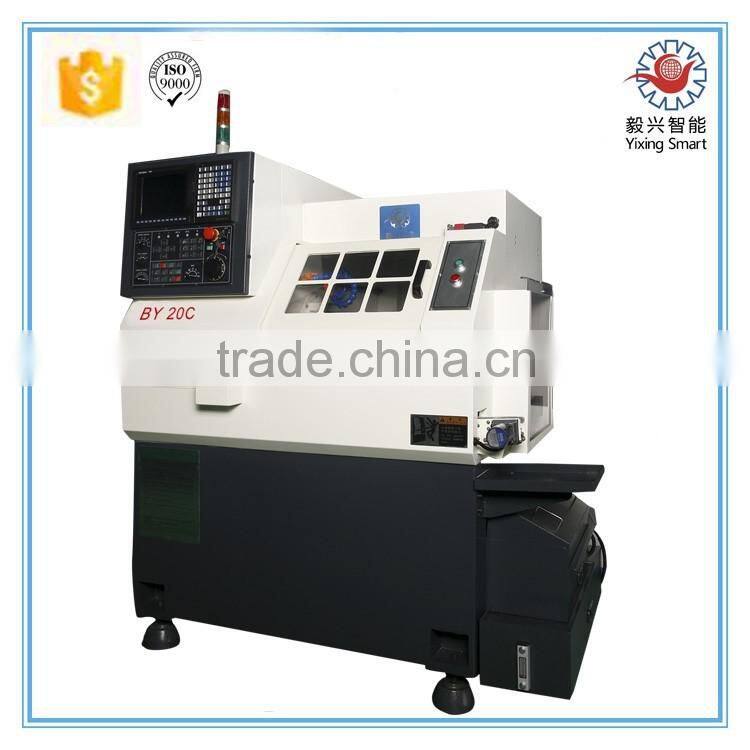

Most popular high precision small cnc milling machine lathe machine for small parts pictures
1. The CNC milling machine was contains mechatronics design, beautiful exterior, and mature product mix. It is easy to operate, so that one worker can operate multiple lathes at the same time.
2. The CNC milling machine bed was made of heavy casting. The heavy casting have went through at least twice aging quality tests and ultrasonic frequency quenching. The integral type casting make the machine tool harder, so that the lathe is more stable.
3. The CNC milling machine work with X, Z axes contains with high-precision rolling screws mandrel, make a better dynamics and higher precisions.
4.The CNC milling machine have double row cylindrical roller bearings and Double direction thrust angular contact bearing are used in principal axis. These precise bearings with special design for the main axial of the machinery equipment. These gives a optimized combination of high-precision, high loads and good running speed; moreover, it is more durable.
Machine Model: BY20A CNC milling machines
Type of package: Plywood case
Packaging size: 170*130*170 CM(one set in one case)
N.W./G.W.: About 1400-14500KGS
CNC MILLING MACHINE GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Our main products CNC lathe ,machie center ,auto lthe ,bar feeder and so on . Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
