Help CenterDuct Manufacture Auto Line VII
Related Products
Specifications

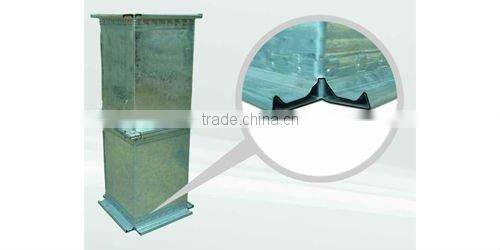

1.Tube forming machine2.Make a full finished Duct
3.PLC control, touchscreen
4.Mitsubishi servo motor
|
Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance |
Dimension (mm) |
Weight (Kg) |
CAL7-1.2x1300 |
1300mm
|
0.4-1.2mm 18-30ga
|
0-18m/min 0-59FPM |
±0.5mm |
±0.5mm |
|
|
CAL7-1.2x1600 |
1600mm
|
|
|
Features:
l Modular design allows adding a section at a time
l Three sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
l Pneumatic controlled straightener and beader

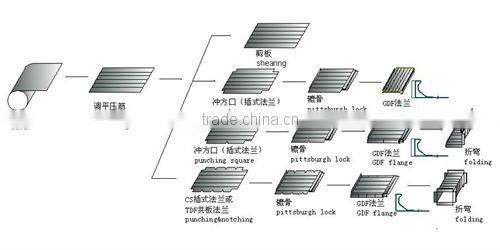

l Patented Automotion pittsburgh lock former, forms pittsburgh lock and right angle, roll forming and shearing simultaneously, shorten working time, a perfect match to duct auto line
l Duplex GDF flange former, forms GDF flange by double sides
l Comifo patented hydraulic fold- seamer seams a fullwrap duct after folding
l Optimizes floor space by inline position of machines, guarantees high efficiency
l Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen
