Specifications
1.Tube forming machine2.Make a full finished Duct
3.PLC control, touchscreen
4.Mitsubishi servo motor
Model No. | Max Coil Width | Thickness Range |
Speed | Shearing Tolerance | Diagonal Tolerance | Dimension (mm) | Weight (Kg) |
CAL8-1.2x1300 | 1300mm
|
0.4-1.2mm 18-30ga
|
0-18m/min 0-59FPM |
±0.5mm |
±0.5mm |
|
|
CAL8-1.2x1600 | 1600mm
|
|
|
Features:
l Modular design allows adding a section at a time
l Two sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
l Pneumatic controlled straightener and beader
l Punch center holes for cross-tie duct bracing
l Duplex drive cleat forming rollers are available
l Patented Automotion pittsburgh lock former, forms pittsburgh lock and right angle, roll forming and shearing simultaneously, shorten working time, a perfect match to duct auto line
l Duplex TDF flange former, forms TDF flange by double sides
l Optimizes floor space by inline position of machines, guarantees high efficiency
l Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen

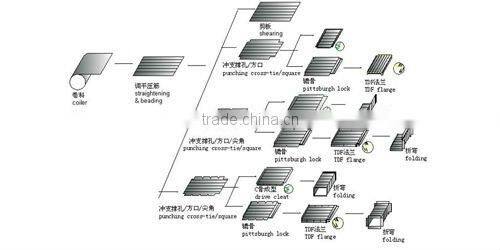

Stations: coil-straightening-beading-punching cross-tie holes-punching square-notching-duplex drive cleat forming-folding -shearing- automotion pittsburgh lock forming-coil conveyer (optional) -duplex TDF flange forming -hydraulic folding
