Help CenterSpiral Tube Forming Machine Model FHNR-1400
Related Products
Specifications
1.Spiral tube forming machine2.Diameter from 100 to 1400mm
3.Competitive in price,high qual
Comifo spiral tube forming machine, also called spiral machine,spiral duct machine
There are two kinds of spiral tube forming machines. Forming heads required and forming heads not required.
Spiral tube forming machine processes round duct of maximum diameter up to 1400mm. With strong seal, flexible, It can be adjusted to make ducts with different diameters by changing different forming strips.
FHR-1400 | |
Diameter Range |
φ100-φ1400mm |
Length of the Tube |
100-8000mm |
Thickness Range |
0.4-1.2 mm (18-30ga) |
Speed |
0-10m/min (0-32FPM) |
Coil Width |
137mm |
Cutting Unit |
Saw Cutting |
Cutting tolerance |
±0.5mm |
Optional Diameter of Forming Strips |
φ100, φ125, φ160, φ180, φ200, φ225, φ250, φ300, φ315, φ355, φ400, φ450, φ500, φ610, φ710, φ800, φ1000, φ1120, φ1250, φ1400 |

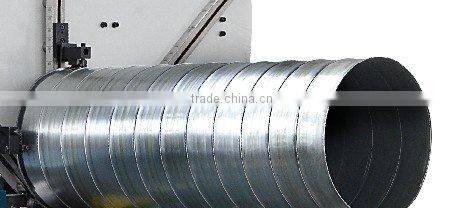

Assembling Picture:

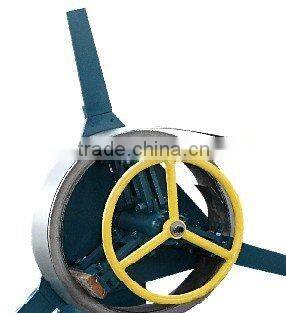

More Detailed Pictures:
