Fire damper roll forming machine, Air duct damper roll forming machine, HVAC duct damper manufacturing machine for blade, Volume control damper for duct
Basic Configuration:
1, decoiler
2, straightening and roll forming machine
3, punching and cutting machine
4, control system
Model NO.: FDBA-SK
Thickness Range: 1.0-1.5mm
Coil Width: 163, 180, 240mm

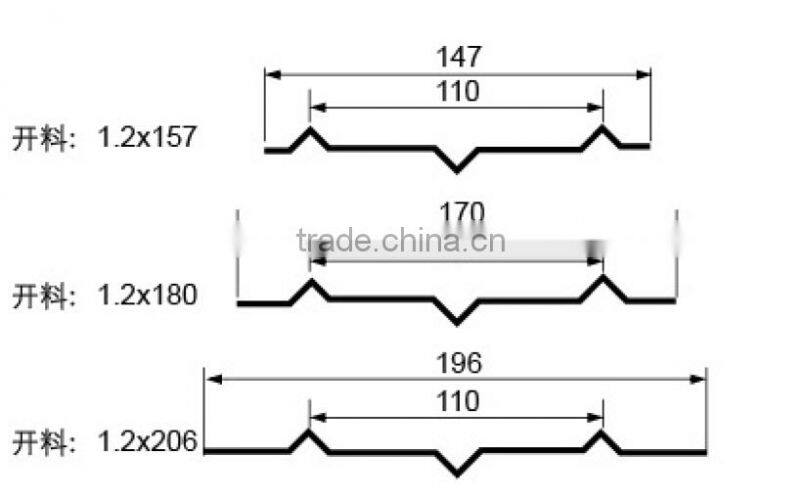

Blade Width: 147,170,190mm
Speed: 8m/min
Decoiler Capacity: 1.5ton
Space: 10000*1200*1300

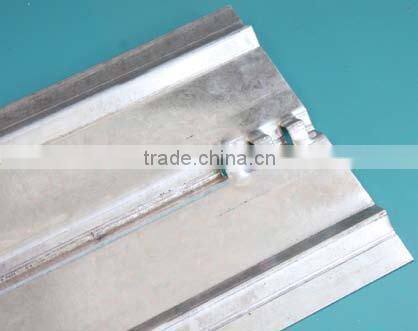

Damper blade auto line makes BLADE for damper blade easier!
FIRE DAMPER BLADE FORMING MACHINE ROLL FORMING MACHINE PUNCHING CUTTING ROLLING VCD SQUARE SHAFT
With 15 sets of roller stations, it can process material of 1.0-1.5mm thickness. Combine with a decoiler, cutting and punching unit, an auto line can be provided for three different sizes of blades with different coil width.
We can also manufacture the machine based on the blade profile as customers require.
Configured with Comifo fire damper frame forming machine and Comifo fire damper fastening table, a full damper body can be manufactured with higher production and less labor.
More specs detail, please contact us.
Other accessories are available, such as copper bush, square shaft, linking piece and linking rod. More over, Comifo also offer PREN fire damper actuators( manual actuator, semi-auto actuator, semi-auto two-time movements smoke fire damper actuator, auto actuator, auto two-time movements smoke fire damper actuator, as well as actuator for air damper, motorized ball valve, etc.
More detail, please contact us:
1, Comifo Gruop:
2, Comifo Duct Machinery:
3, Comifo Public Service:
4, Comifo Subcription:
