Welding Positioner
Professional technology
Customer-oriented design
ISO,CE approved
Good quality with competive price
Strong and durable

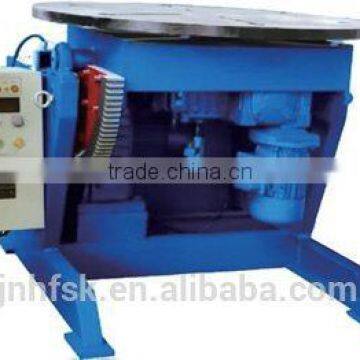

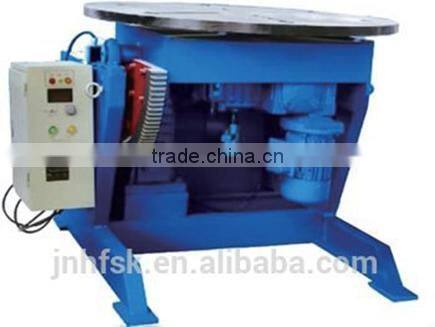

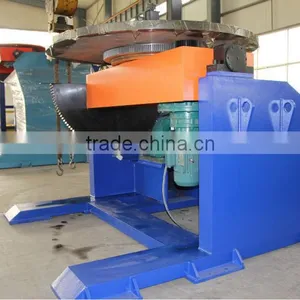

Through rotating or tilting the work table, Block-type positioner is the device making the weld seam in a horizontal or boat-shaped position.
Work table rotate by using frequency conversion stepless, while the sector gear and hydraulic cylinder drive table tilt.
Table turning angle is 0 ° ~ 120 °.
Joint control can be achieved between work table and manipulation or welding machine. Control system has three options: the key figures controlled, digital controlled switching and switching relays controlled.
The product is used in a variety of shafts, plates, cylinders and other rotary parts of the welding. It is the most widely used structure.
Model No. |
BW2-6 |
BW2-12 |
BW2-20 |
BW2-30 |
BW2-40 |
BW2-50 |
BW2-80 |
BW2-100 |
BW2-150 |
BW2-200 |
|
Basic loading(kg) |
600 |
1200 |
2000 |
3000 |
4000 |
5000 |
8000 |
10000 |
15000 |
20000 |
|
Rotating speed r/min |
0.05-0.5 |
0.03-0.3 |
0.03-0.3 |
0.03-0.3 |
0.03-0.3 |
0.02-0.2 |
0.02-0.2 |
0.02-0.2 |
0.02-0.2 |
0.02-0.2 |
|
Turning speed r/min |
0.75 |
0.37 |
0.37 |
0.37 |
0.37 |
0.25 |
0.25 |
0.2 |
0.15 |
0.15 |
|
Turning angle (° ) |
0-120 |
0-120 |
0-120 |
0-120 |
0-120 |
0-120 |
0-120 |
0-120 |
0-90 |
0-90 |
|
Work table diameter(mm) |
800 |
1100 |
1100 |
1400 |
1400 |
1600 |
1800 |
2000 |
2200 |
2500 |
|
Height of work table(mm) |
1000 |
1250 |
1250 |
1600 |
1600 |
1800 |
1800 |
2100 |
2300 |
2600 |
|
Allow work piece off-center(mm) |
Eccentricity |
150 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
Centroidal distance |
200 |
250 |
300 |
300 |
300 |
300 |
350 |
400 |
500 |
600 |
|
Rotating motor power(kW) |
0.37 |
1.5 |
1.5 |
2.2 |
2.2 |
2.2 |
3 |
3 |
4 |
5.5 |
|
Turning motor power(kW) |
0.75 |
0.75 |
1.1 |
2.2 |
3 |
3 |
4 |
5.5 |
7.5 |
11 |
|

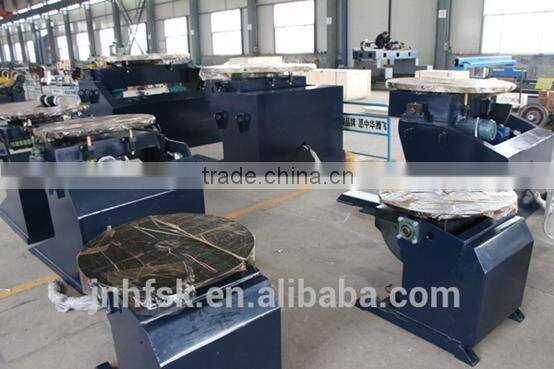

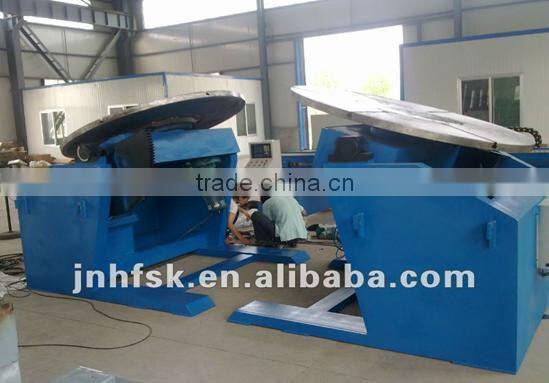

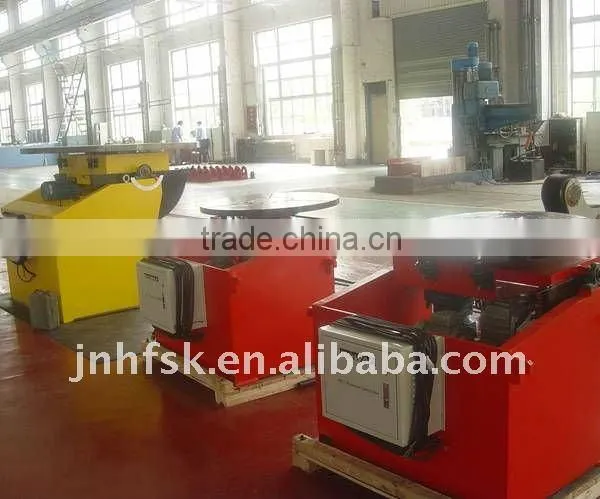

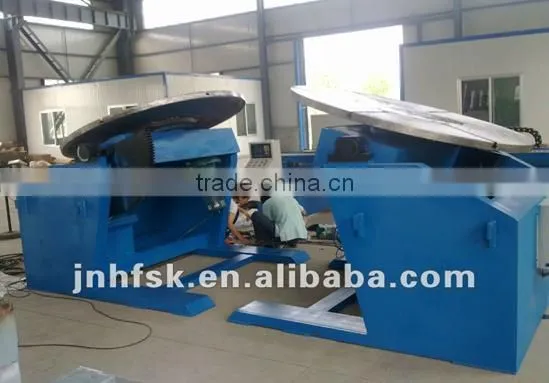

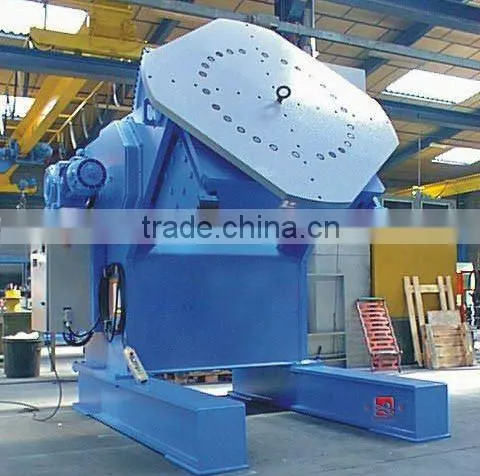

Different Types of Positioner

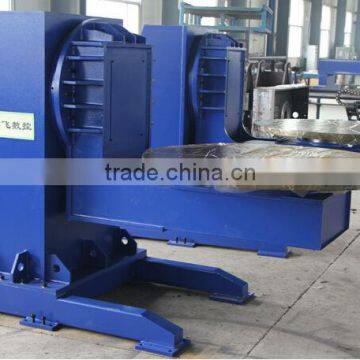

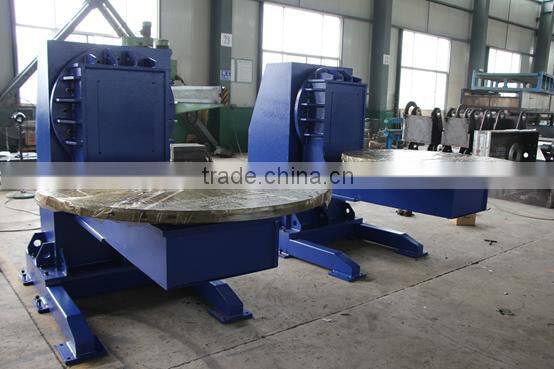

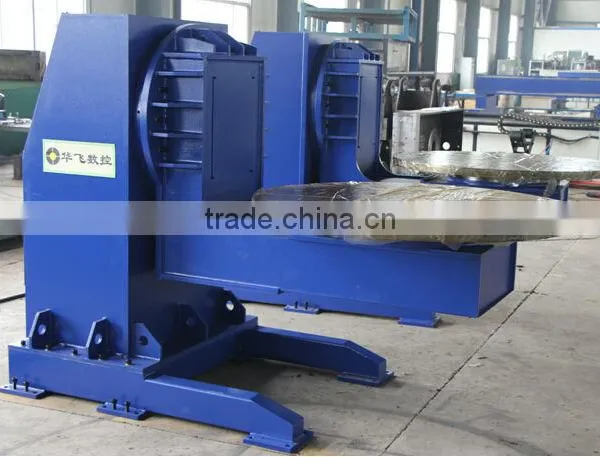

L Type

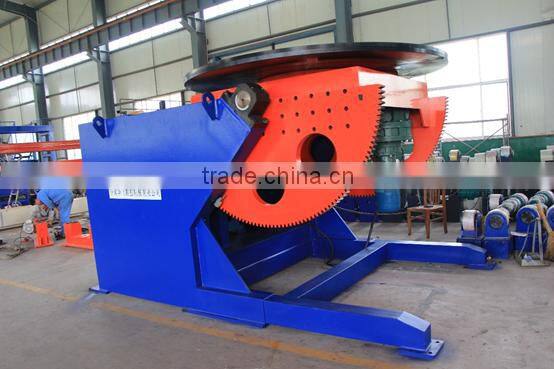

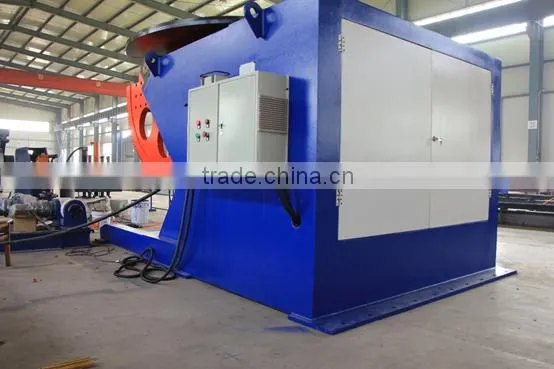

30T Positioner

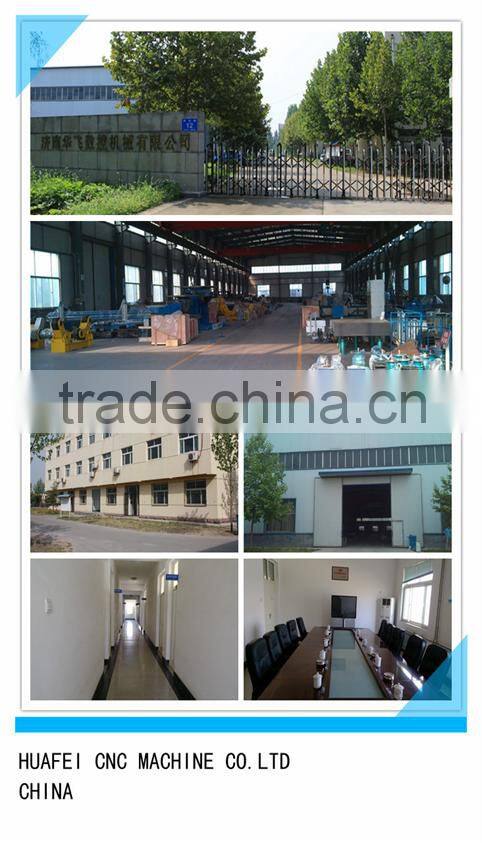

Factory information
Jinan Haufei CNC Machine Co., Ltd. is located in Jinan, shandong province with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China.
With constant efforts of all staffs, our products have been sold well in domestic and exported to many countries inthe world, including Australia,Indonesia,India,Burma,Iran,Spain,Brasil,Peru,Russia,Azerbaijan,KZ,UZ,Sri Lanka
We can warranty that:
when quality remains the same,our price is lower
when price remains the same,our quality is higher
