Beam Semi Trailer Welding Machine for variable cross-section
Introduction variable cross-section beam welding machine

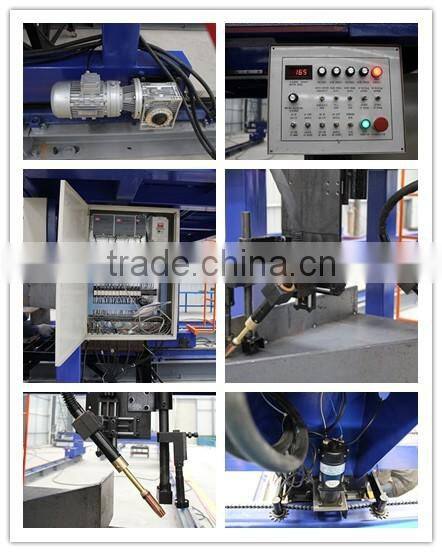

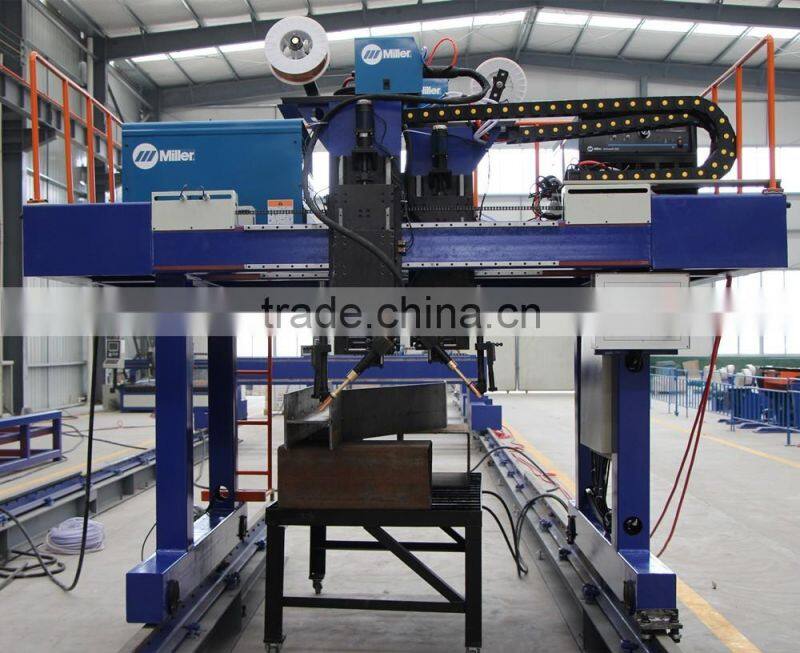

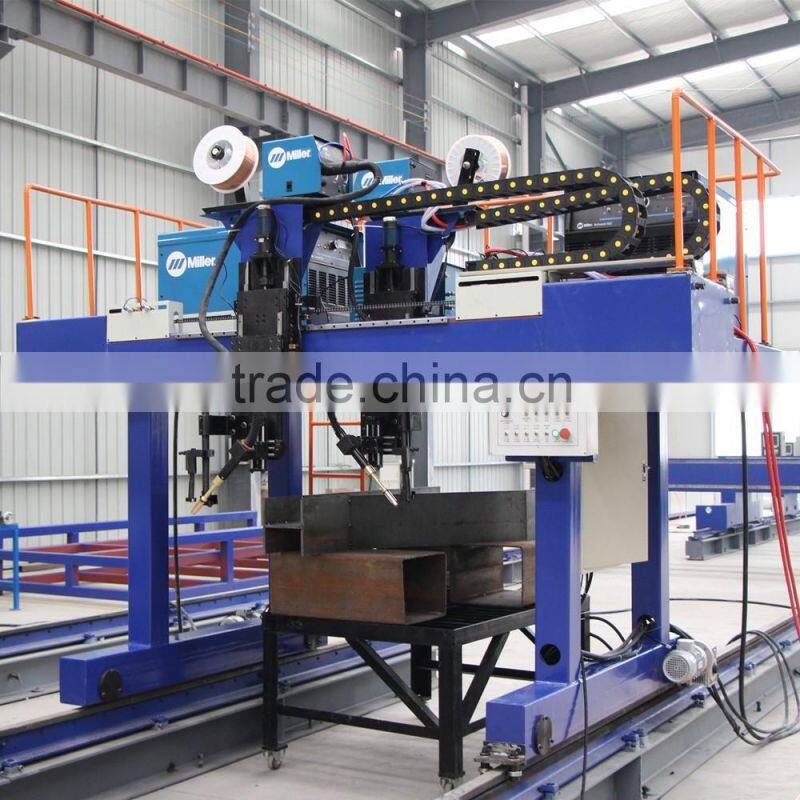

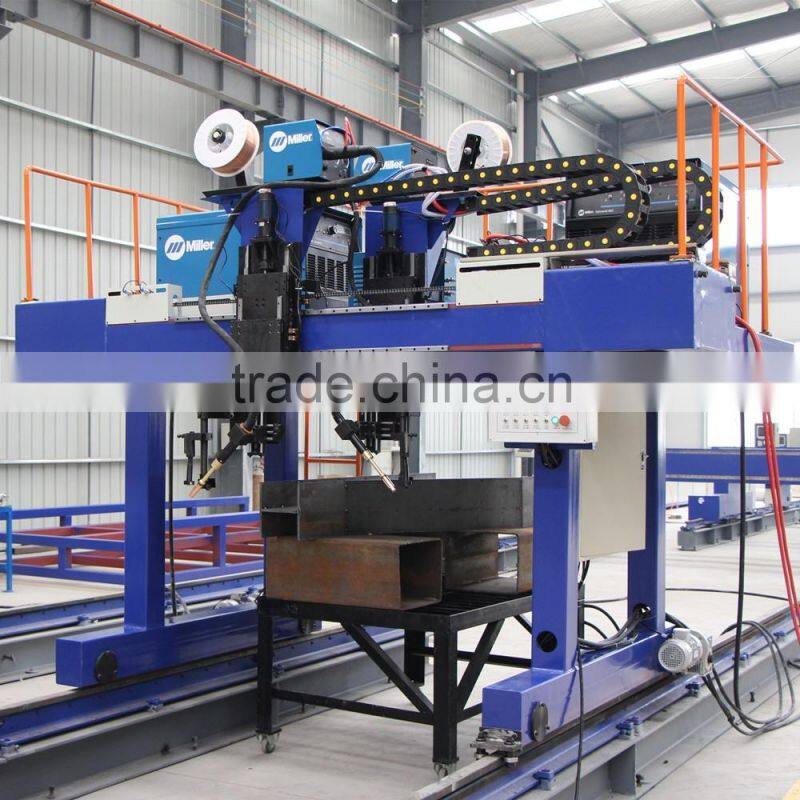

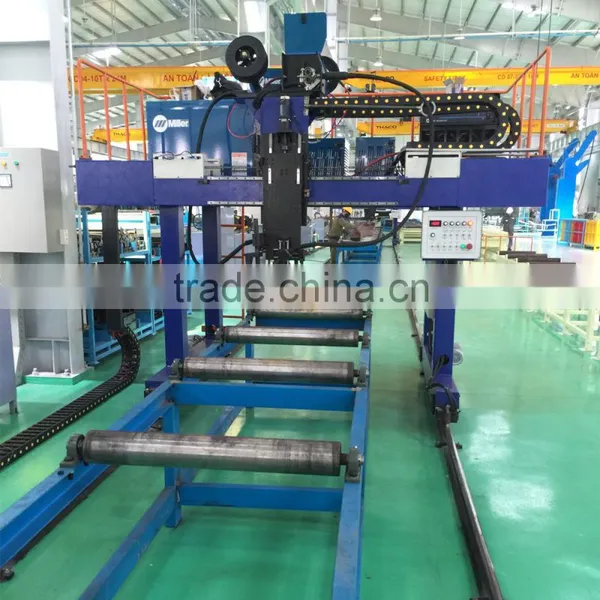

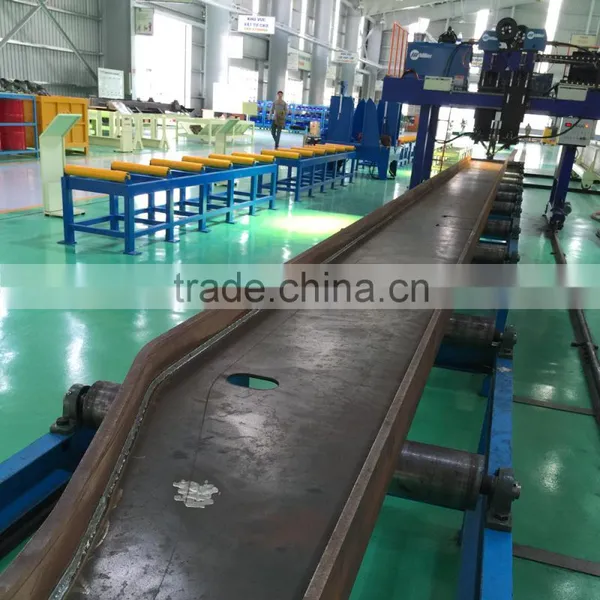

The equipment is special for automobile beam welding, widely used in building steel structure, the crossbeam of the automobile and engineering machinery “ H/I “ beam welding production, adopts centralized control system. Main composed of Gantry frame, two sets of MZ-1000 submerged arc welding power supply, two sets of horizontal electric mobile slider, two sets of electric hanging head, two sets of automatic tracking mechanism, two sets of flux recovery machine and control system etc.. With high efficiency, good welding quality is the ideal equipment for H type and “I “beam welding.
Parameter variable cross-section beam welding machine
Height of gantry frame (distance between beam and ground) 1.2m
Torch lifting stroke (Up Down) 200mm
Torch longitudinal travel 700mm
Gantry frame travel motor power 0.75KW×2
Gantry frame travel welding speed 250-1200mm/min
Fast return speed 2880mm/min
Gantry frame Guide rail center distance: 3m (user prepare)
Length of guide rail Customizable
Beam web plate height 150-800mm
Beam pterygoid lamina width 120-800mm
Video Link variable cross-section beam welding machine
/AKZ250/videos/vb.100006914478186/1701278056779327/?type=3&theater
/AKZ250/videos/vb.100006914478186/1701279470112519/?type=3&theater
ISO9001:2008 & CE certification
After-sale Service
♥ Warranty one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components, spare parts and consumptive material
Plywood case or plastic film cover
Service Purpose:
Our professional sale and after-sale service give you a faithful feel.
Thanks for your inquiry and welcome to visit our company. Any question, please feel free to contact us!
