Specifications
H-beam Welding Production Line HUAFEI Manufacrture
SAW,TIG,MIG,MAG
high precision,competitive price
Customer-oriented design
H-beam Welding Production Line HUAFEI Manufacture

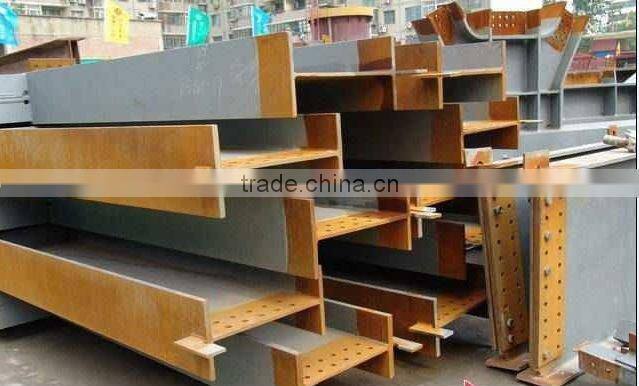

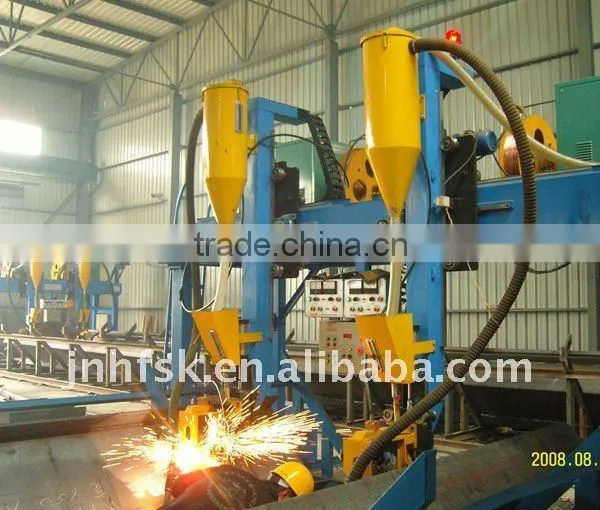

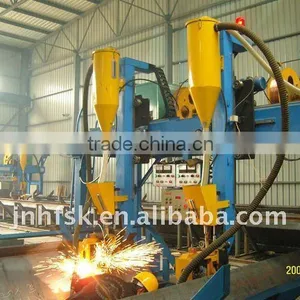

H beam production line is specially designed for the welding of H beam,it is mainly composed of cnc strips cutting machine, assembling machine,gantry welding machines,flange straightening machine and ball blasting machine. The whole line adopts advanced technology of head assembling, horizontal leveling stand welding, single arc and double wire welding, and realizes fast welding of H beam with welding distortion greatly reduced Ithus t is the perfect device for producing large quantity of H beam.

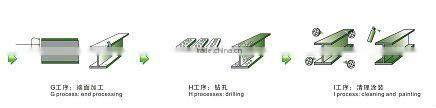

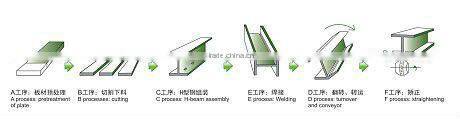

Working flow
No |
Item |
Specification |
1 |
Web height |
300-1500mm(customizable) |
2 |
Web thickness |
5-30mm |
3 |
Flange width |
150-800mm |
4 |
Flange thickness |
5-30mm |
5 |
Workpiece length |
5~15m |
6 |
Inclination of H beam |
≤8° |
7 |
Welding type |
single arc and double wire saw welding(customizable) |
8 |
Welder /p> |
USA Lincoln DC1000(customizable) |
9 |
Welding speed |
300-1500mm/min(step less speed adjustment) |
10 |
Voltage |
380V50Hz, 3ph |
11 |
Welding position |
fillet welding at flat position |

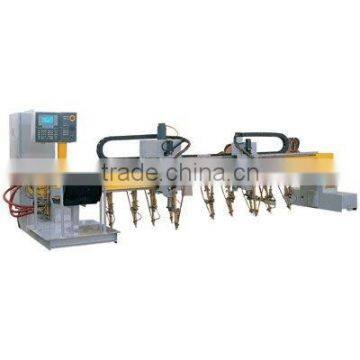

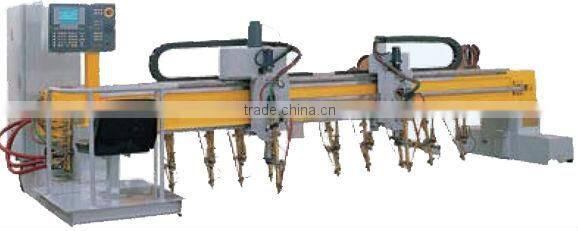

c strips cutting machine

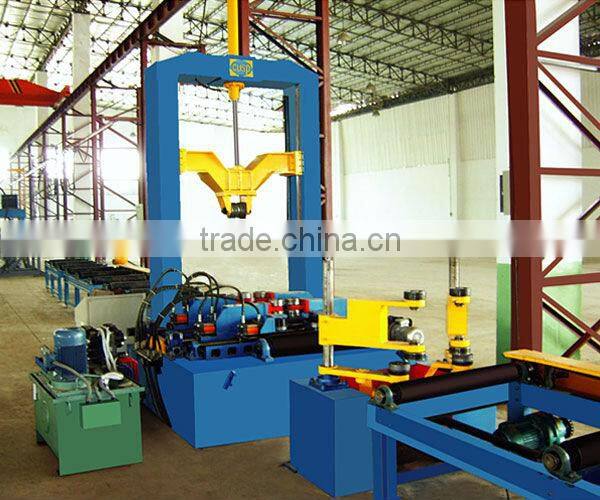

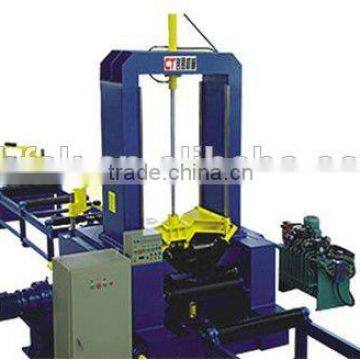

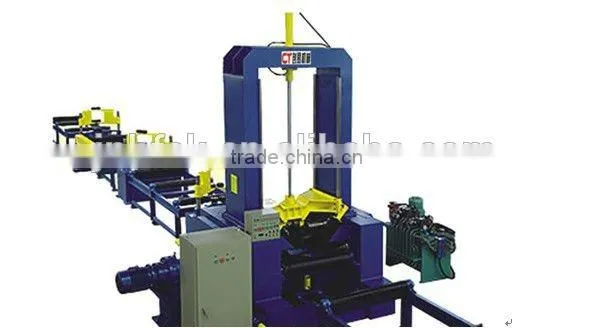

2.assembling machine

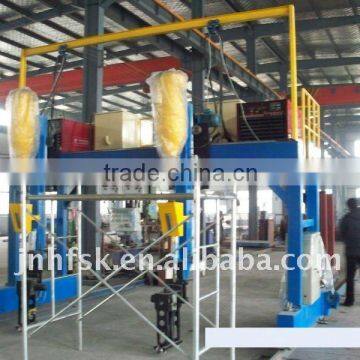

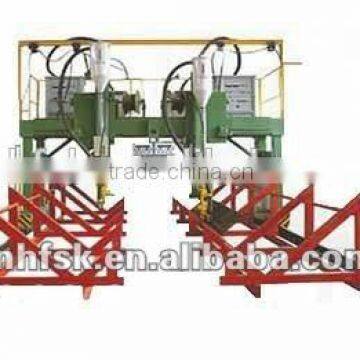

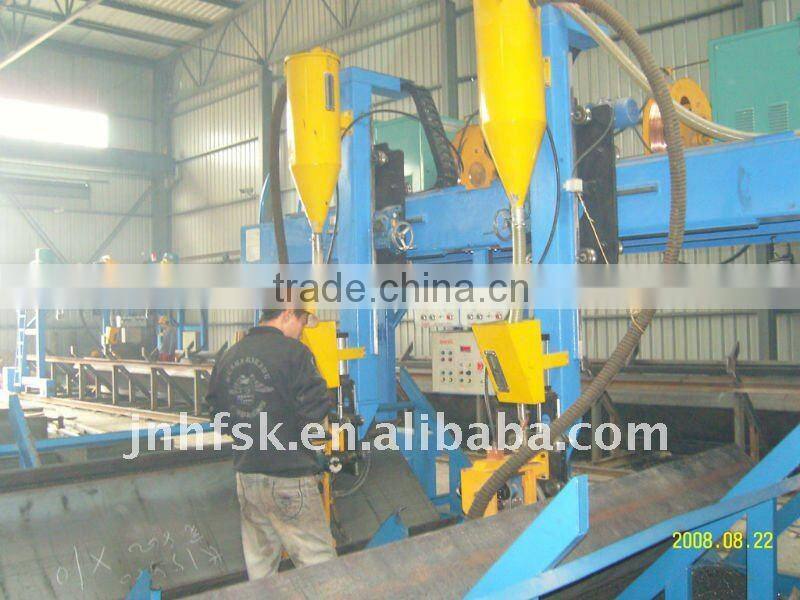

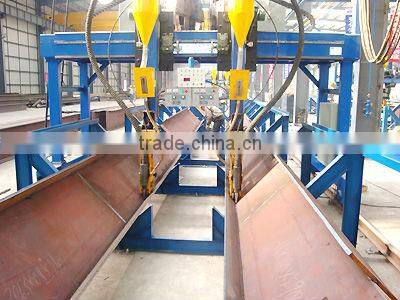

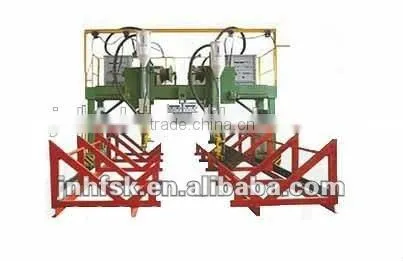

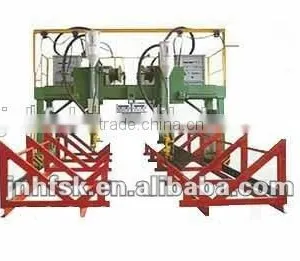

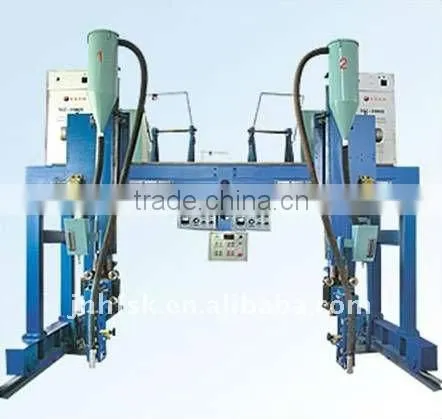

3.gantry welding machine

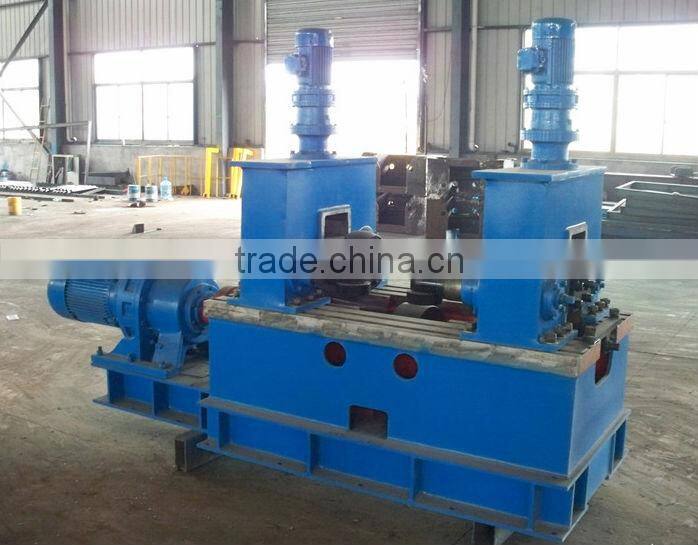

4.flange straightening machine

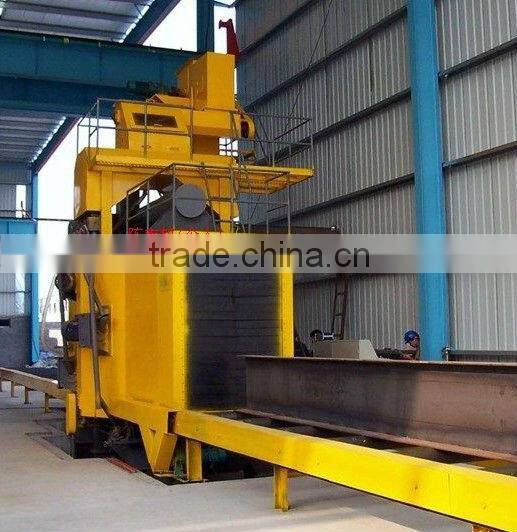

5.Ball blasting machine(optional)
l Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions and solutions according to your requirements, the engineering feasibility and economic benefit etc .
l Provide knowledge of equipment operation and maintenance,Allows you to accurately grasp the characteristics of the machine
l one year warranty, life-long maintenance services through email or telphone .Please feel free to use.
l Supply all kinds of accessories and replacement.

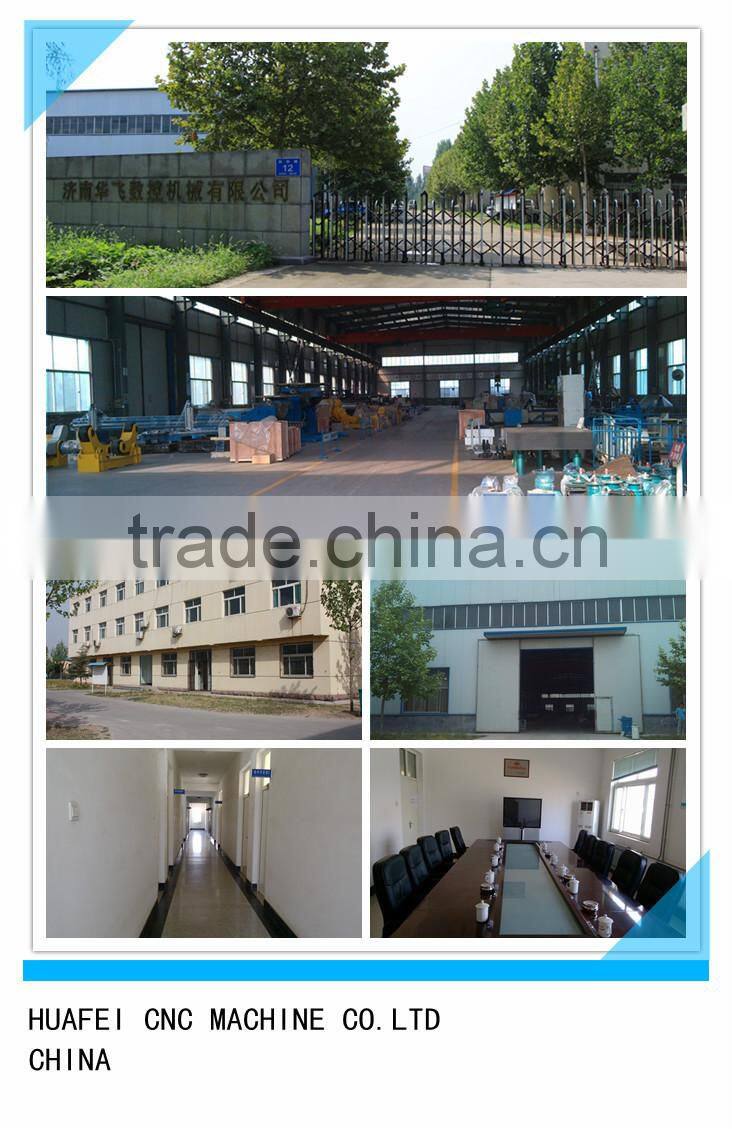

Jinan Haufei CNC Machine Co., Ltd. is located in Jinan, shandong province with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China.
With constant efforts of all staffs, our products have been sold well in domestic and exported to many countries inthe world, including Australia,Indonesia,India,Burma,Iran,Spain,Brasil,Peru,Russia,Azerbaijan,KZ,UZ,Sri Lanka
We can warranty that:
when quality remains the same,our price is lower
when price remains the same,our quality is higher
.
