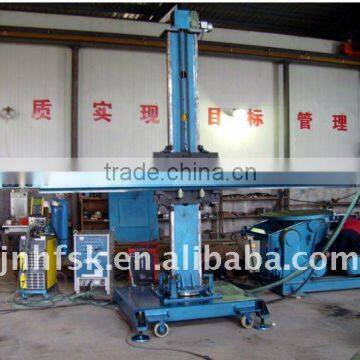

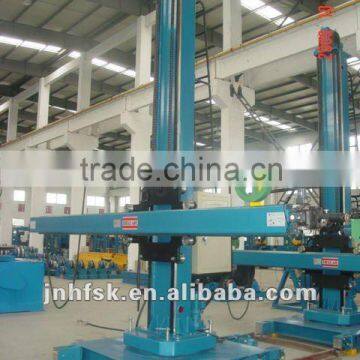

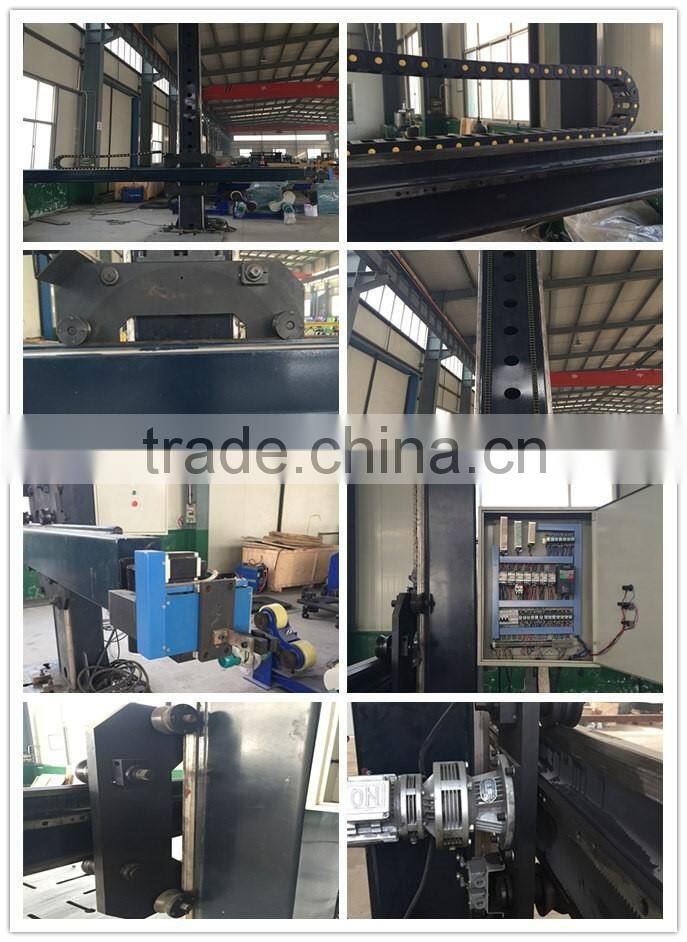

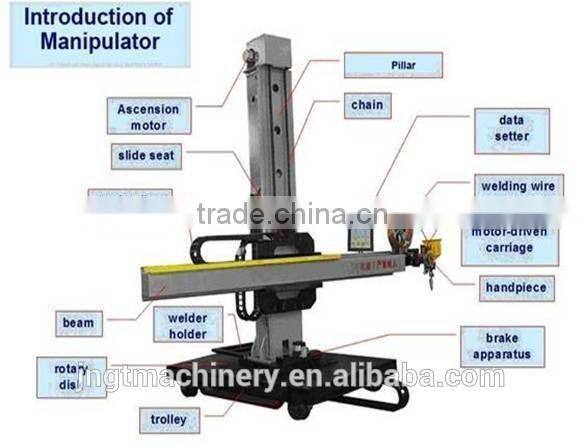

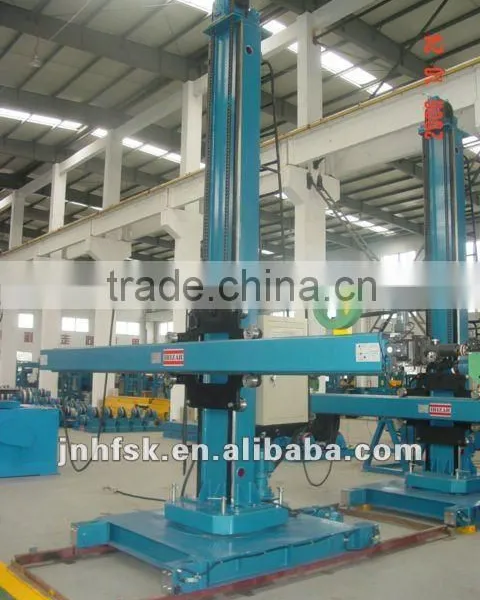

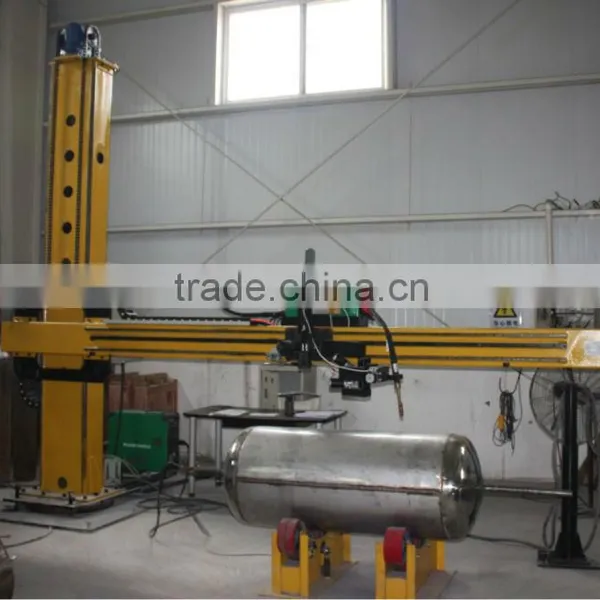

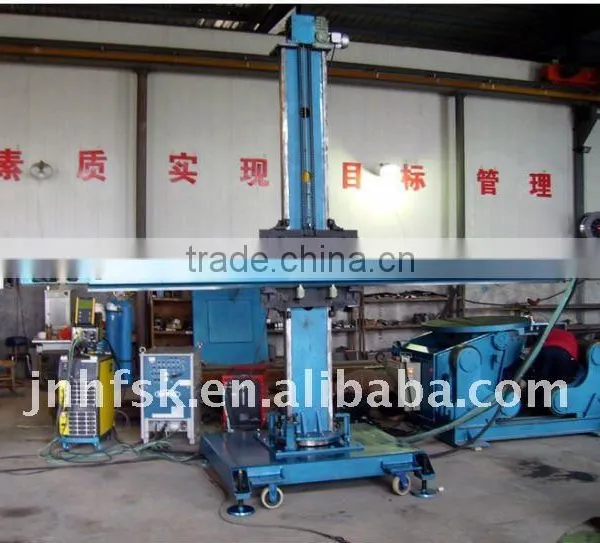

Automatic Welding Manipulator
(Welding Column & Boom)
Automatic welding manipulator for metal containers/ welded metal structure and a variety of welding ways. Widely used in wind power equipment, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair and many other industries.
Features
1. Control System
Manipulator control system using digital control, easy operation, precise control, and other equipment to facilitate linkage control.
2. Customer-Oriented
According to customer requirements, it can be installed electrical extension unit inside telescopic arm operator's seat and safeguard ladders, but also supporting a variety of tracking and monitoring, arc oscillation, transmission devices of flux recovery.
3. Type
Welding manipulator is divided into small, medium, heavy three types;
Four structural forms are fixed, fixed rotating, fixed mobile and mobile rotating.
4. Main Technical Data
Technical parameters
Model No. |
HC-2*2 |
HC-3*3 |
HC-4*4 |
HC-5*5 |
HC-6*6 |
HC-7*7 |
HC-8*8 |
|
Up/down stroke of boom(m) |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Optional up/down stroke of boom(m) |
2-4 |
2.5-5 |
3-7 |
3-8 |
4-8 |
4-8 |
4-8 |
|
Rotating angle of the column(°) |
±180° |
|||||||
The up/down speed of boom(mm/min) |
850 |
1150 |
||||||
Expansion speed of boom(mm/min) |
140-1400 |
|||||||
Rotating speed of column(r/min) |
0.2 |
|||||||
The total load of boom |
100 |
200 |
300 |
400 |
500 |
500 |
500 |
|
Distance C to C of the track(optional) |
2000/2500 |
|||||||

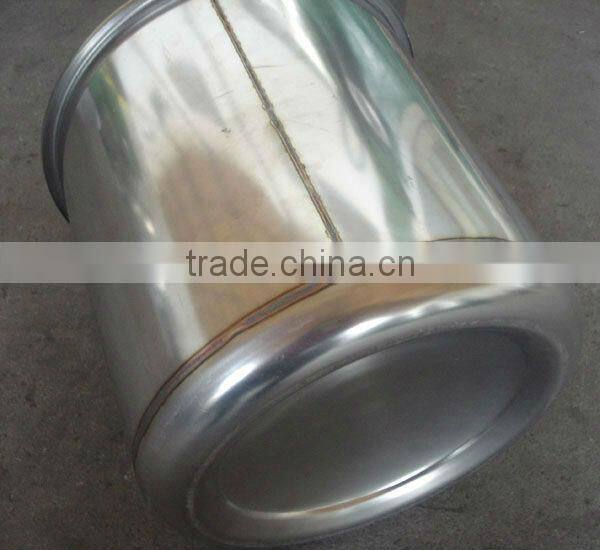

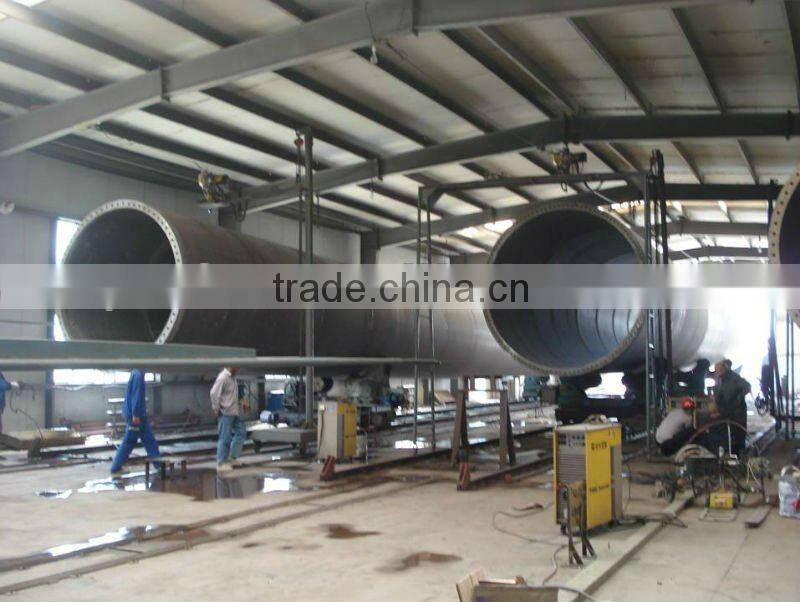

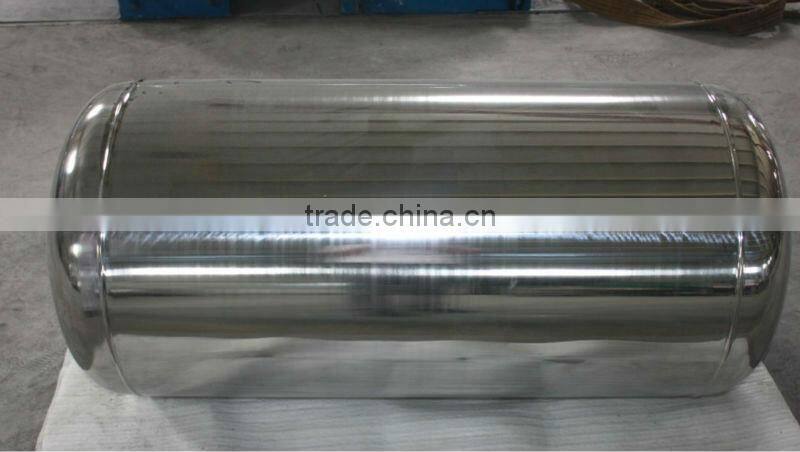

Sample products
After-sales service
1.One year warranty,free maintenace for life.
2.free techncial support through Email and telphone.
3.Trainning and installation on-site if rquired.
Factory and certificates
We can warranty that:
when quality remains the same,our price is lower
when price remains the same,our quality is higher
