Specifications
High Precise Welding Rotator from HUAFEI
Adjustable speed
High efficiency,easy operation
ISO9001,CE certificate
High Precise Welding Rotator From HUAFEI Features

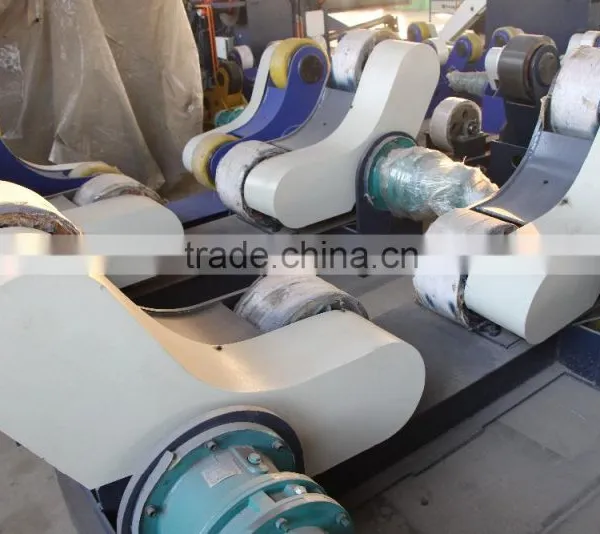

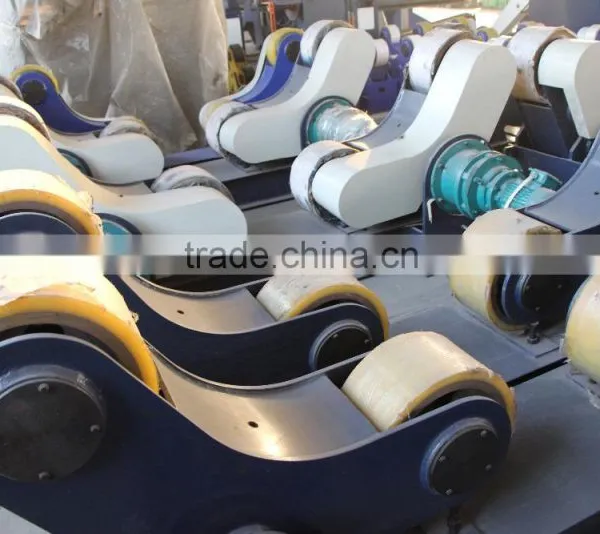

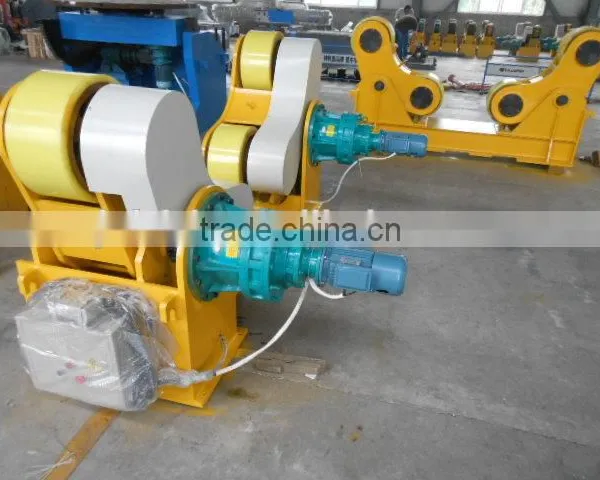

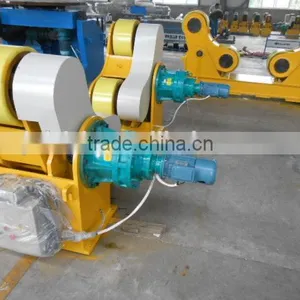

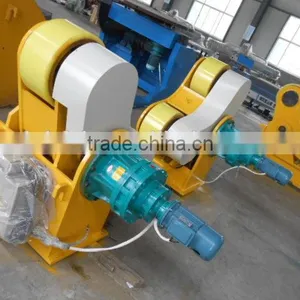

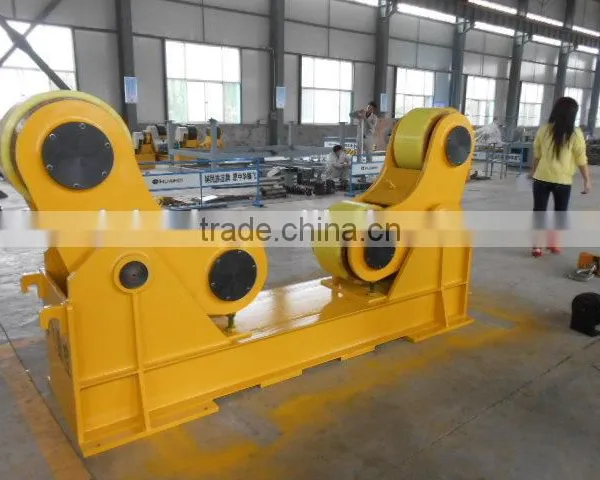

1. Self-aligned Welding turning roller can adjust the center distance by reserved screw holes or lead screw in order to adapt to diameter of work piece.

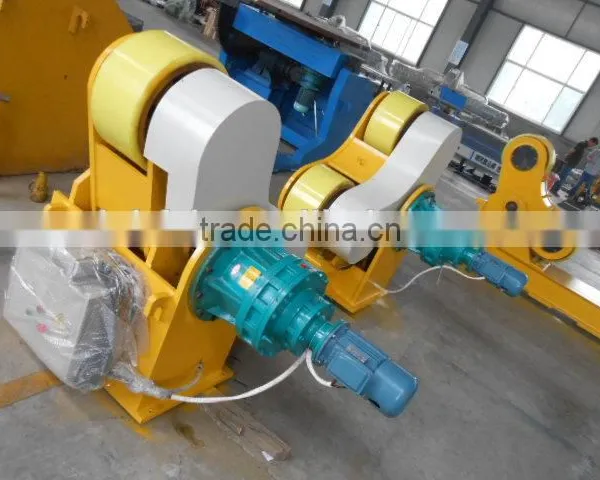

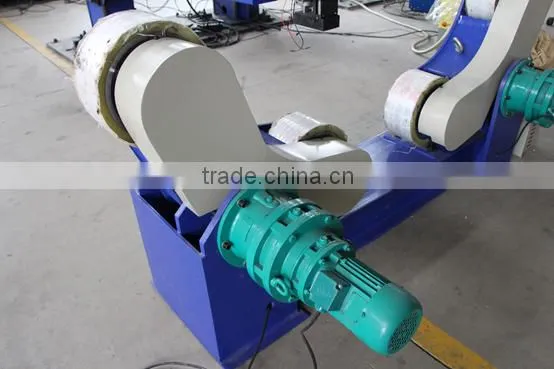

2. Double-motor driven, the roller driver adopt Planet-cycloid Reducer or worm reduction gear mode.
3. According to the customer’s requirements, the roller has three forms: sub-rubber tire roller, steel wheels, steel and plastic combination wheel; it can joint control with other equipments.
4. The roller is mainly used for the welding Polish rubber lining and assembly of cylindrical roller shell, but also can assembly and weld together with other tooling for the cone inequality diameter rotary.
5. This product is widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair industry.
Technical parameters
Model No. |
HG1/HG1W-5 |
HG1/HG1W -10 |
HG1/HG1W -20 |
HG1/HG1W -30 |
HG1/HG1W -40 |
HG1/HG1W -50 |
HG1/HG1W -60 |
HG1/HG1W -80 |
HG1/HG1W -100 |
||
Loading (t) |
5 |
10 |
20 |
30 |
40 |
50 |
60 |
80 |
100 |
||
Shell Diameter |
min |
350 |
600 |
600 |
600 |
750 |
800 |
900 |
900 |
900 |
|
max |
2500 |
4000 |
4500 |
5000 |
5000 |
5000 |
5500 |
5500 |
5500 |
||
|
Roller speed (m/h) |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
||
|
Motor power (kw) |
2×0.18 |
2×0.25 |
2×0.37 |
2×0.37 |
2×0.55 |
2×0.75 |
2×0.75 |
2×1.1 |
2×1.5 |
||
Regulating mode |
Frequency control |
|
|||||||||
|
Dimen sion |
Length (mm) |
Active 1410 |
Active 1585 1450 |
Active 2165 2125 |
Active 2410 2410 |
Active 2410 2410 |
Active 2600 2600 |
Active 2600 2600 |
Active 3020 |
Active 3020 3020 |
|
|
Width (mm) |
Active 800 |
Active 872 392 |
Active 1010 425 |
Active 1260 550 |
Active 1290 550 |
Active 1360 590 |
Active 1360 590 |
Active 1745 |
Active 1770 760 |
||
|
Height (mm) |
670 |
660 |
945 |
1125 |
1135 |
1135 |
1135 |
1400 |
1400 |
||

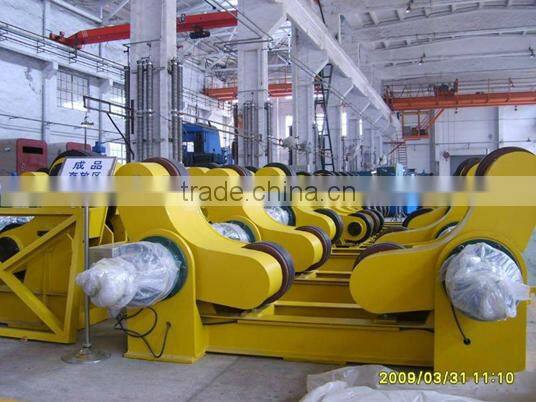

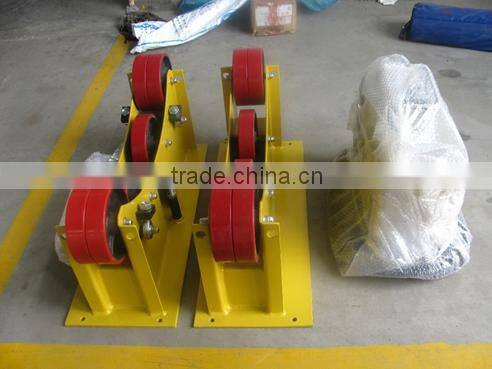

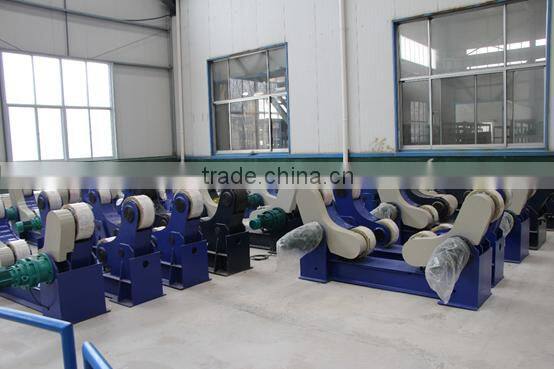

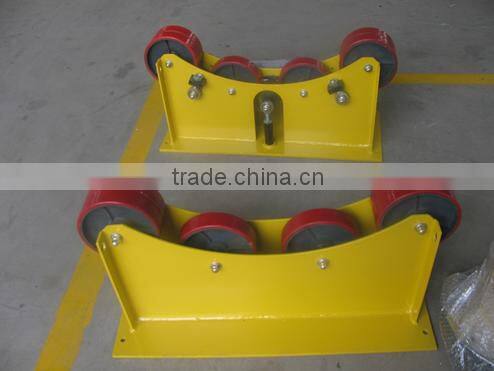

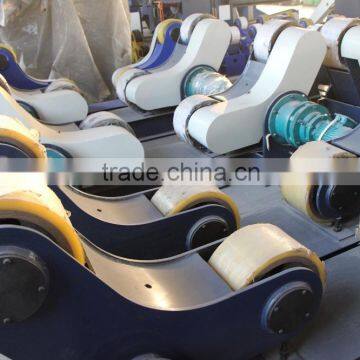

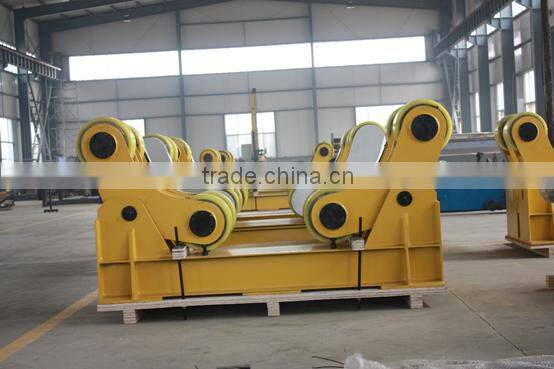

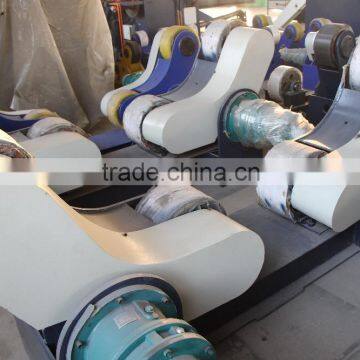

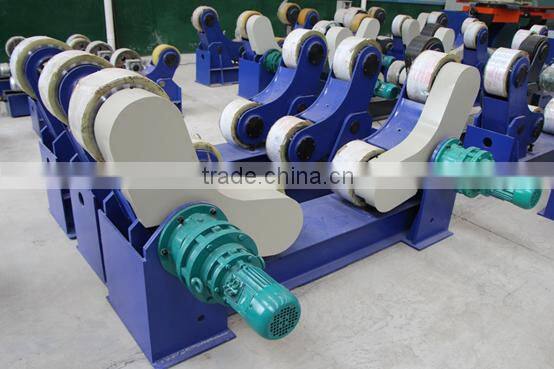

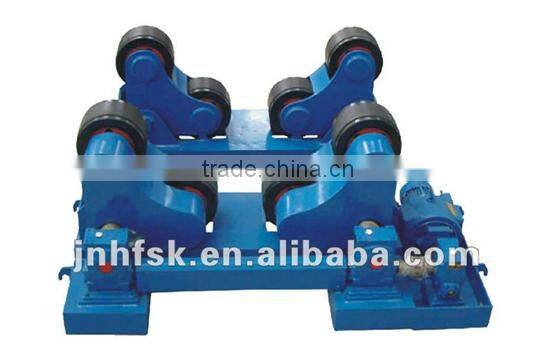

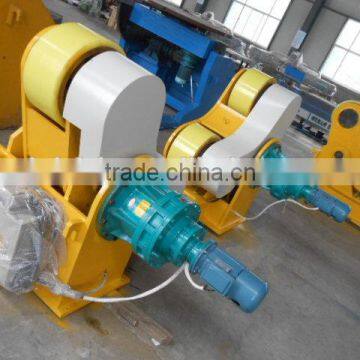

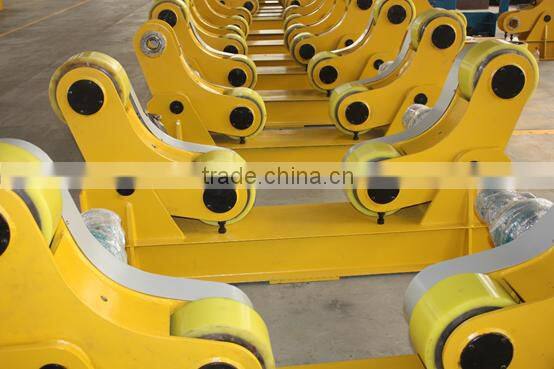

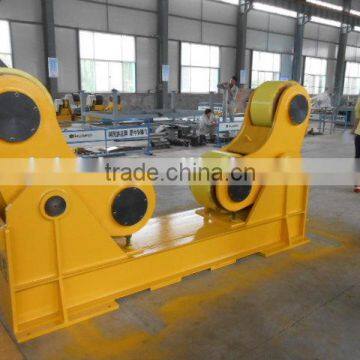

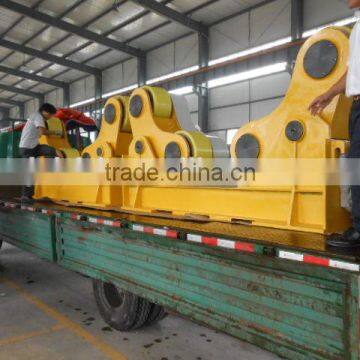

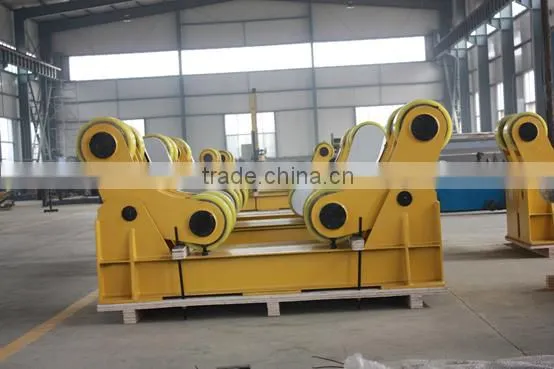

3T Welding Rotator
5T Welding rotator
20T welding rotator

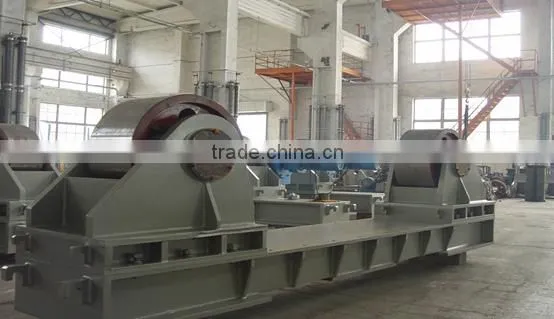

100T Welding Rotators
150T Welding Rotator
200 T Welding Rotator
After-Sales Service
Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions and solutions according to your requirements, the engineering feasibility and economic benefit etc .
Provide knowledge of equipment operation and maintenance,Allows you to accurately grasp the characteristics of the machine
one year warranty, life-long maintenance services through email or telphone .Please feel free to use.
Supply all kinds of accessories and replacement.

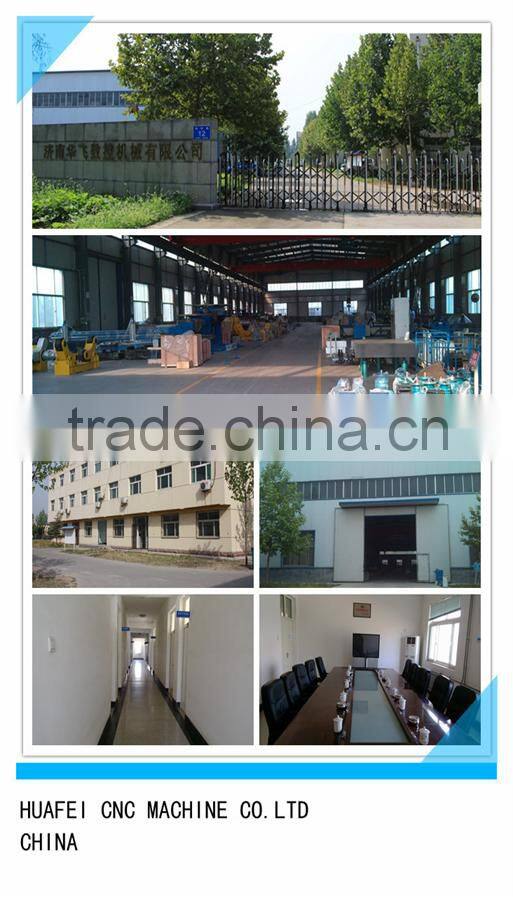

Factory information
Jinan Haufei CNC Machine Co., Ltd. is located in Jinan, shandong province with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China.
With constant efforts of all staffs, our products have been sold well in domestic and exported to many countries in the world,
includingAustralia,Indonesia,India,Burma,Iran,Spain,Brasil,Peru,Russia,Azerbaijan,KZ,UZ,Sri Lanka

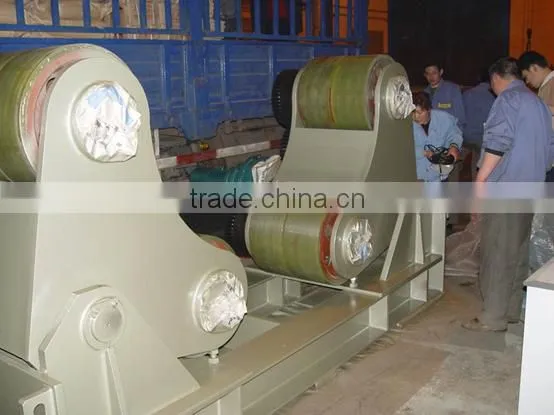

Customer visit factory
We can warranty that:
when quality remains the same,our price is lower
when price remains the same,our quality is higher
