PLC Controlled CR HR SS Steel Coil Slitting Line Jinan
- 20 Set / Sets per Month
- Qongdao; PLC Controlled CR HR SS Steel Coil Slitting Line Jinan
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
Product Details
Place of Origin: | Shandong, China | Brand Name: | HUAFEI | Model Number: | PLC Controlled CR HR SS Steel Coil Slitting Line Jinan |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PLC Controlled CR HR SS Steel Coil Slitting Line Jinan
Thin plate slitting line (0.2-3mm) Steel coil slitting line
This line is Used for steel plate coil to uncoiling, slitting, recoiling to required steel strips. This line apply to hot rolled carbon steel, tinplate, stainless steel and other different kinds of surface plated metal.
Slitting line is used for steel plate coil to uncoiling, slitting, recoiling to required steel strips. This line apply to hot rolled carbon steel, tinplate, stainless steel and other different kinds of surface plated metal.
For the user with higher requirement, uncoiling with automatic edge aligning or centering is preferable, which has the advantage of easy entering coil, high working efficiency, improving cutting precision and protecting plate as well. EPC automatic edge control can be adopted as well, which can guarantee recoiling in tidiness, especially for the wider recoiling
This line is composed of entry coil car, uncoiler, feeding in device, leveler, head shearing device, loop pit, side guide, slitting device, scrap winder, tension unit, recoiling machine, unloading device.etc.

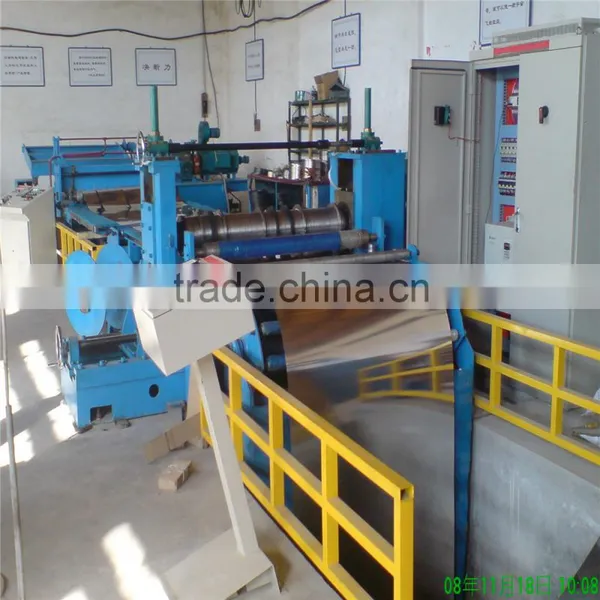

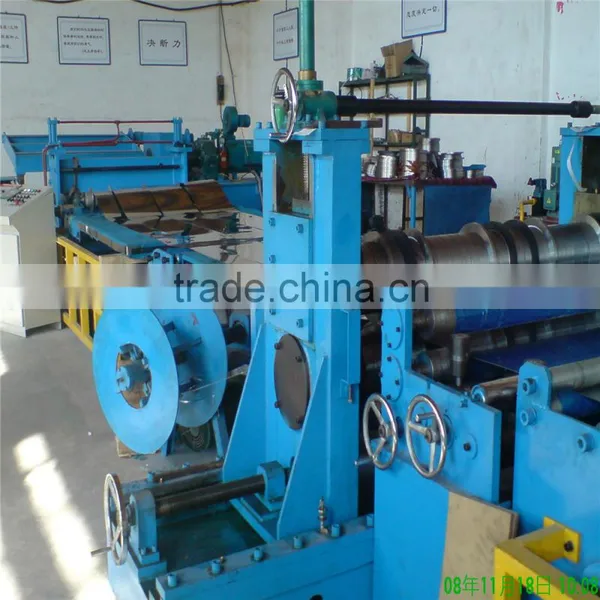

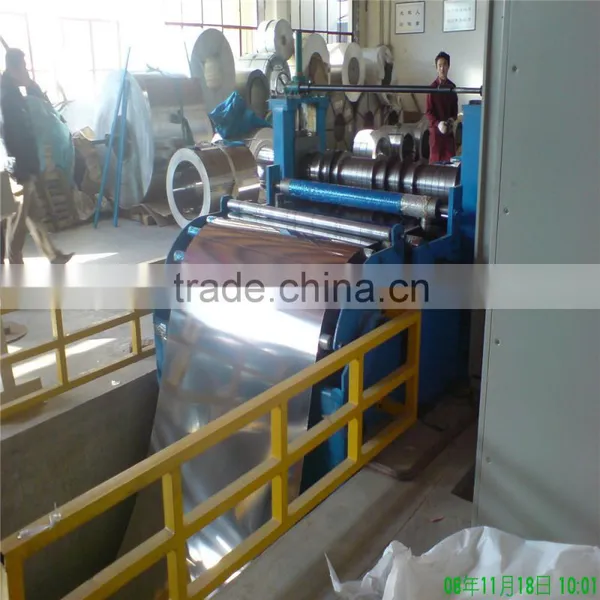

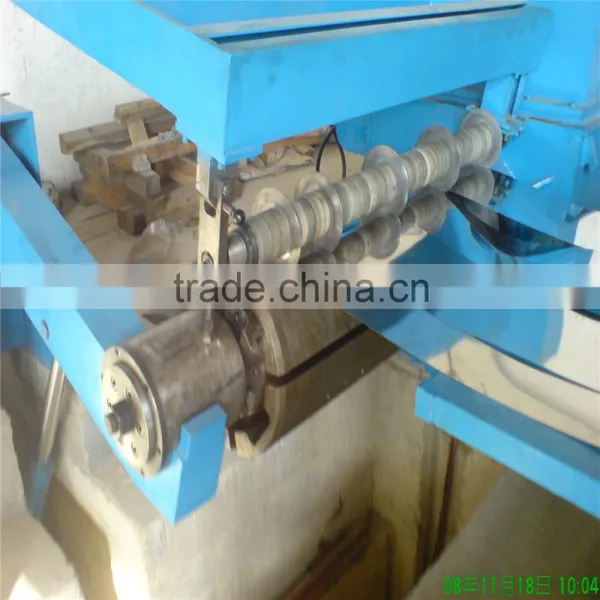

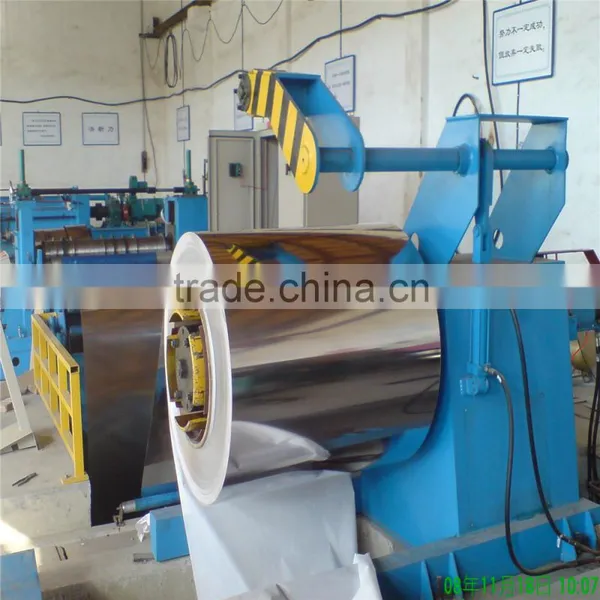

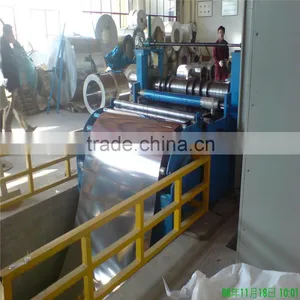

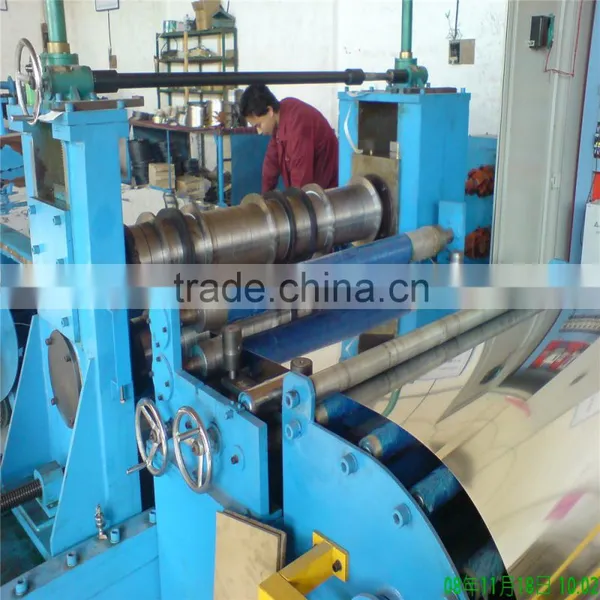

Pictures for reference Steel coil slitting line
This slitting line Hydraulic system main parts adopt Germany BOSCH-REXROT components and seals, electrical control adopt Japan Mitsubishi PLC program controller main motor of leveler and slitting device adopts high power DC motor, DC controller adopts ETD products, speed of uncoiler, slitting device and recoiling machine controlled by high-performance electric, able to achieve matched speed. This production line has high degree of automation, can process high strength thick plate, little amount of wrong side recoiling coil, has stable and reliable performance, easy operation and maintenance, etc
Parameters Steel coil slitting line
Model No. Parameter | Cutting thickness (mm) | Cutting thickness (mm) | Slitting quantity | Width precise (mm) | Coil weight (T)
|
Slitting speed(mm/min) | Remark |
HFSL-2×400 | 0.2-2 | 100-400 | 20-5 | ±0.05-0.1 | 5T | 100 | Technical data, configuration can according to customer requirement. |
HFSL-2×800 | 0.2-2 | 100-800 | 30-5 | ±0.05-0.1 | 8T | 120 | |
HFSL-2×1300 | 0.2-2 | 400-1300 | 30-5 | ±0.05-0.1 | 8T | 120 | |
HFSL-2×1600 | 0.2-2 | 400-1600 | 40-5 | ±0.05-0.15 | 10T | 150 | |
HFSL-3×1600 | 0.3-3 | 500-1600 | 40-5 | ±0.1-0.2 | 15T | 150 | |
HFSL-3×1800 | 0.3-3 | 500-1800 | 40-5 | ±0.1-0.2 | 15T | 150 |
Thick plate slitting line (4-12mm) Steel coil slitting line
Slitting line is used for steel plate coil to uncoiling, slitting, recoiling to required steel strips. This line apply to hot rolled carbon steel, tinplate, stainless steel and other different kinds of surface plated metal.
Slitting line is used for middle and thick hot rolled steel plate coil to uncoiling,slitting, recoiling to required steel strips. This line apply to hot rolled carbon steel, thick aluminum coil, stainless steel and other different kinds of surface plated metal.
Slitting line is composed of entry coil car, uncoiler, feeding in device, simple leveler, head shearing device, Side Guide, thick plate slitting device, scrap winder, tension unit, recoiling machine, unloading device.etc.
This production line Hydraulic system main parts adopt Germany BOSCH-REXROT components and seals, electrical control adopt Japan Mitsubishi PLC program controller main motor of leveler and slitting device adopts high power DC motor, DC controller adopts ETD products, speed of uncoiler, slitting device and recoiling machine controlled by high-performance electric, able to achieve matched speed. This production line has high degree of automation, can process high strength thick plate, little amount of wrong side recoiling coil, has stable and reliable performance, easy operation and maintenance, etc
Pictures for reference Steel coil slitting line
This slitting line Hydraulic system main parts adopt Germany BOSCH-REXROT components and seals, electrical control adopt Japan Mitsubishi PLC program controller main motor of leveler and slitting device adopts high power DC motor, DC controller adopts ETD products, speed of uncoiler, slitting device and recoiling machine controlled by high-performance electric, able to achieve matched speed. This production line has high degree of automation, can process high strength thick plate, little amount of wrong side recoiling coil, has stable and reliable performance, easy operation and maintenance, etc
Parameters Steel coil slitting line
Model No.
Parameter | Cutting thickness (mm) | Coil width (mm) | Slitting quantity | Width precise (mm) | Coil weight (T) | Slitting speed (mm/min) | Remark |
HFSL-4×1600 | 1-4 | 500-1600 | 20-5 | ±0.1-0.2 | 20T | 40-60 | Technical data, configuration can according to customer requirement. |
HFSL-6×1600 | 1-6 | 500-1600 | 15-5 | ±0.2-0.3 | 25T | 30-50 | |
HFSL-6×2000 | 1-6 | 500-2000 | 15-5 | ±0.2-0.3 | 30T | 30-50 | |
HFSL-8×1600 | 2-8 | 500-1600 | 15-5 | ±0.3-0.5 | 30T | 20-30 | |
HFSL-10×1600 | 2-10 | 500-1600 | 10-5 | ±0.5-0.8 | 30T | 15-20 | |
HFSL-12×1600 | 3-12 | 500-1600 | 10-5 | ±0.5-0.8 | 30T | 15-20 |
Video Link Steel coil slitting line
/video.php?v=1544198555820612&set=vb.100006914478186&type=3&theater
ISO9001:2008 & CE certification
After-sale Service
♥ Warranty one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components, spare parts and consumptive material
Jinan HuaFei CNC Machine is a professional CNC machine manufacturer, which specializes in designing, producing and trading together. Our products have been exported to
many countries including United States, Canada, Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan etc.
Service Purpose:
Our professional sale and after-sale service give you a faithful feel.
Thanks for your inquiry and welcome to visit our company. Any question, please feel free to contact us!
