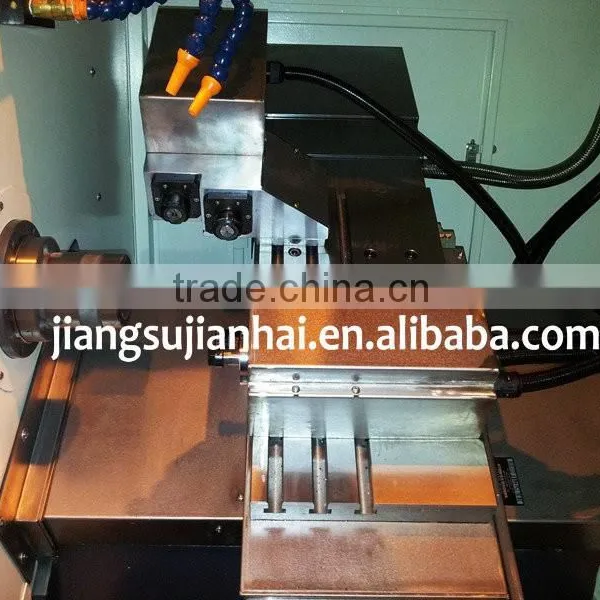

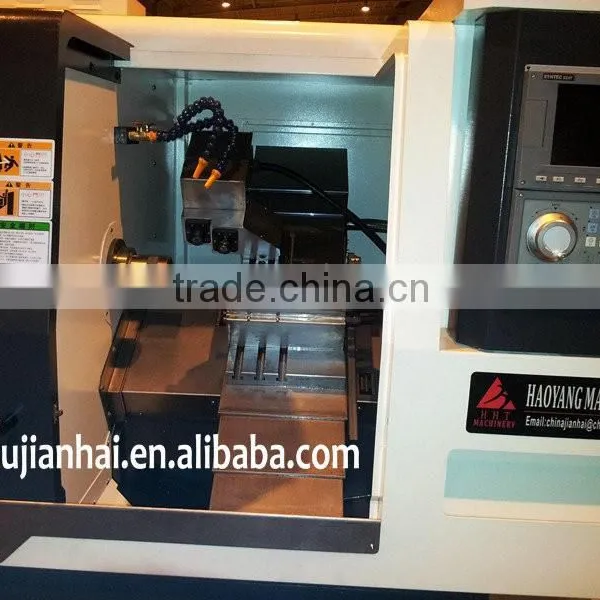

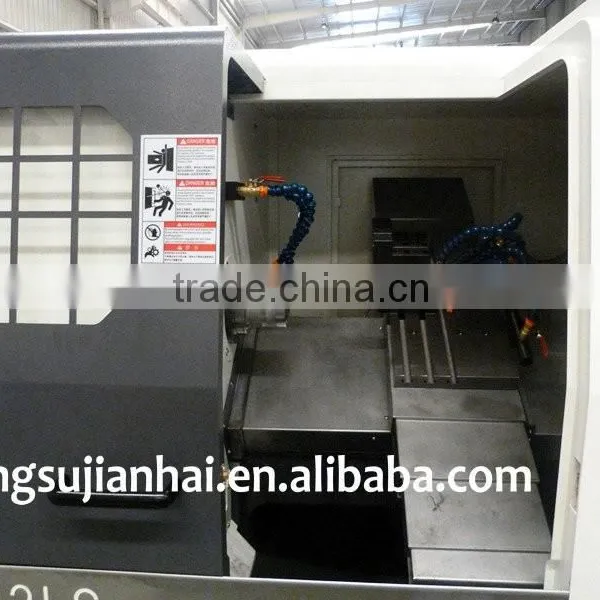

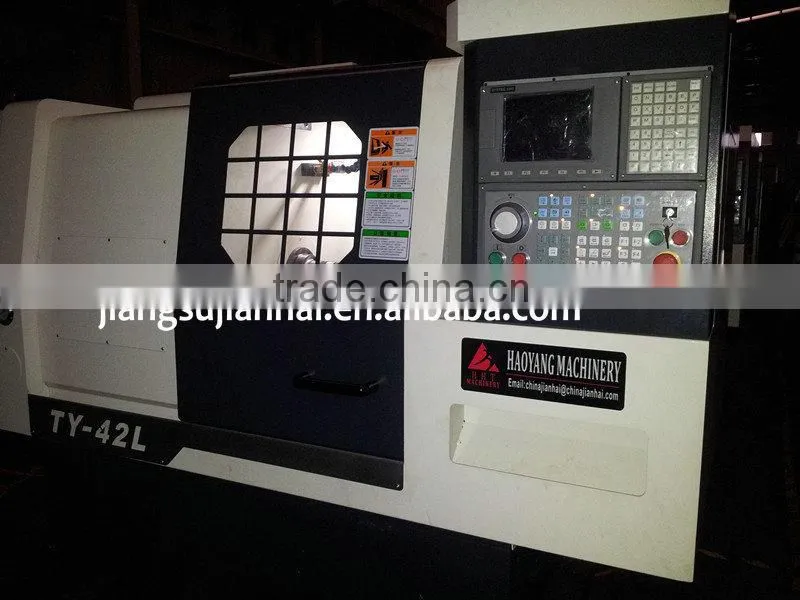

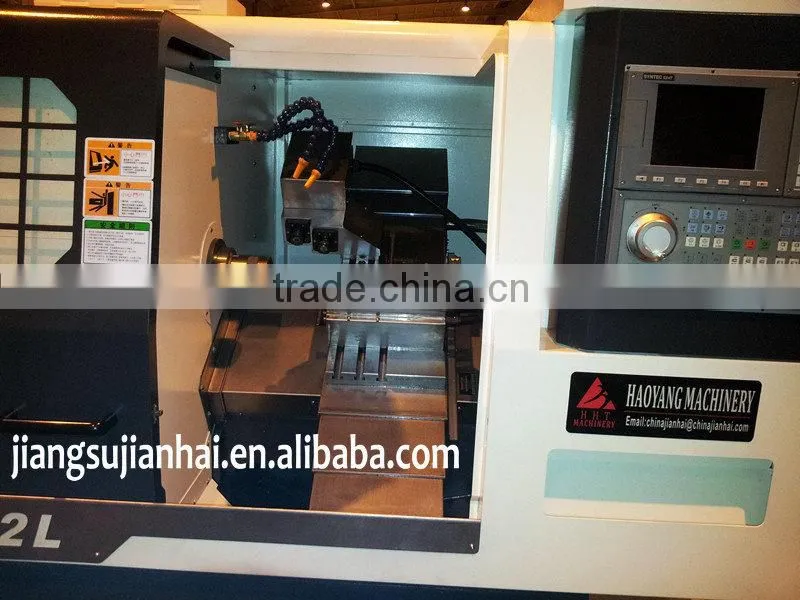

CNC Slant Bed Mini Lathe Machine
We are an industry and combination enterprise with several years’ development. JIANHAI has gained its position of prominence over the years in the field of boring and milling machines for large size components.JIANHAI boring and milling machines can be used in the fields like energy, aerospace, shipbuilding, diesel engine, defense, earthmoving and general mechanics.
We have already passed the ISO9001 and CE authentication. The trade part is the agent of CNC machines like boring machine, CNC Milling Machine, CNC lathe, machining centers and so on. They are known for their strength, construction, durability, low maintenance cost and ease of operation.
We do business with sincerity and honesty, and welcome anyone who wants to establish business relationship with us.
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
Specifications
Hot sale cnc lathe machine
1.High speed 6000rpm

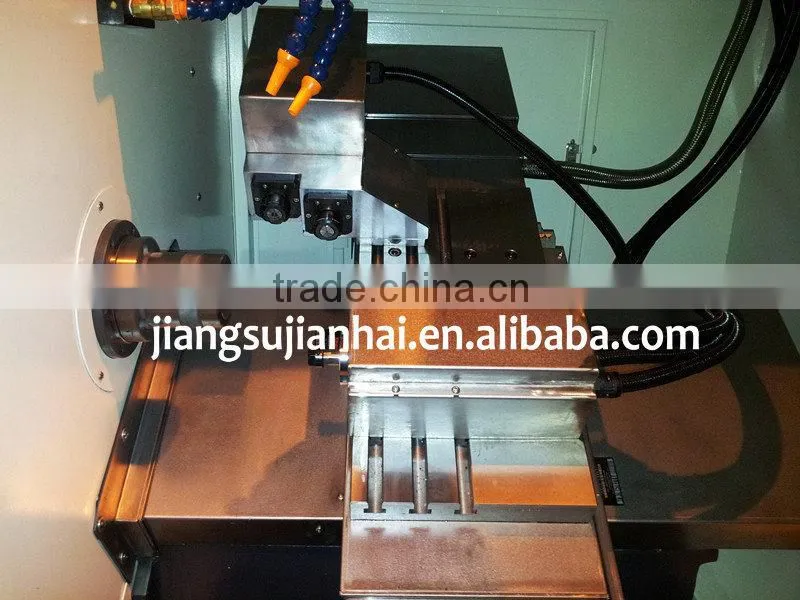

2.Hydraulic Chuck/Turret/Gang tools

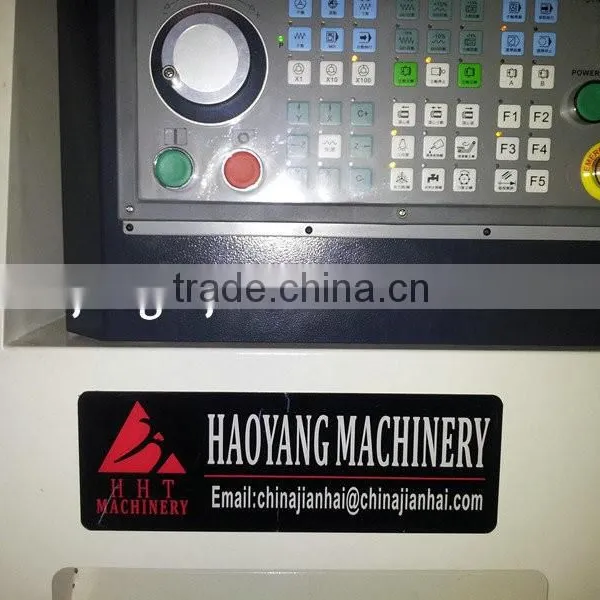

3.SYNTEC/FANUC/SIMENS/MIS
CNC Slant bed Horizontal Lathe Machine
Spec. |
Name |
Unit |

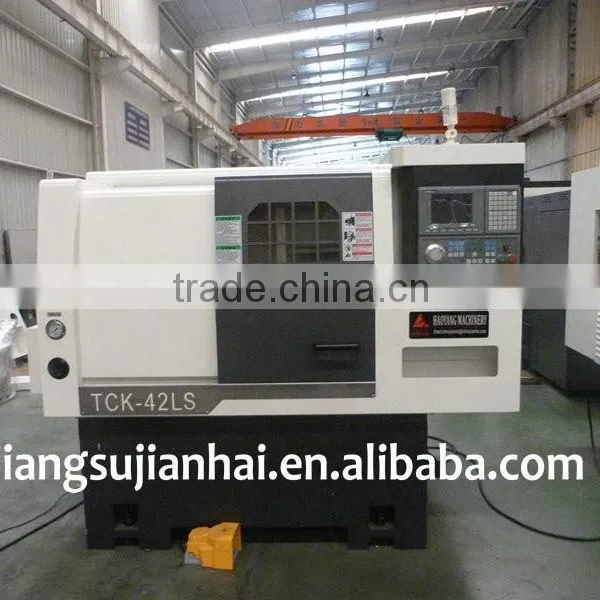

TCK-42LS |
TCK-32L |

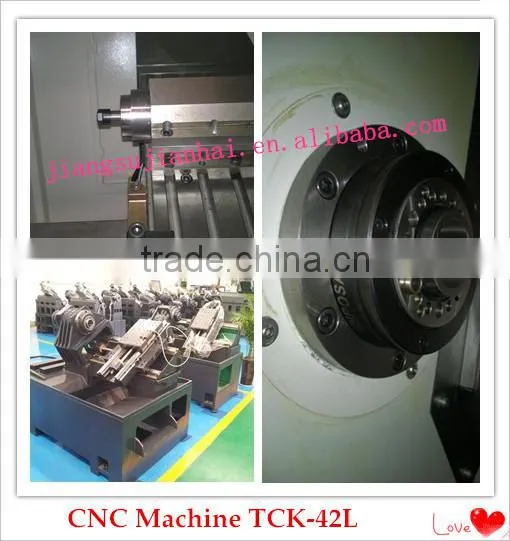

TCK-42L |
TCK-4536P |
Processing range |
Max. swing diameter over bed |
mm |
420 |
350 |
360 |
360 |
Max. processing diameter |
mm |
420 |
320 |
360 |
260 |
|
cessing diameter over toolpost |
mm |
128 |
120 |
126 |
220 |
|
Max. workpiece length |
mm |
330 |
200 |
290 |
280 |
|
Max. hole bore of bar |
mm |
45 |
32 |
45 |
45 |
|
Spindle/cylinder/chuck |
Spindle nose |
/ |
A2-5 |
A2-4 |
A2-5 |
A2-6 |
Spindle bore |
mm |
56 |
42 |
56 |
56 |
|
Spindle speed |
rpm |
5000 |
6000 |
5000 |
4500 |
|
Power of spindle motor |
KW |
5.5/7.5 |
5.5/7.5 |
5.5/7.5 |
5.5/11 |
|
Hydraulic cylinder/chuck |
/ |
6’’ |
5’’ |
6’’ |
8’’ |
|
Feed of X/Z |
Power of motor X |
kw |
1.3 |
0.85 |
1.3 |
1.3 |
Power of motor Z |
kw |
1.3 |
0.85 |
1.3 |
1.3 |
|
X travel |
mm |
480 |
400 |
400 |
280 |
|
Z travel |
mm |
350 |
300 |
300 |
360 |
|
Rapid traverse of X/Z |
mm |
30/24 |
24 |
24 |
12 |
|
Positioning accuracy |
mm |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
|
Repeatability accuracy |
mm |
±0.005 |
±0.005 |
±0.005 |
±0.005 |
|
Type of guideway |
/ |
Linear guideway 35mm |
Linear guideway 30mm |
Linear guideway 30mm |
Hard guideway |
|
Hydraulic turret |
Tool position |
pcs |
Gang type tools |
Gang type tools |
Gang type tools |
Gang type tools |
Square tool holder |
mm |
20 |
20 |
20 |
20 |
|
Round boring tool holder |
mm |
20 |
20 |
20 |
20 |
|
Changing time between neighboring tools |
sec |
0.25 |
0.25 |
0.25 |
0.25 |
|
Dimension |
L×W |
m |
2.55x1.88x1.5 |
2.3x1.6x1.5 |
2.5x1.85x1.4 |
2.8x1.7x1.7 |
Weight |
kg |
2680 |
2400 |
2600 |
3200 |
Spec. |
Name |
Unit |
TCK-4545 |
TCK-4550 |
TCK-4558 |
Processing range |
Max. swing diameter over bed |
mm |
450 |
500 |
580 |
Max. processing diameter |
mm |
450 |
500 |
580 |
|
cessing diameter over toolpost |
mm |
300 |
320 |
360 |
|
Max. workpiece length |
mm |
450 |
580 |
960 |
|
Max. hole bore of bar |
mm |
45 |
75 |
75 |
|
Spindle/cylinder/chuck |
Spindle nose |
/ |
A2-6 |
A2-8 |
A2-8 |
Spindle bore |
mm |
56 |
87 |
87 |
|
Spindle speed |
rpm |
4500 |
3000 |
3000 |
|
Power of spindle motor |
kW |
7.5/11 |
11/15 |
15/18.5 |
|
Hydraulic cylinder/chuck |
/ |
8’’ |
10" |
10’’ |
|
Feed of X/Z |
Power of motor X |
kw |
1.8 |
3 |
3 |
Power of motor Z |
kw |
1.8 |
3 |
3 |
|
X travel |
mm |
230 |
250 |
350 |
|
Z travel |
mm |
500 |
620 |
1120 |
|
Rapid traverse of X/Z |
mm |
20 |
20 |
20 |
|
Positioning accuracy |
mm |
±0.003 |
±0.003 |
±0.003 |
|
Repeatability accuracy |
mm |
±0.005 |
±0.005 |
±0.005 |
|
Type of guideway |
/ |
Linear guideway |
Linear guideway |
Linear guideway |
|
Hydraulic turret |
Tool position |
pcs |
T10 |
T10 |
T10 |
Square tool holder |
mm |
25 |
25 |
25 |
|
Round boring tool holder |
mm |
30 |
40 |
40 |
|
Changing time between neighboring tools |
sec |
0.25 |
0.25 |
0.25 |
|
Tailstock |
Dia. of quill |
mm |
65 |
100 |
100 |
Travel of quill |
mm |
80 |
120 |
120 |
|
Taper of quill |
/ |
MT-5 |
MT-5 |
MT-5 |
|
Dimension |
L×W |
m |
2.8x1.85x1.7 |
3.2x2.0x1.8 |
4.2x2.2x1.85 |
Weight |
kg |
4500 |
4600 |
5900 |
Standard accessories
1.Hollow type hydraulic chuck
2.Standard soft jaw
3.Round boring tool holder
4.Square tool holder
5. Inner hole sleeve
6.Working light
7. Foot switch
8. Guiding light
9. Auto lubrication system
10.Hydraulic system
11.Cooling system
12.Operation manual
13.Maintenance tool
14. SYNTEC Controller
Optional accessories
Auto iron chip conveyor
Blowing device
Auto safety door control
Standard rigid jaw
Parts catcher
Auto bar feeder
Parts conveyor belt
Tool detector
Robot interface
MITSUBISHI/FANUC/SIEMENS Controller
C-axis
Live tooling
If you need more detailed information, please do not hesitate to call us. Or contact at Skype: kevin.8808
