TCK-32L/42L Line Rail Mini CNC Lathe Machine for Sale
US$ 15,800 - 36,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, slant bed
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI or as customers' requests
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TCK-45LS CNC Turning Center, CNC Lathe Machine Tool for Milling and DrillingUS$ 30,000 - 48,800MOQ: 1 Set -
TCK-40L/TCK-45L/TCK-45H Cnc Lathe Machinery Tool Quality ChoiceUS$ 15,000 - 40,000MOQ: 1 Set
-
China TCK-32L Universal Cnc Lathe MachineUS$ 19,000 - 29,000MOQ: 1 Set
-
TCK-42L CNC Mini Lathe Machine, Name of Lathe Machine HHT PriceUS$ 18,600 - 27,300MOQ: 1 Set
-
TCK-40L/TCK-45L/TCK-45H Best Sale Cnc Lathe Machine Metal LatheUS$ 15,000 - 40,000MOQ: 1 Set
Condition
New
Type
Other, slant bed
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
400mm; 450mm
Place of Origin
Yunnan, China
Brand Name
HHT
Model Number
TCK-40L; TCK-40HL
Voltage
220V
Power(W)
as customers' requests
Dimension(L*W*H)
2.0*1.6*1.66m; 2.1*1.7*1.7m
Weight
3000kg; 3200kg
Certification
ISO,CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications:
TCK-32L/42L Line Rail Mini CNC Lathe Machine for Sale :
1. Hydraulic cylinder/chuck: 6’’, 8’’
2. X travel: 210mm; 225+25mm
3. Z travel: 400mm; 610mm
4.Slant bed, CE, ISO
Specifications:
(TCK-40L/TCK-40HL) slant bed hard guideway cnc turning lathe with lathe milling function
Spec. |
Name | Unit | TCK-40L | TCK-40HL |
| Processing range | Max. swing diameter over bed | mm | 400 | 450 |
| Max. processing diameter | mm | 360 | 380 | |
| cessing diameter over toolpost | mm | 170 | 250 | |
| Max. workpiece length | mm | 350 | 500 | |
| Max. hole bore of bar | mm | 45 | 52 | |
| Spindle/cylinder/chuck | Spindle nose | / | A2-5 | A2-6 |
| Spindle bore | mm | 56 | 66 | |
| Spindle speed | rpm | 5000 | 4000 | |
| Power of spindle motor | KW | 5.5/11 | 7.5/15 | |
| Hydraulic cylinder/chuck | / | 6’’ | 8" | |
| Feed of X/Z | Power of motor X | kw | 1.3 | 1.8 |
| Power of motor Z | kw | 1.3 | 1.8 | |
| X travel | mm | 210 | 225+25 | |
| Z travel | mm | 400 | 610 | |
| Rapid traverse of X/Z | mm | 30 | 24 | |
| Positioning accuracy | mm | ±0.005 | ±0.005 | |
| Repeatability accuracy | mm | ±0.003 | ±0.000 | |
| Type of guideway | / | Linear guideway | Hard guideway | |
| Hydraulic turret | Tool position | pcs | 10T | 10T |
| Square tool holder | mm | 20 | 25 | |
| Round boring tool holder | mm | 32 | 32 | |
| Changing time between neighboring tools | sec | 0.25 | 0.25 | |
| Tailstock | Dia. of quill | mm | 65 | 75 |
| Travel of quill | mm | 80 | 80 | |
| Taper of quill | / | MT-4 | MT-4 | |
| Dimension | L×W | m | 2.0x1.6x1.66 | 2.1x1.7x1.7 |
| Weight | kg | 3000 | 3200 |
| Spec. | Name | Unit | TCK-32L | TCK-42L | TCK-42LS |
| Processing range | Max. swing diameter over bed | mm | 350 | 360 | 360 |
| Max. processing diameter | mm | 320 | 360 | 420 | |
| cessing diameter over toolpost | mm | 120 | 126 | 128 | |
| Max. workpiece length | mm | 200 | 290 | 330 | |
| Max. hole bore of bar | mm | 32 | 45 | 45 | |
| Spindle/cylinder/chuck | Spindle nose | / | A2-4 | A2-5 | A2-5 |
| Spindle bore | mm | 42 | 56 | 56 | |
| Spindle speed | rpm | 6000 | 5000 | 5000 | |
| Power of spindle motor | KW | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 | |
| Hydraulic cylinder/chuck | / | 5’’ | 6’’ | 6’’ | |
| Feed of X/Z | Power of motor X | kw | 0.85 | 1.3 | 1.3 |
| Power of motor Z | kw | 0.85 | 1.3 | 1.3 | |
| X travel | mm | 400 | 400 | 480 | |
| Z travel | mm | 300 | 300 | 350 | |
| Rapid traverse of X/Z | mm | 24 | 24 | 30/24 | |
| Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | |
| Repeatability accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |
| Type of guideway | / | Linear guideway | Linear guideway | Linear guideway | |
| Hydraulic turret | Tool position | pcs | Gang type tools | Gang type tools | Gang type tools |
| Square tool holder | mm | 20 | 20 | 20 | |
| Round boring tool holder | mm | 20 | 20 | 20 | |
| Changing time between neighboring tools | sec | 0.25 | 0.25 | 0.25 | |
| Dimension | L×W | m | 2.3x1.6x1.5 | 2.5x1.85x1.4 | 2.5x1.8x1.5 |
| Weight | kg | 2400 | 2600 | 2700 |
| Spec. | Name | Unit | TCK-40L | TCK-40HL |
| Processing range | Max. swing diameter over bed | mm | 400 | 450 |
| Max. processing diameter | mm | 360 | 380 | |
| cessing diameter over toolpost | mm | 170 | 250 | |
| Max. workpiece length | mm | 350 | 500 | |
| Max. hole bore of bar | mm | 45 | 52 | |
| Spindle/cylinder/chuck | Spindle nose | / | A2-5 | A2-6 |
| Spindle bore | mm | 56 | 66 | |
| Spindle speed | rpm | 5000 | 4000 | |
| Power of spindle motor | KW | 5.5/11 | 7.5/15 | |
| Hydraulic cylinder/chuck | / | 6’’ | 8" | |
| Feed of X/Z | Power of motor X | kw | 1.3 | 1.8 |
| Power of motor Z | kw | 1.3 | 1.8 | |
| X travel | mm | 210 | 225+25 | |
| Z travel | mm | 400 | 610 | |
| Rapid traverse of X/Z | mm | 30 | 24 | |
| Positioning accuracy | mm | ±0.005 | ±0.005 | |
| Repeatability accuracy | mm | ±0.003 | ±0.003 | |
| Type of guideway | / | Linear guideway | Hard guideway | |
| Hydraulic turret | Tool position | pcs | 10T | 10T |
| Square tool holder | mm | 20 | 25 | |
| Round boring tool holder | mm | 32 | 32 | |
| Changing time between neighboring tools | sec | 0.25 | 0.25 | |
| Tailstock | Dia. of quill | mm | 65 | 75 |
| Travel of quill | mm | 80 | 80 | |
| Taper of quill | / | MT-4 | MT-4 | |
| Dimension | L×W | m | 2.0x1.6x1.66 | 2.1x1.7x1.7 |
| Weight | kg | 3000 | 3200 |

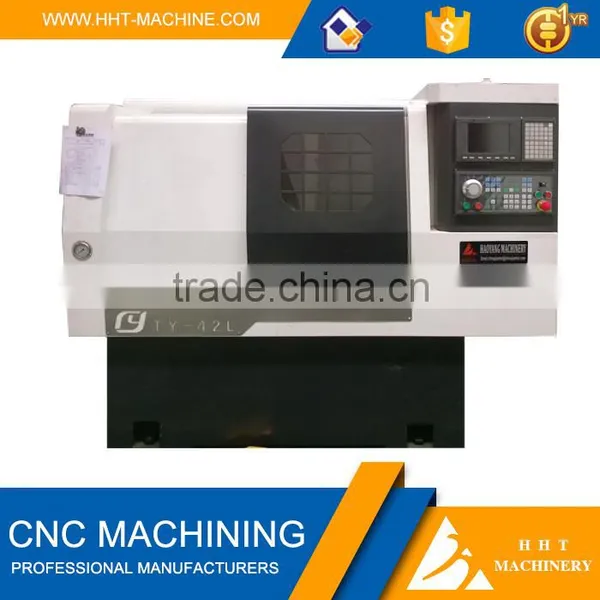

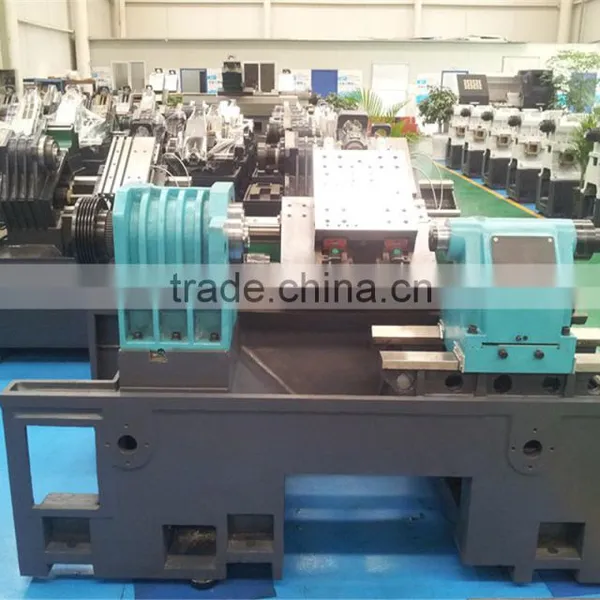

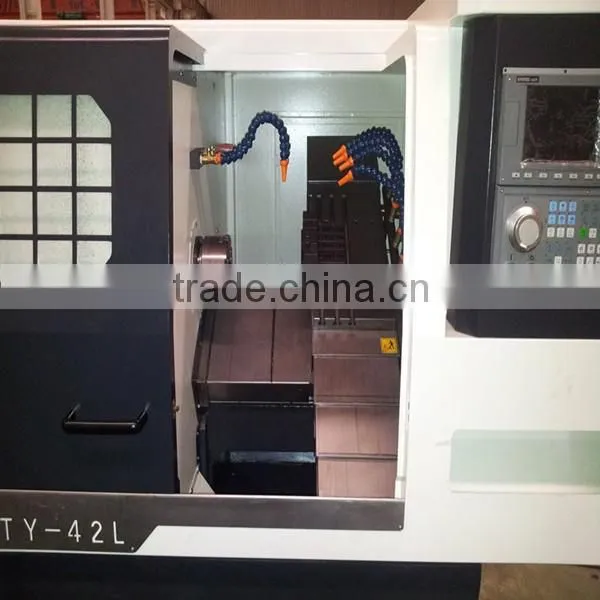

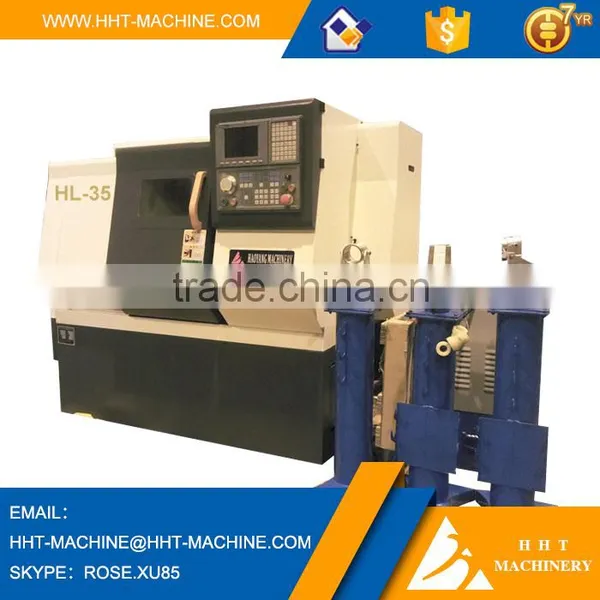

MACHINE PHOTOS:

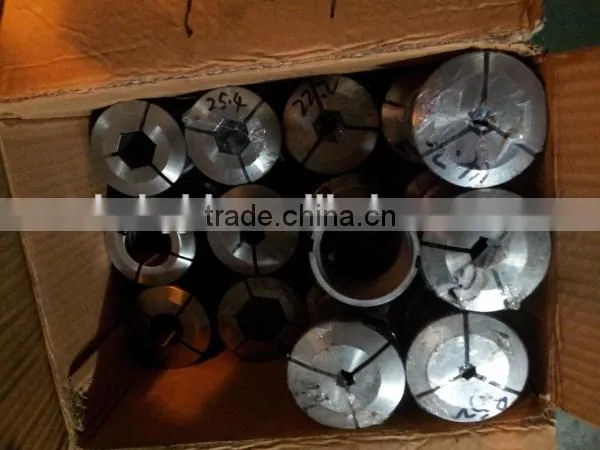

ACCESSORIES SUPPLIERS:
PACKING:
EXHIBITION:
OUR SERVICE:

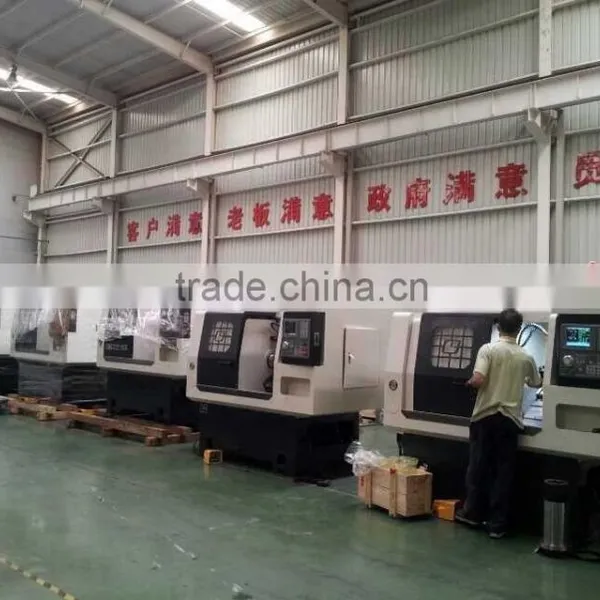

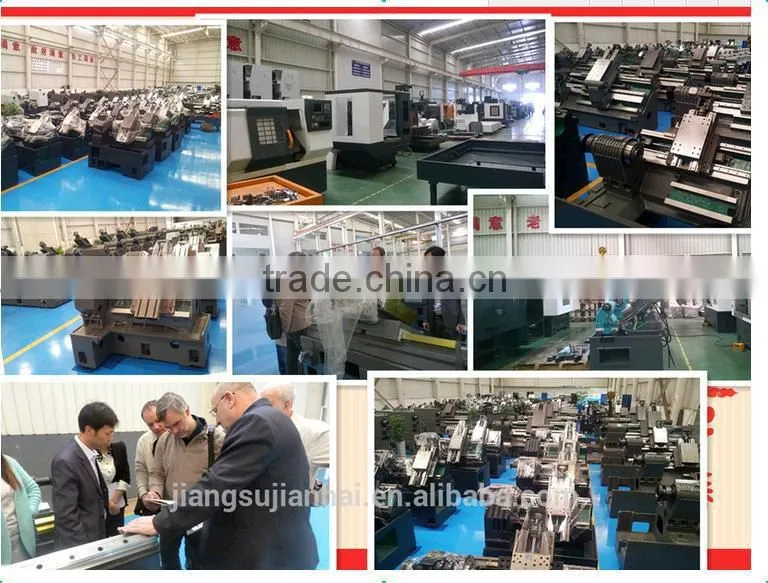

WORKSHOP:

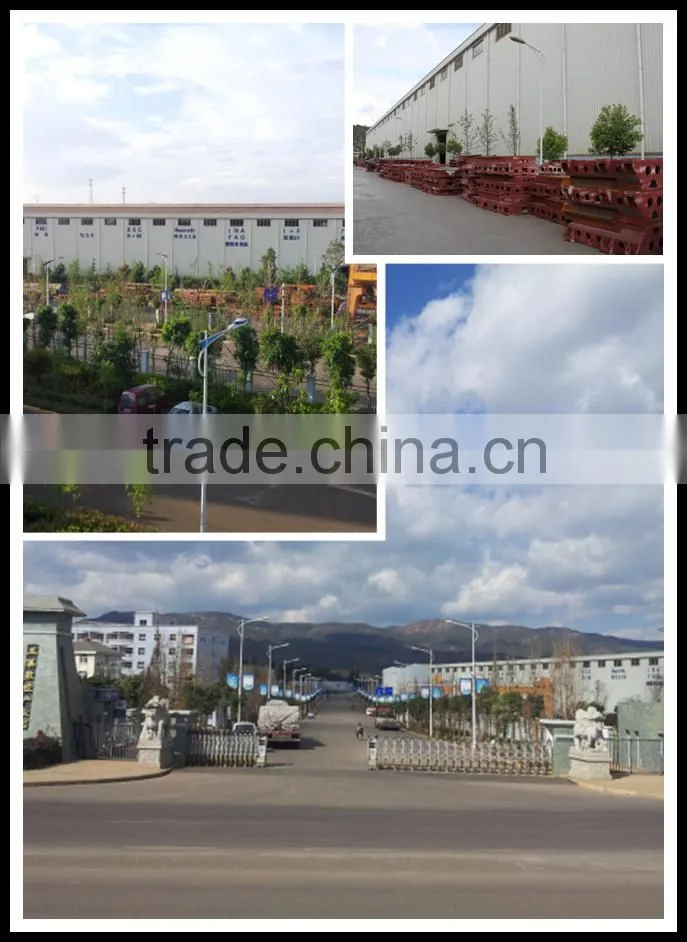

OUR FACTORY:
Company information:
Company Information
HHT Machine is part of a machine tool industry chain; called a 4S alliance.This alliance consists of enterprises focusing on specialized, characteristic and refined machine tools, colleges and research institutes. Those Enterprises include mines, ironworks, casting, machining, functional components supply, equipment and complete machine assembly and sales, after-sales service, research and development and design. HUAIAN HAOYANG MACHINE CO., LTD-HHT MACHINE is the overseas sales link of the alliance,HHT MACHINE mainly includes CNC lathes, CNC machining centers, CNC planer milling machines, CNC planer boring machines and turret milling machines.
If you are interesting in our products, please contact me Linda zuo, my telephone no. is +86 13861572987
