TCK-40L/TCK-45L/TCK-45H cnc lathe machinery tool

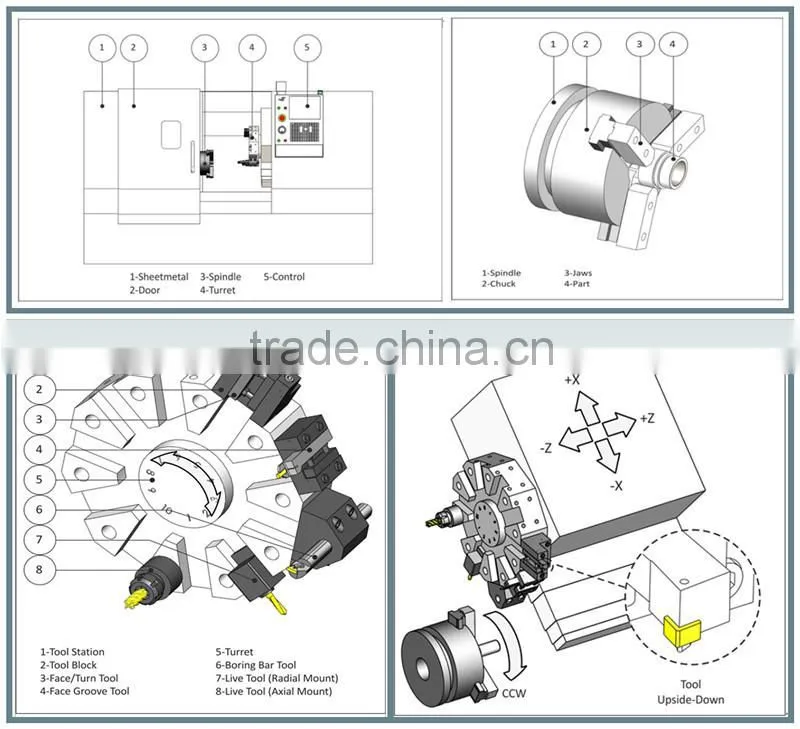

What are the founction of CNC LATHE?
CNC lathes are generally able to do the outer cylindrical, conical surface, spherical and thread processing, and process some complex rotating surface, such as double curved surface. CNC lathe can be mounted C axis and live tooling, greatly enhanced processing capabilities.
Becase of content limit, we can only post some pictures and some models here. Please feel free to contact us for more photos and videos for the machines.
SKYPE:phoebe.chen2011 MOBILE:0086-152 4038 2829
1. what are the specifications for TCK-40L TCK-45L TCK-45H lathe machine cnc slant bed horizontal price ?
Specs |
Name |
Unit |
TCK-40L |
TCK-45L |
TCK-45H |
Processing range |
Max. swing diameter over bed |
mm |
400 |
600 |
600 |
Max. processing diameter |
mm |
360 |
450 |
450 |
|
Max. processing diameter over toolpost |
mm |
170 |
315 |
315 |
|
Max. workpiece length |
mm |
350 |
500 |
500 |
|
Max. hole bore of bar |
mm |
45 |
52 |
52 |
|
Spindle cylinder/chuck |
Spindle nose |
/ |
A2-5 |
A2-6 |
A2-6 |
Spindle bore |
mm |
56 |
66 |
66 |
|
Spindle speed |
rpm |
5000rpm |
4500rpm |
4500rpm |
|
Power of spindle motor |
kw |
5.5/11 |
11kw/15KW |
11kw/15KW |
|
Hydraulic 3 jaw chuck |
/ |
6’’ |
8" |
8" |
|
Feed of X/Z |
X axis motor power |
kw |
1.3 |
1.8 |
1.8 |
Z axis motor power |
kw |
1.3 |
1.8 |
1.8 |
|
X axis travel |
mm |
210 |
225 |
225 |
|
Z axis travel |
mm |
400 |
600 |
600 |
|
X/Z axis Rapid traverse |
mm/min |
30 |
24 |
24 |
|
Positioning accuracy |
mm |
±0.005 |
±0.005 |
±0.005 |
|
Repeatability accuracy |
mm |
±0.003 |
±0.003 |
±0.003 |
|
Type of guideway |
/ |
Linear guideway |
Linear Guideway |
Hard Guideway |
|
Hydraulic turret |
Tool position |
pcs |
10T |
12T |
12T |
Square tool holder |
mm |
20 |
25 |
25 |
|
Round boring tool holder |
mm |
32 |
40 |
40 |
|
Changing time between neighboring tools |
sec |
0.25 |
0.25 |
0.25 |
|
Tailstock |
Dia. of quill |
mm |
65 |
75 |
75 |
Travel of quill |
mm |
80 |
100 |
100 |
|
Taper of quill |
/ |
MT-4 |
MT-4 |
MT-4 |
|
CNC Controller |
CNC Controller |
/ |
SYNTEC |
SYNTEC |
SYNTEC |
Dimension |
L×W |
m |
2.0x1.6x1.66 |
2.45x1.85x1.76 |
2.45x1.7x1.38 |
Weight |
kg |
3000 |
3800 |
3800 |
2. what are the accessories for TCK-40L TCK-45L TCK-45H lathe machine cnc slant bed horizontal price ?
No. |
STANDARD ACCESSORIES |
OPTIONAL ACCESSORIES |
1 |
Full closed sheet metal |
Automatic safety door |
2 |
Hollow hydraulic chuck |
Simple parts catcher |
3 |
Hydraulic turret |
Hydraulic bar feeder |
4 |
Round boring tool holder |
Air blast device |
5 |
Square tool holder |
Auto chip conveyor |
6 |
Integral structure spindle |
Automatic safety door |
7 |
Outside hydraulic system |
Simple parts catcher |
8 |
Cooling system |
|
9 |
Auto lubrication system |
|
10 |
Work completion light |
|
11 |
Energy-save work light |
|
12 |
Foot switch |
|
13 |
Operation manual |
|
14 |
System manual |
|
15 |
Repair tools |
|
16 |
CNC Controller-SYNTEC |
|
Wooden box, or as per customers' requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully.
Wooden cases are made of fumigated material and special ordered according to the sizes of different machines. Suitable for transportation and land.
a. Engineers available to customers’ place
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support

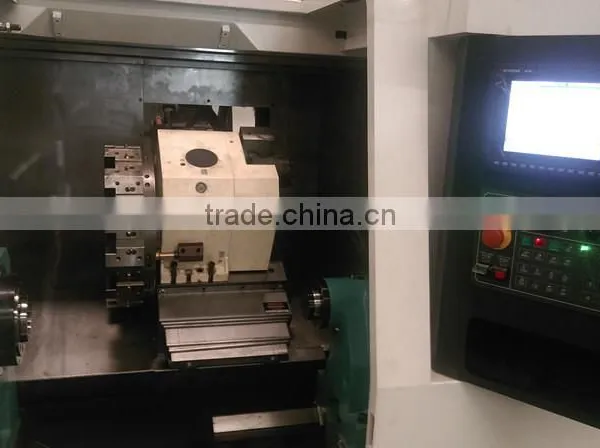

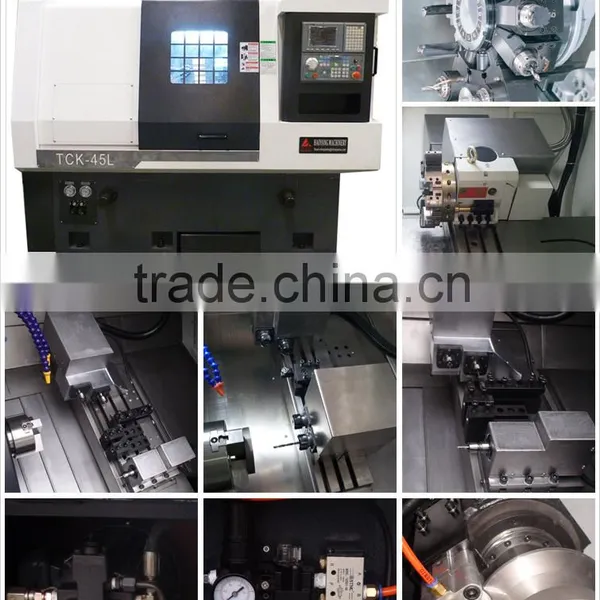

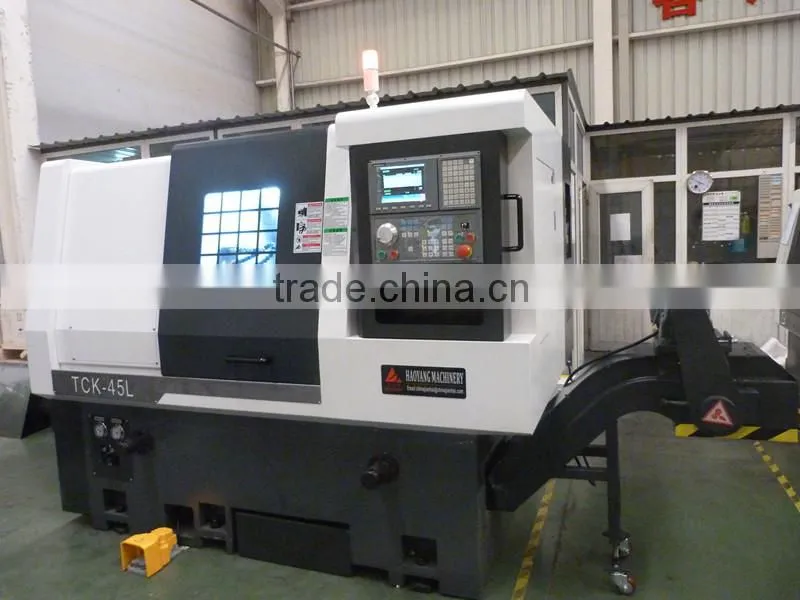

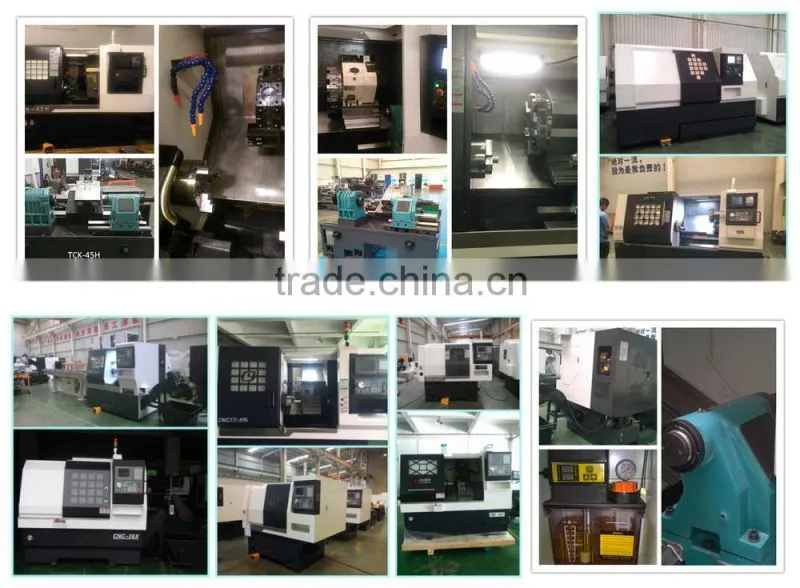

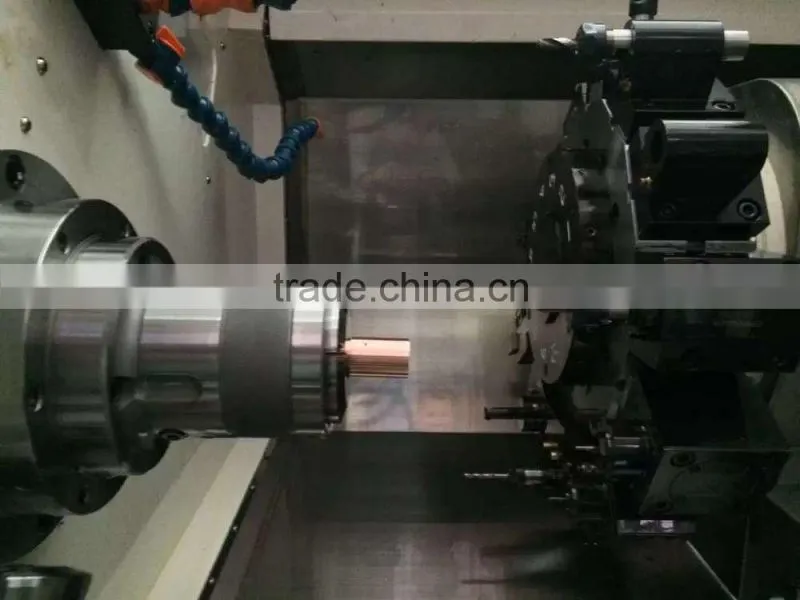

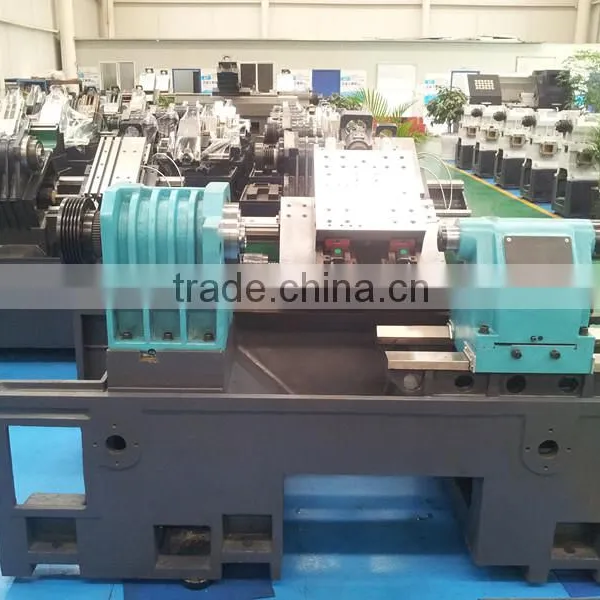

More photos for our CNC SLANT BED LATHE MACHINES

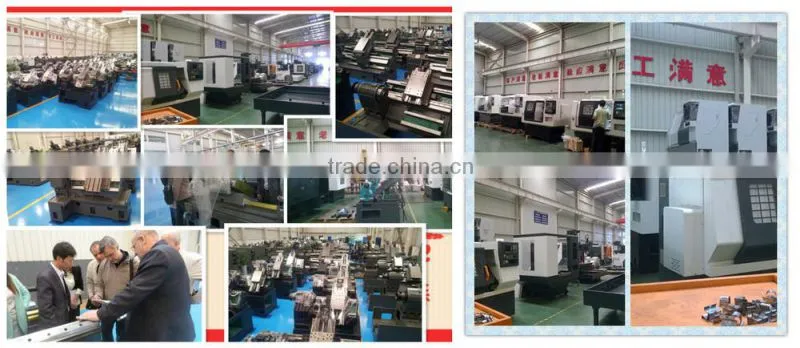

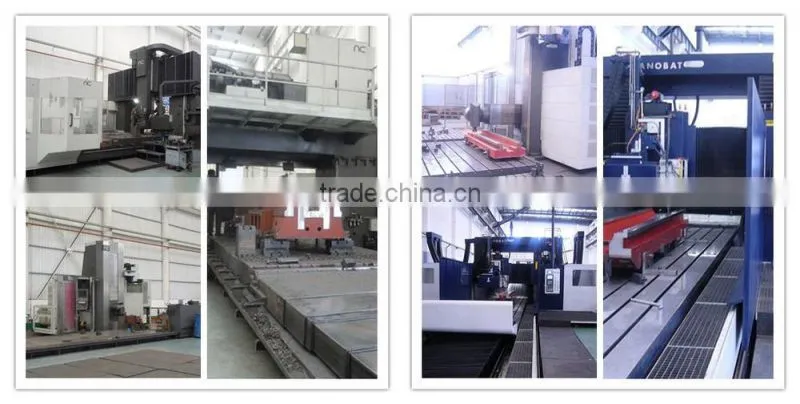

Photos for the machines we use for our production, imported from Italy and Spain

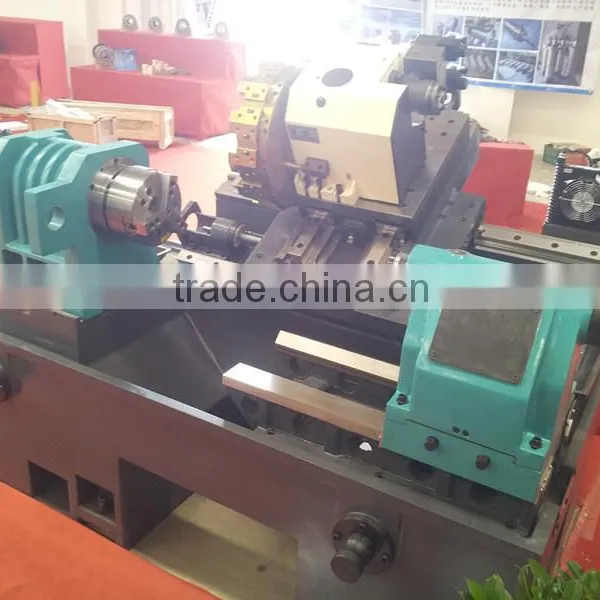

PHOTOS AT EXHIBITIONS
what are the advantages for our TCK-40L TCK-45L TCK-45H lathe machine cnc slant bed horizontal price ?

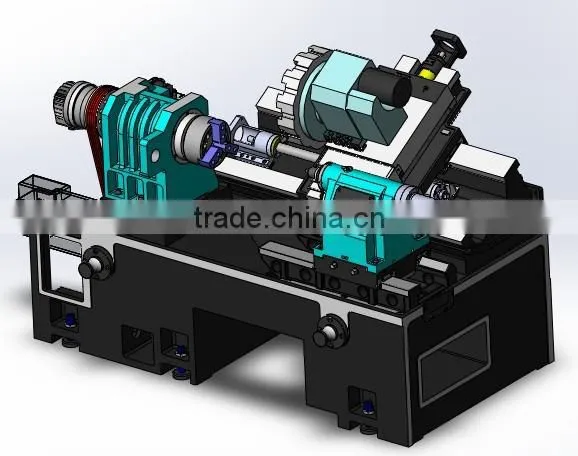

45 degree slant design provides smooth chip disposal and easier operator access.
Stainless steel way covers and special steel wipers molded with industrial strength rubber are used for durability.
Fully enclosed splashguards keep chips and coolant contained for a safe clean working environment.
The auto lubrication system delivers metered amounts of lubrication to the slide ways, ball screws, and vital components.
PRECISION CUTTING CAPABILITY
The spindle inside the headstock is supported by two high precision angular contact ball bearings and a single row roller bearing. The span between bearings is optimized to sustain radial, axial and varyingly compound loads. All these features make it meet the requirements of high speed and precision cutting.

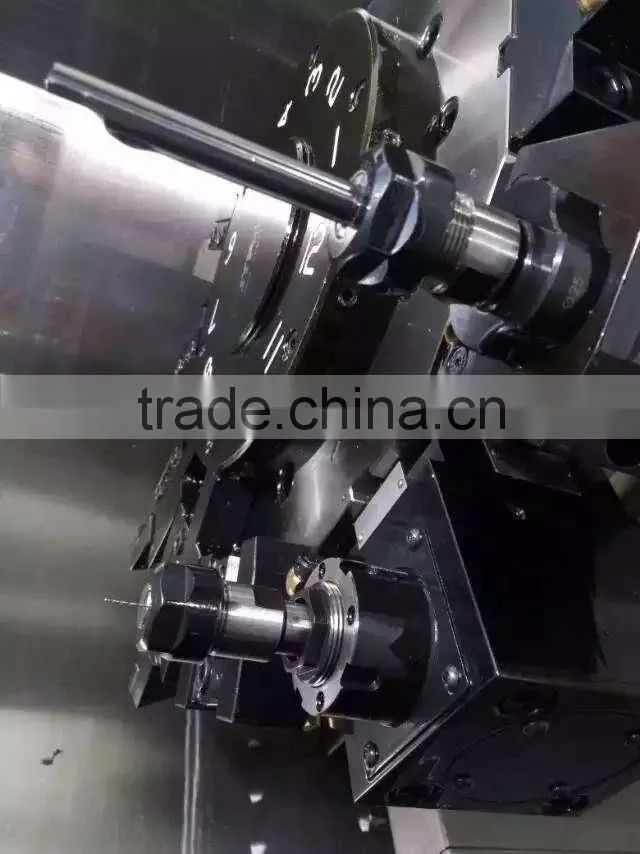

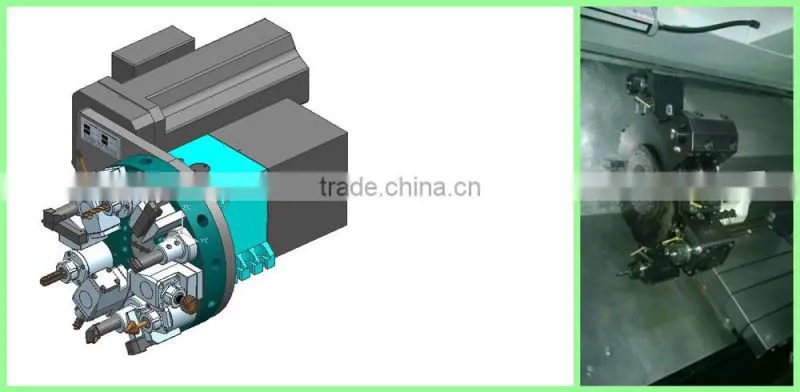

ADVANCED TURRET TECHNOLOGY
HIGH SPEED CNC TURNING CENTERS

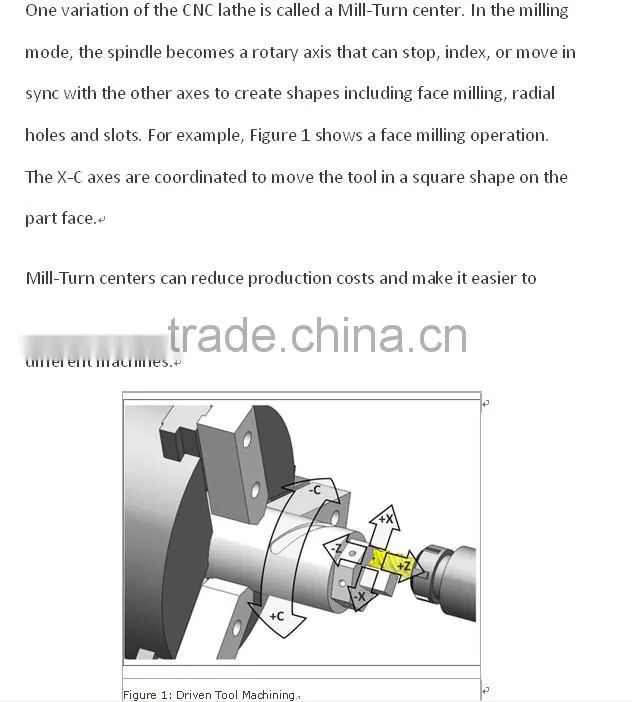

These high speed machines will easily accomplish the demanding turning applications of today and tomorrow. Furthermore, with available live tooling and C-axis capabilities; milling, turning applications may be completed in one single machine.

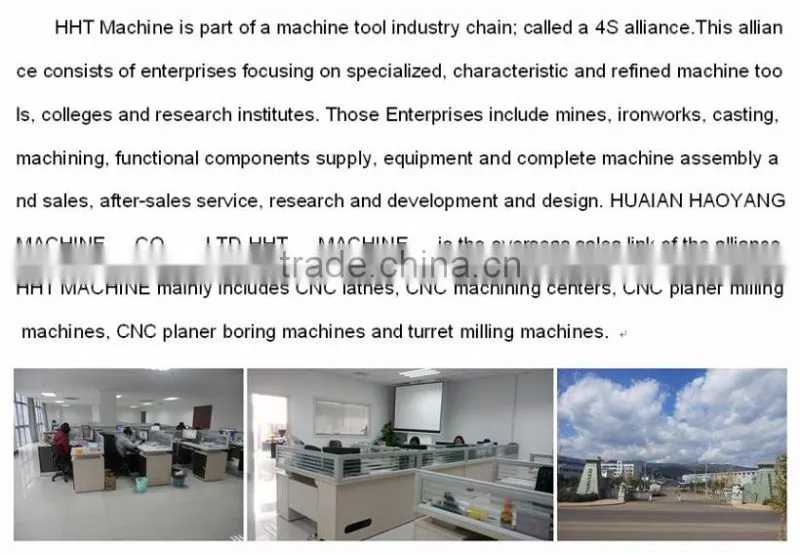

With years of development, we have entered into international market and gain good reputation for our machines.
In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.
Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.
And if you have any requirements, please let us know. We will try our best to meet your requirements.
We are looking forward to establish long-term business relationship with you!
Q1: how to buy the machines from your company?
A1: 1) please send your inquiry from the bottom of the page, or please call us directly. 2) We will discuss more details after getting in touch with each other.
3) Then we send you INVOICE with our bank account and you pay the money;
4) We start production as soon as we get the money;
5) We deliver the machine by sea to the port in your country.
Q2: what is your payment term?
A2: we prefer 30% TT as deposit and 70% TT before sending machine.
Q3: what is your warranty for the machine?
A3: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
Q4: Can we visit your factory?
A4: of course! You are the most welcome to visit our factory and check the machines in person. Please let us know your plan before you come, and we will pick you up in the airport or at station.
Q5: Do we need to install the machines?
A5: For small machines like VMC and CNC Lathe, there is no need to install. We will send the machines as whole part. For large machines, like Gantry Milling machines and Boring Milling machines, you need to install the machines, or we will send our engineers to your place for installation, if it is necessary.
Q6: How do we get the training for the machines?
A6: You can send your people to our factory and we will offer training free of charge; or we can send our engineer to our place.
Q7: What is the payment term?
A7: we prefer 30% T/T as down payment, and 70% T/T before shipment.
