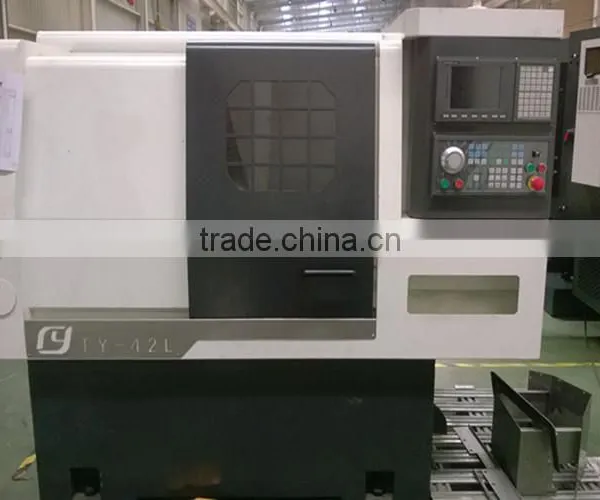

TCK-42L CNC Mini Lathe Machine, Name of Lathe Machine HHT Price
Main Features:
1. TCK-42L use 30º inclined type layout, intregrated bed and based with cast iron structure, enhance the integratal rigidity and stability of the machine tool, improve the quality of workpiece, has higher performance price ratio.
2. CNC lathe can be mounted C axis and live tooling, greatly enhanced processing capabilities.
3. CNC lathes are generally able to do the outer cylindrical, conical surface, spherical and thread processing, and process some complex rotating surface, such as double curved surface.
Main Specification:
| Model | Unit | TCK-42L |
| Max. swing dia. | mm | 360 |
| Max. processing dia. | mm | 360 |
| Max. processing dia. on the knife | mm | 126 |
| Max. processing length | mm | 290 |
| Max. bar dia. | mm | 45 |
| Spindle nose | / | A2-5 |
| Spindle hole dia | mm | 56 |
| Max. spindle speed | rpm | 5000 |
| Spindle motor power | kw | 5.5/7.5 |
| Hydraulic cylinder/ chuck | / | 6" |
| X motor power | kw | 1.3 |
| Z motor power | kw | 1.3 |
| X travel | mm | 400 |
| Z travel | mm | 300 |
| X/Z axis moving fast | m/min | 24 |
| Positioning accuracy | mm | -0.005 |
| Repeat positioning accuracy | mm | -0.003 |
| Slide rail type | / | Liner guideway 30mm |
| Tool position | pcs | Gang |
| The knife block specification | mm | 20 |
| Circular cutter holder specification | mm | 20 |
| The adjacent tool change time | sec | 0.25 |
| LxW | m | 2.5*1.85*1.4 |
| Weight | kg | 2600 |

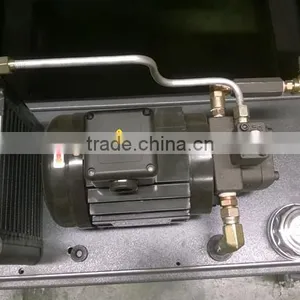

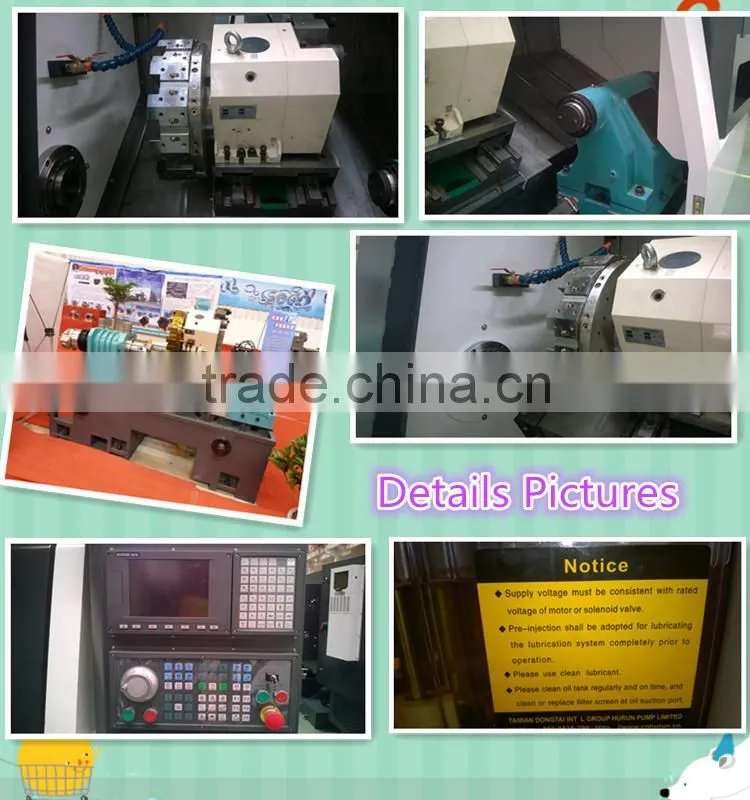

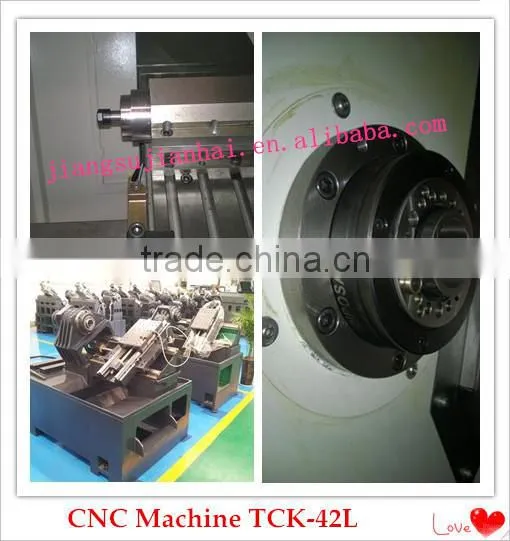

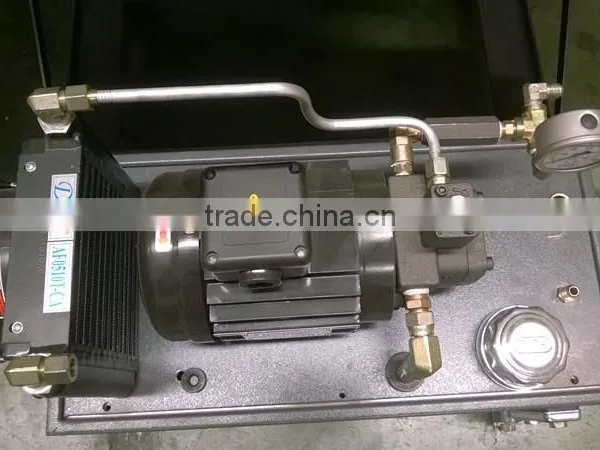

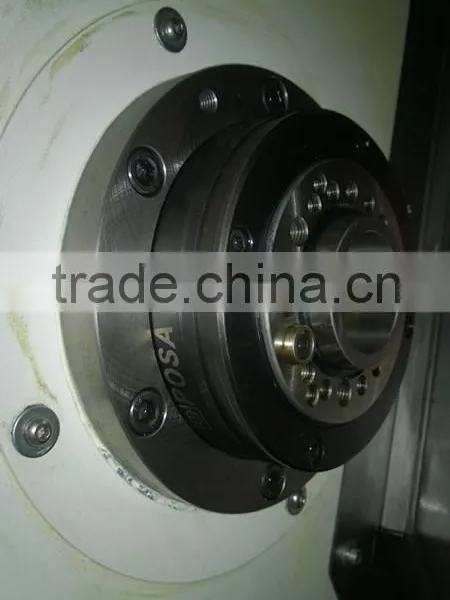

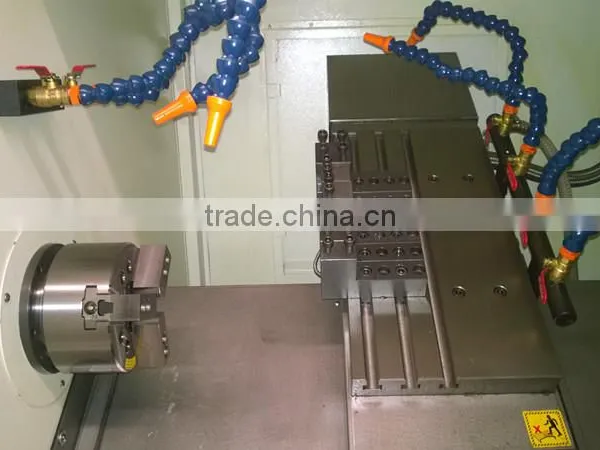

Inner Structure:

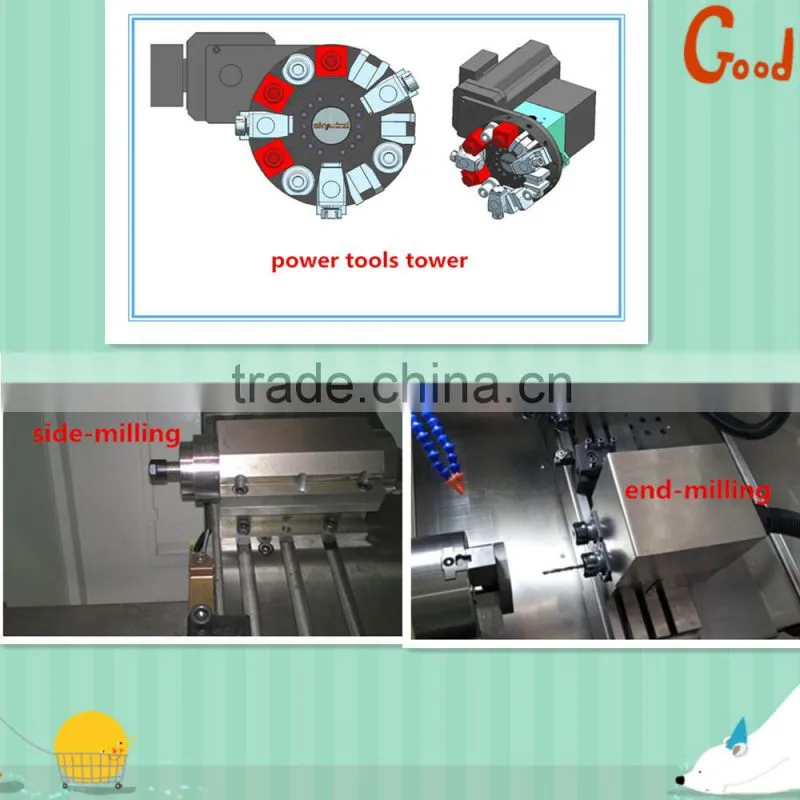

Living Tools:
Our Package:

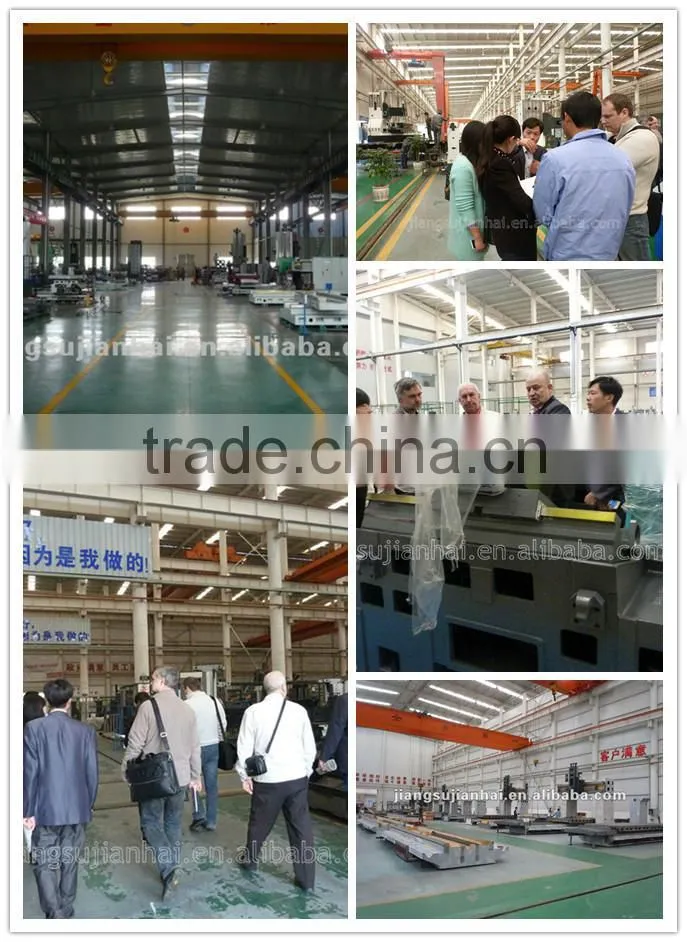

Our Factory:
High Quality High Efficiency Technology Innovation
The Reasons for Choosing us
1.Excellent after-sale-service
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
2. High quality
The main parts of our machines are imported from Japan, Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
The Other Matters
1. Delivery Date:
It will be confirmed when you make the order.
2. Payment Terms:
2.1. 30% Deposit by TT before production and 70% payment by TT before shipment;
2.2.30% deposit by TT before production and 70% L/C at sight before shipment;
2.3.100% L/C at sight.
If you are interested in our machine, please call us, we are glad to be of service!
