Anchor drilling machine
extensive components MGQ--30
small drilling rig easy to operate in tunnel

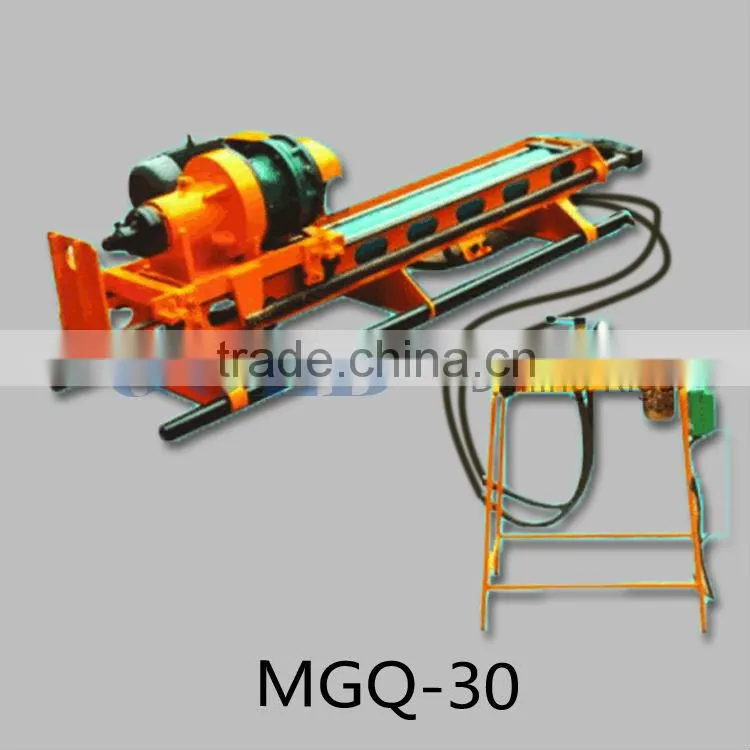

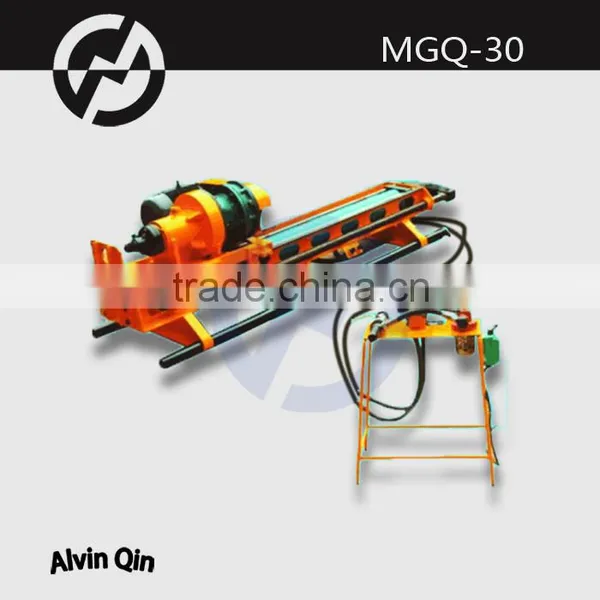

MGQ-30 hydraulic anchoring drilling rig is mainly used in treating the disaster of landslide,rockslide so on,also used in rock anchoring,anchoring bar,strengthening retainingwll,supporting in deep foundation pit,mini-pile hole drilling,hydrography well drilling and high pressure jet-grouting for hydroelectric powerstation,communication,energy and capital construction.
| drilling capacity | hole dia Φ65mm,depth 40m | |
| hole dia Φ130mm,depth 30m | ||
| pneumatic pressure(Mpa) | 0.5~1.2 | |
| top-head speed(r/min) | 35 | |
| top-head torque(N.m) | 1027 | |
| max pull force(N) | 24000 | |
| max feed force(N) | 22000 | |
| max stroke(mm) | 1200 | |
| angle range | -90°~90° | |
| overal dimension of drill body(L*W*H)mm/weight(kg) | 2000×805×646/295 | |
| dimension of operation desk(L*W*H)mm/weight(kg) | 636×430×700/25 | |
| Power unit(electric motor) | model | Y112M-4 |
| power(kw) | 4 | |
| speed(r/min) | 1440 | |
1.Core Drilling Machine 2.Water Well Drilling Machine 3.Anchoring Drilling Rig
4.Down-the-hole Drilling Machine 5.Underground Drilling Rig 6.Horizontal Directional Drilling Rig
