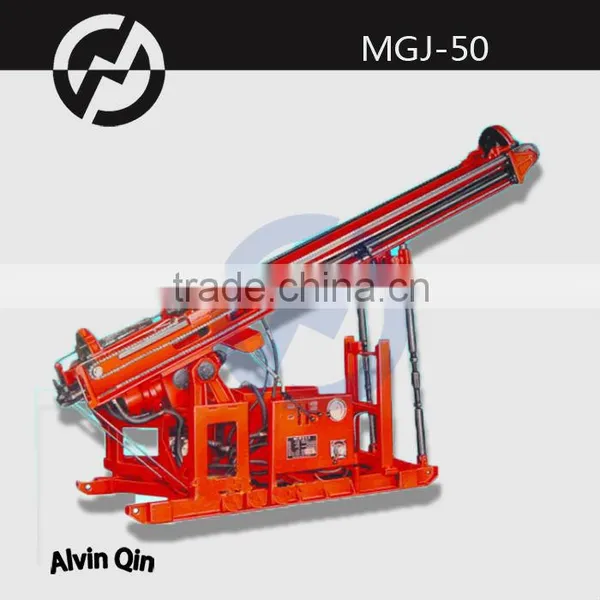

Horizontal anchor drilling rig MGJ-50 is mainly used for soil and rock anchoring, consolidating and strengthening foundation of highway and dam and retaining wall, preventing soil and rock from collapsing, supporting in deep foundation pit, pin timbering in underground engineering and handling the foundation of skyscraper.
1. The rig structure compact, light weight and detachable, convenient move andposition; adopts full hydraulic control, flexible operation Time saving, labor saving, and remote operation.
2. The use of low speed and high torque motor, so that the machine stable performance, reliable, long life.
3. This machine applicable range, drilling ability; power head stroke length, high drilling efficiency.
4. Power head and the guide rail adopts a new wear-resistant plate, guide railabrasion.
5.This machine drilling angle range 5 to 360 degrees. Track along the chassis frame and sliding, convenient, reliable drilling location.
6. The machine is suitable for various drilling methods.
| No. | Project name | Unit | Numerical |
| 1 | Drilling capacity | mm | 150 – 250 |
| 2 | Drilling hole dia. | m | 100-50 |
| 3 | Angle reange | 0°~ 360° | |
| 4 | Dynamic output speed | r/min | 46 |
| 5 | Dynamic output torque | N.m | 3700 |
| 6 | Power head max. feeding force | kN | 44 |
| 7 | Spindle max. pull force | kN | 63 |
| 8 | Power head max. stroke | mm | 1800 |
| 9 | Power head rotary hydraulic system | Quantitative gear pump + quantitative oil motor | |
| 10 | Feeding hydraulic system | Quantitative gear pump+Cylinder chain speed mechanism 5 | |
| 11 | The rated pressure of hydraulic system | Mpa | 20 |
| 12 | Electric power Y180L-4 | kW | 22 |
| 13 | Overal diamensions (l×b×h) | mm | 2900×1000×1320 |
| 14 | Drilling weight | kg | 950 |
| 15 | Power diamensions (l×b×h) | mm | 1340×880×1256 |
| 16 | Power weight(kg) | kg | 450 |
| 17 | Operation panel diamensions(l×b×h) | mm | 550×500×600 |
| 18 | Operation panel weight | kg | 60 |
1.Core Drilling Machine 2.Water Well Drilling Machine 3.Anchoring Drilling Rig
4.Down-the-hole Drilling Machine 5.Underground Drilling Rig 6.Horizontal Directional Drilling Rig
