600m XYX-3 China Machinery Supplier Water Well Drilling Rig Used for Wells

600m XYX-3 China Machinery Supplier Water Well Drilling Rig Used for Wells thumbnail-1
600m XYX-3 China Machinery Supplier Water Well Drilling Rig Used for Wells thumbnail-2
600m XYX-3 China Machinery Supplier Water Well Drilling Rig Used for Wells thumbnail-3
600m XYX-3 China Machinery Supplier Water Well Drilling Rig Used for Wells thumbnail-4
600m XYX-3 China Machinery Supplier Water Well Drilling Rig Used for Wells photo-1

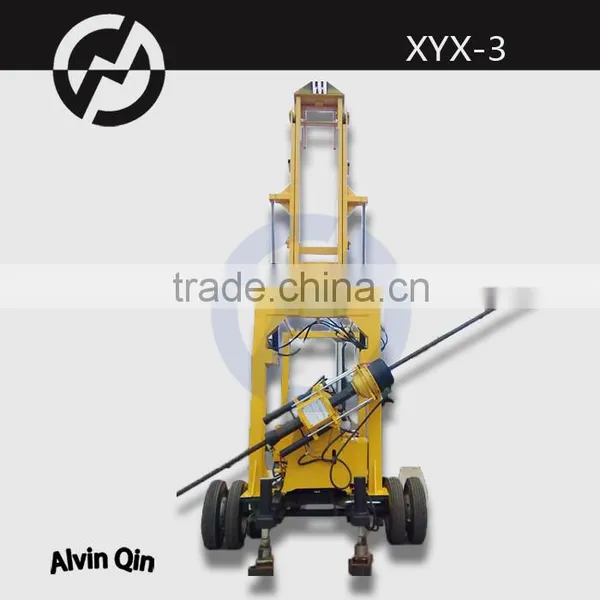

600m XYX-3 China Machinery Supplier Water Well Drilling Rig Used for Wells photo-2
600m XYX-3 China Machinery Supplier Water Well Drilling Rig Used for Wells photo-3
600m XYX-3 China Machinery Supplier Water Well Drilling Rig Used for Wells photo-4
US$ 16,750 - 16,750 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, water well drilling machine
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Huobo Surveying Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, water well drilling machine
Power Type Diesel
Place of Origin China
Brand Name Gold water well drilling rig
Model Number XYX-3 water well drilling rig
Usage Other, water well drilling rig
Voltage 380v
Power(W) 37kw
Dimension(L*W*H) 3800*2000*2600mm
Weight 4500kg
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Highly compacted water well drilling machine XYX-3

Widely used in any situation

Best Choice for your projects!!!

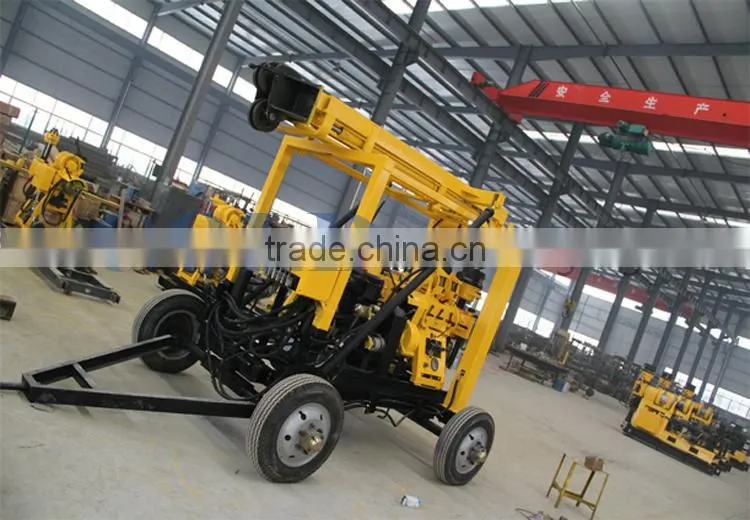

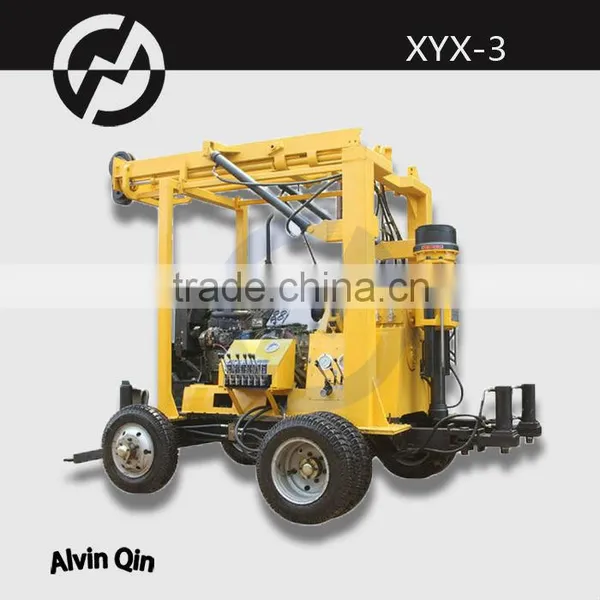

Pictures of Product

600m XYX-3 China machinery supplier water well drilling rig used for wells

Specifaction



Drilling       depth                              m 100 250 300 600
Drilling  DI                        mm 300 200 150 75
Open hole DI mm 300
End hole  DI                         mm 75
Drilling rod                                mm Φ60
Drilling angle                              90°-65°
Rotary Spindle
Spindle forward speed                  r/min 30-1050
Spindle reverse speed                  r/min 29-137
Spindle stroke                             mm 560
Spindle inner diameter                  mm 96
Spindle lifting capacity              KN 60
Main Winch  ( drive hydraulic system)
Single line lifting speed                 m/min 0-45
Hug floodgate belt width                    mm 90
Tightrope diameter                         mm 14
Hoist single line lifting capacity       KN 40
Roller diameter                              mm 200
Roller cubic measure                        m 30
Gear Oil pump
Duplex gear oil pump           CBF-F63/25
Front displacement,pressure            63mL/r    20Mpa
Behind displacement,pressure          25mL/r    20Mpa
Drilling rig Power
Diesel engine                              Hp    R4105ZD    50HP
Electric motor                                 KW    Y180L-4      22KW

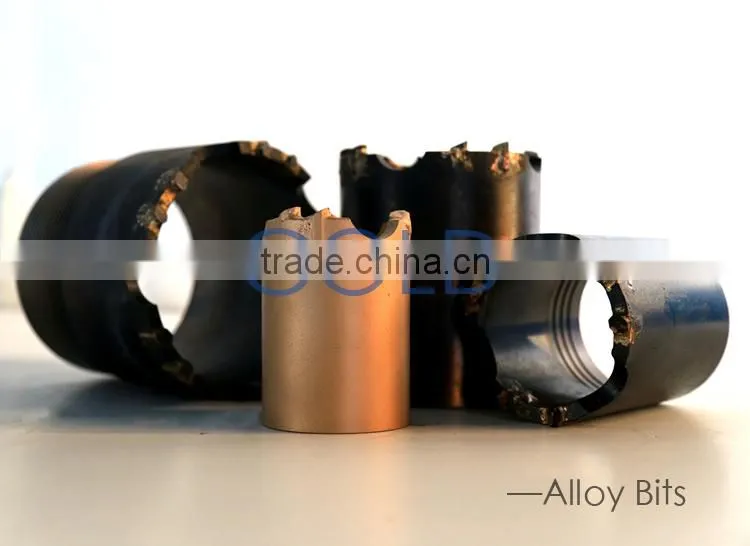

Accessories

600m XYX-3 China machinery supplier water well drilling rig used for wells600m XYX-3 China machinery supplier water well drilling rig used for wells600m XYX-3 China machinery supplier water well drilling rig used for wells

Main Types



600m XYX-3 China machinery supplier water well drilling rig used for wells           600m XYX-3 China machinery supplier water well drilling rig used for wells           600m XYX-3 China machinery supplier water well drilling rig used for wells

      1.Core Drilling Machine                   2.Water Well Drilling Machine                   3.Anchoring Drilling Rig







600m XYX-3 China machinery supplier water well drilling rig used for wells           600m XYX-3 China machinery supplier water well drilling rig used for wells           600m XYX-3 China machinery supplier water well drilling rig used for wells

4.Down-the-hole Drilling Machine            5.Underground Drilling Rig          6.Horizontal Directional Drilling Rig

Packaging & Shipping

600m XYX-3 China machinery supplier water well drilling rig used for wells

Our Company View

600m XYX-3 China machinery supplier water well drilling rig used for wells



Our Team

Contact Us

600m XYX-3 China machinery supplier water well drilling rig used for wells
